Is there an xDrive version of the SPL TR G8X tension rod?

The source material and SPL's own product listing confirm this part is RWD only; no xDrive tension rod under the TR G8X part number is currently listed. If you have a G8X M3 or M4 with xDrive, confirm with SPL Parts directly whether a compatible tension rod is available for the AWD platform before ordering.

How does the SPL TR G8X differ from the SPL TR E9X or TR F3X tension rods for older BMW platforms?

All three tension rods share the same core design philosophy; hardened JMX FK rod ends, 2024 aluminum billet construction, ASTM A574 hardware, anti-dive spacers, and a rotating clamp system. The key difference is that each is engineered for the specific front subframe geometry and tension rod mounting configuration of its respective platform; the G8X, E9X/E8X/F8X, and F2X/F3X all have different mounting geometries. These parts are platform-specific and not interchangeable across generations.

Why are JMX hardened rod ends specified here instead of standard FK rod ends?

The tension rod is one of the highest-loaded positions in the front suspension. It operates under continuous tension from caster forces during normal driving and experiences higher-magnitude loads during hard braking when the forward momentum of the wheel is resisted by the tension rod. The standard FK rod end is not the correct specification for this load profile. The JMX is a hardened version of the FK rod end with higher tensile strength in the body itself, providing greater durability under the sustained and peak loads this position generates.

What does anti-dive geometry adjustment actually change on the G8X M3 and M4?

Anti-dive geometry describes how much the front suspension resists compressing under braking force. More anti-dive means the front end stays flatter under hard braking, maintaining better front tire contact with the road and improving brake stability at corner entry. Less anti-dive allows more nose dive, which some drivers prefer for feel. The stainless steel spacers in the TR G8X allow this to be tuned at the tension rod's subframe connection by changing the effective geometry angle at that point; independent of the caster setting, giving builders an additional variable to optimize for specific track or driving conditions.

Does adding the SPL TR G8X pair well with the SPL caster rod bushings for the G8X?

Yes. The caster rod monoball bushings and the tension rod target different points in the front caster adjustment system. The caster rod bushings replace the rubber inserts in the caster rod arms and add caster adjustment range at that connection. The tension rods replace the tension rod arm itself and add range at the subframe connection. Running both together provides maximum front caster adjustment capability and eliminates rubber deflection at both front caster-influencing connection points simultaneously.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

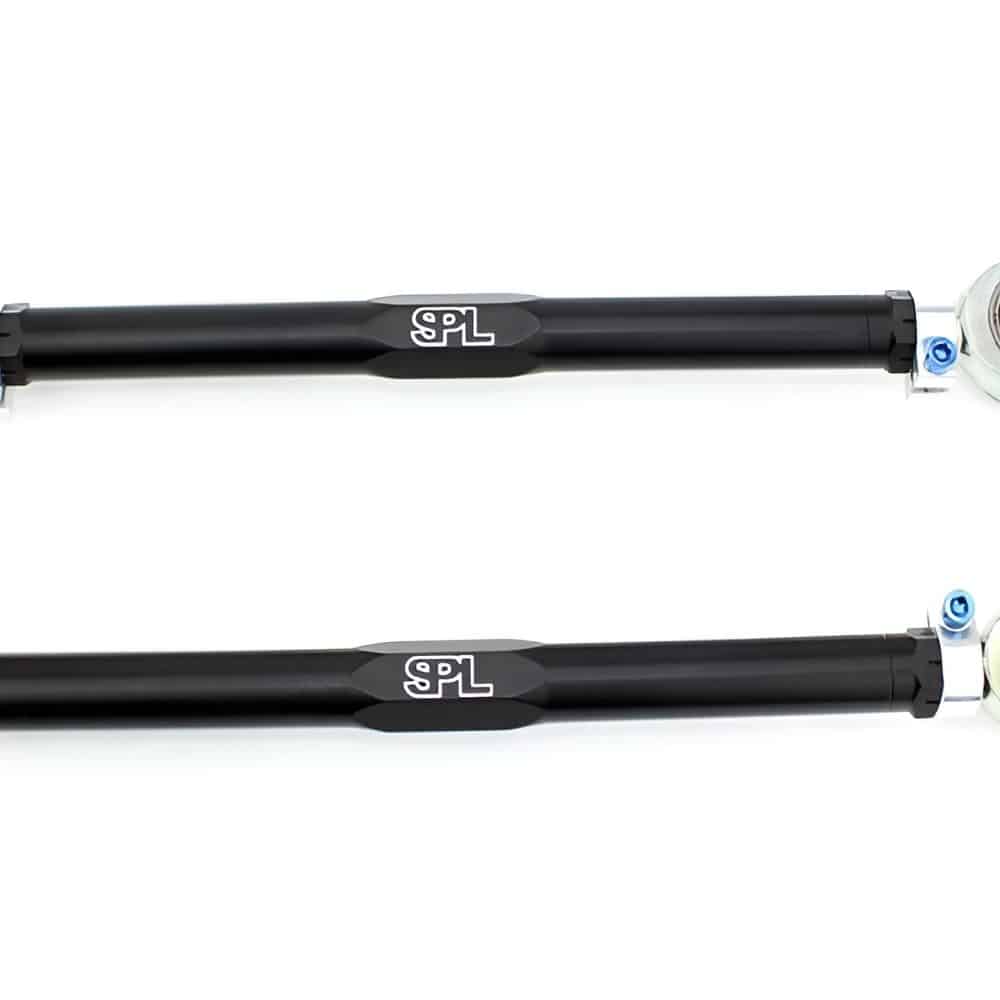

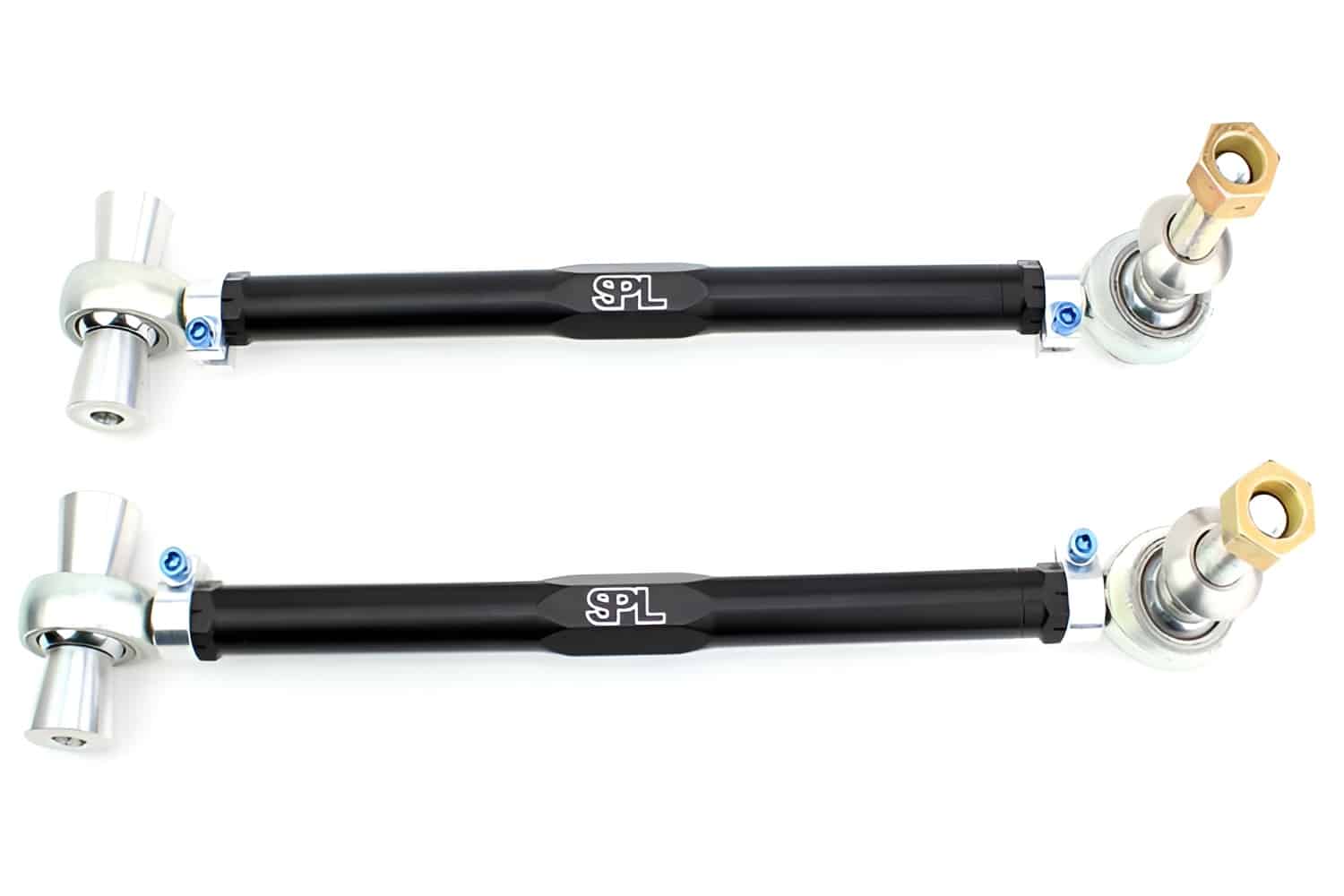

SPL Parts Adjustable Front Tension Rods for G8x BMW M2 / M3 / M4

The G8x M3 and M4 are factory-equipped with front caster settings that work within BMW’s parameters for street use; but they are not optimized for the performance driving the car is capable of, and they leave no room for the left-to-right equalization that becomes important once the front suspension geometry is changed through lowering or upgraded front lower control arm installation. The factory tension rod uses a rubber bushing that deflects under the sustained braking and cornering loads the car generates, and the factory adjustment system provides limited caster range. The SPL Parts TR G8X replaces both the rubber bushing and the limited factory caster range. Precision CNC-machined billet 2024 aluminum hex rod, gun-drilled to reduce unsprung weight, forms the structural backbone. The 360-degree rotating clamp with 6061-T6 aluminum clamp body and blue anodized titanium socket head cap screws locks the caster setting in one step without jam nuts. The adjustment range is wide enough to add caster for sharper turn-in and better return-to-center feel at any ride height, and to equalize left-to-right caster variance that may have developed through use or geometry modification.

Features

Wide-range front caster adjustment; extends significantly beyond the factory range for optimization at any ride height and equalization of left-to-right caster variance
Stainless steel anti-dive spacers included; allows front anti-dive geometry to be tuned independently of caster at the subframe connection point
Hardened FK JMX rod ends; upgraded, higher-tensile-strength version of the standard FK rod end; specified for the sustained longitudinal loading of the tension rod position
ASTM A574 socket head cap bolts at minimum tensile strength of 170,000 psi; specified for maximum articulation with superior structural integrity
Gun-drilled billet 2024 aluminum hex rod links; precision CNC-machined; black anodized for corrosion resistance
SPL exclusive 360-degree rotating clamp with 6061-T6 aluminum clamp body and blue anodized titanium socket head cap screws; locks caster setting without jam nuts; single-tool adjustment
PTFE Teflon liner chemically bonded to inner race; operating temperature range -65°F to 325°F; self-lubricating, self-cleaning, no maintenance required

Specifications

Body Material: 2024-T351 aluminum (gun-drilled, black anodized)
Bushings: PTFE-lined FK USA spherical bearings
Adjustment: Caster
Origin: Made in the USA

Applications

BMW M3: G80, G81 | 2021-present
BMW M4: G82, G83 | 2021-present

Notes

Installation Instructions
SPL components are made-to-order in the USA; build time will be confirmed at the time of order
Only compatible with RWD models

Frequently Asked Questions

Is there an xDrive version of the SPL TR G8X tension rod? The source material and SPL’s own product listing confirm this part is RWD only; no xDrive tension rod under the TR G8X part number is currently listed. If you have a G8x M3 or M4 with xDrive, confirm with SPL Parts directly whether a compatible tension rod is available for the AWD platform before ordering.
How does the SPL TR G8X differ from the SPL TR E9X or TR F3X tension rods for older BMW platforms? All three tension rods share the same core design philosophy; hardened JMX FK rod ends, 2024 aluminum billet construction, ASTM A574 hardware, anti-dive spacers, and a rotating clamp system. The key difference is that each is engineered for the specific front subframe geometry and tension rod mounting configuration of its respective platform; the G8x, E9x / E8x / F8x, and F2x / F3x all have different mounting geometries. These parts are platform-specific and not interchangeable across generations.
Why are JMX hardened rod ends specified here instead of standard FK rod ends? The tension rod is one of the highest-loaded positions in the front suspension. It operates under continuous tension from caster forces during normal driving and experiences higher-magnitude loads during hard braking when the forward momentum of the wheel is resisted by the tension rod. The standard FK rod end is not the correct specification for this load profile. The JMX is a hardened version of the FK rod end with higher tensile strength in the body itself, providing greater durability under the sustained and peak loads this position generates.
What does anti-dive geometry adjustment actually change on the G8x M3 and M4? Anti-dive geometry describes how much the front suspension resists compressing under braking force. More anti-dive means the front end stays flatter under hard braking, maintaining better front tire contact with the road and improving brake stability at corner entry. Less anti-dive allows more nose dive, which some drivers prefer for feel. The stainless steel spacers in the TR G8X allow this to be tuned at the tension rod’s subframe connection by changing the effective geometry angle at that point; independent of the caster setting, giving builders an additional variable to optimize for specific track or driving conditions.
Does adding the SPL TR G8X pair well with the SPL caster rod bushings for the G8x? Yes. The caster rod monoball bushings and the tension rod target different points in the front caster adjustment system. The caster rod bushings replace the rubber inserts in the caster rod arms and add caster adjustment range at that connection. The tension rods replace the tension rod arm itself and add range at the subframe connection. Running both together provides maximum front caster adjustment capability and eliminates rubber deflection at both front caster-influencing connection points simultaneously.

About SPL Parts

SPL Parts is a USA-based manufacturer of high-performance suspension components engineered for both professional racing and demanding street applications. Built on the core principles of strength, lightweight construction, low friction, and precision, SPL Parts products deliver the adjustability and alignment performance required by top race teams and discerning enthusiasts alike. Every component is produced using USA-sourced, certified materials and machined by experienced local shops to exacting tolerances. Professional TIG welders ensure maximum weld integrity, while each part is hand-fitted and treated with anti-seize and 3M internal panel coating for lasting protection. SPL Parts conducts all research and development in-house, allowing the team to leverage firsthand product knowledge and deliver unmatched customer support. Their suspension components feature innovative adjuster designs for quicker, more precise alignments, and utilize spherical bearings with Teflon liners that are self-cleaning, self-lubricating, and built for long service life. From concept to assembly, SPL Parts is made with pride in the USA by skilled machinists and welders who are committed to quality, innovation, and performance.
