Does this endlink fit the Porsche 991.2 RS with the Weissach package?

No. This listing, the SPL FE 991, fits all 991 era 911 models except the Weissach-equipped 991.2 RS. The Weissach package uses a different front sway bar configuration that requires the separate SPL FE 991 WS. If you have a 991.2 RS with the Weissach package, order the FE 991 WS instead.

Does this endlink fit the GT3, GT4, and 911R models?

Yes. The SPL FE 991 fits the 991 GT3, 991 GT2, and 911R, as well as the 981 and 982/718 Cayman GT4. All of these models are covered under the standard FE 991 part number; the only exception in the 991 range is the Weissach-equipped 991.2 RS.

Why does front sway bar preload matter on a corner-balanced Porsche?

A corner-balanced car has its corner weights set by adjusting ride height at each corner. Any time the front corners are at slightly different heights; which is the normal result of corner balancing; a fixed-length endlink twists the sway bar and introduces a baseline load bias toward the heavier side. That bias is present at rest, before the car has rolled through a single corner. Setting each endlink to the exact length that produces zero preload at the car's current corner heights removes that bias, giving the sway bar a neutral starting point and making the setup more predictable.

Do the 65-degree misalignment studs make a practical difference for aftermarket sway bars?

Yes. Aftermarket sway bars typically offer multiple adjustment holes that change the sway bar connection angle relative to the factory position. Standard endlink studs with 15 to 20 degrees of articulation bind as the angle increases away from factory geometry, which restricts bar movement and puts stress on the stud joint. The 65-degree Chromoly studs articulate freely at every hole position on every aftermarket sway bar for these platforms, allowing the full rated stiffness to reach the chassis at any adjustment setting.

Are these suitable for a street-driven 991 or 718?

Yes. The SPL FE 991 is designed for both street and race applications. For a street Porsche running an aftermarket front sway bar, spring upgrade, or alignment change that has altered ride height, the primary benefit is eliminating rubber deflection and zeroing out preload. Both improvements are felt on the street as more direct and consistent front sway bar response.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

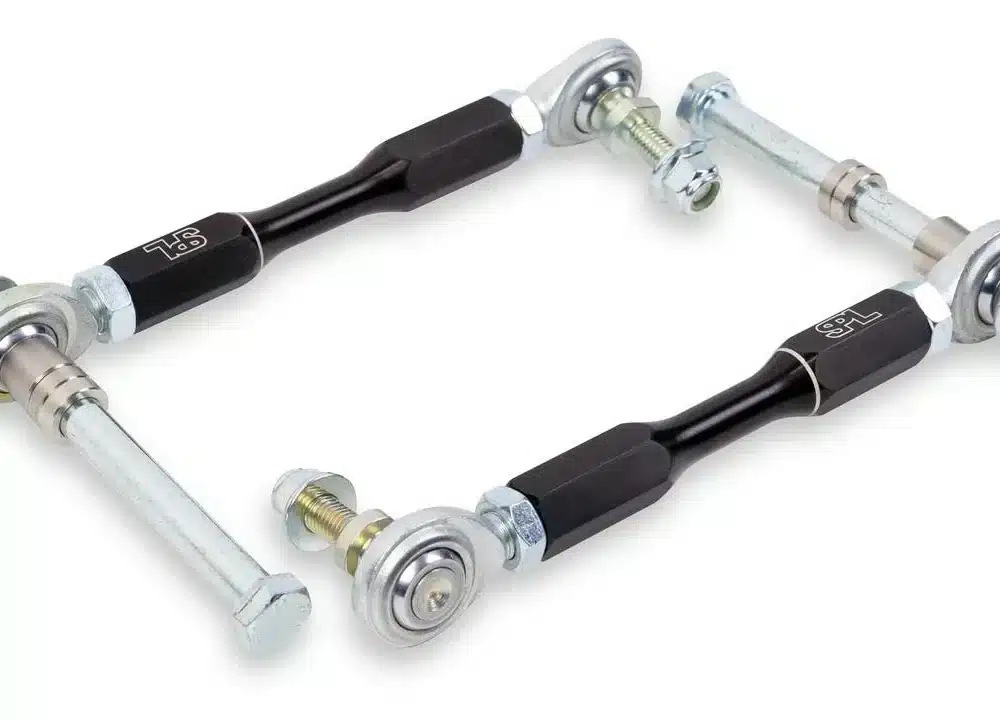

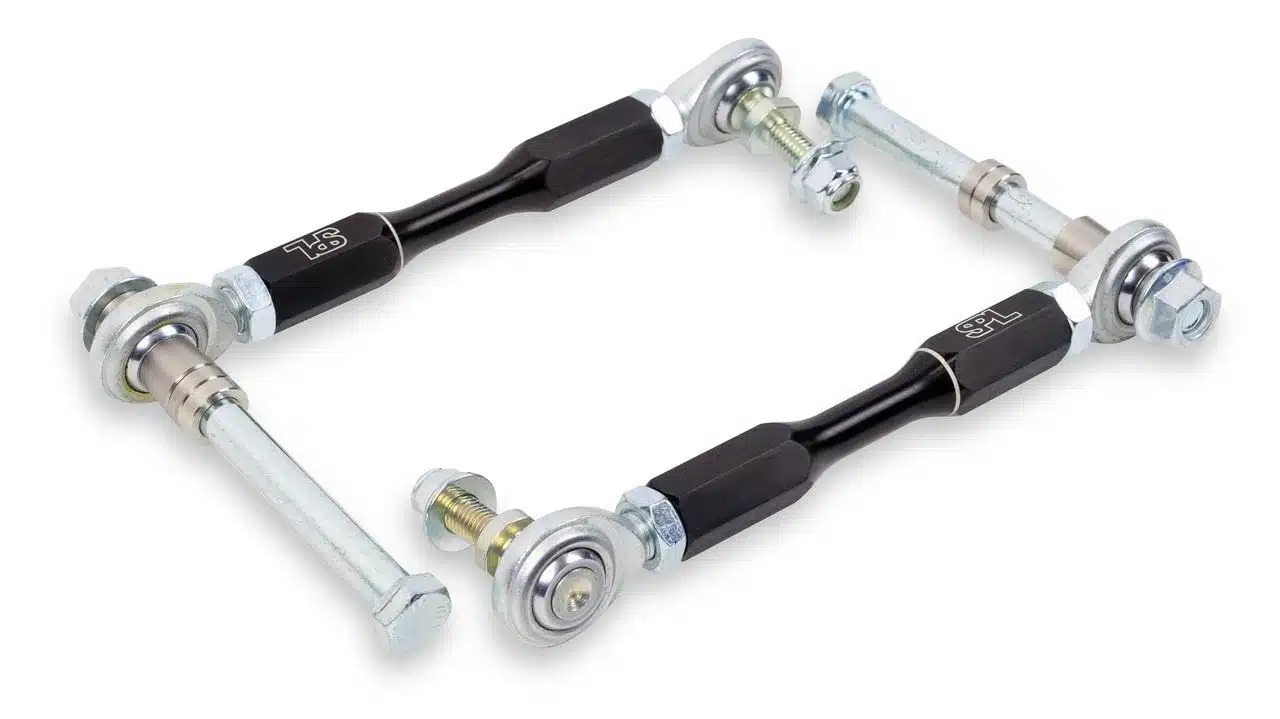

SPL Parts Adjustable Front Sway Bar Endlinks for 99x / 98x Porsche 911 / Boxster / Cayman

Front sway bar preload is a problem on any Porsche that has been lowered, corner-weighted, or set up with an aftermarket sway bar; and on the 991 era 911 and the 981/982/718 Boxster and Cayman, it shows up in exactly the way it shouldn’t. A sway bar with preload has a baseline twist built in at rest; the bar is already loaded toward one side before the car has rolled through a single corner. That asymmetry feeds into every suspension setup decision made afterward; spring rates, damper settings, corner weights; all of it being dialed in against a variable that shouldn’t be there. The SPL FE 991 adjustable front sway bar endlinks eliminate preload as a variable. Black anodized 6061-T6 aluminum turnbuckles with left and right hand threaded rod ends allow each side to be independently adjusted to the exact length that produces zero preload at the car’s current ride height. Set both sides to zero preload, and the sway bar starts from a neutral position; it loads only in response to body roll, not because of a height discrepancy between the left and right front corners.

Features

Length-adjustable to dial out sway bar preload from uneven corner weights or settled springs
Massive 1/2″ Teflon-lined FK heim joints for race-grade load capacity and long service life
Heat-treated chromoly high-misalignment studs with 65° articulation to prevent bind on aftermarket sway bars
Black-anodized 6061-T6 aluminum turnbuckle with left- and right-hand threaded rod ends for fast precise adjustment
Direct fit to OEM mounting points — no modification required
Made in the USA

Specifications

Body Material: 6061-T6 black anodized aluminum turnbuckle
Heim Joint: 1/2″ Teflon-lined FK USA spherical bearings
Stud Material: Heat-treated chromoly with 65° high misalignment
Adjustment: Length-adjustable for preload elimination
Origin: Made in the USA

Applications

Porsche 911 Carrera: 996, 997 | 1999-2012
Porsche 911 Carrera S: 997 | 2005-2012
Porsche 911 Carrera 4: 996, 997 | 1999-2012
Porsche 911 Carrera 4S: 996, 997 | 2002-2012
Porsche 911 GT2: 996, 997 | 2002-2012
Porsche 911 GT2 RS: 997 | 2010-2012
Porsche 911 GT3: 996, 997 | 1999-2012
Porsche 911 GT3 RS: 996, 997 | 2004-2012
Porsche 911 Targa: 996 | 2002-2005
Porsche 911 Targa 4: 997 | 2006-2012
Porsche 911 Targa 4S: 997 | 2006-2012
Porsche 911 Turbo: 996, 997 | 2001-2012
Porsche 911 Turbo S: 997 | 2010-2012
Porsche Boxster: 986, 987, 981, 982 | 1997-present
Porsche Boxster S: 986, 987, 981, 982 | 1997-present
Porsche Boxster GTS: 981, 982 | 2014-present
Porsche Boxster Spyder: 987, 981 | 2010-2016
Porsche Cayman: 987, 981, 982 | 2005-present
Porsche Cayman S: 987, 981, 982 | 2005-present
Porsche Cayman GTS: 981, 982 | 2015-present
Porsche Cayman GT4: 981, 982 | 2015-present
Porsche Cayman GT4 RS: 982 | 2021-present

Notes

Installation Instructions
Some vehicles have different front and rear compatibility, please contact us prior to purchase to confirm compatibility
SPL components are made-to-order in the USA; build time will be confirmed at the time of order.

Frequently Asked Questions

Does this endlink fit the Porsche 991.2 RS with the Weissach package? No. This listing, the SPL FE 991, fits all 991 era 911 models except the Weissach-equipped 991.2 RS. The Weissach package uses a different front sway bar configuration that requires the separate SPL FE 991 WS. If you have a 991.2 RS with the Weissach package, order the FE 991 WS instead.
Does this endlink fit the GT3, GT4, and 911R models? Yes. The SPL FE 991 fits the 991 GT3, 991 GT2, and 911R, as well as the 981 and 982/718 Cayman GT4. All of these models are covered under the standard FE 991 part number; the only exception in the 991 range is the Weissach-equipped 991.2 RS.
Why does front sway bar preload matter on a corner-balanced Porsche? A corner-balanced car has its corner weights set by adjusting ride height at each corner. Any time the front corners are at slightly different heights; which is the normal result of corner balancing; a fixed-length endlink twists the sway bar and introduces a baseline load bias toward the heavier side. That bias is present at rest, before the car has rolled through a single corner. Setting each endlink to the exact length that produces zero preload at the car’s current corner heights removes that bias, giving the sway bar a neutral starting point and making the setup more predictable.
Do the 65-degree misalignment studs make a practical difference for aftermarket sway bars? Yes. Aftermarket sway bars typically offer multiple adjustment holes that change the sway bar connection angle relative to the factory position. Standard endlink studs with 15 to 20 degrees of articulation bind as the angle increases away from factory geometry, which restricts bar movement and puts stress on the stud joint. The 65-degree Chromoly studs articulate freely at every hole position on every aftermarket sway bar for these platforms, allowing the full rated stiffness to reach the chassis at any adjustment setting.
Are these suitable for a street-driven 991 or 718? Yes. The SPL FE 991 is designed for both street and race applications. For a street Porsche running an aftermarket front sway bar, spring upgrade, or alignment change that has altered ride height, the primary benefit is eliminating rubber deflection and zeroing out preload. Both improvements are felt on the street as more direct and consistent front sway bar response.

About SPL Parts

SPL Parts is a USA-based manufacturer of high-performance suspension components engineered for both professional racing and demanding street applications. Built on the core principles of strength, lightweight construction, low friction, and precision, SPL Parts products deliver the adjustability and alignment performance required by top race teams and discerning enthusiasts alike. Every component is produced using USA-sourced, certified materials and machined by experienced local shops to exacting tolerances. Professional TIG welders ensure maximum weld integrity, while each part is hand-fitted and treated with anti-seize and 3M internal panel coating for lasting protection. SPL Parts conducts all research and development in-house, allowing the team to leverage firsthand product knowledge and deliver unmatched customer support. Their suspension components feature innovative adjuster designs for quicker, more precise alignments, and utilize spherical bearings with Teflon liners that are self-cleaning, self-lubricating, and built for long service life. From concept to assembly, SPL Parts is made with pride in the USA by skilled machinists and welders who are committed to quality, innovation, and performance.
