Why is caster adjustability important?

Lowering and modifying suspension geometry shifts caster outside the OEM eccentric range. Adjustability lets you set the optimal angle for steering feel and lateral grip.

Will I feel more road noise?

Yes — spherical bearings transmit more road feedback than OEM rubber. The trade is sharper steering and predictable load response.

Do I need an alignment after install?

Yes. All SPL caster bushings require a four-wheel alignment.

Will these bind under hard cornering?

No. The FK Teflon-lined bearings are designed for sustained articulation under high load.

Are stud kits required?

SPL recommends the SRK stud replacement kit on F-chassis BMWs to avoid breaking OEM aluminum studs during install.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

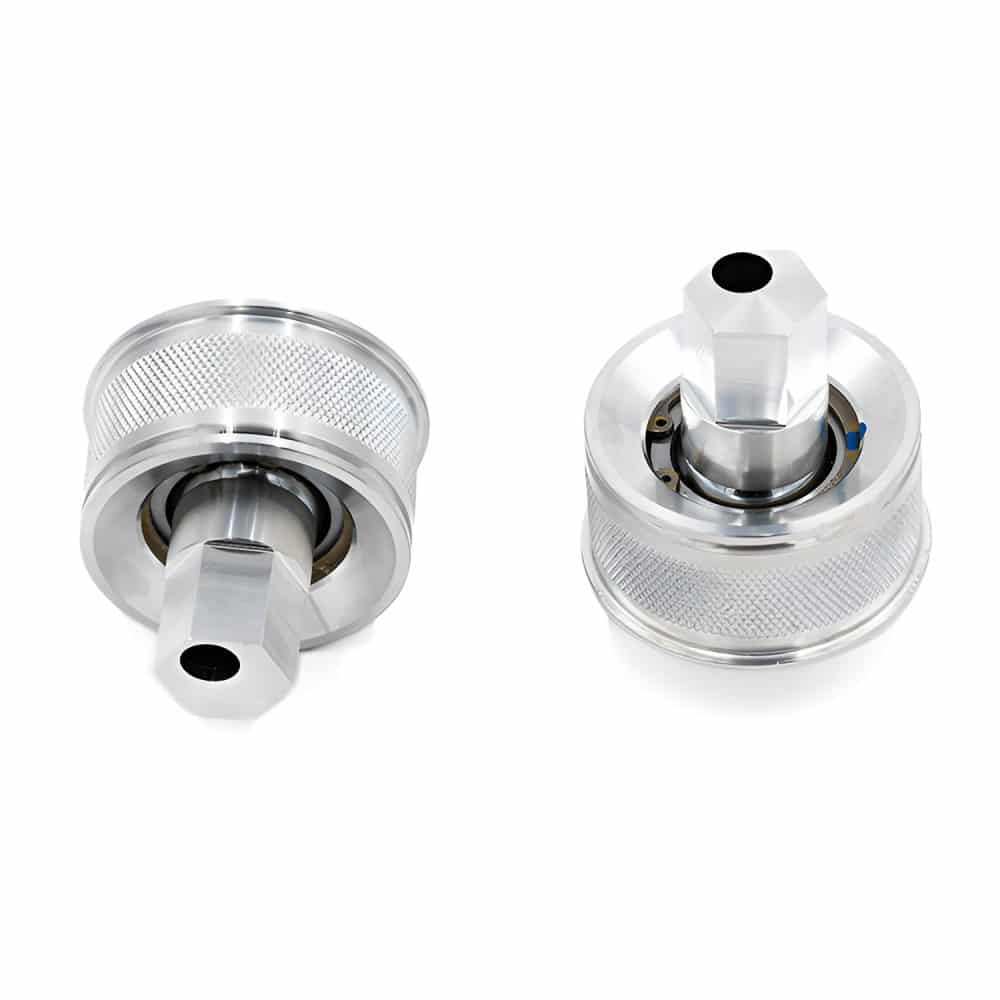

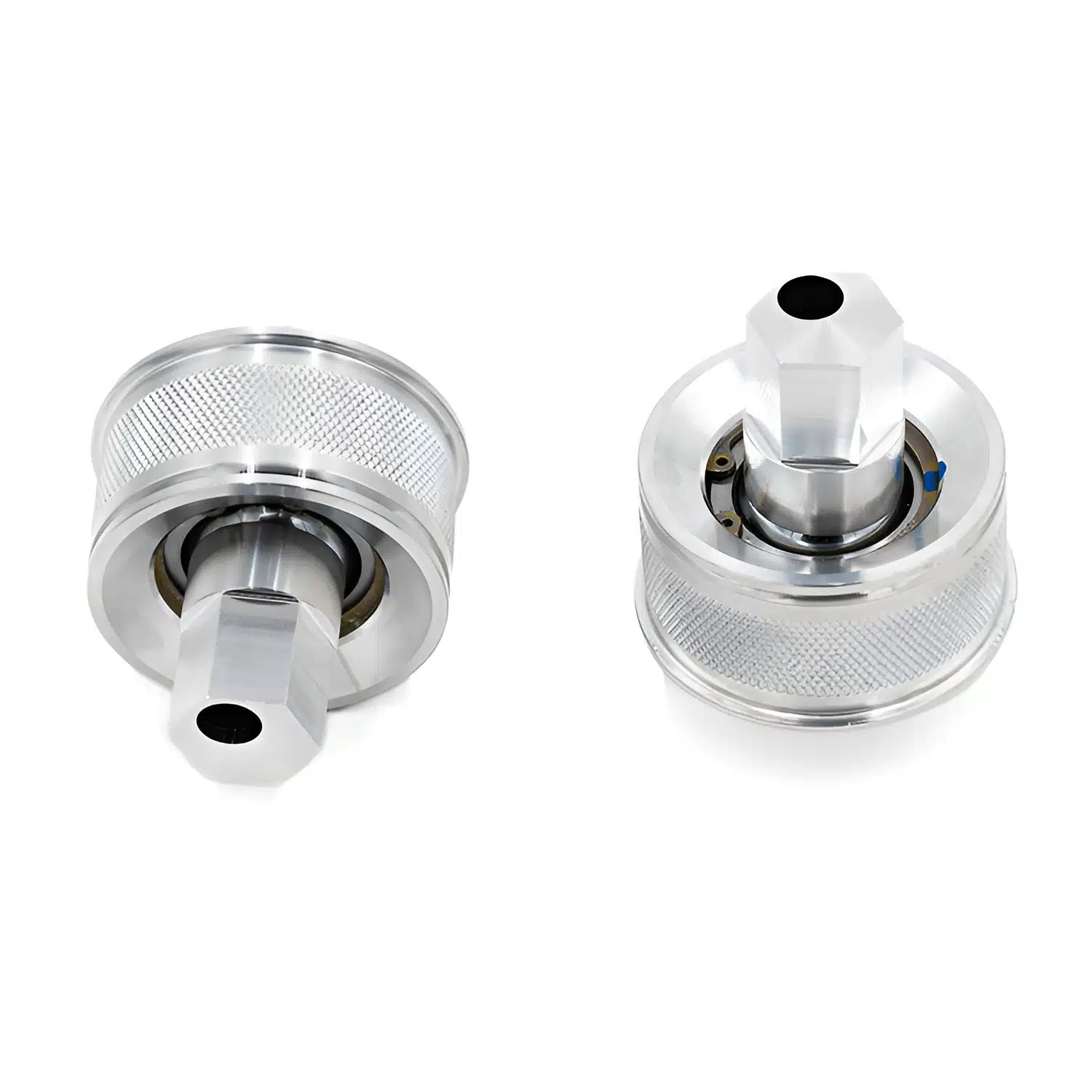

SPL Parts Adjustable Front Caster Rod Monoball Bushings for F2x BMW 2 Series and F3x 3 / 4 Series (xDrive AWD)

SPL FKS Series Adjustable Front Caster Rod Bushings (CRB) for the BMW F2x / F3x xDrive (AWD) replace the soft OEM rubber bushings with low-friction articulating FK USA spherical bearings, eliminating bushing deflection and reducing friction. Massive 1″ FK racing bearings with self-lubricating Teflon liners maintain optimum suspension geometry under braking and cornering load, while integrated caster adjustment lets you dial in exactly the angle you want.

Features

Purpose-built for BMW F2x and F3x xDrive AWD variants; uses a different bearing geometry than the RWD equivalent
Replaces factory rubber caster rod bushings with low-friction, articulating FK Racing 1-inch spherical bearings; eliminates bushing deflection under braking and cornering load
Self-lubricating Teflon-lined bearings require no greasing and maintain performance durability through sustained use
CNC-machined 6061-T6 aluminum offset bearing spacers provide +/- 4 degrees of caster adjustment
6061-T6 aluminum bearing housing with outer knurl for precise press-fit into the OEM caster rod arm
Maintains optimum front suspension geometry under load; improves braking stability and steering feedback
Sold as a pair; includes left and right bushings with hardware
Made in the USA

Specifications

Material: Billet aluminum mounts
Bushings: 1″ FK USA spherical bearings, Teflon-lined
Adjustment: Caster — wide range

Applications

BMW 220d: F22, F23 | 2014-2021
BMW 225d: F22, F23 | 2014-2021
BMW 220i: F22, F23 | 2014-2021
BMW 228i: F22, F23 | 2014-2016
BMW 230i: F22, F23 | 2016-2021
BMW 240i: F22, F23 | 2016-2021
BMW 318d: F30, F31 | 2012-2019
BMW 320d: F30, F31 | 2012-2019
BMW 325d: F30, F31 | 2012-2019
BMW 330d: F30, F31 | 2012-2019
BMW 335d: F30, F31 | 2012-2019
BMW 330e: F30, F31 | 2015-2019
BMW 316i: F30, F31 | 2012-2019
BMW 318i: F30, F31 | 2012-2019
BMW 320i: F30, F31 | 2012-2019
BMW 328i: F30, F31 | 2012-2016
BMW 330i: F30, F31 | 2016-2019
BMW 335i: F30, F31 | 2012-2015
BMW 340i: F30, F31 | 2015-2019
BMW 420d: F32, F33, F36 | 2014-2020
BMW 425d: F32, F33, F36 | 2014-2020
BMW 430d: F32, F33, F36 | 2014-2020
BMW 435d: F32, F33, F36 | 2014-2020
BMW 420i: F32, F33, F36 | 2014-2020
BMW 428i: F32, F33, F36 | 2014-2016
BMW 430i: F32, F33, F36 | 2016-2020
BMW 435i: F32, F33, F36 | 2014-2016
BMW 440i: F32, F33, F36 | 2016-2020
BMW M235i: F22, F23 | 2014-2016
BMW M240i: F22, F23 | 2016-2021
BMW M340i: F30, F31 | 2019-2019

Complete the Kit

Notes

OEM arms not included
Only compatible with xDrive/AWD vehicles
SPL components are made-to-order in the USA; build time will be confirmed at the time of order.

Frequently Asked Questions

What is the difference between the SPL CRB F3X and the SPL CRB F3iX? These are two distinct parts for two different drivetrains. The SPL CRB F3X fits RWD F2X and F3X models and replaces BMW part number 31126855743. The SPL CRB F3iX fits xDrive AWD F2X and F3X models and replaces BMW part number 31126854729. The two BMW part numbers are different because the xDrive caster rod uses a different bushing geometry at the arm. Ordering the wrong part will result in a fitment issue; confirm your drivetrain before ordering.
How do I confirm whether my F3X uses the xDrive or RWD caster rod bushing? Confirm your drivetrain in your car’s VIN, the door jamb sticker, or the BMW order code sheet. Any F3X or F2X model with xDrive in its name or spec sheet uses the AWD caster rod bushing replaced by the CRB F3iX. Models without xDrive designation are RWD and use the CRB F3X.
What does replacing the caster rod bushings improve on an xDrive BMW? Factory rubber caster rod bushings deflect under braking and cornering loads, shifting the front geometry away from its aligned position. On an xDrive model, front geometry consistency is equally important for brake stability and turn-in response; the AWD system does not compensate for front suspension deflection. Replacing the rubber with FK spherical bearings keeps caster and geometry set under all load conditions, improving braking stability, turn-in sharpness, and steering feedback quality.
How much caster adjustment does the SPL CRB F3iX provide? The CNC-machined 6061-T6 aluminum offset bearing spacers provide up to +/- 4 degrees of caster adjustment. This range allows alignment technicians to add caster beyond the factory eccentric bolt range or to correct left-to-right caster imbalance, which is common on lowered or track-aligned cars.
Are the OEM caster rod arms included with the SPL CRB F3iX? No. This listing is for the replacement bushings only. The OEM caster rod arms remain in the car; the SPL bushings replace the rubber inserts within the existing arms. OEM part number 31126854729 is the factory bushing being replaced.
