What is the difference between the SPL RTAEL 996 bundle and the standalone SPL RTA 996 toe arms?

The SPL RTA 996 is the toe arm pair on its own; it provides extended adjustment range, up to 0.5 inches of bumpsteer adjustment, and FK spherical rod ends. The RTAEL 996 bundle includes the same toe arms plus the toe eccentric lockout hardware in a single purchase. For any build that will track the car, the bundle is the recommended choice; the adjustable arm addresses the adjustment and bushing deflection problems, while the lockout addresses the eccentric slip problem that remains even after the arm is upgraded.

Does the RTAEL 996 bundle also lock the camber eccentric?

No. This bundle covers the toe arm and toe eccentric lockout only. The camber eccentric at the rear lower control arm is a separate position. To lock the camber eccentric as well, the SPL ELC 996 camber-only lockout or the SPL EL 996 combined camber and toe lockout kit should be added. For adjustable camber arms, the SPL LCA 996 V2 lower control arms or the SPL DB 996 rear dog bone upper arms are the compatible options.

Why does the adjustable toe arm alone not fully solve the eccentric slip problem?

An adjustable toe arm replaces the rubber bushing with a spherical bearing and provides extended adjustment range; it solves bushing deflection and adjustment range. However, the factory eccentric bolt at the subframe connection remains in place and continues to rely on friction to hold its position. Under sustained high cornering loads, that bolt can still rotate even after the arm is upgraded, shifting toe mid-session. The lockout hardware in the RTAEL 996 bundle replaces that eccentric entirely with a mechanically fixed connection; the only way to change the toe position after installation is by deliberately adjusting the arm.

What platforms does the RTAEL 996 bundle fit beyond the 996 and 997?

The bundle also fits the 1997-2004 Porsche Boxster (986), 2005-2012 Porsche Boxster (987), and 2005-2012 Porsche Cayman (987). All of these platforms share the same rear toe arm mounting geometry as the 996 and 997.

Are replacement rod ends available for the RTAEL 996?

Yes. SPL Parts offers replacement rod ends in both left and right hand thread. Use the links on the product page or contact SPL Parts directly for the correct replacement.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

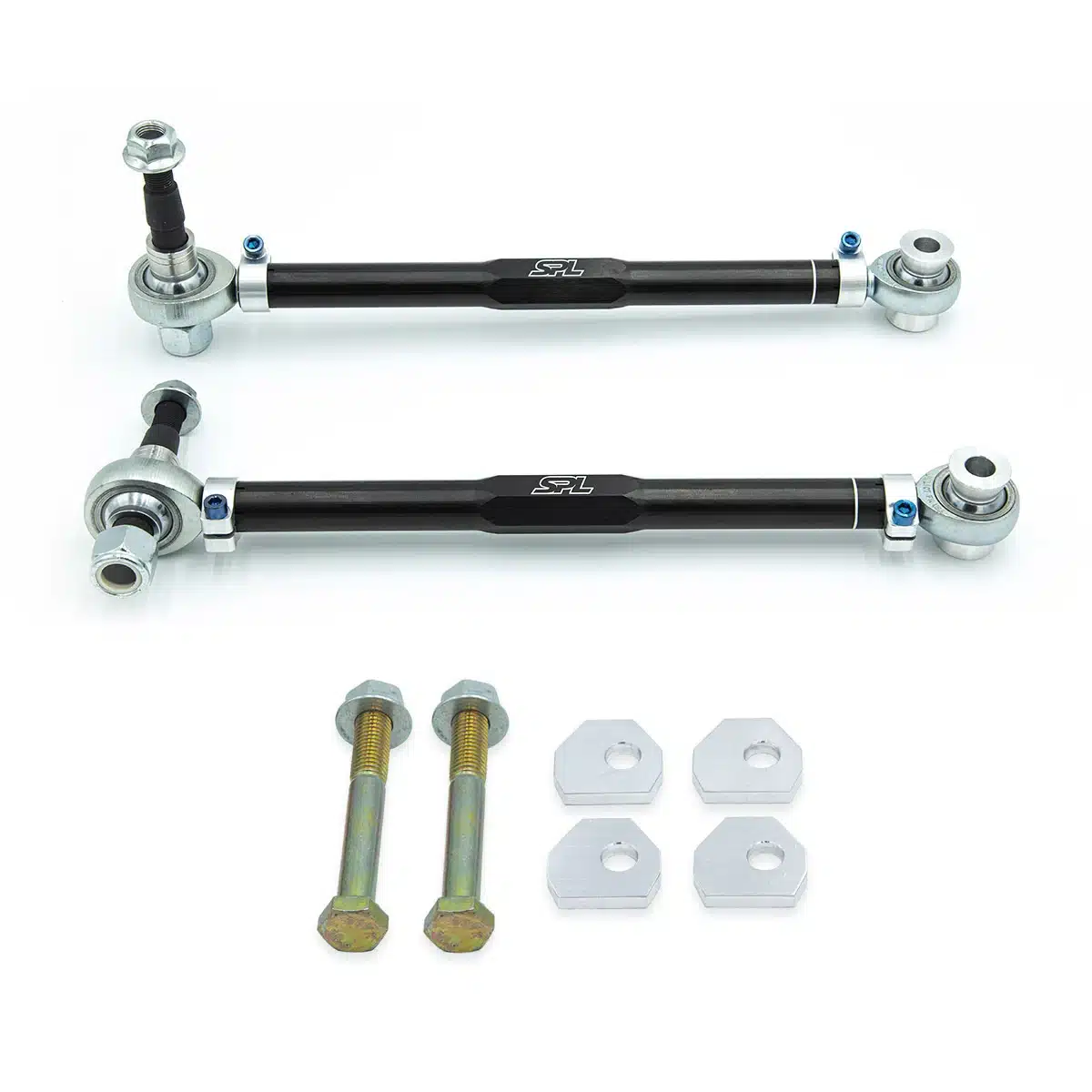

SPL Parts Adjustable Bumpsteer Rear Toe Arms with Eccentric Lockouts for 99x Porsche 911

Two separate problems affect rear toe performance on a lowered or track-prepared 996, 997, 986, or 987 Porsche. The first is static and dynamic geometry; the factory eccentric bolt runs out of adjustment range when the car is lowered, leaving excessive rear toe-in that causes handling problems and tire wear, and the factory rubber bushing allows toe to shift dynamically through bump and rebound. The second is retention; even if the toe is set correctly, the factory eccentric bolt holds its position through friction, and under sustained high cornering loads that friction can be overcome. The SPL RTAEL 996 bundle solves both in a single purchase. The SPL RTA 996 adjustable rear toe arms provide the adjustment range needed to correct static toe-in at any ride height, up to 0.5 inches of bumpsteer spacer adjustment to correct dynamic toe change through suspension travel, and PTFE-lined FK spherical rod ends that eliminate rubber bushing deflection so the set toe angle holds under cornering, braking, and acceleration loads. The SPL ELT 996 toe eccentric lockout plates and class 10.9 hardware then eliminate the factory toe eccentric bolt and replace its friction-based retention with a mechanically fixed connection that cannot rotate under any track load.

Features

Adjustable rear toe; extends adjustment range beyond the factory eccentric; corrects excessive toe-in from lowering
Up to 0.5 inches of bumpsteer adjustment via stackable stainless spacers; corrects dynamic toe change through suspension travel
PTFE-lined FK spherical rod ends; eliminates rubber bushing deflection; toe holds its set position under cornering, braking, and acceleration loads
Eccentric lockout hardware; 6061-T6 aluminum lockout plates and class 10.9 metric hardware; mechanically prevents toe eccentric from rotating under track loads
360-degree rotating clamp; hollow 6061-T6 black anodized aluminum arms; locks toe setting without jam nuts

Specifications

Body Material: 2024-T351 aluminum (gun-drilled, black anodized)
Heim Joints: PTFE-lined FK USA spherical bearings
Toe Adjustment: Wide range — past OEM eccentric limits
Bumpsteer Adjustment: Up to 0.5″
Origin: Made in the USA

Applications

Porsche 911 Carrera: 996, 997 | 1999-2012
Porsche 911 Carrera 4: 996, 997 | 1999-2012
Porsche 911 Carrera 4S: 996, 997 | 2002-2012
Porsche 911 Carrera S: 997 | 2005-2012
Porsche 911 Targa: 996 | 2002-2005
Porsche 911 Targa 4: 997 | 2006-2012
Porsche 911 Targa 4S: 997 | 2006-2012
Porsche 911 Turbo: 996, 997 | 2001-2012
Porsche 911 Turbo S: 997 | 2010-2012
Porsche 911 GT2: 996, 997 | 2002-2012
Porsche 911 GT2 RS: 997 | 2010-2012
Porsche 911 GT3: 996, 997 | 1999-2012
Porsche 911 GT3 RS: 996, 997 | 2004-2012
Porsche Boxster: 986, 987 | 1997-2012
Porsche Boxster S: 986, 987 | 1997-2012
Porsche Boxster Spyder: 987 | 2010-2012
Porsche Cayman: 987 | 2005-2012
Porsche Cayman S: 987 | 2005-2012
Porsche Cayman R: 987 | 2011-2012

Notes

Installation Instructions
Replacement rod ends available from SPL Parts in left and right hand thread, please contact us
SPL components are made-to-order in the USA; build time will be confirmed at the time of order

Frequently Asked Questions

What is the difference between the SPL RTAEL 996 bundle and the standalone SPL RTA 996 toe arms? The SPL RTA 996 is the toe arm pair on its own; it provides extended adjustment range, up to 0.5 inches of bumpsteer adjustment, and FK spherical rod ends. The RTAEL 996 bundle includes the same toe arms plus the toe eccentric lockout hardware in a single purchase. For any build that will track the car, the bundle is the recommended choice; the adjustable arm addresses the adjustment and bushing deflection problems, while the lockout addresses the eccentric slip problem that remains even after the arm is upgraded.
Does the RTAEL 996 bundle also lock the camber eccentric? No. This bundle covers the toe arm and toe eccentric lockout only. The camber eccentric at the rear lower control arm is a separate position. To lock the camber eccentric as well, the SPL ELC 996 camber-only lockout or the SPL EL 996 combined camber and toe lockout kit should be added. For adjustable camber arms, the SPL LCA 996 V2 lower control arms or the SPL DB 996 rear dog bone upper arms are the compatible options.
Why does the adjustable toe arm alone not fully solve the eccentric slip problem? An adjustable toe arm replaces the rubber bushing with a spherical bearing and provides extended adjustment range; it solves bushing deflection and adjustment range. However, the factory eccentric bolt at the subframe connection remains in place and continues to rely on friction to hold its position. Under sustained high cornering loads, that bolt can still rotate even after the arm is upgraded, shifting toe mid-session. The lockout hardware in the RTAEL 996 bundle replaces that eccentric entirely with a mechanically fixed connection; the only way to change the toe position after installation is by deliberately adjusting the arm.
What platforms does the RTAEL 996 bundle fit beyond the 996 and 997? The bundle also fits the 1997-2004 Porsche Boxster (986), 2005-2012 Porsche Boxster (987), and 2005-2012 Porsche Cayman (987). All of these platforms share the same rear toe arm mounting geometry as the 996 and 997.
Are replacement rod ends available for the RTAEL 996? Yes. SPL Parts offers replacement rod ends in both left and right hand thread. Use the links on the product page or contact SPL Parts directly for the correct replacement.

About SPL Parts

SPL Parts is a USA-based manufacturer of high-performance suspension components engineered for both professional racing and demanding street applications. Built on the core principles of strength, lightweight construction, low friction, and precision, SPL Parts products deliver the adjustability and alignment performance required by top race teams and discerning enthusiasts alike. Every component is produced using USA-sourced, certified materials and machined by experienced local shops to exacting tolerances. Professional TIG welders ensure maximum weld integrity, while each part is hand-fitted and treated with anti-seize and 3M internal panel coating for lasting protection. SPL Parts conducts all research and development in-house, allowing the team to leverage firsthand product knowledge and deliver unmatched customer support. Their suspension components feature innovative adjuster designs for quicker, more precise alignments, and utilize spherical bearings with Teflon liners that are self-cleaning, self-lubricating, and built for long service life. From concept to assembly, SPL Parts is made with pride in the USA by skilled machinists and welders who are committed to quality, innovation, and performance.
