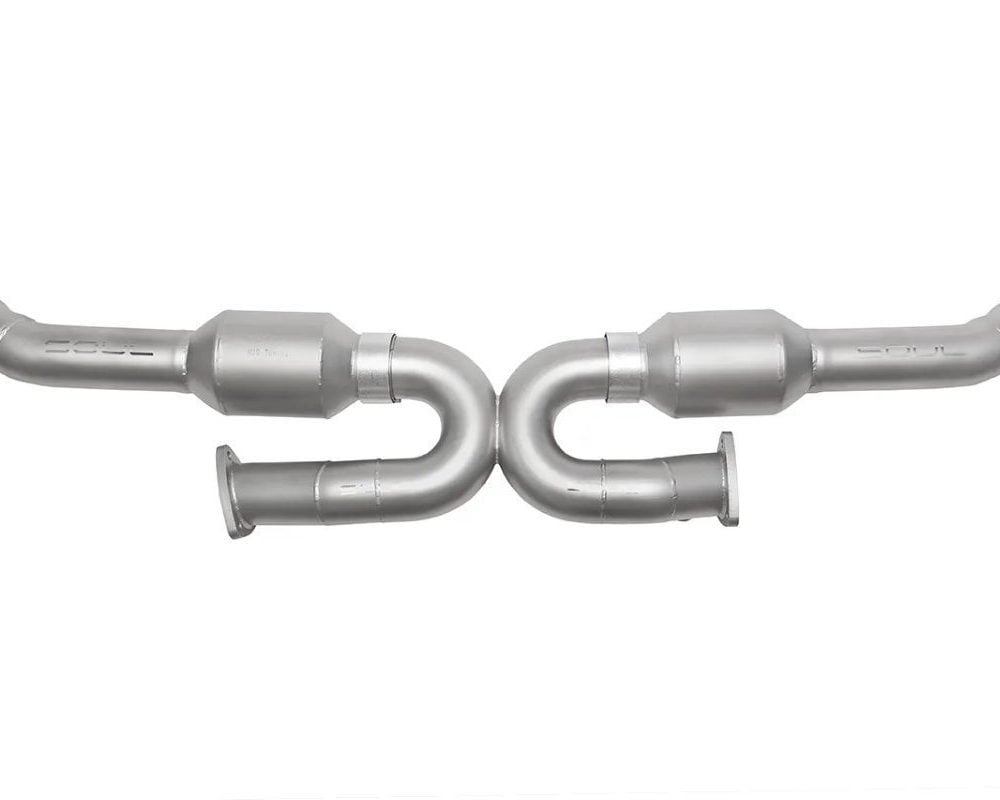

Soul Performance Sport X-Pipe w/ Gillet Flange for 993 Porsche 911 Carrera

Soul Performance Sport X-Pipe w/ Gillet Flange for 993 Porsche 911 Carrera

The power and sound of a 993 Carrera can be enhanced by incorporating HJS 200-cell catalytic converters into a high-quality x-pipe section. The inclusion of these catalytic converters, along with the utilization of various flange combinations such as Bischoff and Gillet, caters to both OBD1 and OBD2 vehicles. This ensures that the ECU receives accurate O2 sensor readings that are well-balanced across all cylinders.

Development

• Taking a fresh approach to the 993 Carrera, Soul examined how they could design superior exhaust components. They opted for a large diameter of 2.5″ piping, which maximizes power gains over the stock system, making it particularly suitable for engine builds with increased displacement. In their OBD1 variants, they implemented a centrally located single O2 bung to ensure the most precise readings from all cylinders. This choice guarantees consistent and optimal performance, as opposed to a compromised system that accommodates both OBD1 and OBD2, where one bung would be plugged and one offset O2 sensor would primarily monitor a single bank of cylinders.

Construction

• Every exhaust system is meticulously crafted using robust T304L stainless steel with a substantial wall thickness of 2.5″ and .065″ diameter. The assembly process is conducted in-house with rigorous quality checks at every stage. The utilization of smooth mandrel bends and sturdy flanges guarantees the longevity of the product. To ensure impeccable fitment, each component undergoes thorough testing in a fixture. Additionally, the exhaust systems are carefully foam packed, providing optimal protection during transportation and ensuring their arrival in flawless condition.

HJS Catalysts

• Soul employs the utmost quality catalytic converters, renowned for their exceptional flow and durability within the industry. These converters exhibit remarkable efficiency, enabling compliance with stringent EURO 3 emission standards while simultaneously facilitating increased flow. Moreover, the risk of triggering a check engine light is significantly reduced. The HJS HF design, employed by Soul, incorporates premium double foil winding, thereby ensuring outstanding strength and durability.

Power

• Through independent dyno testing and averaging the results of three runs, it was determined that the peak gains achieved were 8whp and 8ft-lbs of torque. Furthermore, significant power gains of over 15whp can be experienced in the upper midrange, greatly enhancing the overall enjoyment of street driving. It should be noted that these gains can be further amplified with the addition of an ECU tune.

Bolt On & Go

• Prior to shipment, each individual product undergoes meticulous testing in a fixture to guarantee flawless fitment. Furthermore, to safeguard its pristine condition upon arrival, the product is carefully foam packed. Inside the package, comprehensive installation instructions are included, ensuring a straightforward installation process that can be easily carried out by most DIY enthusiasts. Additionally, new hardware required for the x-pipe to header flange connection is thoughtfully provided with the product.

Features

• Added performance and sound without a check engine light
• Peak power gains of 8whp and 8ft-lbs of torque – max gains over 15whp
• Weighs 6.55lbs / 2.9kg less than the factory exhaust components [17.3lbs vs 23.85lbs (bischoff)]
• Designed and built in-house at their Willow Grove, PA facility
• All Soul Performance Products exhaust components are backed by a renowned lifetime warranty for both street and track use

Specifications

• Flange Type: Gillet (1996-1998)
• OBD Type: OBD2 (four O2 bungs)

Applications

• Porsche 911 Carrera: 993 (1996-1998) – 3.6L F6 M64
