REMARK Sports Touring Valved Exhaust System w/ Triple Tips & Front Pipe for FL5 Honda Civic Type R [RK-C3076H-09]

REMARK Sports Touring Valved Exhaust System w/ Triple Tips & Front Pipe for FL5 Honda Civic Type R [RK-C3076H-09]

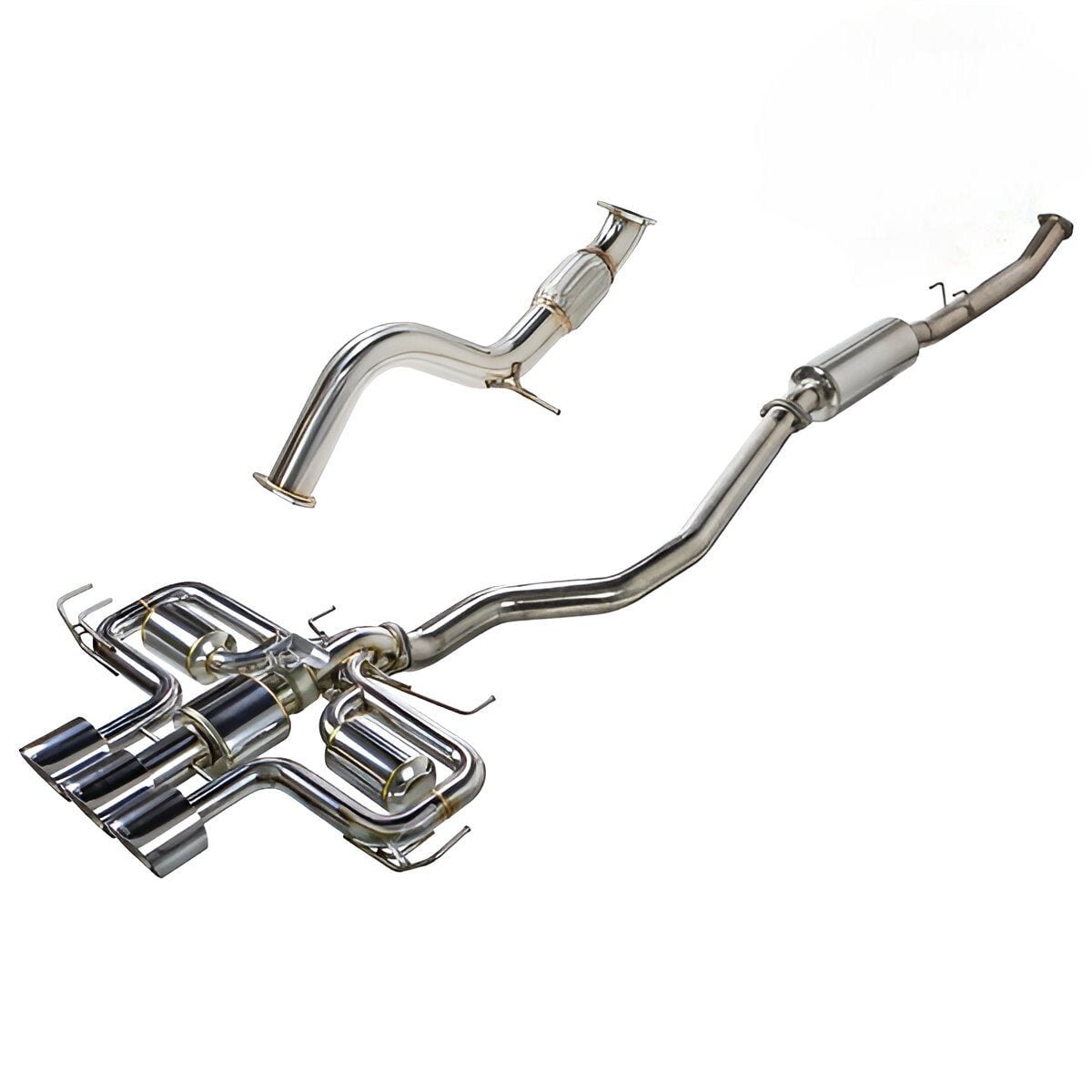

The REMARK Triple Tip Exhaust System features a purpose-driven design that retains OEM valve control function for loud and quiet operation modes. The outer pipes have a 2-inch outer diameter, and the system incorporates a long tube length with small canisters for effective sound control when the exhaust valve is closed. When the 3-inch valve opens, controlled by the OE exhaust valve motor, the exhaust flow is directed into a straight 3-inch pipe equipped with a small, straight-through muffler. This configuration ensures low restriction and high flow, which is particularly advantageous in the upper RPM range. The use of varying pipe sizes and multiple small canisters ensures the system fits seamlessly with the OE diffuser.

Front Pipe & Mid-Pipe

• The system includes a 3-inch front over pipe with a high-quality flex tube, enabling the mid-pipe to maintain a full 3-inch diameter. It also features a large, straight-through resonator. Unlike systems compatible with the factory front over pipe, this design avoids reducer or step-down transitions, maintaining a consistent 3-inch diameter from the downpipe / catalytic converter back. Note that this system is not compatible with the factory front over pipe, as it eliminates any under-3-inch sections for optimal performance.

Sound

• This exhaust system is designed for enthusiasts seeking an aggressive, bold sound profile. When the exhaust valve opens, the sound becomes even more spirited and intense. For those looking for a quiet system, this may not be the ideal choice.
• When the valve is closed, the system produces a robust and assertive tone. When opened, it becomes wilder, especially in Sport or R mode. While there is some noticeable drone between 3000 and 4000rpm during freeway cruising, switching to Comfort mode immediately suppresses it as the exhaust valve closes. With the valve open in Sport or R mode, no drone was detected in the mid-to-high RPM range (4000rpm to redline), making it ideal for spirited driving and track use.
• The overall sound difference between the exhaust valve’s open and closed positions is subtle in terms of volume but distinct in tone and drone presence, especially in lower RPMs.

Features

• Full 3″ mandrel bent piping
• Includes 3″ front over-pipe
• Three 4.5″ double wall tips
• Retains OE exhaust valve function
• High flow design for reduced restriction
• Full 304 stainless steel construction
• Fully TIG welded

Specifications

• Exhaust Type: Catback full exhaust system 4-piece design
• Piping Material: T304 stainless steel
• Muffler Material: T304 stainless steel
• Muffler Tips: 4.5″ OD / Double wall / T304 stainless steel
• Weight: Exhaust 42.4lbs + 3″ front over-pipe 6.6lbs = 49lbs (OEM 48.8lbs)

Applications

• Honda Civic Type R: FL5 (2023-present) – 2.0L Turbo I4 K20C1

Notes

• Installation instructions
• This system is not compatible with OEM front pipe
• Sound testing was conducted on a stock Type R with no engine modifications, including a stock downpipe, tune, turbo, and intake. Sound characteristics may vary with aftermarket components such as a downpipe, ECU tune, turbo upgrade, or intake system.
