What is the difference between the PRL Tube-and-Fin Intercooler and the PRL Bar-and-Plate Intercooler for the FL5?

The two intercoolers use the same core dimensions and fill the same space in the OEM front bumper, but perform differently depending on how the car is driven. The bar-and-plate starts cooler on early pulls, beginning at around 86°F with minimal rise through the first two pulls, making it the stronger choice for drag racing or short-burst street use. The tube-and-fin starts 5 to 10°F higher on early pulls due to its lighter construction and reduced thermal mass, but as sessions continue it outperforms the bar-and-plate, stabilizing at 160 to 170°F compared to the bar-and-plate plateau around 190°F. For sustained track sessions, road racing, endurance driving, or any use where heat management over time matters more than single-pull performance, the tube-and-fin is the more capable option. The tube-and-fin is also 7.8 lbs lighter at 14.4 lbs versus 22.2 lbs for the bar-and-plate.

Does installation require any modifications to the FL5?

Yes, some minor modifications are required. Installation involves relocating the ambient air temperature sensor by trimming the factory mounting tab, and removing the air dams on the bumper. New custom EPDM O-rings are included in the kit, so the factory charge pipe O-rings do not need to be modified. Full installation instructions are provided by PRL Motorsports.

What does the black thermal dispersant coating actually do, and is it worth it?

The black thermal dispersant coating is applied to the exterior surfaces of the core and improves how heat moves across and away from the intercooler during driving. Instead of concentrating heat at localized hot spots, the coating spreads thermal energy more evenly across the entire core surface, allowing a greater percentage of the core to actively release heat into the airstream. The practical benefit is faster thermal recovery between pulls and improved consistency during extended sessions where temperatures stay elevated. It also adds corrosion resistance and surface protection. For primarily street use, the standard version is sufficient. For back-to-back track sessions or endurance events where recovery speed matters, the coated version has a measurable advantage.

Is the PRL Tube-and-Fin Intercooler as durable as the Bar-and-Plate version?

The tube-and-fin design is rated at approximately 75% of the bar-and-plate's durability. PRL describes this as still excellent for street use, but the thinner tube walls that make the design lighter and more thermally efficient also reduce impact resistance compared to the denser bar-and-plate construction. For road racing, endurance sessions, and performance street driving, durability is not a practical concern. For applications with higher risk of physical impact to the front of the car, the bar-and-plate's greater structural density may be a better fit.

Is the PRL Tube-and-Fin Intercooler CARB compliant?

The product is currently under CARB review. Confirmation of CARB compliance status will be updated once the review is complete. Customers in California or other states following CARB standards should confirm the current compliance status before purchasing.

What vehicles does this intercooler fit?

The PRL Tube-and-Fin Intercooler fits the 2023 through 2025 Honda Civic Type R (FL5). It uses OEM mounting points and is engineered to fit within the factory front bumper opening without bumper modification.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

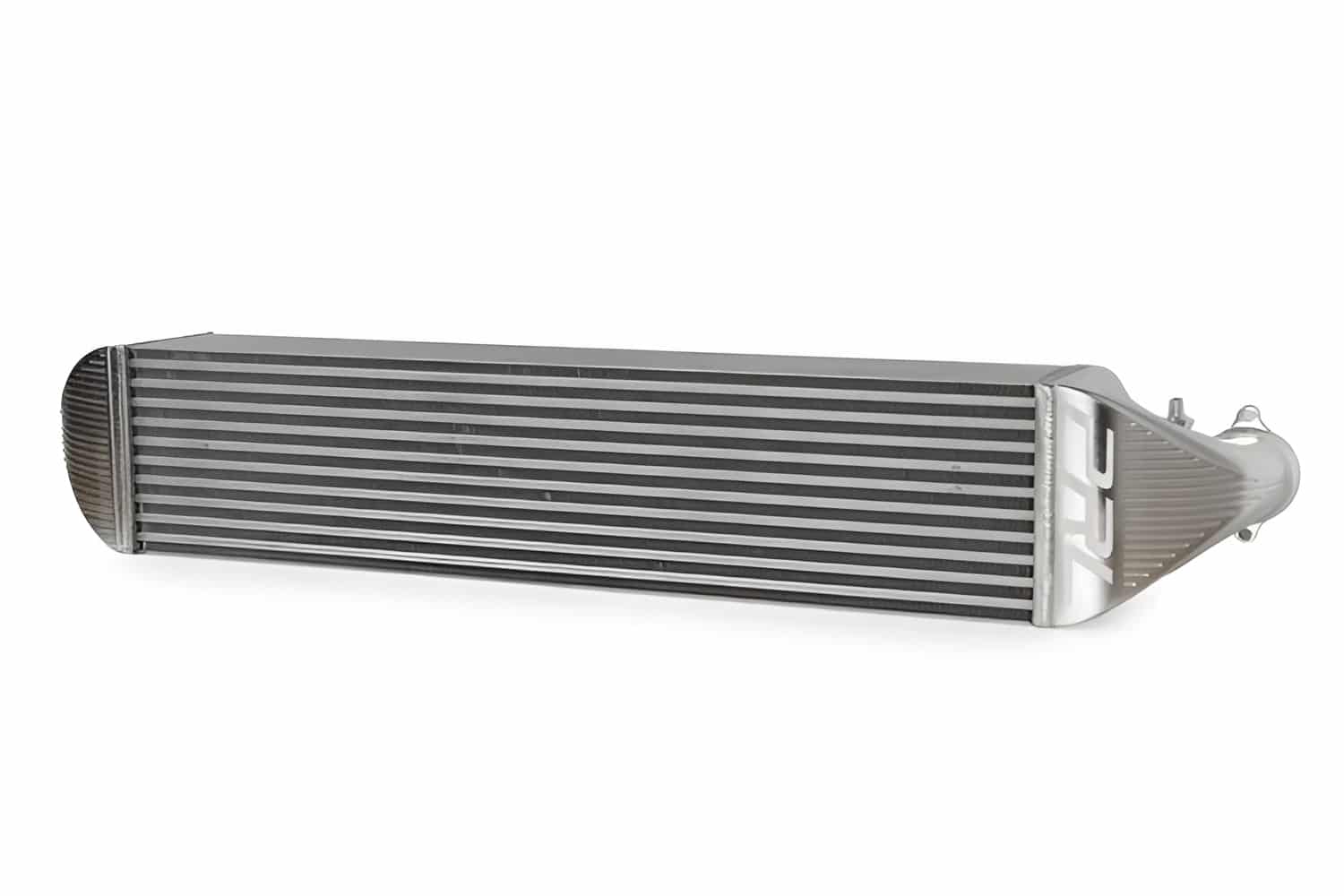

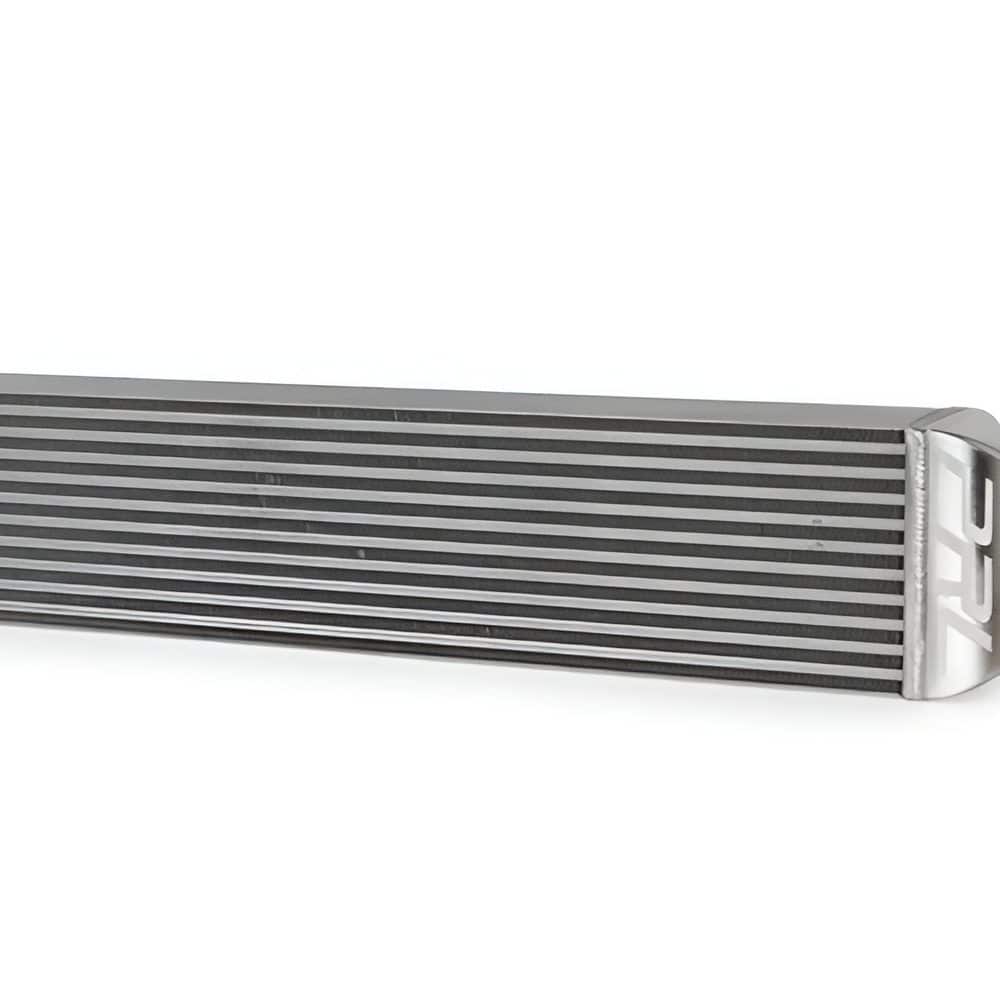

PRL Motorsports Tube and Fin Intercooler Upgrade for FL5 Honda Civic Type R, and DE5 Acura Integra Type S

PRL’s Tube and Fin Intercooler is the lightest, most thermally efficient core in their 2.0T lineup, engineered for FL5 Civic Type R and DE5 Integra Type S drivers who run repeated hard pulls. The tube-and-fin layout uses thin-wall oval tubes with internal fins to move heat out of the charge air faster than a bar-and-plate core, while CNC-machined billet end tanks shave significant weight versus PRL’s own billet intercooler. Total assembly weight comes in at 14.4lbs — about 35% lighter than PRL’s 22.2lb bar-and-plate — with no compromise to OEM-style sealing or charge pipe compatibility. Available in raw billet aluminum or with PRL’s black thermal dispersant coating for additional surface heat shedding and corrosion resistance.

Features

Ultra-lightweight CSF tube-and-fin core engineered for high-speed airflow
Total assembly weight: 14.4lbs (35% lighter than the 22.2lb bar-and-plate)
Thin-wall tubing moves heat out of charge air faster than bar-and-plate construction
Weight-reduced billet end tanks CNC-machined from 6061 aluminum extrusions
Sculpted internal geometry maximizes flow while removing unnecessary mass
Final end tank weight: 1.05lbs (down from 19.5lbs in raw billet)
OEM-style O-ring sealing — improved for boosted applications
Removes the factory assembly-tab groove known to blow out at elevated boost
Optional black thermal dispersant coating for improved surface heat transfer and corrosion resistance
Approximately 75% of bar-and-plate durability — optimized for lightweight efficiency on street and track

Specifications

Core construction: Tube-and-fin, thin-wall oval tubes with internal fins
Core dimensions: 7.25″ × 4.25″ × 28.2″ (184 mm × 108 mm × 716 mm)
End tanks: CNC-machined 6061 billet aluminum, weight-reduced
Sealing: Custom EPDM O-rings
Hardware: M8 socket-head cap screws
Edge guard: Rubber bumper-to-intercooler sealing strip included
Finishes: Raw billet aluminum, or black thermal dispersant coating

What’s Included

PRL Tube-and-Fine Intercooler Assembly
Custom EPDM O-rings (2)
Rubber edge guard for bumper-to-intercooler sealing
M8 socket-head cap screws (4)

Applications

Honda Civic Type R: FL5 | 2023-present
Acura Integra Type S: DE5 | 2024-present

Notes

Installation Instructions
Currently under CARB review for 50-state legal certification
Direct fit using factory mounting points and charge pipe connections

Frequently Asked Questions

What is the difference between the PRL Tube-and-Fin Intercooler and the PRL Bar-and-Plate Intercooler for the FL5? The two intercoolers use the same core dimensions and fill the same space in the OEM front bumper, but they perform differently depending on how the car is driven. The bar-and-plate starts cooler on early pulls, beginning at around 86°F with minimal rise through the first two pulls; making it the stronger choice for drag racing or short-burst street use where the dense thermal mass absorbs heat quickly. The tube-and-fin starts 5 to 10°F higher on those early pulls due to its lighter construction and reduced thermal mass, but as sessions continue it outperforms the bar-and-plate, stabilizing at 160 to 170°F compared to the bar-and-plate’s plateau around 190°F. For sustained track sessions, road racing, endurance driving, or any use where airflow is continuous and heat management over time matters more than single-pull performance, the tube-and-fin is the more capable option. The tube-and-fin is also 7.8lbs lighter at 14.4lbs versus 22.2lbs for the bar-and-plate.
Does installation require any modifications to the FL5? Yes, some minor modifications are required. Installation involves relocating the ambient air temperature sensor by cutting or trimming the factory mounting tab, removing the air dams on the bumper, and drilling a hole in the air dam for clearance. New custom EPDM O-rings are included in the kit, so the factory charge pipe O-rings do not need to be modified. Full installation instructions are provided by PRL Motorsports.
What does the black thermal dispersant coating actually do, and is it worth it? The black thermal dispersant coating is applied to the exterior surfaces of the core and is designed to improve how heat moves across and away from the intercooler during driving. Instead of concentrating heat at localized hot spots, the coating spreads thermal energy more evenly across the entire core surface, allowing a greater percentage of the core to actively release heat into the airstream at any given moment. The practical benefit is faster thermal recovery between pulls and improved consistency during extended sessions where temperatures stay elevated. It also adds corrosion resistance and surface protection. For primarily street use, the standard version is sufficient. For back-to-back track sessions or endurance events where recovery speed between corners and straights matters, the coated version has a measurable advantage.
Is the PRL Tube-and-Fin Intercooler as durable as the Bar-and-Plate version? The tube-and-fin design is rated at approximately 75% of the bar-and-plate’s durability. PRL describes this as still excellent for street use, but notes that the thinner tube walls that make the design lighter and more thermally efficient are also what reduce its impact resistance compared to the denser bar-and-plate construction. For road racing, endurance sessions, and performance street driving, durability is not a practical concern. For off-road or applications with higher risk of physical impact to the front of the car, the bar-and-plate’s greater structural density may be a better fit.
Does the PRL Tube-and-Fin Intercooler fit without removing the bumper? The intercooler uses the same core size as the PRL bar-and-plate unit, which was engineered to maximize the available space inside the OEM front bumper. While it fits within the factory bumper opening without cutting the bumper itself, installation does require bumper removal to access the intercooler mounting area, along with the ambient temperature sensor relocation and air dam removal mentioned above.
Is the PRL Tube-and-Fin Intercooler CARB compliant? The product is currently under CARB review. Confirmation of CARB compliance status will be updated once the review is complete. Customers in California or other states following CARB standards should confirm the current compliance status before purchasing.
What vehicles does this intercooler fit? The PRL Tube-and-Fin Intercooler fits the 2023 through 2025 Honda Civic Type R (FL5). It uses OEM mounting points and is engineered to fit within the factory front bumper opening without bumper modification.

About PRL Motorsports

PRL Motorsports designs and manufactures performance upgrades for the Honda and Acura platforms from their Pennsylvania facility, with a catalog built specifically around the Civic, Accord, Integra, and CR-V chassis. Their products are designed, tested, and validated in-house on the actual platforms they fit, with a focus on direct-bolt-on installation and OEM-quality fit.
