What vehicles does the PRL Matte Carbon High Volume Intake and Inlet Pipe Bundle fit?

This bundle fits all 2023+ Honda Civic FL5 Type R models, including RHD and international variants. Both components are designed to work with all factory fitment turbochargers on the FL5 platform. No ECU calibration is required for either component.

Does this bundle require a tune or ECU calibration to install?

No. Both the PRL Matte Carbon High Volume Intake System and the Carbon Fiber Turbocharger Inlet Pipe Kit are direct bolt-on upgrades that do not require ECU calibration. The intake system is designed to provide a factory-like fuel trim for optimal drivability on stock and tuned applications alike.

Why does the Carbon Fiber Inlet Pipe Kit only work with the PRL High Volume Intake?

The PRL Carbon Fiber Turbocharger Inlet Pipe Kit connects at the outlet of the intake airbox and transitions to the turbocharger compressor inlet. Its dimensions and connection geometry are engineered specifically around the PRL High Volume Intake outlet. It is not compatible with the factory intake or other aftermarket intakes because the connection geometry differs. This bundle pairs the two components that are designed to work together, covering the complete intake path from filter to turbocharger.

What performance improvement does this bundle provide over the stock intake system?

The PRL High Volume Intake addresses a documented restriction at the factory rubber inlet, which PRL's testing showed can cause a 10 to 20 horsepower loss when the hood is closed; a problem the HVI's secondary air duct resolves by maximizing the airflow opening into the airbox. The Carbon Fiber Inlet Pipe Kit then addresses the secondary restriction between the airbox and the turbocharger, offering over a 50% increase in airflow volume compared to the factory inlet pipe. Together, the two components eliminate the primary points of intake restriction from air entry through to the turbocharger inlet, improving bottom-end power, turbo spool, and throttle response.

Is this bundle compatible with a stock or tuned FL5, and does either component affect fuel trims?

Both components work on stock and tuned FL5 builds. PRL designed the High Volume Intake specifically to maintain a factory-like fuel trim, making it compatible with the factory ECU without causing fuel trim or MAF-related issues. No additional injectors, fuel pump upgrades, or calibration changes are required for either component in this bundle.

What is the advantage of buying the bundle over purchasing each component separately?

The bundle is priced lower than purchasing the Matte Carbon High Volume Intake System and the Carbon Fiber Turbocharger Inlet Pipe Kit individually. Beyond the price advantage, buying both together ensures the two components are matched in finish and designed to work as a system, covering the complete intake path from the filter housing to the turbocharger inlet without any compatibility concerns or additional adapter hardware needed.

What warranty covers this bundle?

Both components in this bundle are PRL Motorsports manufactured products and carry PRL's 12-month limited warranty from the date of purchase against manufacturing defects in materials and workmanship, when purchased from PRL Motorsports or an authorized PRL Motorsports dealer. The warranty does not cover products used in racing or off-road applications, products showing evidence of improper installation or misuse, or products altered from PRL's original design intent.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

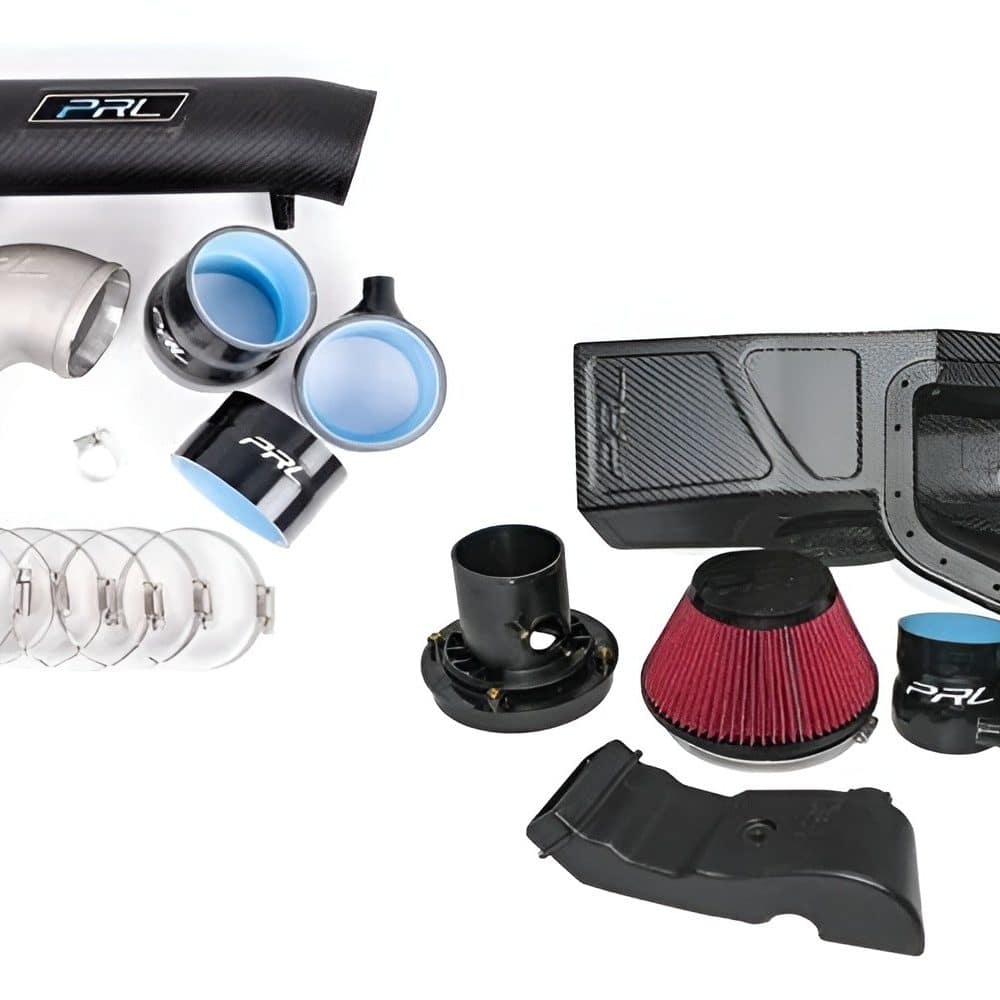

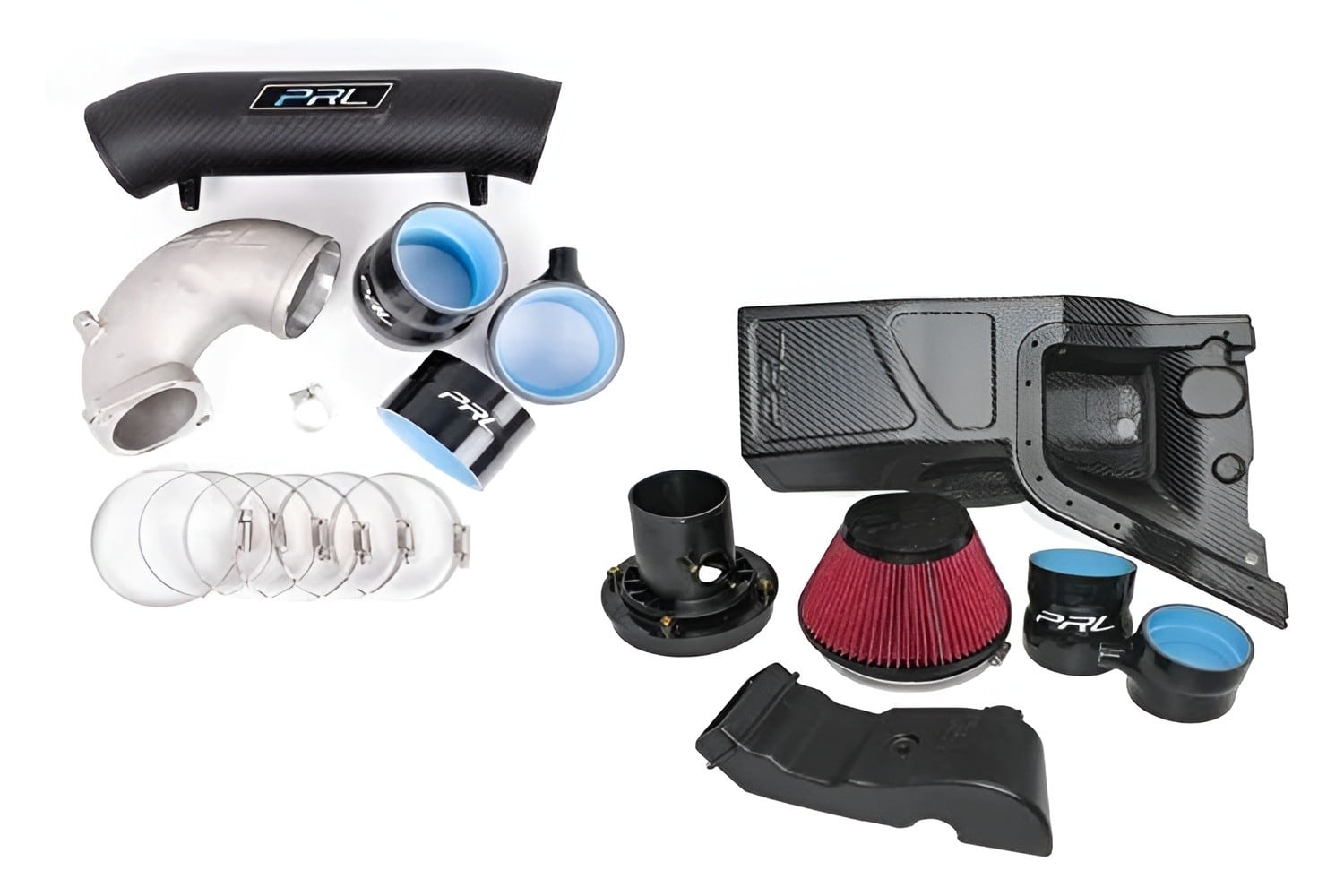

PRL Motorsports Matte Carbon Fiber HVI and Inlet Pipe Bundle for FL5 Honda Civic Type R

This bundle pairs PRL’s two matte carbon fiber intake upgrades — the High Volume Intake System and the Matte Carbon Fiber Turbocharger Inlet Pipe Kit — into one purchase, giving FL5 Civic Type R owners a complete carbon fiber intake path from filter to turbocharger. The HVI replaces the factory airbox with a larger MAF housing and increased airflow capacity, and the carbon inlet pipe eliminates restriction between intake and compressor inlet with over 50% greater airflow volume than the OEM piece. Both components share the same matte carbon fiber finish for a coordinated engine bay look, and the bundle is priced below the sum of the individual parts.

Features

Complete matte carbon fiber intake path from filter to turbocharger
Includes PRL Matte Carbon High Volume Intake System (PRL1.1001.1.CARM)
Includes PRL Matte Carbon Fiber Turbocharger Inlet Pipe Kit (PRL1.1046.1.CARM)
Coordinated matte carbon fiber aesthetics across both components
Over 50% increase in airflow volume at the turbocharger inlet versus OEM
Larger MAF housing for increased airflow capacity
No ECU calibration required for installation
Direct bolt-on with no trimming
Bundle pricing — saves versus buying components separately

Specifications

HVI: Matte carbon fiber airbox and intake tube, oversized MAF housing, high-flow filter
Inlet pipe: 80mm OD / 78mm ID matte carbon fiber crossover
Inlet piece: Cast aluminum, gasket-matched to 64mm compressor inlet
Couplers: High-temp 4-ply silicone
Clamps: 304 stainless steel interlocking worm clamps

Applications

Honda Civic Type R: FL5 | 2023-present

Notes

No ECU calibration required
Direct bolt-on installation, no trimming required
The HVI and inlet pipe are engineered to work together — both components are required for the full airflow benefit

Frequently Asked Questions

What vehicles does the PRL Matte Carbon High Volume Intake and Inlet Pipe Bundle fit? This bundle fits all 2023+ Honda Civic FL5 Type R models, including RHD and international variants. Both components are designed to work with all factory fitment turbochargers on the FL5 platform. No ECU calibration is required for either component.
Does this bundle require a tune or ECU calibration to install? No. Both the PRL Matte Carbon High Volume Intake System and the Carbon Fiber Turbocharger Inlet Pipe Kit are direct bolt-on upgrades that do not require ECU calibration. The intake system is designed to provide a factory-like fuel trim for optimal drivability on stock and tuned applications alike.
Why does the Carbon Fiber Inlet Pipe Kit only work with the PRL High Volume Intake? The PRL Carbon Fiber Turbocharger Inlet Pipe Kit connects at the outlet of the intake airbox and transitions to the turbocharger compressor inlet. Its dimensions and connection geometry are engineered specifically around the PRL High Volume Intake outlet. It is not compatible with the factory intake or other aftermarket intakes because the connection geometry differs. This bundle pairs the two components that are designed to work together, covering the complete intake path from filter to turbocharger.
What performance improvement does this bundle provide over the stock intake system? The PRL High Volume Intake addresses a documented restriction at the factory rubber inlet, which PRL’s testing showed can cause a 10 to 20 horsepower loss when the hood is closed; a problem the HVI’s secondary air duct resolves by maximizing the airflow opening into the airbox. The Carbon Fiber Inlet Pipe Kit then addresses the secondary restriction between the airbox and the turbocharger, offering over a 50% increase in airflow volume compared to the factory inlet pipe. Together, the two components eliminate the primary points of intake restriction from air entry through to the turbocharger inlet, improving bottom-end power, turbo spool, and throttle response.
Is this bundle compatible with a stock or tuned FL5, and does either component affect fuel trims? Both components work on stock and tuned FL5 builds. PRL designed the High Volume Intake specifically to maintain a factory-like fuel trim, making it compatible with the factory ECU without causing fuel trim or MAF-related issues. No additional injectors, fuel pump upgrades, or calibration changes are required for either component in this bundle.
What is the advantage of buying the bundle over purchasing each component separately? The bundle is priced lower than purchasing the Matte Carbon High Volume Intake System and the Carbon Fiber Turbocharger Inlet Pipe Kit individually. Beyond the price advantage, buying both together ensures the two components are matched in finish and designed to work as a system, covering the complete intake path from the filter housing to the turbocharger inlet without any compatibility concerns or additional adapter hardware needed.
What warranty covers this bundle? Both components in this bundle are PRL Motorsports manufactured products and carry PRL’s 12-month limited warranty from the date of purchase against manufacturing defects in materials and workmanship, when purchased from PRL Motorsports or an authorized PRL Motorsports dealer. The warranty does not cover products used in racing or off-road applications, products showing evidence of improper installation or misuse, or products altered from PRL’s original design intent.

About PRL Motorsports

PRL Motorsports started in 2007 as PRL Racing, a small group of enthusiasts outside Pittsburgh, Pennsylvania, united by a single goal: faster lap times. What began trackside quickly earned a reputation for engineering excellence, producing race cars capable of 9-second quarter-mile passes as early as 2007 and 6-second times by 2009. By 2011, the operation had grown into PRL Motorsports, expanding from trackside tuning into full-scale product development and fabrication across Honda, Nissan, Mitsubishi, and Subaru platforms. In 2018, PRL Motorsports made a deliberate shift to focus entirely on manufacturing, concentrating their resources on engineering and producing performance components rather than installation and tuning services. Today, PRL Motorsports operates from a 25,000 sq/ft facility in Export, Pennsylvania, staffed by over 25 professionals and equipped with CNC machining departments, automated cutting stations, dual-spindle lathes, 5-axis milling centers, and robotic loading systems running 24-hour production capacity. Their catalog covers intercooler systems, intake systems, turbocharger systems, exhaust components, and throttle body and intake manifold adapters; many of which carry CARB compliance and SEMA Garage certification. From a 9-second S13 to tuning the first 10th-generation Civic into the 10-second range in 2019, PRL Motorsports has built its reputation on one principle: never settle, always push for the best possible outcome.
