Do I need the DCC cancellation kit with these coilovers?

Only on cars with DCC, the Volkswagen adaptive damping system. Öhlins lists its cancellation kit, part 35020-15, alongside this kit to prevent fault codes once the factory electronic dampers come out. Cars on passive dampers do not need it.

Do the Coilovers for Volkswagen Golf GTI fit both the MK7 and the MK8?

Yes. Öhlins lists kit VWS MU21S1 for the front-drive MQB Golf, MK7 and MK8 GTI included, and the same kit fits the front-drive 8V Audi A3. The all-wheel-drive Golf R uses a different Öhlins kit, VWS MU21S2.

What damping setting should I use?

Öhlins suggests 10 to 20 clicks for street driving, 5 to 10 for winding roads and 0 to 7 for track use. Each click changes compression and rebound together through the DFV valve, so one turn of the gold knob at each corner is all it takes to swap between road and circuit settings.

How low does the GTI sit on the Öhlins kit?

On the Öhlins recommended preload settings the car sits about 20 mm lower than stock at both ends. Ride height is set with the threaded spring preload adjusters, and Öhlins gives a front range of roughly 0 to 25 mm below stock.

Does the kit reuse the factory top mounts?

Yes. The front struts and rear shock absorbers both use the original Volkswagen top mounts, and the kit includes new upper spring seats and bearings for the front. A four-wheel alignment is still recommended after fitting.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

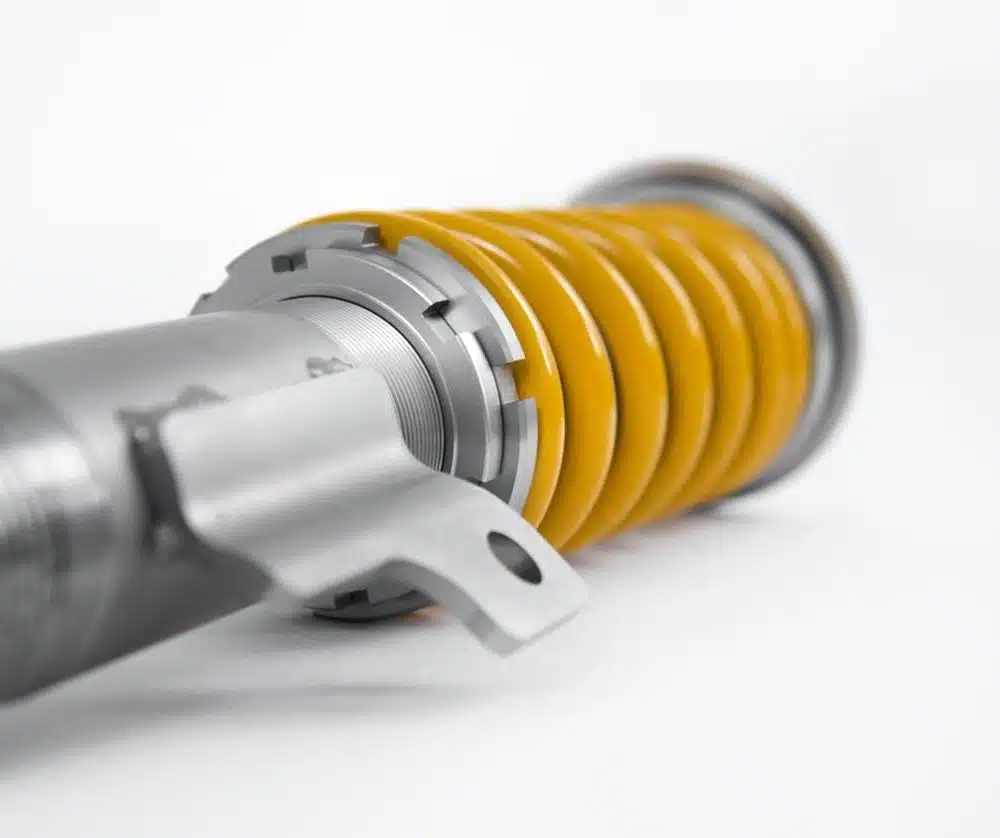

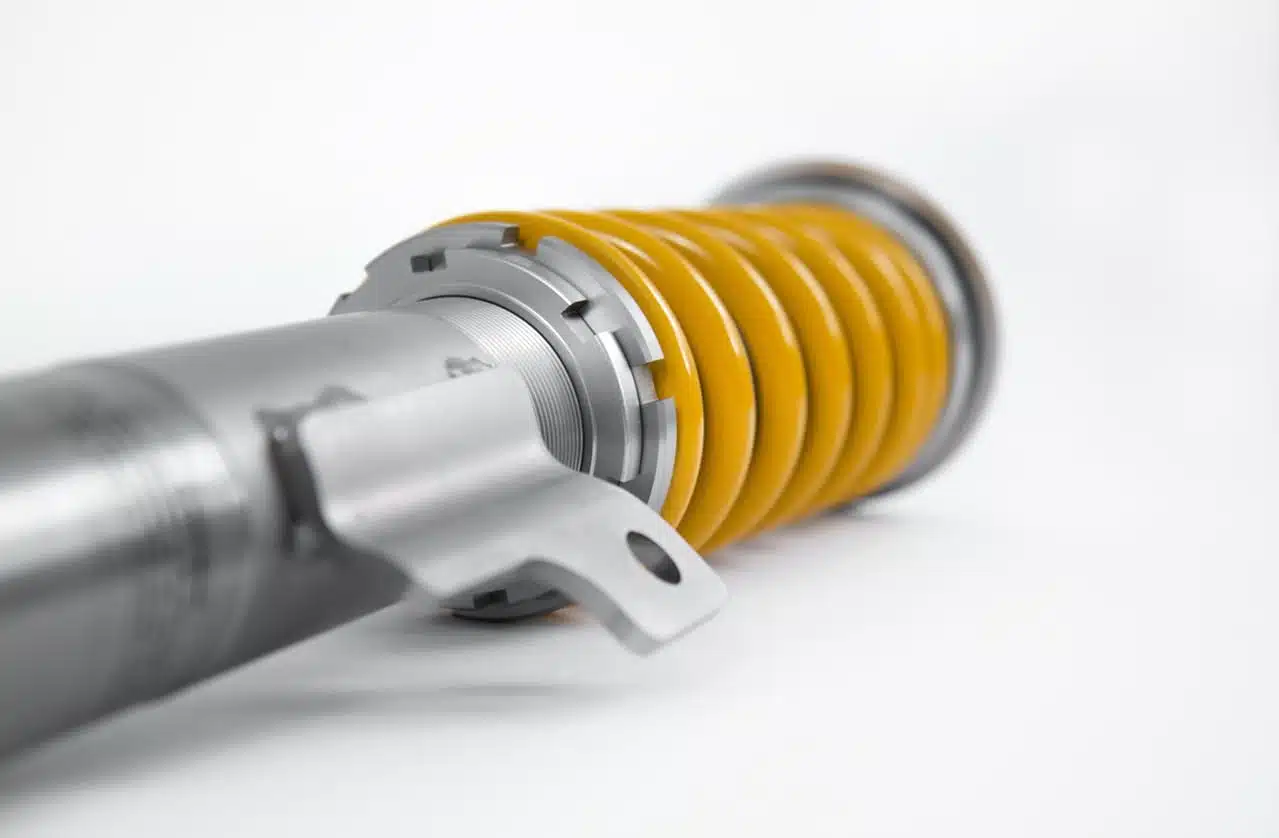

Öhlins DFV Road & Track Coilovers for MK7 / MK8 Volkswagen Golf GTI

Öhlins’ DFV Road & Track Coilovers for Volkswagen Golf GTI models replace all four dampers and springs on both the MK7 and the MK8 GTI with Öhlins kit VWS MU21S1, the kit Öhlins builds for the front-drive MQB platform. A gold knob on each damper switches between street and track settings in seconds, and on Öhlins’ recommended setup the car sits about 20 mm lower than stock. It suits the owner who drives to the circuit and home again; a car trailered to every event wants a dedicated track damper.

Design and Performance

The Dual Flow Valve lets one adjuster shift low and high speed compression and rebound together, so road and track settings are a knob turn apart rather than a session of separate changes. Ride height is set with threaded spring preload adjusters at each corner, and both ends keep the original Volkswagen top mounts.

Features

DFV (Dual Flow Valve) damping technology
One knob adjusts compression and rebound together at each corner
Inverted monotube McPherson struts up front
Rear shock absorbers with threaded spring preload adjusters
Uses the original top mounts front and rear
Rebuildable dampers for service and custom valving
Salt spray corrosion tested to ISO 9227
2-year Öhlins warranty

Specifications

Ride height at recommended setup: approximately 20 mm below stock, front and rear
Front lowering range: approximately 0-25 mm
Front spring rate: 400 lb/in (70 N/mm)
Rear spring rate: 400 lb/in (70 N/mm)
Height adjustment: spring preload, 2.0 mm per turn front and 1.5 mm per turn rear

What’s Included

Front struts (x2)
Front springs (x2)
Front upper spring seats and bearings (x2)
Rear shock absorbers (x2)
Rear springs (x2)
Rear spring preload adjusters (x2)
Spacers, dust boots, lock nuts and mounting hardware
C-spanners (x2) and Öhlins sticker kit
Owner’s manual

Applications

Volkswagen Golf GTI: MK7 | 2013-2020
Volkswagen Golf GTI: MK8 | 2021-present

Notes

Cars with DCC, Volkswagen’s adaptive damping, also need the Öhlins DCC Cancellation Kit for Mk7 / Mk8 Volkswagen Golf
The front struts fit uprights with a 55 mm inner diameter only
Not for the all-wheel-drive Golf R, which uses the Öhlins coilovers for the MK8 Golf R or the Öhlins kit for the MK7 Golf R
Öhlins sells the same kit for the front-drive 8V Audi A3, listed separately
Professional installation and a four-wheel alignment are recommended when fitting the Coilovers for Volkswagen Golf GTI models

Frequently Asked Questions

Do I need the DCC cancellation kit with these coilovers? Only on cars with DCC, the Volkswagen adaptive damping system. Öhlins lists its cancellation kit, part 35020-15, alongside this kit to prevent fault codes once the factory electronic dampers come out. Cars on passive dampers do not need it.
Do the Coilovers for Volkswagen Golf GTI fit both the MK7 and the MK8? Yes. Öhlins lists kit VWS MU21S1 for the front-drive MQB Golf, MK7 and MK8 GTI included, and the same kit fits the front-drive 8V Audi A3. The all-wheel-drive Golf R uses a different Öhlins kit, VWS MU21S2.
What damping setting should I use? Öhlins suggests 10 to 20 clicks for street driving, 5 to 10 for winding roads and 0 to 7 for track use. Each click changes compression and rebound together through the DFV valve, so one turn of the gold knob at each corner is all it takes to swap between road and circuit settings.
How low does the GTI sit on the Öhlins kit? On the Öhlins recommended preload settings the car sits about 20 mm lower than stock at both ends. Ride height is set with the threaded spring preload adjusters, and Öhlins gives a front range of roughly 0 to 25 mm below stock.
Does the kit reuse the factory top mounts? Yes. The front struts and rear shock absorbers both use the original Volkswagen top mounts, and the kit includes new upper spring seats and bearings for the front. A four-wheel alignment is still recommended after fitting.

About Öhlins

Öhlins was founded in 1976 by former motocross racer Kenth Öhlin and is based in Upplands Väsby, Sweden, where it develops dampers for motorcycles, cars and motorsport. Its suspension has won more than 300 world championship titles across motorcycle and car racing, its CES electronic damping went into series production on the Volvo S60R in 2003, and the company has been part of the Brembo group since 2025.
