Do I need the PASM cancellation kit with these coilovers?

Only on cars with PASM, the Porsche Active Suspension Management adaptive dampers. Without its dampers the system logs fault codes, which the Öhlins PASM Cancellation Kit prevents. Coupes use part 35020-10 and cabriolets use part 35020-09. Cars on passive dampers do not need either kit.

Which models do the Coilovers for 997 Porsche 911 Carrera 4 and Turbo fit?

Öhlins lists kit POZ MW10S1 for the all-wheel-drive 997: the Carrera 4, Carrera 4S, Targa 4, Targa 4S and Carrera 4 GTS, plus the Turbo and Turbo S, in coupe and cabriolet form.

What damping setting should I use?

Öhlins suggests 10 to 20 clicks for street driving, 5 to 10 for winding roads and 0 to 7 for track use. Each click changes compression and rebound together through the DFV valve, so one turn of the gold knob at each corner is all it takes to swap between road and circuit settings.

How low does the 997 sit on the Öhlins kit?

The damper length adjusters give roughly 0 to 25 mm of lowering at each end. The Öhlins mounting instructions put the car about 20 mm below stock at the front and 25 mm below at the rear on the lowest recommended setting, and close to factory height on the highest.

Are camber adjustable top mounts included?

Yes, at the front. The kit includes aluminum ball joint top mounts for both front struts, so camber can be set on each front wheel during the alignment. The rear shock absorbers reuse the original Porsche top mounts, so nothing else is needed at the rear.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

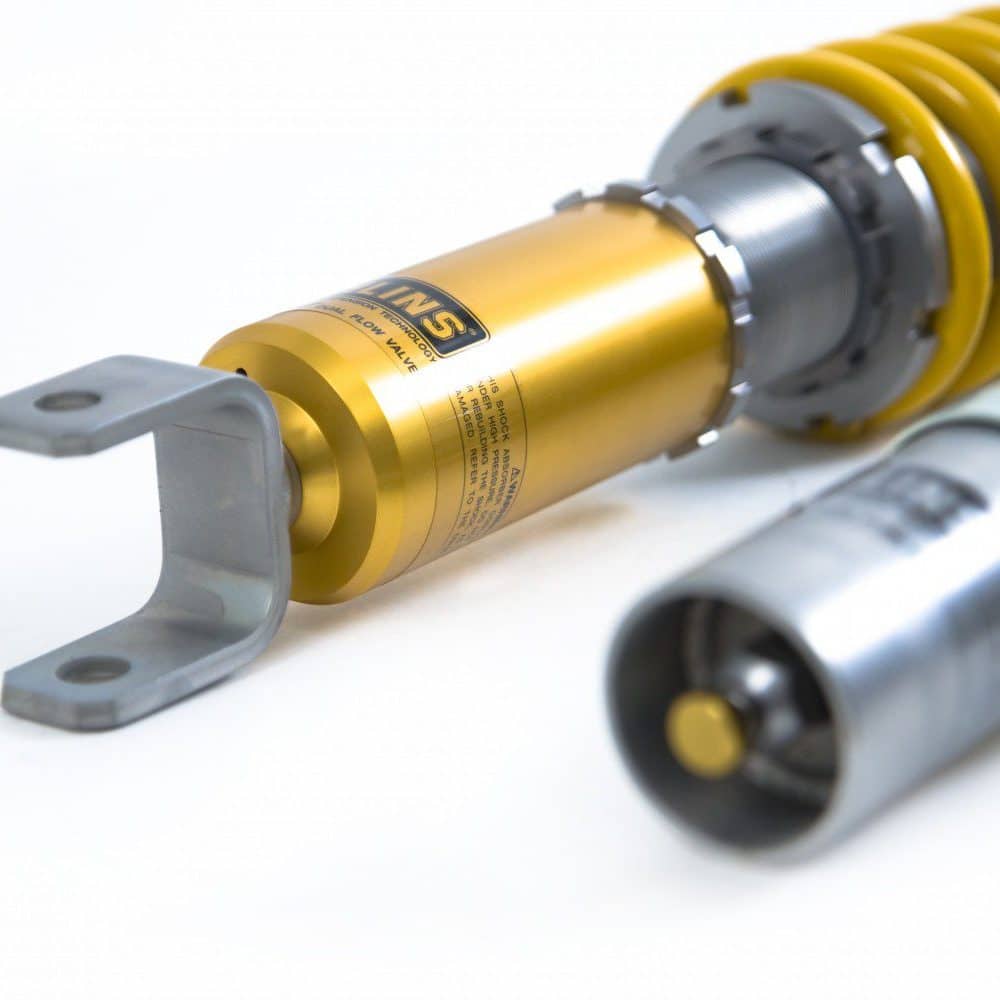

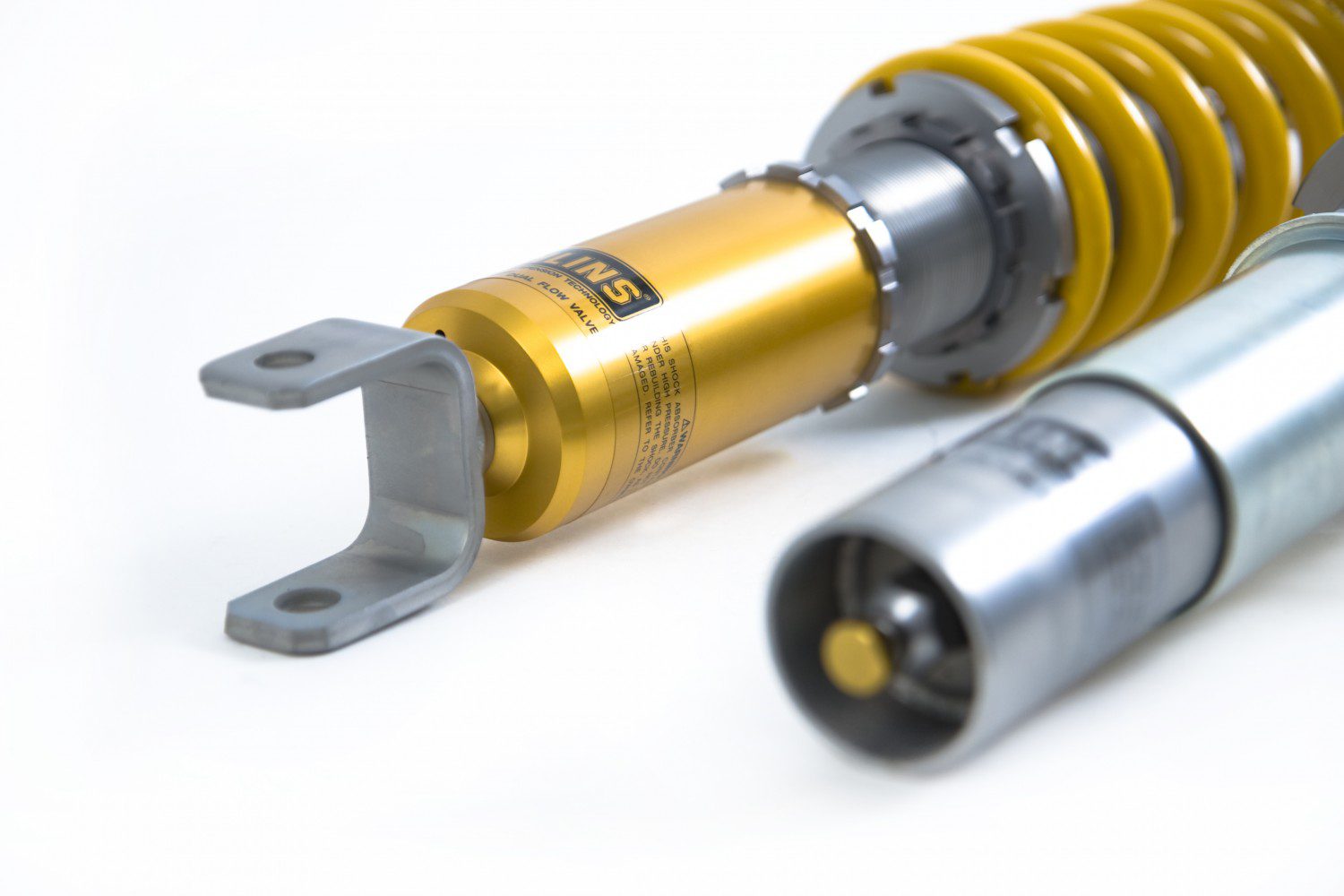

Öhlins DFV Road & Track Coilovers for 997 Porsche 911 Carrera 4 and Turbo

Öhlins’ DFV Road & Track Coilovers for 997 Porsche 911 Carrera 4 and Turbo models replace all four dampers and springs on the all-wheel-drive 997 with Öhlins kit POZ MW10S1, covering the Carrera 4, Carrera 4S, Targa 4, Targa 4S, Carrera 4 GTS, Turbo and Turbo S, coupe or cabriolet. A gold knob on each damper switches between street and track settings in seconds. It suits the owner who drives to the circuit and home again; a dedicated race car wants a fully adjustable damper.

Design and Performance

The Dual Flow Valve lets one adjuster shift low and high speed compression and rebound together, so road and track settings are a knob turn apart rather than a session of separate changes. Separate damper length and preload adjusters set ride height at each corner.

Features

DFV (Dual Flow Valve) damping technology
Single 25-click knob adjusts compression and rebound together
Inverted monotube McPherson struts up front
Aluminum ball joint front top mounts with adjustable camber
Aluminum monotube rear shock absorbers on the original top mounts
Rebuildable dampers for service and custom valving
Salt spray corrosion tested to ISO 9227
TÜV approved
2-year Öhlins warranty

Specifications

Front lowering range: approximately 0-25 mm
Rear lowering range: approximately 0-25 mm
Front spring rate: 400 lb/in (70 N/mm)
Rear spring rate: 685 lb/in (120 N/mm)
Damping adjustment: 25 clicks, compression and rebound combined

What’s Included

Front struts (x2)
Front springs (x2)
Aluminum ball joint front top mounts (x2)
Rear shock absorbers (x2)
Rear springs (x2)
Rear click adjusters (x2) and front anti-roll bar brackets (L/R)
Spring platforms, lock rings, spacers, dust boots and mounting hardware
C-spanners (x2) and Öhlins sticker kit
Owner’s manual and mounting instructions

Applications

Porsche 911 Carrera 4 / Carrera 4S: 997 | 2005-2012
Porsche 911 Targa 4 / Targa 4S: 997 | 2007-2012
Porsche 911 Carrera 4 GTS: 997 | 2011-2012
Porsche 911 Turbo: 997 | 2006-2012
Porsche 911 Turbo S: 997 | 2010-2012

Notes

Cars with PASM, Porsche’s factory adaptive damping, also need the Öhlins PASM Cancellation Kit for 997 Porsche 911 Coupe or the Öhlins PASM Cancellation Kit for 997 Porsche 911 Cabriolet
Cars with the BOSE sound system need Öhlins wire adjusters, one per side, sold separately
Not for the rear-drive 997 Carrera and Carrera S or the 997 GT2 and GT3, which have their own kits: Öhlins coilovers for the 997 Carrera / Carrera S and Öhlins coilovers for the 997 GT2 / GT3
Professional installation and a four-wheel alignment are recommended when fitting the Coilovers for 997 Porsche 911 models

Frequently Asked Questions

Do I need the PASM cancellation kit with these coilovers? Only on cars with PASM, the Porsche Active Suspension Management adaptive dampers. Without its dampers the system logs fault codes, which the Öhlins PASM Cancellation Kit prevents. Coupes use part 35020-10 and cabriolets use part 35020-09. Cars on passive dampers do not need either kit.
Which models do the Coilovers for 997 Porsche 911 Carrera 4 and Turbo fit? Öhlins lists kit POZ MW10S1 for the all-wheel-drive 997: the Carrera 4, Carrera 4S, Targa 4, Targa 4S and Carrera 4 GTS, plus the Turbo and Turbo S, in coupe and cabriolet form.
What damping setting should I use? Öhlins suggests 10 to 20 clicks for street driving, 5 to 10 for winding roads and 0 to 7 for track use. Each click changes compression and rebound together through the DFV valve, so one turn of the gold knob at each corner is all it takes to swap between road and circuit settings.
How low does the 997 sit on the Öhlins kit? The damper length adjusters give roughly 0 to 25 mm of lowering at each end. The Öhlins mounting instructions put the car about 20 mm below stock at the front and 25 mm below at the rear on the lowest recommended setting, and close to factory height on the highest.
Are camber adjustable top mounts included? Yes, at the front. The kit includes aluminum ball joint top mounts for both front struts, so camber can be set on each front wheel during the alignment. The rear shock absorbers reuse the original Porsche top mounts, so nothing else is needed at the rear.

About Öhlins

Öhlins was founded in 1976 by former motocross racer Kenth Öhlin and is based in Upplands Väsby, Sweden, where it develops dampers for motorcycles, cars and motorsport. Its suspension has won more than 300 world championship titles across motorcycle and car racing, its CES electronic damping went into series production on the Volvo S60R in 2003, and the company has been part of the Brembo group since 2025.
