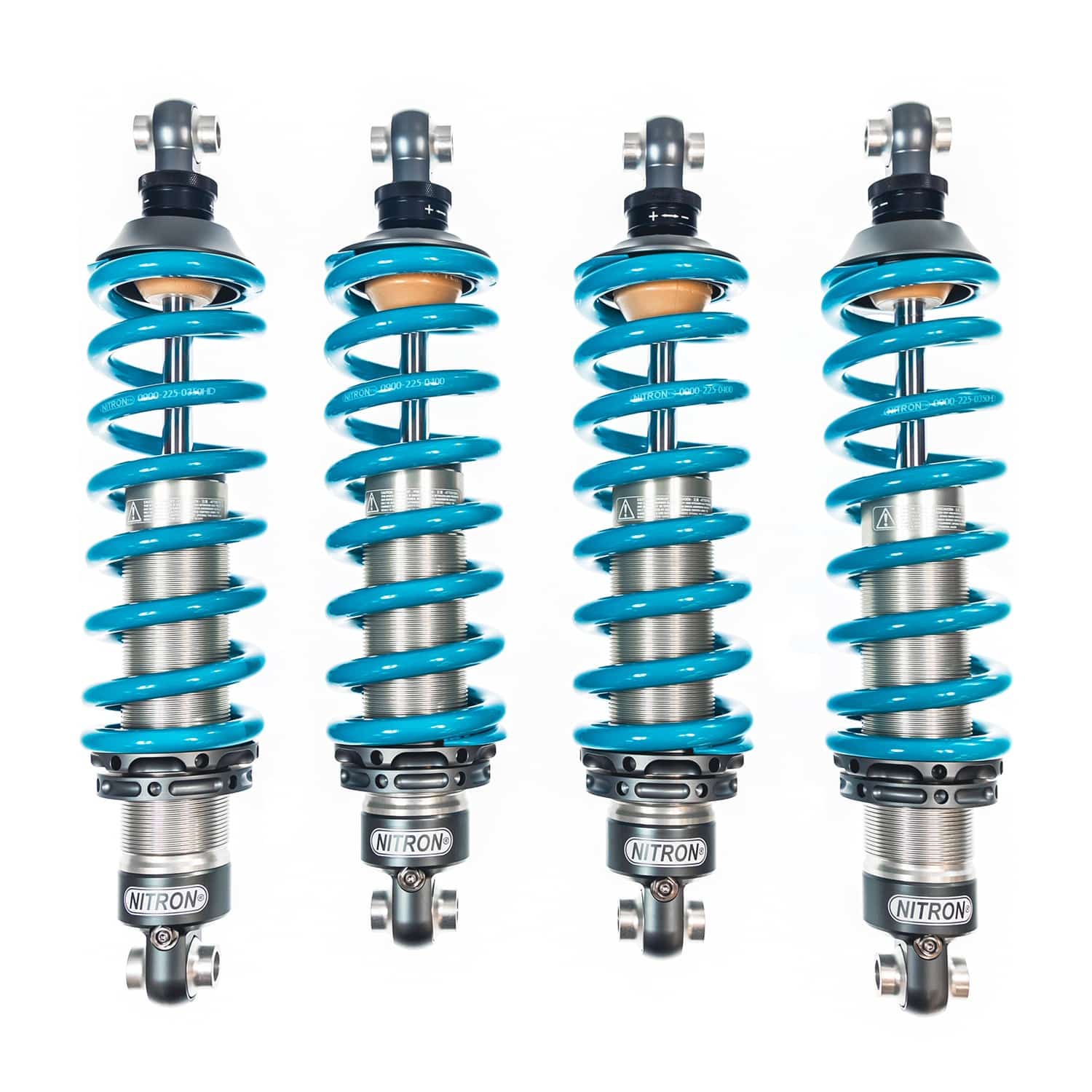

Nitron NTR-R1 Coilover Kit for Zenos E10 / E10 S

Zenos built very few E10s, and today every owner is responsible for keeping theirs sharp, often without a dealer network to lean on. Nitron backs a car like this properly. The Nitron Zenos E10 NTR-R1 coilover kit fits both the E10 and the E10 S. It gives these featherweight roadsters a damper that has more in common with a race car than with the components they left the factory with. On a car this light, small differences in damper friction and control show up immediately through the steering and the seat. A sticky damper makes the chassis feel nervous over patched tarmac. A well-controlled one lets it flow. One adjuster per corner sets bump and rebound together, so you can tune the car for a cross-country blast or a track day in a few clicks. The rear follows the OEM suspension layout, so the Nitron E10 NTR-R1 bolts into the factory mounting points of the all-round double wishbone suspension without changing the geometry Zenos developed.

Unique Technology

The Nitron NTR-R1 comes out of Nitron’s race program and shares much of its internal hardware with the NTR-R3 used in international motorsport. Leaving off the remote canister keeps each unit compact and the install simple. On an open car with exposed suspension and little room between the wishbones, that matters more than it would on most cars. Very low internal friction lets the Nitron E10 NTR-R1 respond the instant a wheel starts to move. With so little mass resting on each corner, that responsiveness keeps the tires in contact over rough, uneven surfaces where a stiffer, stickier damper would let them skip. The damping also resists fade, so the balance you set on the first lap of a session is still there when the checkered flag comes out.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Each Nitron Zenos E10 NTR-R1 kit is assembled by hand after the order is placed. Springs and valving are chosen for how that particular car is driven, whether that’s an E10 used for weekend road trips, an E10 S that splits its time between the road and track days, or a car set up for sprints and hillclimbs. Hard-anodized and titanium-finish components keep weight down on a chassis designed around low mass, and they resist corrosion on a car that sees more weather than most because it has no roof. Keeping an independent British sports car on the road for the long term also means using parts that can be maintained. Every Nitron NTR-R1 damper can be fully serviced and revalved, so the kit can be rebuilt and adjusted to suit the car for years.

Features

OEM rear suspension type
Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilovers
Hand made to order

Specifications

Coilover Type: NTR-R1
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Types: OEM
Droplinks Included: No
Recommended Spring Rates:
- TDS – Track Day Spec:
  - Front: 450lbs/inch (79N/mm)
  - Rear: 600lbs/inch (105N/mm)

Applications

Zenos E10: 2015-2016
Zenos E10 S: 2015-2016

Other Suspension Kits for Zenos E10 / E10 S

NTR-R3 Coilover Kit

Notes

Custom spring rates also available
Please feel free to contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

Does the Nitron Zenos E10 NTR-R1 kit fit both the E10 and the E10 S? Yes. The Nitron Zenos E10 NTR-R1 coilover kit is built for both the E10 and the E10 S. Because every kit is sprung and valved to order, Nitron can tailor the setup to each car’s specification and how the owner drives it, whether that’s mostly on the road, at track days or in sprint events.
Does the Nitron E10 NTR-R1 change the suspension layout? No. The Nitron E10 NTR-R1 bolts into the factory mounting points of the E10’s all-round double wishbone suspension and uses an OEM-type rear layout. The geometry Zenos developed stays as it is, which keeps the install simple and keeps the car’s balance familiar while the Nitron dampers give you far more control over how it moves.
Why does damper quality matter so much on a lightweight car like the Zenos E10? With so little weight on each corner, the Zenos E10 is very sensitive to damper friction and control. The Nitron E10 NTR-R1 uses low-friction internals that react to small inputs. That keeps the tires following uneven surfaces instead of skipping over them, which shows up as more grip and a calmer, more confident car.
How do you adjust the damping on the Nitron NTR-R1? Each Nitron NTR-R1 damper has a single adjuster that changes bump and rebound together along a curve Nitron sets for the car. Turning it firmer stiffens both directions at once, and turning it softer relaxes both. Switching between a road setting and a track setting takes a few clicks per corner, with no separate circuits to balance.
Can the Nitron Zenos E10 NTR-R1 be serviced and rebuilt? Yes. Every Nitron Zenos E10 NTR-R1 damper is fully serviceable, so it can be rebuilt, revalved or fitted with different springs as needed. For a low-volume car like the E10, that means the suspension can be kept in top condition long term instead of being replaced.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
