What are the four adjustments on each damper?

Each corner has high speed compression, low speed compression, high speed rebound, and low speed rebound. The low speed settings shape how the car pitches, rolls, and settles, and the high speed settings shape how it deals with curbs and sharp bumps.

How does the kit fit with the OEM rear suspension?

The rear keeps its original OEM suspension layout. The kit is built to suit that arrangement, so the Nitron spring and damper replace the factory parts in the same place.

Does the rear of the car need any hoses?

No. The rear uses piggyback reservoirs that mount directly on the dampers, so there are no hoses to route at the back. Only the front reservoirs connect by hose.

Can I order other spring rates for the Supercopa?

Yes. Custom spring rates are available by contacting us directly, which is worth considering if you run a particular circuit or tire often or have changed the car’s weight.

Do I need an alignment after fitting the kit?

Yes. Adjustable top plates are included, and a professional alignment is required after installation so the new ride height and any camber changes are set correctly. The Nitron Supercopa NTR-R3 gives you more to adjust, so a proper setup session is worth the time.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

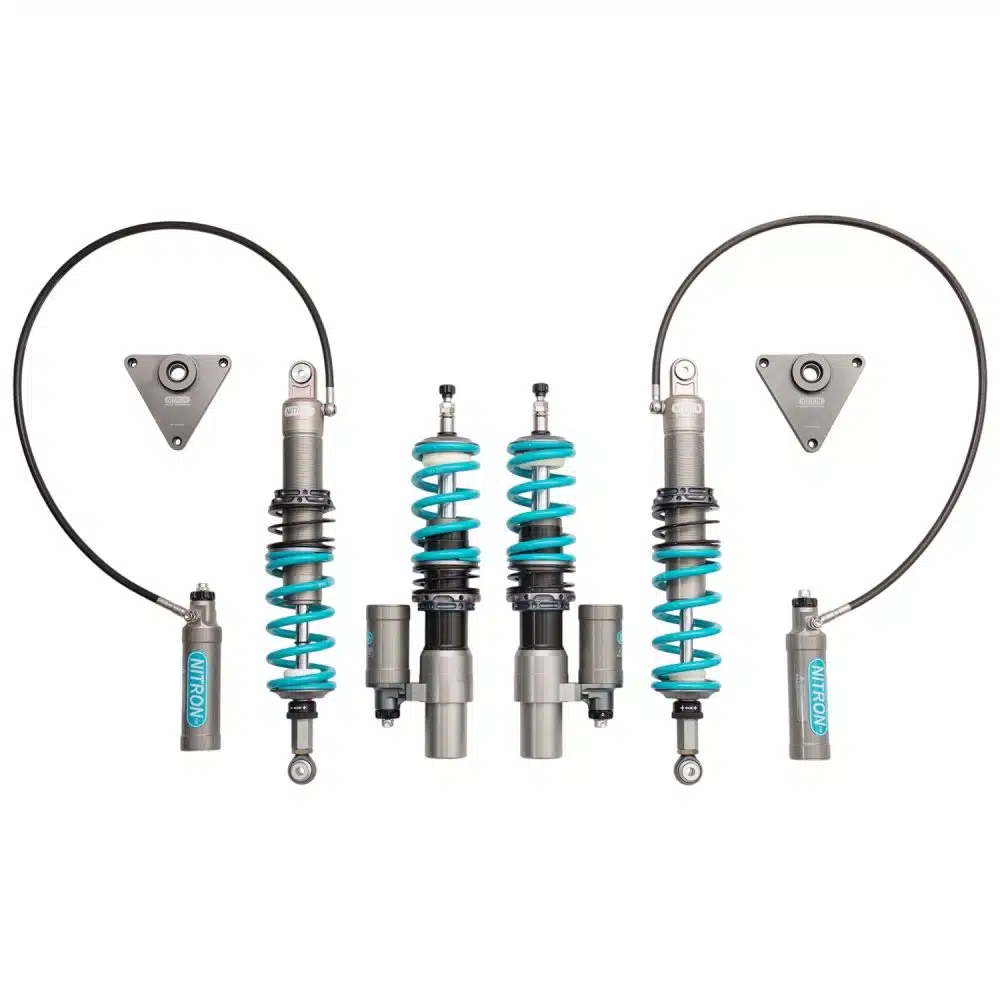

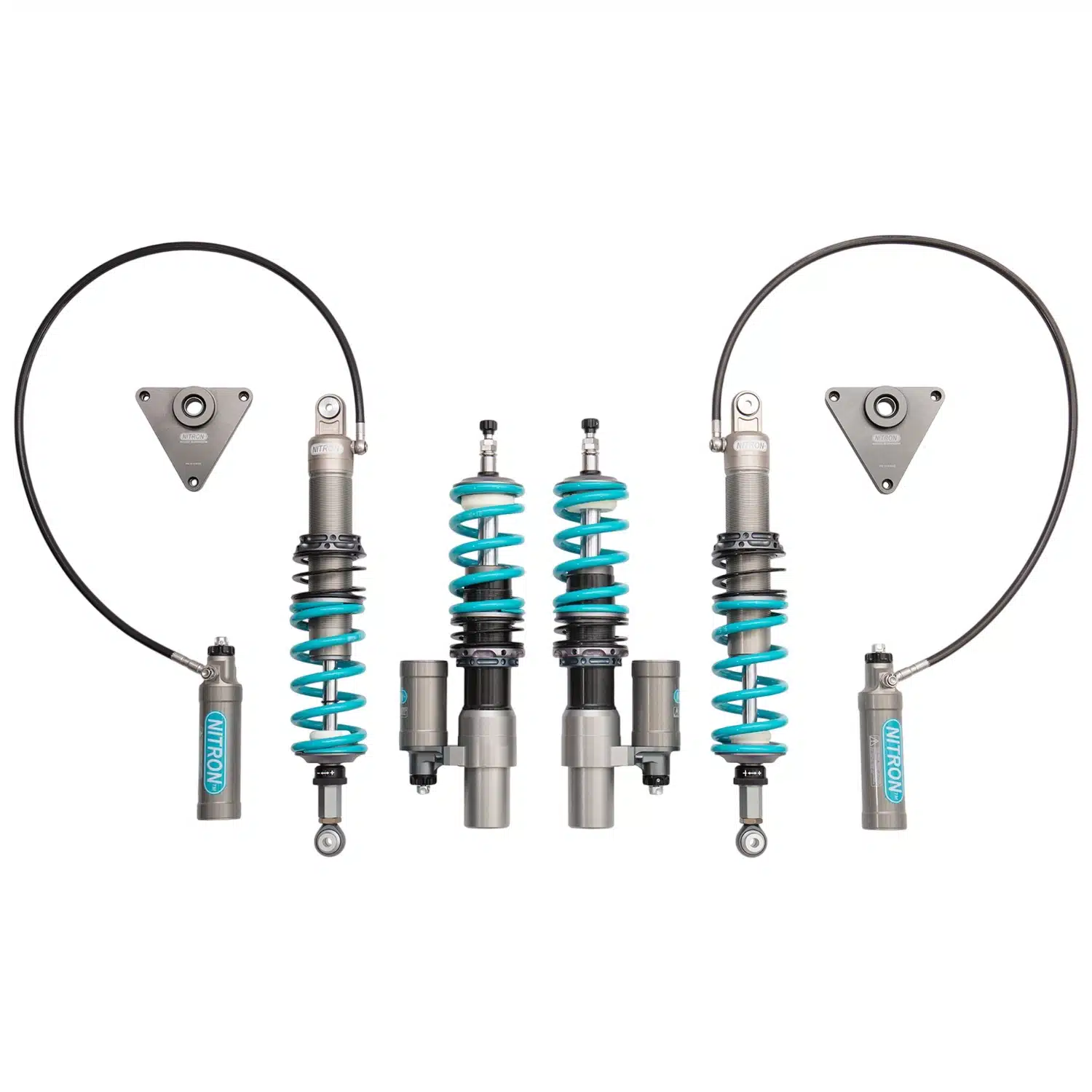

Nitron NTR-R3 Coilover Kit for MK2 SEAT León Supercopa

The Nitron MK2 León Supercopa NTR-R3 Coilover Kit is for owners who need to set the car up for each circuit and not rely on one fixed compromise. The Supercopa is a purpose-built race car that SEAT Sport builds from a bare shell, with a turbocharged 2.0-liter TFSI driving the front wheels, and the Nitron Supercopa NTR-R3 gives each corner four independent adjustments, high speed and low speed for both compression and rebound. That lets you control how the car pitches, rolls, and settles separately from how it takes a curb or a bump. Hose-connected reservoirs are used at the front and piggyback reservoirs at the rear, adjustable spring perches set ride height and corner weights, and the OEM rear suspension type is retained. For a car that already lives on track, the Supercopa NTR-R3 gives you the control to tune it properly.

Specialized Bi-Axis Hose Fittings

The front dampers connect to their remote reservoirs by hose, so the way each hose leaves the damper affects how clean and safe the installation is. Nitron fits Bi-Axis connectors that rotate 720 degrees on two axes, which lets you turn each hose toward its reservoir before you secure it. That gives every front line a short, natural route with no tight bends or tension on the fitting, which is worth having on a car that sees hard use. The rear needs none of this, because the piggyback reservoirs sit directly on the dampers.

Unique Technology

Racing a front-drive car means managing weight transfer lap after lap, and the NTR-R3 separates that job from the job of absorbing bumps. Low speed compression and rebound govern body movement, so they decide how the car dives under braking, rolls into a corner, and squats as the power comes on. High speed compression and rebound govern sharp inputs such as a curb, a bump at the apex, or a ripple on the exit, so they decide how well the tires stay on the surface. Each of the four settings is independent, which means you can adjust one without disturbing the others. The dampers are passive nitrogen-pressurized monotubes with remote reservoirs, hand assembled to order in the UK and fitted with race springs.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron builds the Supercopa NTR-R3 around the MK2 León Supercopa, with damper length, stroke, hose length, and perch positions chosen for the car and not cut down from a universal part. The rear stays as the OEM suspension type, and the Nitron spring and damper package fits into that layout. The factory geometry is left in place, and the car gains a level of damping control that is built for circuit use.

Features

Hose & piggyback reservoir types
OEM rear suspension type
16 clicks of high compression
26 clicks of low compression
24 clicks of rebound
Preload adjuster
3-way independent adjustment
Full alloy body
Consists of 4 coilovers, reservoirs, hoses, and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R3
Adjustment Type: 3-way independent
Adjustment: 16 clicks of high compression / 26 clicks of low compression / 24 clicks of rebound
Reservoir Type:
- Front: Hose
- Rear: Piggyback
Rear Suspension Type: OEM
Droplinks Included: No

Applications

SEAT León Supercopa: MK2 | 2006-2014

Notes

Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only; specific details, finishes and end fittings may differ from that shown

Frequently Asked Questions

What are the four adjustments on each damper? Each corner has high speed compression, low speed compression, high speed rebound, and low speed rebound. The low speed settings shape how the car pitches, rolls, and settles, and the high speed settings shape how it deals with curbs and sharp bumps.
How does the kit fit with the OEM rear suspension? The rear keeps its original OEM suspension layout. The kit is built to suit that arrangement, so the Nitron spring and damper replace the factory parts in the same place.
Does the rear of the car need any hoses? No. The rear uses piggyback reservoirs that mount directly on the dampers, so there are no hoses to route at the back. Only the front reservoirs connect by hose.
Can I order other spring rates for the Supercopa? Yes. Custom spring rates are available by contacting us directly, which is worth considering if you run a particular circuit or tire often or have changed the car’s weight.
Do I need an alignment after fitting the kit? Yes. Adjustable top plates are included, and a professional alignment is required after installation so the new ride height and any camber changes are set correctly. The Nitron Supercopa NTR-R3 gives you more to adjust, so a proper setup session is worth the time.
