What is the difference between this kit and the RS with FAL Cylinders?

The FAL Cylinders version is for P13 cars that came from the factory with the hydraulic lift system; it replaces the OEM cylinders and uses the existing pump and controller. The Standalone FAL is a complete, self-contained lift system for cars that were not factory optioned with lift or if wanting more from the OEM system. It includes everything needed; cylinders, hydraulic lines, a 250W pump, wiring loom, and controller.

Does the FAL affect the suspension tune or OEM top mount setup in any way?

No. The lift system operates independently of the damper setup and does not affect spring rates, valving, or ride height when not in use. The OEM top mounts remain in place throughout, and once the front axle comes back down the car behaves exactly as it would without the FAL fitted.

How does the RS differ from the RS3 on the P13?

The RS uses a single combined adjuster for compression and rebound across 24 clicks, keeping setup straightforward. The RS3 separates high and low speed compression into independent circuits, giving drivers and engineers more precise control over specific handling characteristics. The RS suits road-focused drivers who want meaningful improvement without complexity; the RS3 suits those who want the range to properly develop a setup across different circuits and conditions.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

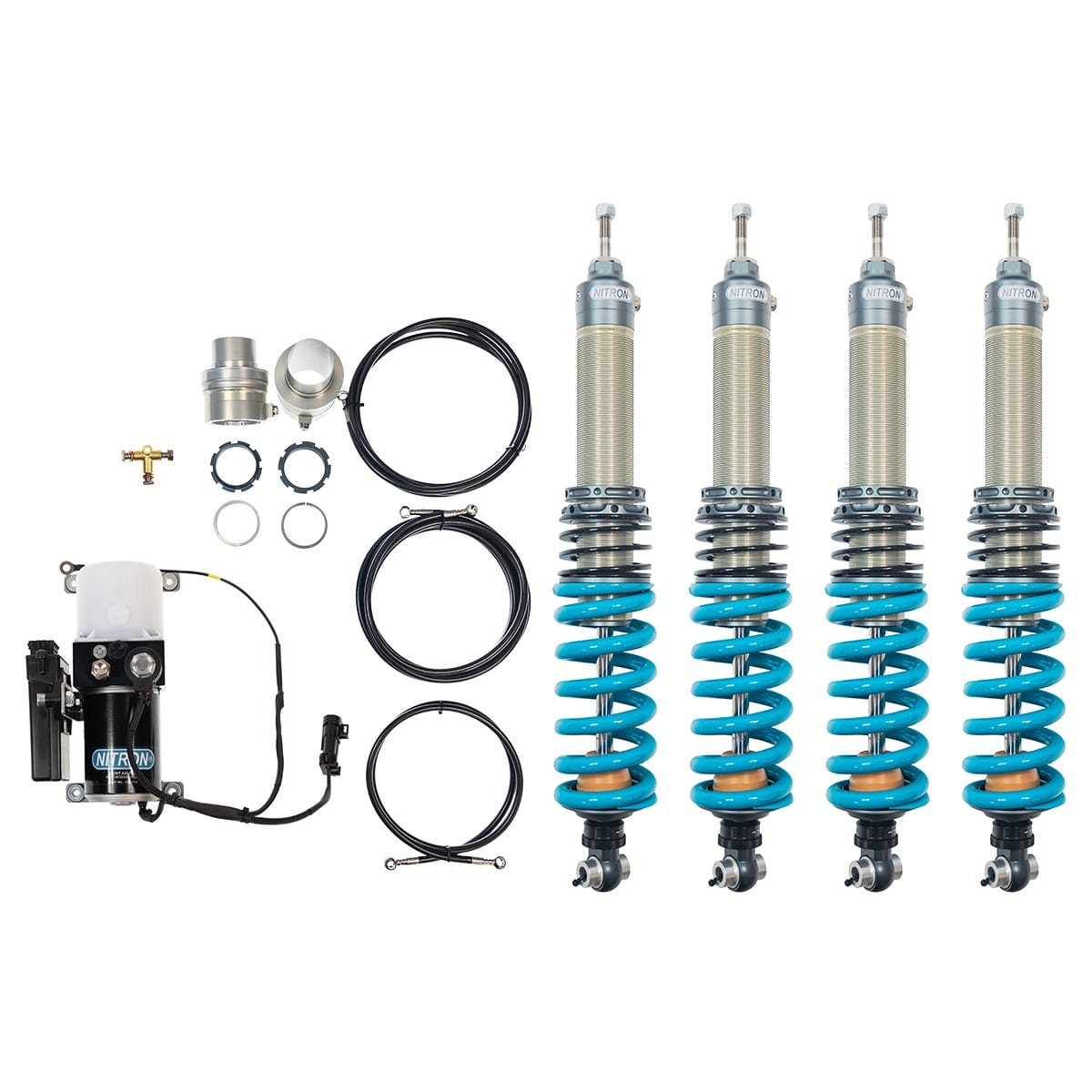

Nitron RS Coilover Kit w/ Standalone FAL for P13 McLaren 540C, 570GT, 570S, and 600LT

The Nitron RS Coilover Kit with Standalone Front Axle Lift for the P13 McLaren 540C, 570GT, 570S, and 600LT gives road-focused drivers the same effective damping control as the standard RS kit with one practical addition for daily use. The kit retains the McLaren’s OEM top mounts, preserving factory noise and comfort characteristics while delivering suspension performance well beyond the stock setup. The Standalone FAL addresses the trade-off that comes with running a lowered P13 on the road, raising the front axle 40mm at the shock in under 3 seconds so steep driveways, speed bumps, and parking obstacles stop requiring a second thought. Every kit is custom built, custom sprung, and hand-built with ultra-low friction components using titanium and hard-anodized materials that resist corrosion and hold damping fade-resistant through extended road and track use. Fully serviceable, no remote canister required.

The Nitron Front Axle Lift (FAL)

Running a lowered P13 McLaren on the road comes with a familiar set of frustrations; steep driveways, speed bumps, and parking lot ramps that sit just low enough to make every approach a calculation. The Nitron Standalone Front Axle Lift system is built around that specific problem. With 40mm of lift available at the front axle, it clears the obstacles that lowered ride heights make problematic without requiring any changes to the suspension setup and without affecting how the car performs once you’re back on the road or circuit. It’s a practical addition to a performance suspension package, not a compromise of one.
- 250W pump
- 40mm lift height
- Typical lift time under 3-seconds
- Audible in-cabin warning system
- Switch with built-in warning light
- Auto off function
- Protects your car from damage caused by steep driveways and speed bumps
- Compatible with a wide range of suspension setups

Unique Technology

Nitron builds every shock around precision components that go through a thorough design and development process long before final assembly. The modular construction gives engineers the room to develop each application properly on its own terms, without cutting corners on part quality or how components work together under load. Everything is machined to tight tolerances and inspected individually by trained technicians; quality control isn’t a final step here, it runs through the entire process. New materials, finishes, and processes are validated extensively before they’re brought into production, with proprietary Nitron technologies woven throughout to produce shocks that hold up against the competition on both road and track. That level of engineering discipline is what the brand has been built on.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t start with a generic damper and work backward from there. Every application is developed from the ground up, with components, spring rates, and damping characteristics determined by the specific platform rather than borrowed from something adjacent. The geometry, weight distribution, and suspension travel of the P13 McLaren shape the design from the start, not as corrections added later. That’s what separates a kit engineered for this car from one that was simply made to fit it.

Features

Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
40mm piston
14mm piston rod
Nitron FAL raises 40mm at the shock
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilovers (+FAL kit)
FAL kit contains all components (cylinders, hydraulic lines, pump, wiring loom and controller)
Hand made to order

Specifications

Coilover Type: RS with standalone FAL
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Type: OEM
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 570lbs/inch (100N/mm)
  - Rear: 800lbs/inch (140N/mm)
- TDS – Track Day Spec:
  - Front: 685lbs/inch (120N/mm)
  - Rear: 1025lbs/inch (180N/mm)

Applications

McLaren 540C: P13 | 2015-2021
McLaren 570GT: P13 | 2016-2021
McLaren 570S: P13 | 2015-2021
McLaren 600LT: P13 | 2018-2021

Other Suspension Kits for McLaren 540C, 570, and 600LT

Notes

Uses OEM top mounts
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

What is the difference between this kit and the RS with FAL Cylinders? The FAL Cylinders version is for P13 cars that came from the factory with the hydraulic lift system; it replaces the OEM cylinders and uses the existing pump and controller. The Standalone FAL is a complete, self-contained lift system for cars that were not factory optioned with lift or if wanting more from the OEM system. It includes everything needed; cylinders, hydraulic lines, a 250W pump, wiring loom, and controller.
Does the FAL affect the suspension tune or OEM top mount setup in any way? No. The lift system operates independently of the damper setup and does not affect spring rates, valving, or ride height when not in use. The OEM top mounts remain in place throughout, and once the front axle comes back down the car behaves exactly as it would without the FAL fitted.
How does the RS differ from the RS3 on the P13? The RS uses a single combined adjuster for compression and rebound across 24 clicks, keeping setup straightforward. The RS3 separates high and low speed compression into independent circuits, giving drivers and engineers more precise control over specific handling characteristics. The RS suits road-focused drivers who want meaningful improvement without complexity; the RS3 suits those who want the range to properly develop a setup across different circuits and conditions.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
