How much lift does the standalone FAL provide on Nitron's R33 GTS-25t NTR-R1 coilover kit?

The FAL raises the front axle 25mm at the shock, enough to clear driveways, speed bumps, and parking obstacles without changing the damping setup underneath.

Does raising the FAL affect how the car drives once it's lowered back down?

No. The FAL only lifts the front axle when activated and returns to the set ride height afterward, so the suspension tune stays the same once it's back down.

What kind of adjustment does this kit offer?

2-way combined compression and rebound adjustment, letting an owner dial in a range from comfortable street settings to a stiffer track setup.

Does this kit include adjustable top mounts?

Yes. Every kit ships with adjustable top mounts for precise ride height and camber correction, along with race springs.

Is this kit different from a GT-R NTR-R1 kit with FAL for the same chassis?

Yes. The GTS-25t is RWD without the GT-R's ATTESA E-TS transfer case and front differential, so the front weight distribution and mounting points differ enough that Nitron builds each kit around its own platform.

Can custom spring rates be ordered?

Yes. Every kit is custom built to order, and custom spring rates beyond the standard setup are available by contacting us directly.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

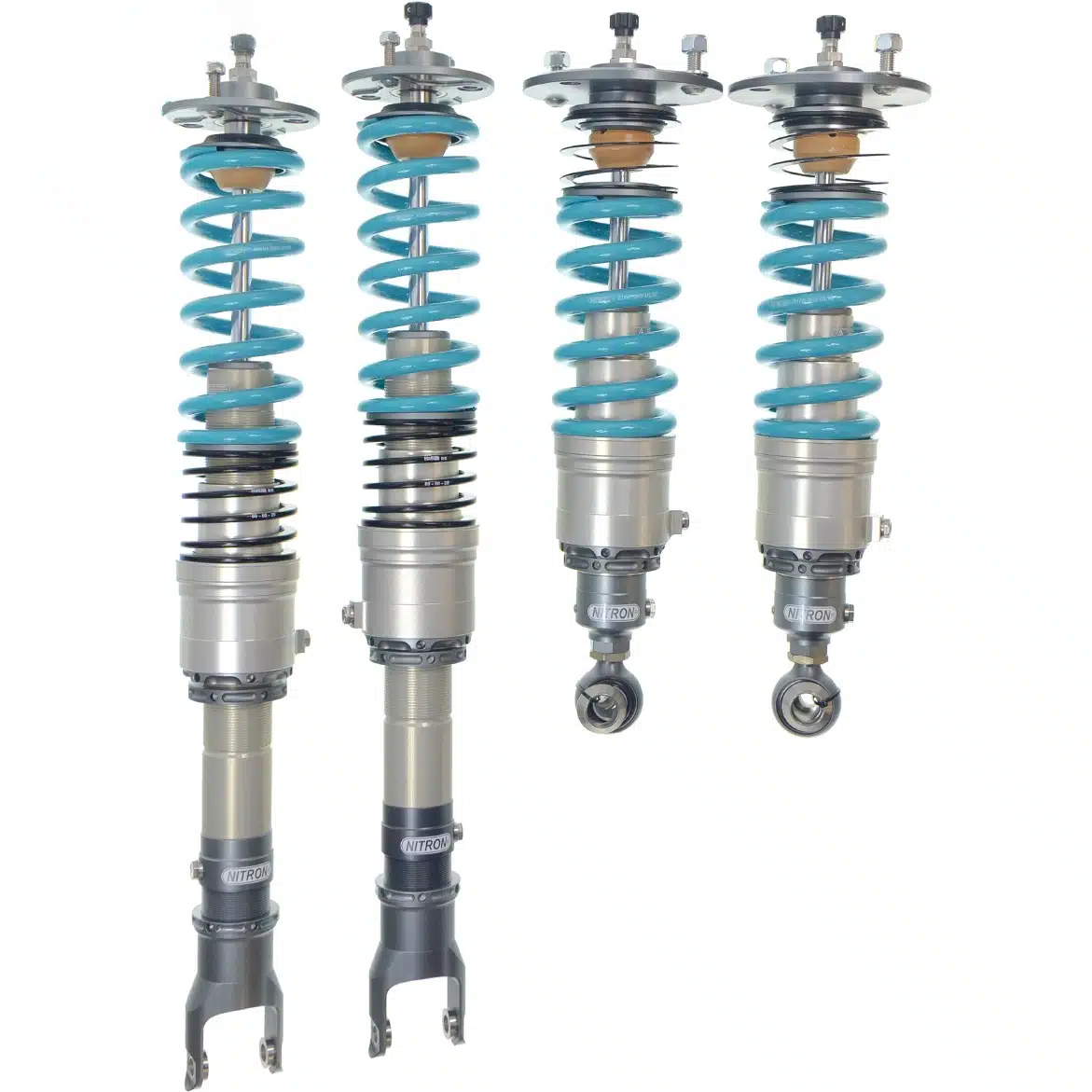

Nitron NTR-R1 Coilover Kit w/ Standalone FAL for R33 Nissan Skyline GTS-25t (facelift)

Nitron’s R33 GTS-25t NTR-R1 coilover kit with standalone FAL solves the one problem every lowered RWD Skyline owner runs into eventually, a front splitter or lip that can’t survive a steep driveway or a speed bump without scraping. This facelift GTS-25t runs the RB25DET single-turbo six without the GT-R’s ATTESA E-TS transfer case and front differential, so the nose carries less weight and less hardware up front, which is exactly the kind of platform-specific detail Nitron builds around rather than adapting GT-R spec parts with a lift bolted on. The Front Axle Lift raises the front end 25mm at the shock in under three seconds at the push of a button, then drops back down to the set ride height once you’re clear. Two-way combined compression and rebound adjustment lets an owner dial in exactly how the car reacts under braking and through a corner, and the internal reservoir design keeps the kit compact enough to fit inside the factory wheel wells without any external plumbing to route or protect. Every kit includes adjustable top mounts and race springs, and it’s custom built and fully serviceable.

The Nitron Front Axle Lift (FAL)

The FAL system on this Nitron R33 GTS-25t NTR-R1 coilover kit uses a dedicated 250W pump to lift the front axle 25mm at the shock, clearing a driveway or speed bump before it ever has a chance to catch the splitter. The whole cycle takes under three seconds, with an audible warning and a dash-mounted switch light letting the driver know the system is active, and it drops back down automatically once you’re past the obstacle.
- 250W pump
- 25mm lift height
- Typical lift time under 3-seconds
- Audible in-cabin warning system
- Switch with built-in warning light
- Auto off function
- Protects your car from damage caused by steep driveways and speed bumps
- Compatible with a wide range of suspension setups

Unique Technology

This R33 GTS-25t NTR-R1 coilover kit uses 2-way combined adjustment, compression and rebound moving together off a single dial, tuned so an owner gets a real range between a comfortable street setting and a stiffer setup for a track day without hunting through clicks that don’t actually change how the car feels. Everything runs off an internal reservoir, no hose or piggyback canister needed, which keeps the kit self-contained and easier to package around the R33’s factory subframe and control arms, even with the FAL hardware added up front.

Bespoke Engineering

Nitron engineers their R33 GTS-25t NTR-R1 coilover kit around this RWD chassis and its double wishbone front and multi-link rear geometry, not the GT-R’s AWD-specific mounting points and reinforced subframe. Adjustable top mounts let an owner correct camber and set ride height precisely instead of guessing at spring perch position, and the FAL system is integrated into that same design rather than bolted on as an afterthought, so lift and damping work together instead of fighting each other.

Features

Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Nitron FAL raises 25mm at the shock
Precision bearing spacers supplied as required
Consists of 6 coilovers and adjustable top mounts (+FAL kit)
FAL kit contains all components (cylinders, hydraulic lines, pump, wiring loom and controller)
Hand made to order

Specifications

Coilover Type: NTR-R1 with standalone FAL (front axle lift)
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Type: OEM
Droplinks Included: No

Applications

Nissan Skyline GTS-25t: R33 | 1996-1998

Other Suspension Kits for R33 GTS-25t

Notes

This coilover kit only fits 1996-1998 R33 GTS-25t facelift models
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

How much lift does the standalone FAL provide on Nitron’s R33 GTS-25t NTR-R1 coilover kit? The FAL raises the front axle 25mm at the shock, enough to clear driveways, speed bumps, and parking obstacles without changing the damping setup underneath.
Does raising the FAL affect how the car drives once it’s lowered back down? No. The FAL only lifts the front axle when activated and returns to the set ride height afterward, so the suspension tune stays the same once it’s back down.
What kind of adjustment does this kit offer? 2-way combined compression and rebound adjustment, letting an owner dial in a range from comfortable street settings to a stiffer track setup.
Does this kit include adjustable top mounts? Yes. Every kit ships with adjustable top mounts for precise ride height and camber correction, along with race springs.
Is this kit different from a GT-R NTR-R1 kit with FAL for the same chassis? Yes. The GTS-25t is RWD without the GT-R’s ATTESA E-TS transfer case and front differential, so the front weight distribution and mounting points differ enough that Nitron builds each kit around its own platform.
Can custom spring rates be ordered? Yes. Every kit is custom built to order, and custom spring rates beyond the standard setup are available by contacting us directly.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
