What is the difference between the NTR-R1 and the NTR-R3?

The NTR-R1 uses combined 2-way adjustment with 24 clicks controlling both compression and rebound through a single circuit. The NTR-R3 separates those functions entirely, with 16 clicks of high speed compression, 26 clicks of low speed compression, and 24 clicks of rebound adjusted independently. The R3 gives drivers and engineers significantly more range to work with when dialing the car in across different circuits and conditions.

Can the Nitron NTR-R3 be revalved or adjusted after purchase, and are custom spring rates available?

Yes on both. Every Nitron NTR-R3 kit is fully serviceable and can be revalved or rebuilt by Nitron. Custom spring rates are available at the time of order; contact us directly before ordering if your intended use or setup calls for something outside the standard Fast Road or Track Day specs.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

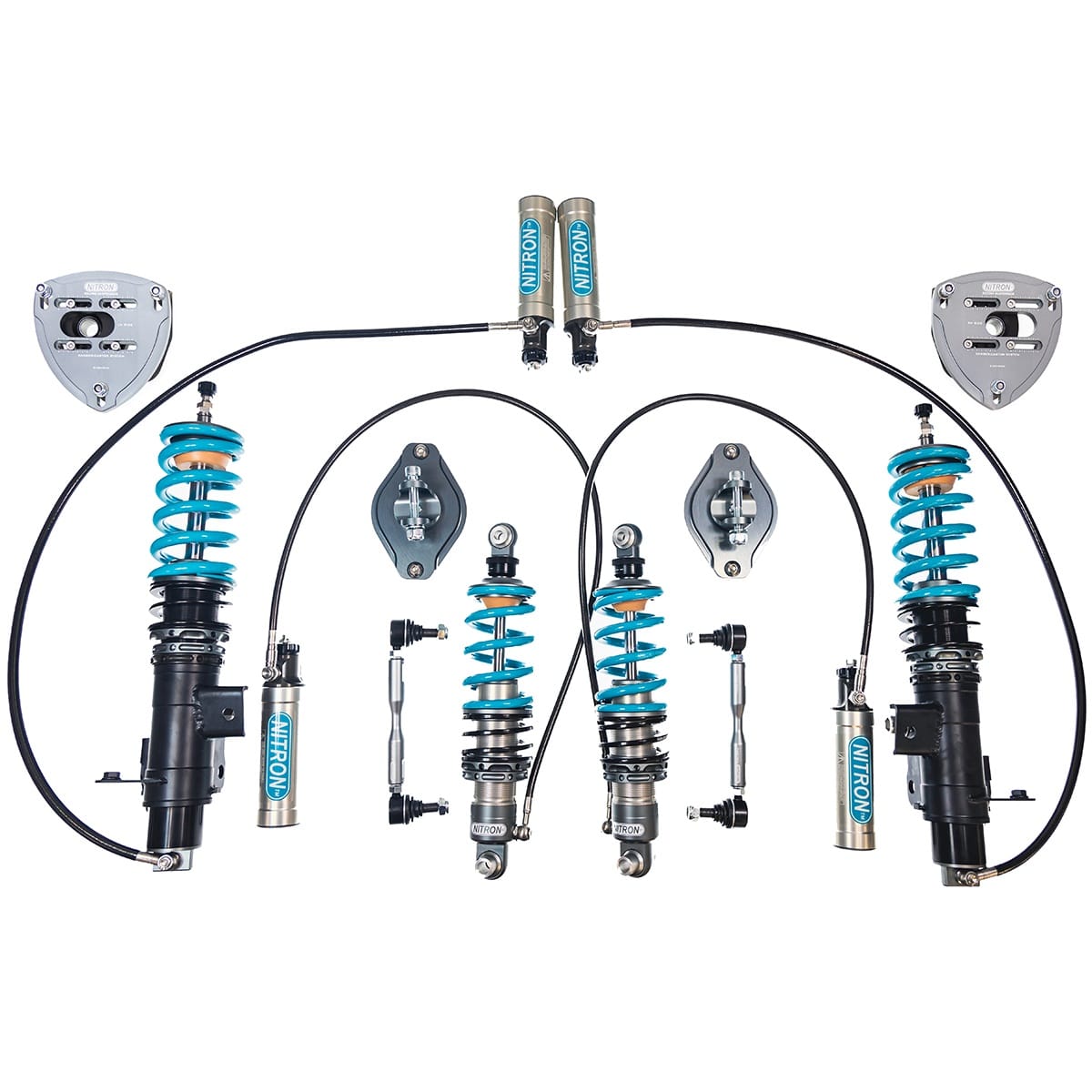

Nitron NTR-R3 Coilover Kit for Subaru BRZ / Toyota GT86 and GR86

The Subaru BRZ, Toyota GT86, and GR86 punch well above their price point on a circuit, and a lot of that comes down to how willing the chassis is to work with a serious damper. That’s where the Nitron NTR-R3 earns its place. Independent 3-way adjustment splits high and low speed compression from rebound, giving you the latitude to set the car up properly for one track and change it meaningfully for the next. The heart of it is a large diameter piston paired with an ultra-strong piston rod, which is what delivers the control and feedback a developing setup leans on. Hose mounted reservoirs front and rear keep that adjustment within easy reach without complicating the install, and the kit comes with droplinks included, so there’s nothing left to chase down before fitting. The R3 platform holds lap records across a broad span of international motorsport, and every kit is built to order, custom sprung, and fully serviceable.

Specialized Bi-Axis Hose Fittings

Nitron R3 hose shocks run Nitron’s own 720-degree Bi-Axis fittings, a proprietary design that keeps installation clean and precise and sidesteps the compromises conventional end fittings bring with them.

Unique Technology

Every Nitron shock is built from precision components that have already been through a full design and development cycle by the time they hit final assembly. The modular construction lets engineers treat each application on its own merits without giving ground on how parts are made or how they work together under load. Each piece is machined to tight tolerances and checked individually by trained technicians, with that quality control woven through the whole process rather than bolted on at the end. New materials, finishes, and processes are validated thoroughly before they reach production, and proprietary Nitron technologies run throughout, the result being shocks that consistently stand up to the competition on road and track alike. That’s the engineering standard the brand has carried since 1998.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t take a generic damper and make it fit the Subaru BRZ, Toyota GT86, and GR86; they develop one specifically for it. Each application gets its own dedicated process, with components, spring rates, and damping characteristics decided by the platform itself rather than pulled from something close enough to pass. The geometry, weight distribution, and suspension travel of the car inform the design from the outset instead of being patched in later. That’s what separates suspension that works with a car from suspension that was actually developed for it.

Features

Hose reservoir type
16 clicks of high compression
26 clicks of low compression
24 clicks of rebound
Preload adjuster
3-way independent adjustment
Full alloy body
Consists of 4 coilovers, reservoirs, hoses, droplinks, and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R3
Adjustment Type: 3-way independent
Adjustment: 16 clicks of high compression / 26 clicks of low compression / 24 clicks of rebound
Reservoir Type: Hose
Rear Suspension Type: OEM
Droplinks Included: Yes
Recommended Spring Rates:
- Subaru BRZ and Toyota GR86:
  - FRS – Fast Road Spec:
    - Front: 400lbs/inch (70N/mm)
    - Rear: 450lbs/inch (79N/mm)
  - TDS – Track Day Spec:
    - Front: 457lbs/inch (80N/mm)
    - Rear: 600lbs/inch (105N/mm)
- Toyota GT86:
  - FRS – Fast Road Spec:
    - Front: 457lbs/inch (80N/mm)
    - Rear: 500lbs/inch (88N/mm)
  - TDS – Track Day Spec:
    - Front: 514lbs/inch (90N/mm)
    - Rear: 600lbs/inch (105N/mm)

Applications

Subaru BRZ: ZC6, ZD8 | 2013-2020, 2022-present
Toyota GR86: ZN8 | 2022-present
Toyota GT86: ZN6 | 2013-2020

Other Suspension Kits for Subaru BRZ / Toyota GT86 and GR86

NTR-R1 Coilover Kit

Notes

Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

Frequently Asked Questions

What is the difference between the NTR-R1 and the NTR-R3? The NTR-R1 uses combined 2-way adjustment with 24 clicks controlling both compression and rebound through a single circuit. The NTR-R3 separates those functions entirely, with 16 clicks of high speed compression, 26 clicks of low speed compression, and 24 clicks of rebound adjusted independently. The R3 gives drivers and engineers significantly more range to work with when dialing the car in across different circuits and conditions.
Can the Nitron NTR-R3 be revalved or adjusted after purchase, and are custom spring rates available? Yes on both. Every Nitron NTR-R3 kit is fully serviceable and can be revalved or rebuilt by Nitron. Custom spring rates are available at the time of order; contact us directly before ordering if your intended use or setup calls for something outside the standard Fast Road or Track Day specs.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
