How does the R3 justify the step up from the R1 on the CT9A?

The R1 uses a single combined adjuster for compression and rebound. The R3 separates high speed compression, low speed compression, and rebound into three independent circuits with 16, 26, and 24 clicks respectively. On a platform as sensitive to setup as the CT9A, that separation lets you address a specific handling characteristic without affecting everything else at once; you can tune for a particular circuit or surface without the adjustment trade-offs that come with a combined system.

How does separating high and low speed compression change what you can do with the setup on the CT9A?

High speed compression controls how the damper responds to sharp, sudden inputs; curbs, bumps, surface changes. Low speed compression governs body motion through corners, braking, and acceleration. Adjusting them independently means you can address one without disrupting the other, which matters particularly on the CT9A where the AWD system is sensitive to how load is transferred between axles.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

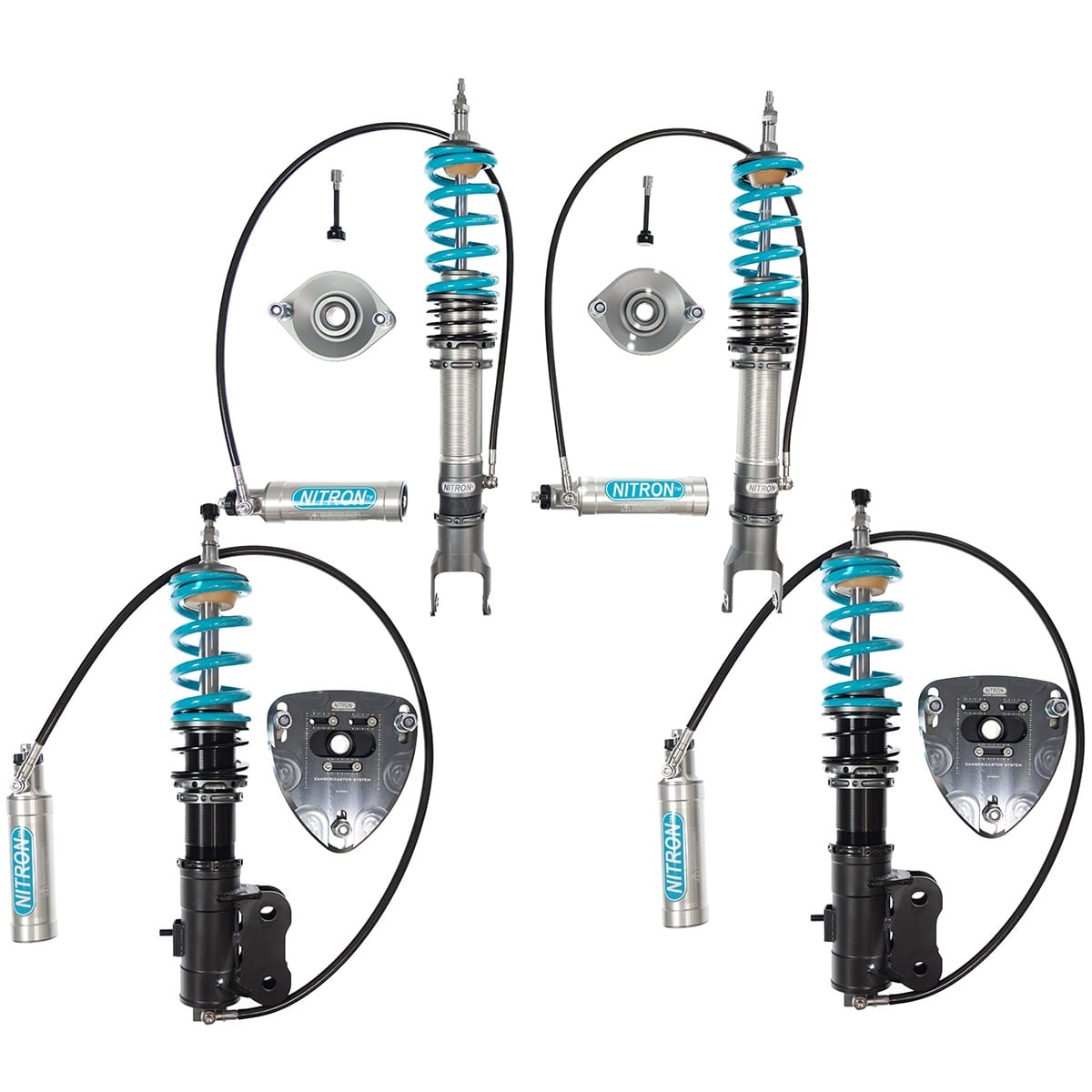

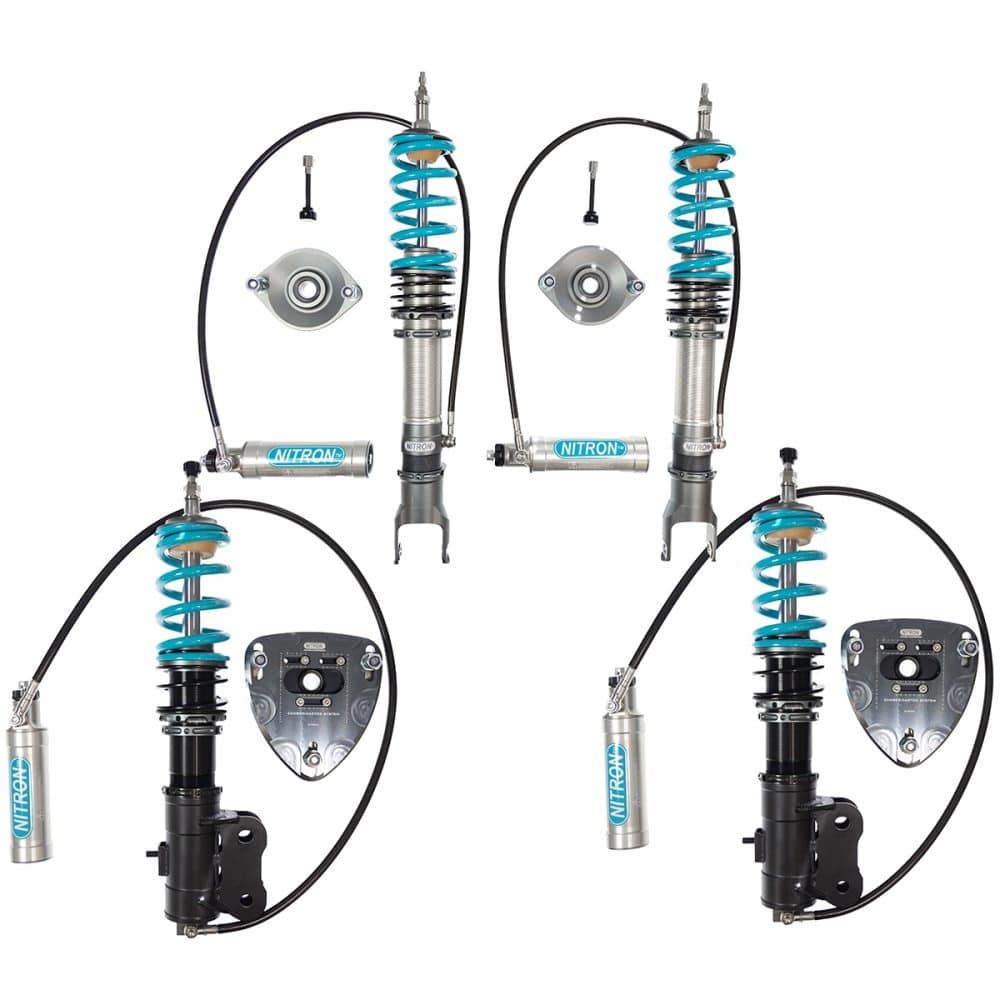

Nitron NTR-R3 Coilover Kit for CT9A Mitsubishi Lancer Evolution VII, VIII, and IX

The CT9A Mitsubishi Lancer Evolution VII, VIII, and IX arrived with rally-bred bones, and the factory suspension, while capable, leaves real performance on the table when the driving gets serious. The Nitron NTR-R3 is built for that level of development work; independent 3-way damping adjustment with separate high and low speed compression control gives drivers and engineers the range needed to properly dial the car in across different circuits and conditions. A large diameter piston and ultra-strong piston rod sit at the core of the design, providing the damping control and feedback that serious setups depend on, and that the CT9A’s AWD platform rewards when the suspension is set up correctly. Both front and rear units use hose mounted reservoirs, keeping high and low speed compression adjustment accessible at both ends without adding complexity to the installation. The R3 is a proven race winner with lap records across a wide range of international motorsport formulas, and every kit is custom built, custom sprung, and fully serviceable.

Specialized Bi-Axis Hose Fittings

Nitron R3 hose shocks use Nitron’s own 720-degree Bi-Axis fittings exclusively; a proprietary design that delivers clean, precise installation without the fitment compromises that come with conventional end fittings.

Unique Technology

Nitron builds every shock from precision components that go through a thorough design and development process long before final assembly. The modular construction gives engineers the flexibility to approach each application on its own terms without cutting corners on part quality or how components perform together under load. Everything is machined to tight tolerances and inspected individually by trained technicians; that quality control runs through every stage of production rather than being concentrated at the end. New materials, finishes, and processes are validated extensively before adoption, with proprietary Nitron technologies integrated throughout to produce shocks that consistently hold up against the competition on road and track. That engineering standard is what the brand has been built on since 1998.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t adapt a generic damper to fit the CT9A Mitsubishi Lancer Evolution; they engineer one around it. Every application goes through a dedicated development process where components, spring rates, and damping characteristics are determined by the specific platform, not borrowed from something close enough. The geometry, weight distribution, and suspension travel of the CT9A are part of the design from the beginning, not corrections introduced later. That’s the difference between suspension that works with a car and suspension that was developed for it.

Features

Hose reservoir type
16 clicks of high compression
26 clicks of low compression
24 clicks of rebound
Preload adjuster
3-way independent adjustment
Full alloy body
Consists of 4 coilovers, reservoirs, hoses, and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R3
Adjustment Type: 3-way independent
Adjustment: 16 clicks of high compression / 26 clicks of low compression / 24 clicks of rebound
Reservoir Type: Hose
Rear Suspension Type: OEM
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 514lbs/inch (90N/mm)
  - Rear: 500lbs/inch (88N/mm)

Applications

Mitsubishi Lancer Evolution: CT9A | 2001-2007

Other Suspension Kits for CT9A Evo VII, VIII, and IX

NTR-R1 Coilover Kit

Notes

Does not fit CT9W Wagon models
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

Frequently Asked Questions

How does the R3 justify the step up from the R1 on the CT9A? The R1 uses a single combined adjuster for compression and rebound. The R3 separates high speed compression, low speed compression, and rebound into three independent circuits with 16, 26, and 24 clicks respectively. On a platform as sensitive to setup as the CT9A, that separation lets you address a specific handling characteristic without affecting everything else at once; you can tune for a particular circuit or surface without the adjustment trade-offs that come with a combined system.
How does separating high and low speed compression change what you can do with the setup on the CT9A? High speed compression controls how the damper responds to sharp, sudden inputs; curbs, bumps, surface changes. Low speed compression governs body motion through corners, braking, and acceleration. Adjusting them independently means you can address one without disrupting the other, which matters particularly on the CT9A where the AWD system is sensitive to how load is transferred between axles.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
