Do I need the Nitron Electronic Damping Delete Kit with this coilover kit?

Only if your 8V RS3 is equipped with Audi Magnetic Ride. Replacing the factory electronic damping system with a non-electronic coilover kit will typically trigger fault codes and warning lights without it. The Nitron Electronic Damping Delete Kit is sold separately and prevents those error messages when the Magnetic Ride system is removed.

What does 3-way independent adjustment give you on the RS3?

The NTR-R3 separates high speed compression (16 clicks), low speed compression (26 clicks), and rebound (24 clicks) into three independent adjusters. Each parameter can be tuned without affecting the others, giving drivers and engineers the precision needed to properly develop a setup across different circuits and conditions.

What reservoir type does the NTR-R3 use on the 8V RS3?

The front units run piggyback reservoirs while the rears use remote hose mounted reservoirs. This configuration keeps high and low speed compression adjustment accessible at both ends of the car without adding complexity to the installation.

How does the NTR-R3 differ from the NTR-R1 for the 8V RS3?

The NTR-R3 uses independent 3-way damping adjustment, giving separate control over high speed compression, low speed compression, and rebound. The NTR-R1 uses combined 2-way adjustment, where bump and rebound are controlled together through a single adjuster. The R3 is the better fit for drivers and engineers who need precise, independent control over each damping parameter; the R1 is the more straightforward setup suited to road use and track days where that level of granularity isn't required.

Are droplinks included with the kit?

No, droplinks are not included. The kit consists of four coilovers, reservoirs, hoses, and top mounts covering front and rear.

Is the Nitron NTR-R3 serviceable after purchase?

Yes. Every NTR-R3 kit is fully serviceable. Nitron hand-builds each unit to order, and the design supports long-term maintenance rather than requiring full replacement when performance eventually needs refreshing.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

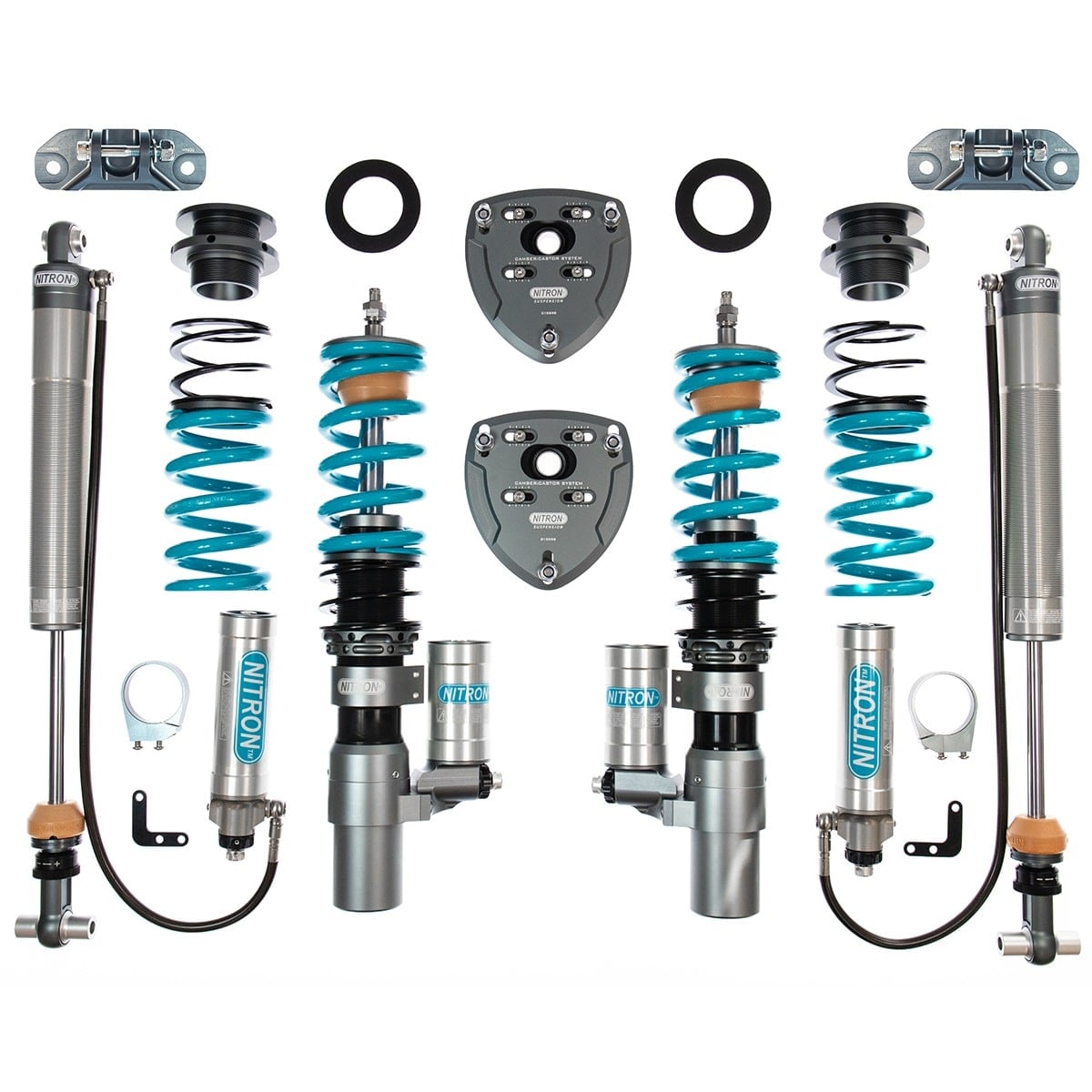

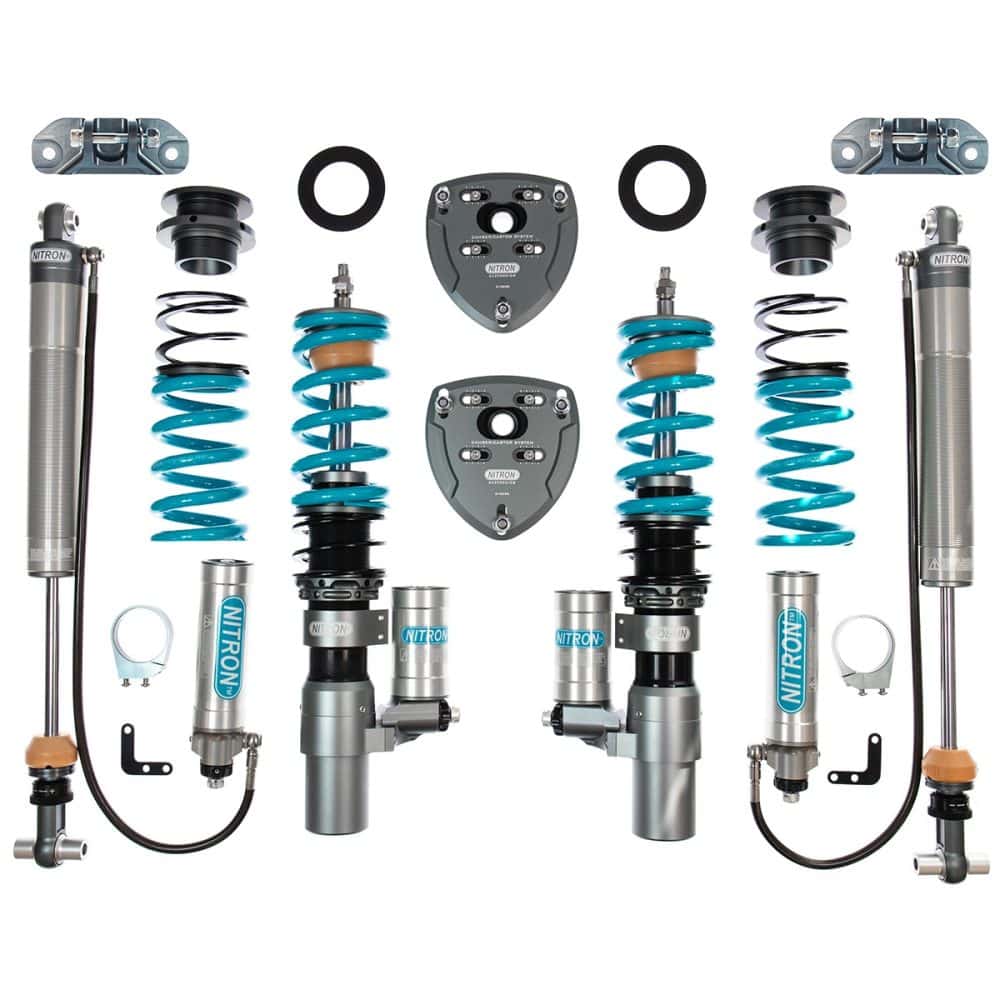

Nitron NTR-R3 Coilover Kit for 8V Audi RS3

The Audi RS3 8V has the chassis to be a genuinely fast car in the right hands, and the factory suspension, while competent, leaves real performance on the table when the driving gets serious. The Nitron NTR-R3 coilover kit for the 8V RS3 is built for that level of development work; independent 3-way damping adjustment with separate high and low speed compression control gives drivers and engineers the range needed to properly dial the car in across different circuits and conditions. A large diameter piston and ultra-strong piston rod sit at the core of the design, providing the damping control and feedback that serious setups depend on. The front units run piggyback reservoirs while the rears use remote hose mounted reservoirs, keeping high and low speed compression adjustment accessible at both ends without adding complexity to the installation. The R3 is a proven race winner with lap records across a wide range of international motorsport formulas, and every kit is custom built, custom sprung, and fully serviceable. Hard-anodized titanium finish parts and high-grade materials keep corrosion out and weight in check, so the dampers maintain their performance standard season after season.

Specialized Bi-Axis Hose Fittings

Nitron R3 Hose shocks use Nitron’s own 720 degree Bi-Axis fittings exclusively; a proprietary design that delivers clean, precise installation without the fitment compromises that come with conventional end fittings.

Unique Technology

Nitron builds every shock from precision components that go through a thorough design and development process long before final assembly. The modular construction gives engineers the flexibility to approach each application on its own terms without cutting corners on part quality or how components perform together under load. Everything is machined to tight tolerances and inspected individually by trained technicians; that quality control runs through every stage of production rather than being concentrated at the end. New materials, finishes, and processes are validated extensively before adoption, with proprietary Nitron technologies integrated throughout to produce shocks that consistently hold up against the competition on road and track. That engineering standard is what the brand has been built on since 1998.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t adapt a generic damper to fit a car; they engineer one around it. Every application goes through a dedicated development process where components, spring rates, and damping characteristics are determined by the specific platform, not borrowed from something close enough. The geometry, weight distribution, and suspension travel of the vehicle are part of the design from the beginning, not corrections introduced later. That’s the difference between suspension that works with a car and suspension that was developed for it.

Features

Piggyback & hose reservoir types
16 clicks of high compression
26 clicks of low compression
24 clicks of rebound
Preload adjuster
3-way independent adjustment
Full alloy body
Consists of 4 coilovers, reservoirs, hoses, and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R3
Adjustment Type: 3-way independent
Adjustment: 16 clicks of high compression / 26 clicks of low compression / 24 clicks of rebound
Reservoir Type:
- Front: Piggyback
- Rear: Hose
Rear Suspension Type: OEM
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 570lbs/inch (100N/mm)
  - Rear: 630lbs/inch (110N/mm)
- TDS – Track Day Spec:
  - Front: 685lbs/inch (120N/mm)
  - Rear: 740lbs/inch (130N/mm)

Applications

Audi RS3: 8V | 2015-2020

Other Suspension Kits for the Audi RS3 (8V)

Notes

Compatible on Sedan and Sportback models
If your 8V RS3 is equipped with Audi Magnetic Ride, the Nitron Electronic Damping Delete Kit is required to prevent fault codes and warning lights when fitting a non-electronic coilover kit and is sold separately
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

Frequently Asked Questions

Do I need the Nitron Electronic Damping Delete Kit with this coilover kit? Only if your 8V RS3 is equipped with Audi Magnetic Ride. Replacing the factory electronic damping system with a non-electronic coilover kit will typically trigger fault codes and warning lights without it. The Nitron Electronic Damping Delete Kit is sold separately and prevents those error messages when the Magnetic Ride system is removed.
What does 3-way independent adjustment give you on the RS3? The NTR-R3 separates high speed compression (16 clicks), low speed compression (26 clicks), and rebound (24 clicks) into three independent adjusters. Each parameter can be tuned without affecting the others, giving drivers and engineers the precision needed to properly develop a setup across different circuits and conditions.
What reservoir type does the NTR-R3 use on the 8V RS3? The front units run piggyback reservoirs while the rears use remote hose mounted reservoirs. This configuration keeps high and low speed compression adjustment accessible at both ends of the car without adding complexity to the installation.
How does the NTR-R3 differ from the NTR-R1 for the 8V RS3? The NTR-R3 uses independent 3-way damping adjustment, giving separate control over high speed compression, low speed compression, and rebound. The NTR-R1 uses combined 2-way adjustment, where bump and rebound are controlled together through a single adjuster. The R3 is the better fit for drivers and engineers who need precise, independent control over each damping parameter; the R1 is the more straightforward setup suited to road use and track days where that level of granularity isn’t required.
Are droplinks included with the kit? No, droplinks are not included. The kit consists of four coilovers, reservoirs, hoses, and top mounts covering front and rear.
Is the Nitron NTR-R3 serviceable after purchase? Yes. Every NTR-R3 kit is fully serviceable. Nitron hand-builds each unit to order, and the design supports long-term maintenance rather than requiring full replacement when performance eventually needs refreshing.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
