What does the NTR-R3 offer over the NTR-R1 on the MK7 and MK8 Golf R?

The NTR-R1 uses a single combined adjuster controlling compression and rebound together. The Nitron NTR-R3 coilover separates high speed compression, low speed compression, and rebound into three independent circuits, each with its own adjustment range. On the Golf R, where the AWD system distributes load across all four corners, that separation gives engineers the ability to tune each damping characteristic precisely rather than making compromises across the range with a single control.

Does the NTR-R3 require the Electronic Damping Delete Kit on the MK7 or MK8 Golf R?

Yes, if the car is equipped with DCC. The Nitron NTR-R3 is a non-electronic coilover kit, so fitting it to a Golf R with the factory DCC system active will trigger fault codes and warning lights without the Nitron Electronic Damping Delete Kit installed alongside it. Cars without DCC do not require the delete kit.

How does 3-way independent adjustment translate to real-world setup on the Golf R?

High speed compression controls the damper's response to sharp impacts and kerb strikes. Low speed compression handles body roll, dive under braking, and squat under acceleration. Rebound controls how quickly the suspension recovers after compression. On the MK7 and MK8 Golf R, being able to adjust each independently means the NTR-R3 coilover can be dialed in for a specific circuit or driving style without one adjustment undoing another.

Can the NTR-R3 be serviced without returning the entire kit?

Yes. Every Nitron NTR-R3 coilover kit is fully serviceable and built to be rebuilt. Seals, oil, shim stacks, and spring rates can all be refreshed or changed independently, and the modular construction means individual dampers can be sent back without pulling the whole kit. For a Golf R in regular track use, that serviceability is what makes the R3 a long-term investment rather than a consumable.

Is the NTR-R3 coilover suitable for a Golf R that sees regular road use alongside track days?

Yes. The Nitron NTR-R3 coilover for the MK7 and MK8 Golf R is custom sprung to order, so spring rates can be built around a road and track balance from the start. The three independent adjustment circuits give enough range to run a genuinely usable road setup and shift to a track configuration without major compromise in either direction.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

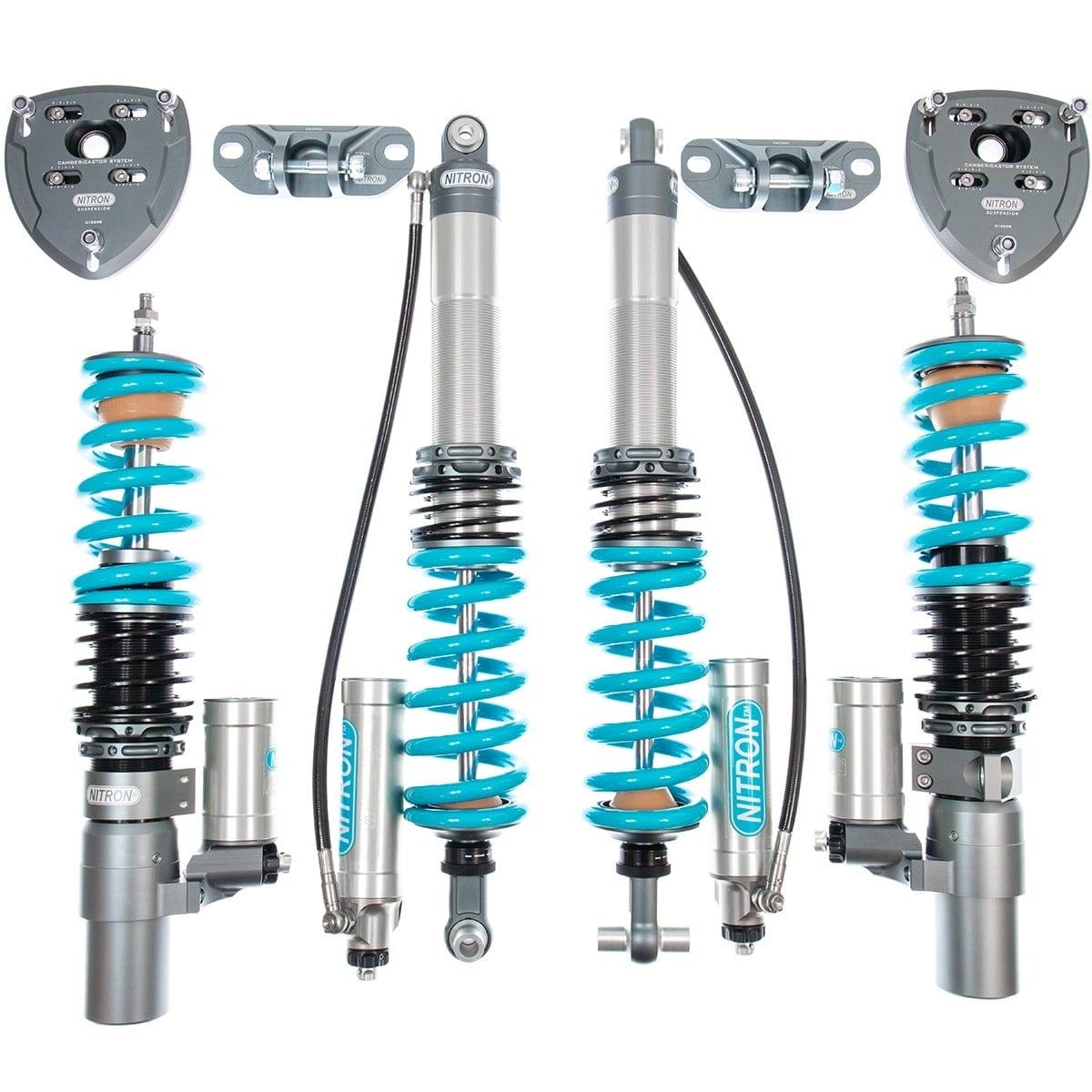

Nitron NTR-R3 Coilover Kit for MK7 / MK8 Volkswagen Golf R

The Nitron NTR-R3 coilover kit for the MK7 and MK8 Volkswagen Golf R is built for owners who want to extract everything the Golf R chassis has to give once the factory dampers stop keeping up. The MK7 and MK8 Golf R responds directly to a serious damper, and the NTR-R3 coilover is exactly that. Independent 3-way adjustment splits high and low speed compression from rebound, giving the latitude to set the car up properly for one circuit and change it meaningfully for the next. Coilover and divorced rear suspension configurations are both available to suit different build requirements. At the heart of the NTR-R3 is a large diameter piston paired with an ultra-strong piston rod, which is what delivers the control and feedback a developing setup on the Golf R leans on. The front units run piggyback reservoirs while the rears use hose-mounted reservoirs, keeping adjustment accessible at both ends without complicating the install. The NTR-R3 coilover platform holds lap records across a broad span of international motorsport, and every kit for the MK7 and MK8 Golf R is built to order, custom sprung, and fully serviceable.

Coilover vs Divorced Rear Suspension

The MK7 and MK8 Golf R NTR-R3 is available with two rear suspension configurations depending on how the car is being built. The coilover setup combines the spring and damper into a single unit, keeping things compact and straightforward for road and general track use. The divorced configuration separates the spring and damper, allowing each to be positioned and tuned independently; this is the preferred approach for dedicated race builds where maximizing suspension geometry and setup flexibility matters more than packaging simplicity. Nitron offers both to make sure the NTR-R3 coilover works with the build rather than against it.

Specialized Bi-Axis Hose Fittings

Nitron R3 hose shocks use Nitron’s own 720-degree Bi-Axis fittings exclusively; a proprietary design that makes for clean, precise installation without the compromises that come with conventional end fittings.

Unique Technology

Every Nitron shock is built from precision components that have already cleared a full design and development cycle by the time they reach final assembly. The modular construction lets engineers treat each application on its own merits without giving ground on how parts are made or how they work together under load. Each piece is machined to tight tolerances and checked individually by trained technicians, with that quality control woven through the whole process rather than bolted on at the end. New materials, finishes, and processes are validated thoroughly before they reach production, and proprietary Nitron technologies run throughout, producing shocks that consistently stand up to the competition on road and track alike. That’s the engineering standard behind every Nitron NTR-R3 coilover, and the standard the brand has carried since 1998.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t take a generic damper and make it fit the MK7 and MK8 Golf R; they develop one specifically for it. The Nitron NTR-R3 coilover for the Golf R gets its own dedicated process, with components, spring rates, and damping characteristics decided by the platform itself rather than pulled from something close enough to pass. The weight distribution, suspension geometry, and travel of the MK7 and MK8 Golf R inform the design from the outset instead of being patched in later. That’s what separates suspension that works with a car from suspension that was actually developed for it.

Features

Piggyback & hose reservoir types
Coilover or divorced rear suspension types
16 clicks of high compression
26 clicks of low compression
24 clicks of rebound
Preload adjuster
3-way independent adjustment
Full alloy body
Consists of 4 coilovers, reservoirs, hoses, and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R3
Adjustment Type: 3-way independent
Adjustment: 16 clicks of high compression / 26 clicks of low compression / 24 clicks of rebound
Reservoir Type:
- Front: Piggyback
- Rear: Hose
Rear Suspension Type:
- Coilover
- Divorced
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 400lbs/inch (70N/mm)
  - Rear:
    - Coilover: 250lbs/inch (44N/mm)
    - Divorced: Data not available
- TDS – Track Day Spec:
  - Front: 457lbs/inch (80N/mm)
  - Rear:
    - Coilover: 400lbs/inch (70N/mm)
    - Divorced: Data not available

Applications

Volkswagen Golf R: MK7, MK7.5, MK8, MK8.5 | 2015-2019, 2022-present

Other Suspension Kits for MK7 / MK8 Golf R

Notes

If your MK7 or MK8 Golf R is equipped with DCC, the Nitron Electronic Damping Delete Kit is required when fitting this non-electronic coilover kit to prevent fault codes and warning lights
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only; specific details, finishes and end fittings may differ from that shown

Frequently Asked Questions

What does the NTR-R3 offer over the NTR-R1 on the MK7 and MK8 Golf R? The NTR-R1 uses a single combined adjuster controlling compression and rebound together. The Nitron NTR-R3 coilover separates high speed compression, low speed compression, and rebound into three independent circuits, each with its own adjustment range. On the Golf R, where the AWD system distributes load across all four corners, that separation gives engineers the ability to tune each damping characteristic precisely rather than making compromises across the range with a single control.
Does the NTR-R3 require the Electronic Damping Delete Kit on the MK7 or MK8 Golf R? Yes, if the car is equipped with DCC. The Nitron NTR-R3 is a non-electronic coilover kit, so fitting it to a Golf R with the factory DCC system active will trigger fault codes and warning lights without the Nitron Electronic Damping Delete Kit installed alongside it. Cars without DCC do not require the delete kit.
How does 3-way independent adjustment translate to real-world setup on the Golf R? High speed compression controls the damper’s response to sharp impacts and kerb strikes. Low speed compression handles body roll, dive under braking, and squat under acceleration. Rebound controls how quickly the suspension recovers after compression. On the MK7 and MK8 Golf R, being able to adjust each independently means the NTR-R3 coilover can be dialed in for a specific circuit or driving style without one adjustment undoing another.
Can the NTR-R3 be serviced without returning the entire kit? Yes. Every Nitron NTR-R3 coilover kit is fully serviceable and built to be rebuilt. Seals, oil, shim stacks, and spring rates can all be refreshed or changed independently, and the modular construction means individual dampers can be sent back without pulling the whole kit. For a Golf R in regular track use, that serviceability is what makes the R3 a long-term investment rather than a consumable.
Is the NTR-R3 coilover suitable for a Golf R that sees regular road use alongside track days? Yes. The Nitron NTR-R3 coilover for the MK7 and MK8 Golf R is custom sprung to order, so spring rates can be built around a road and track balance from the start. The three independent adjustment circuits give enough range to run a genuinely usable road setup and shift to a track configuration without major compromise in either direction.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
