How does the adjustment work?

A single knob controls compression and rebound simultaneously across 24 clicks of combined adjustment. Turn it toward firm for more aggressive driving, back it off for everyday road use. There is no need to manage two separate dials.

How do the spring rates compare to the factory setup?

Nitron recommends 400lbs/inch front and 500lbs/inch rear for the Type 122 Evora in FastRoad specification. The rates are road-biased but stiffer than stock, reducing body movement and improving chassis response without turning the car harsh on the road. Custom rates are available if your use case calls for something different.

Can it be serviced or upgraded later?

Yes on both. Every Nitron NTR shock is fully disassembleable and can be revalved or rebuilt. The R1 FastRoad can also be upgraded to ClubSport or custom specifications down the road without starting over.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

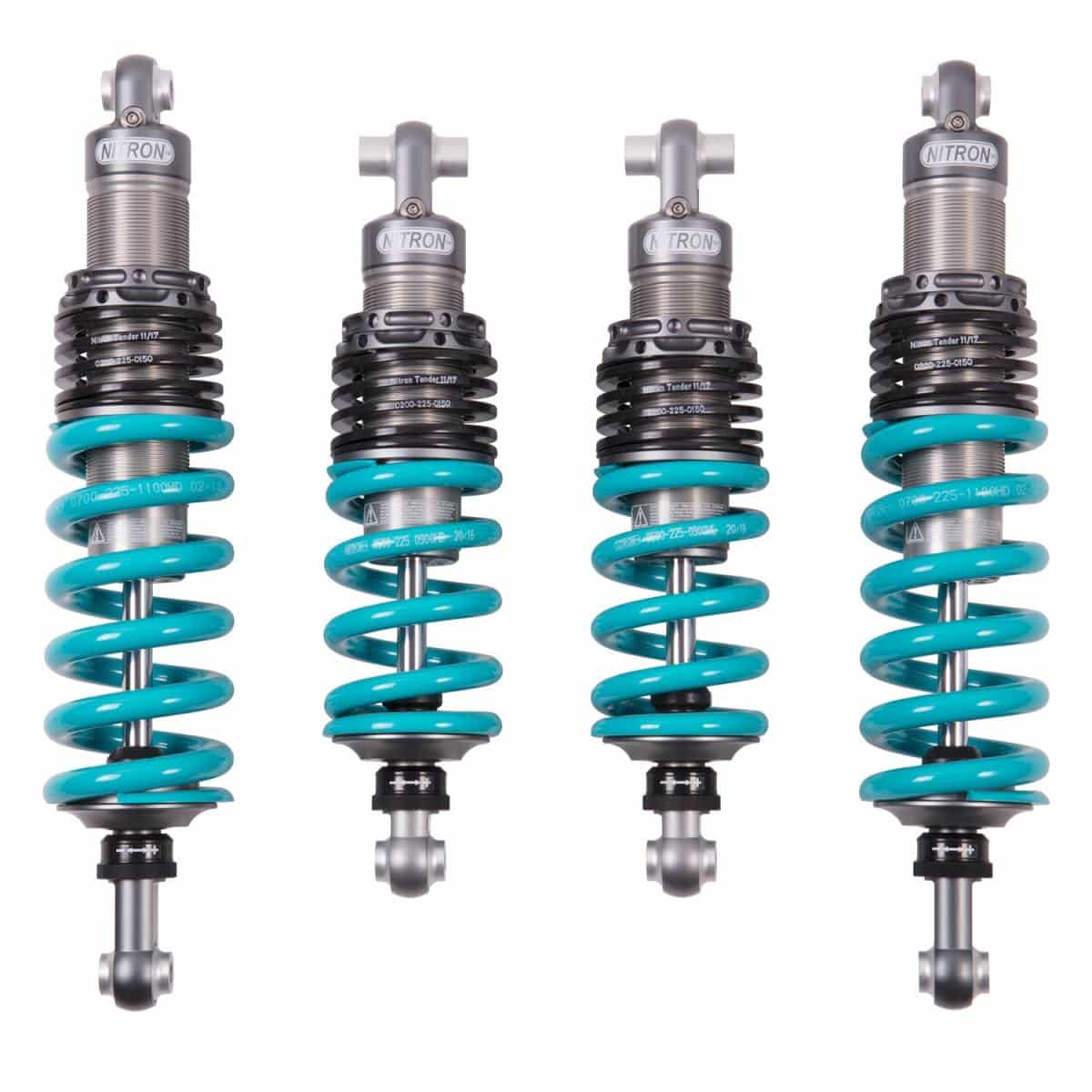

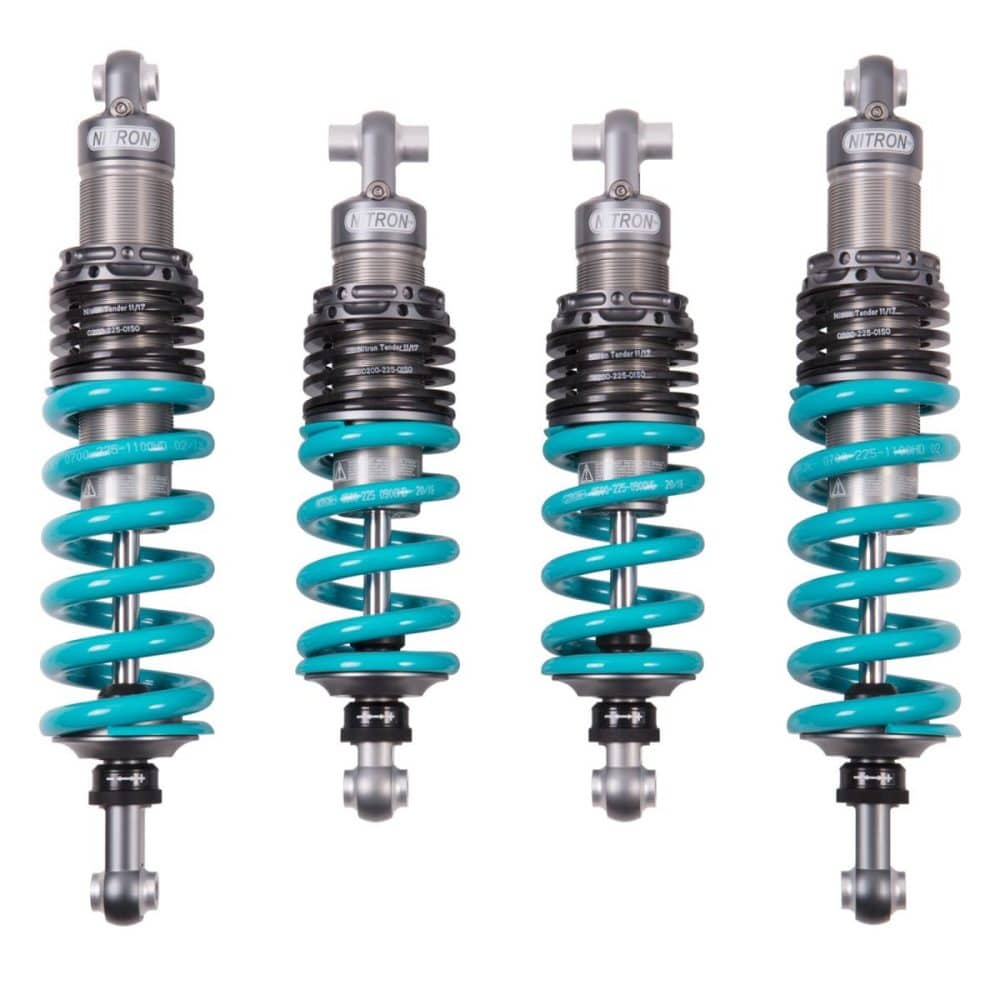

Nitron NTR-R1 FastRoad Coilover Kit for 122 Lotus Evora

The Nitron NTR R1 FastRoad Coilover Kit for the Type 122 Lotus Evora is built for drivers who want to pull more from the factory chassis without trading away the ride quality that makes the Evora work on real roads. The Type 122’s platform already has strong bones; this kit sharpens what’s there, not just lowers it. Four 1-way adjustable dampers with a single knob controlling combined compression and rebound keep setup straightforward, while the road-biased spring rates, sports valving, and lowered ride height work together to reduce body movement and tighten up the Evora’s responses without turning it harsh. The R1 sits at the entry point of Nitron’s NTR range, but it shares design DNA with the R3 system used in full race builds, and every unit is hand-built to order using titanium and hard-anodised components that resist corrosion and hold up through winter driving and extended track sessions without fade. Inverted shock construction reduces unsprung mass, the kit ships preset with bearing spacers ready to bolt on, and the whole thing is fully serviceable and upgradeable.

Unique Technology

Nitron doesn’t build a generic shock and machine it down to fit the Type 122. Every component, spring rate, and damping characteristic in this kit is engineered around the Evora’s specific geometry, weight distribution, and suspension travel from the start. That work happens before final assembly, not after the fact. Each unit is machined to tight tolerances, inspected individually by trained technicians throughout production, and validated against Nitron’s own proprietary standards before it ships. That process hasn’t changed since 1998.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t adapt a generic damper to fit the Type 122 Lotus Evora. Every application goes through a dedicated development process, with components, spring rates, and damping characteristics engineered around the Evora’s platform rather than the broader sports car category it belongs to. Geometry, weight distribution, and suspension travel are factored into the design from the start, not compensated for after the fact. The result is a kit built specifically for the Evora, not one that was built broadly and happens to fit.

Features

Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilover assemblies and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R1 FastRoad
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Mounting Brackets: Not required
Recommended Spring Rates:
- Front: 400lbs/inch (70N/mm)
- Rear: 500lbs/inch (88N/mm)

Applications

Lotus Evora: 122 | 2010-2021

Other Suspension Kits for Lotus Evora

Notes

Fitment only confirmed for base models
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required
Mounting brackets are not required

Frequently Asked Questions

How does the adjustment work? A single knob controls compression and rebound simultaneously across 24 clicks of combined adjustment. Turn it toward firm for more aggressive driving, back it off for everyday road use. There is no need to manage two separate dials.
How do the spring rates compare to the factory setup? Nitron recommends 400lbs/inch front and 500lbs/inch rear for the Type 122 Evora in FastRoad specification. The rates are road-biased but stiffer than stock, reducing body movement and improving chassis response without turning the car harsh on the road. Custom rates are available if your use case calls for something different.
Can it be serviced or upgraded later? Yes on both. Every Nitron NTR shock is fully disassembleable and can be revalved or rebuilt. The R1 FastRoad can also be upgraded to ClubSport or custom specifications down the road without starting over.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
