What does 24 clicks of combined adjustment mean on the NTR-R1?

The NTR-R1 uses a 2-way combined adjustment, meaning compression and rebound are adjusted together through a single 24-click range rather than independently. It draws directly from the R3 race platform and shares core components with a kit built for professional competition, so the adjustment range covers serious use despite the simplified adjustment interface.

How does the NTR-R1 differ from the NTR-R3 for the SRII Viper RT/10?

The NTR-R1 uses combined 2-way adjustment, meaning compression and rebound are adjusted together. The NTR-R3 separates high speed compression, low speed compression, and rebound into three independently adjustable circuits, giving a significantly wider tuning range for drivers and engineers who need that level of control across different circuits and conditions.

Can I run custom spring rates with the NTR-R1?

Yes. Recommended rates are available for both Fast Road Spec and Track Day Spec configurations, but custom spring rates are available on request by contacting Bulletproof Automotive directly.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

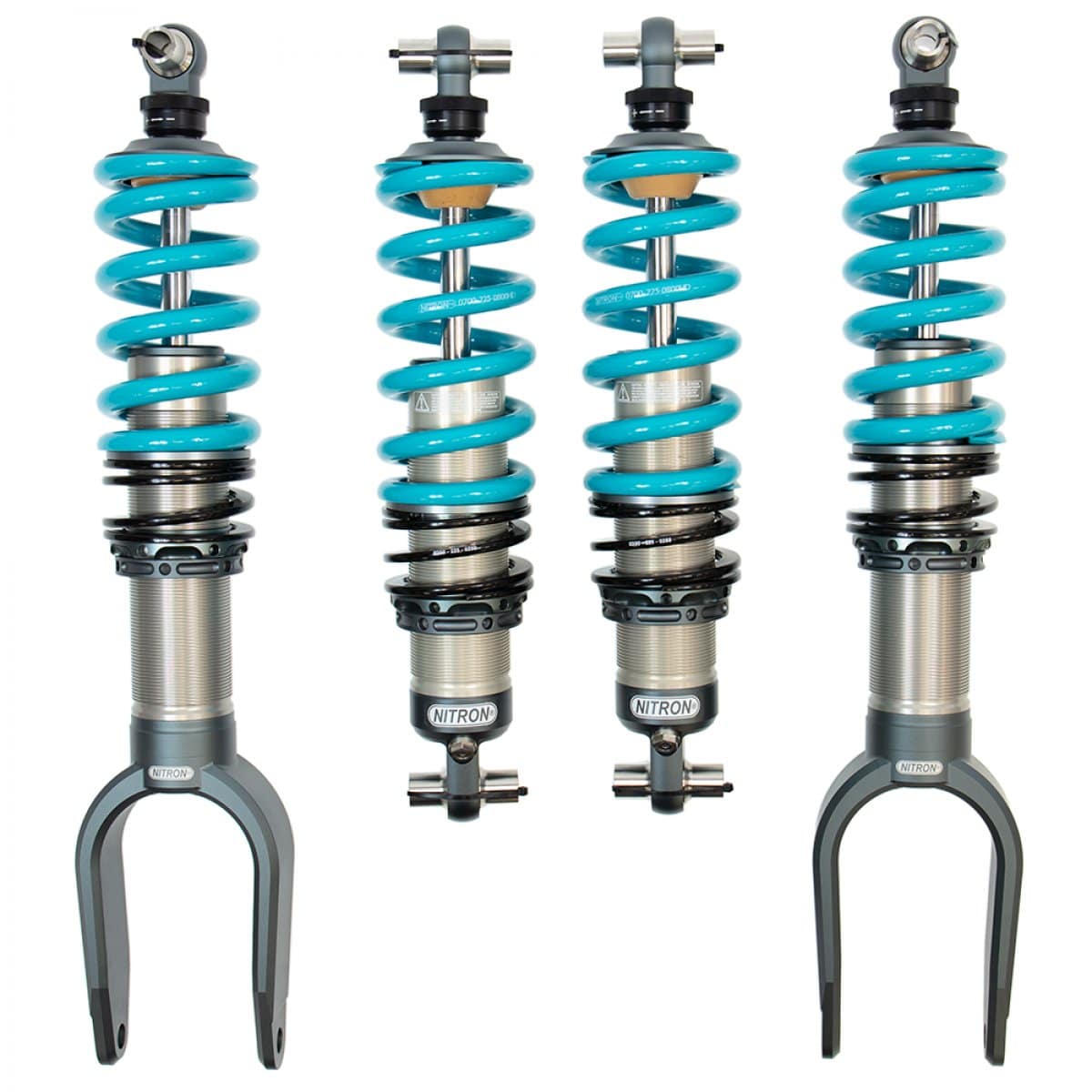

Nitron NTR-R1 Coilover Kit for SRII Dodge Viper RT/10

The SRII Dodge Viper RT/10 is a capable platform that the factory suspension doesn’t fully serve when the driving gets serious. The damping hardware was calibrated for a broad audience rather than a driver who wants to work with the chassis rather than around it. The Nitron NTR-R1 addresses that with precision-engineered combined 2-way damping adjustment drawn directly from the R3 race platform, sharing core components with a kit built for professional competition. Every unit is individually hand-built with ultra-low friction components that deliver consistent, fade-resistant damping from the street to the circuit, and with each kit custom built, custom sprung, and fully serviceable, it’s an investment that holds up well beyond a single season.

Unique Technology

Nitron builds every shock from components that go through a rigorous design and development process long before they reach final assembly. The modular construction gives engineers the room to develop each application on its own terms without cutting corners on part quality or how everything holds together under real load. Tight tolerances, individual inspection by trained technicians, and quality control that runs through the entire production process rather than just the end of it; that discipline, combined with proprietary Nitron technologies built in throughout, produces shocks that hold their own against the competition on both road and track.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron accounts for the SRII Dodge Viper’s suspension geometry and chassis dynamics from the ground up rather than adapting an existing application to fit. Components, spring rates, and damping characteristics are developed around what the platform actually needs. The geometry, suspension travel, and the way the Viper loads the chassis all shape the design from day one rather than being addressed after the fact.

Features

Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilover assemblies and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R1
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Type: OEM
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 700lbs/inch (123N/mm)
  - Rear: 900lbs/inch (158N/mm)
- TDS – Track Day Spec:
  - Front: 800lbs/inch (140N/mm)
  - Rear: 1100lbs/inch (192N/mm)

Applications

Dodge Viper RT/10: SRII | 1996-2002

Other Suspension Kits for SRII Viper RT/10

Notes

Fitment not confirmed for Viper GTS models
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

What does 24 clicks of combined adjustment mean on the NTR-R1? The NTR-R1 uses a 2-way combined adjustment, meaning compression and rebound are adjusted together through a single 24-click range rather than independently. It draws directly from the R3 race platform and shares core components with a kit built for professional competition, so the adjustment range covers serious use despite the simplified adjustment interface.
How does the NTR-R1 differ from the NTR-R3 for the SRII Viper RT/10? The NTR-R1 uses combined 2-way adjustment, meaning compression and rebound are adjusted together. The NTR-R3 separates high speed compression, low speed compression, and rebound into three independently adjustable circuits, giving a significantly wider tuning range for drivers and engineers who need that level of control across different circuits and conditions.
Can I run custom spring rates with the NTR-R1? Yes. Recommended rates are available for both Fast Road Spec and Track Day Spec configurations, but custom spring rates are available on request by contacting Bulletproof Automotive directly.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
