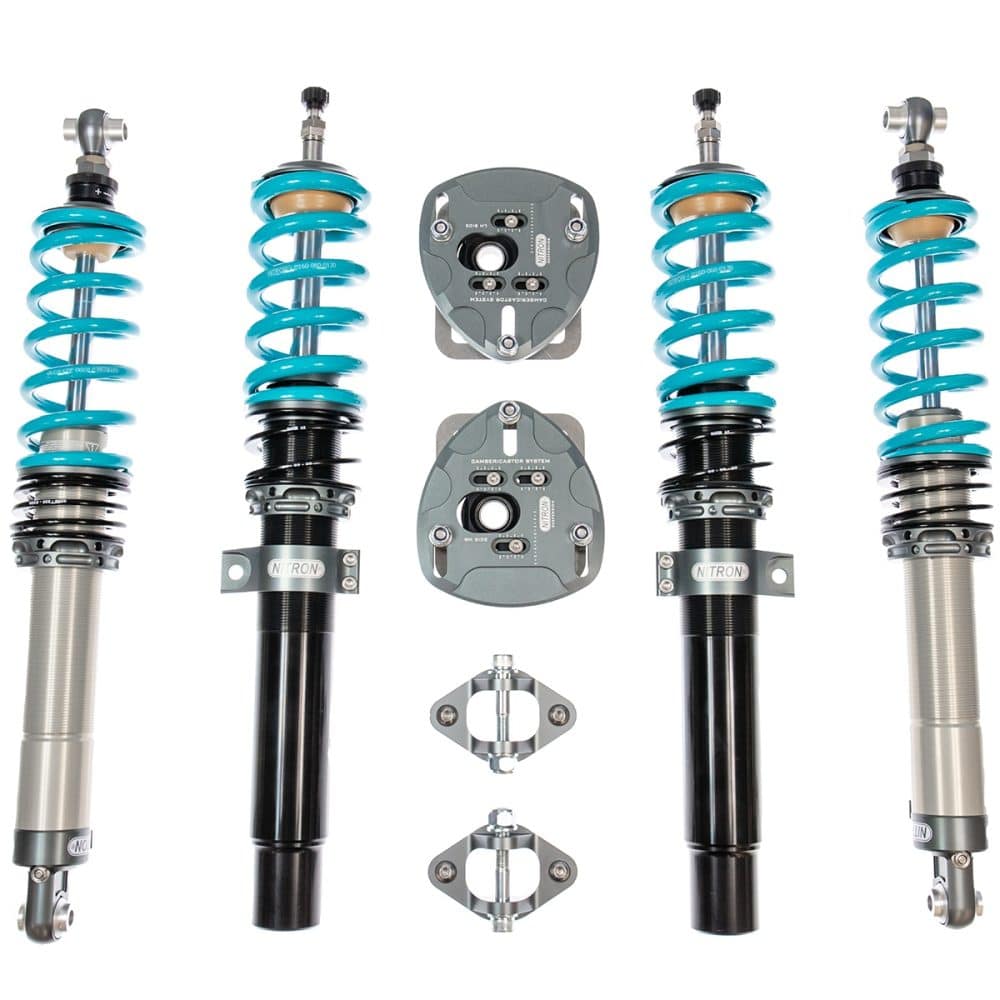

Nitron NTR-R1 Coilover Kit for E82 BMW 1M Coupe

The BMW 1M Coupe sits on the E82 platform with a chassis that’s widely regarded as one of the most engaging in BMW’s modern lineup, but the factory suspension was tuned for a broad audience rather than the driver who wants to find the limit and work with it. The Nitron NTR-R1 coilover kit for the 1M Coupe closes that gap with precision-engineered, combined 2-way damping adjustment drawn directly from the R3 race platform, sharing core components with a kit built for professional competition. Coilover and divorced rear suspension configurations are both available to suit different build requirements. There’s no remote canister to package around, and every unit is individually hand-built with ultra-low friction components that deliver consistent, fade-resistant damping from the street to the circuit. Hard-anodized titanium finish parts and high-grade materials keep corrosion out and weight in check, and with each kit custom built, custom sprung, and fully serviceable, it’s an investment that holds up well beyond a single season.

Coilover vs Divorced Rear Suspension

The E82 1M Coupe NTR-R1 is available with two rear suspension configurations depending on how the car is being built. The coilover setup combines the spring and damper into a single unit, keeping things compact and straightforward for road and general track use. The divorced configuration separates the spring and damper, allowing each to be positioned and tuned independently; this is the preferred approach for dedicated race builds where maximizing suspension geometry and setup flexibility matters more than packaging simplicity. Nitron offers both to make sure the R1 works with the build rather than against it.

Unique Technology

Every Nitron shock is built from precision components that go through a thorough design and development process before reaching final assembly. The modular construction gives engineers the flexibility to approach each application properly, without compromising on how individual parts are made or how they perform together under load. Components are machined to tight tolerances and inspected one by one by trained technicians throughout production, not just at the end. New materials, finishes, and processes are validated extensively before adoption, with proprietary Nitron technologies integrated throughout to produce shocks that consistently hold up against the competition on road and track. That engineering standard is what the brand has been built on since 1998.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t adapt a generic damper to fit the E82 1M Coupe. Every application goes through a dedicated development process, with components, spring rates, and damping characteristics engineered around the specific platform rather than the category it belongs to. Geometry, weight distribution, and suspension travel are factored into the design from the start, not compensated for after the fact. The result is a kit built for the 1M Coupe specifically, not one that was built broadly and happens to fit.

Features

Coilover or divorced rear suspension types
Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilover assemblies and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R1
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Types:
- Coilover
- Divorced
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 685lbs/inch (120N/mm)
  - Rear:
    - Coilover: 350lbs/inch (61N/mm)
    - Divorced: 685lbs/inch (120N/mm)
- TDS – Track Day Spec:
  - Front: 799lbs/inch (140N/mm)
  - Rear:
    - Coilover: 400lbs/inch (70N/mm)
    - Divorced: 799lbs/inch (140N/mm)

Applications

BMW 1M Coupe: E82 | 2011-2012

Other Suspension Kits for E82 1M Coupe

NTR-R3 Coilover Kit

Notes

Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

At what point does the divorced rear configuration make more sense than the coilover setup on the 1M Coupe? When the build is moving toward dedicated circuit use and geometry optimization becomes a priority over installation simplicity. The divorced setup allows the spring and damper to be positioned and adjusted independently, which opens up setup options that a coilover configuration physically can’t offer. For road use or occasional track days, the coilover setup covers everything needed without the added complexity.
Why are the rear spring rates so different between the coilover and divorced configurations? The divorced configuration runs a significantly stiffer rear spring because the spring and damper are no longer working as a combined unit. With each component positioned independently, the spring rate needs to be higher to achieve the same wheel rate and chassis response. Running coilover spring rates in a divorced setup would result in an under-sprung rear end that doesn’t respond correctly under load.
Does the NTR-R1 share any components with Nitron’s professional race kits? Yes. The NTR-R1 draws its damping adjustment directly from the R3 race platform and shares core components with a kit built for professional competition. The hardware isn’t a consumer adaptation of race technology; it’s the same componentry packaged into a more accessible format.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
