At what point does the divorced rear configuration make more sense than the coilover setup on the F80 M3?

When the build is moving toward dedicated circuit use and geometry optimization becomes a priority over installation simplicity. The divorced setup allows the spring and damper to be positioned and adjusted independently, which opens up setup options that a coilover configuration physically can't offer. For road use or occasional track days, the coilover setup covers everything needed without the added complexity.

How does the elec-TRON R1 compare to the elec-TRON RoadSport for the F80 M3?

The elec-TRON RoadSport is developed around daily road use, retaining OEM top mounts to preserve ride comfort and noise isolation. The elec-TRON R1 uses adjustable top mounts and spring rates developed for track use, making it the better choice for builds where circuit performance takes priority. Both integrate with EDC and require no additional controller.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Nitron elec-TRON R1 Coilover Kit for F80 BMW M3

The F80 BMW M3 responds well to a properly developed suspension setup, and the Nitron elec-TRON R1 coilover kit brings electronic damping control through Nitron’s proportional solenoid valve, managed directly by BMW’s existing Electronic Damping Control (EDC) system. No additional controller is required; the kit integrates with EDC as it sits, so nothing is lost from the factory interface. Coilover and divorced rear suspension configurations are both available to suit different build requirements, and the kit includes droplinks so the installation is complete without sourcing additional hardware. The kit includes adjustable top mounts and race springs, covering the same broad adjustment range as the R3 without the independent compression adjustment and remote reservoirs. The hardware traces directly back to the R3 platform, so what you’re getting is proven race-derived componentry packaged into a more accessible, straightforward setup; one that works particularly well on the F80, where the chassis dynamics and engineering foundation already provide a strong base and the suspension just needs to keep up with precision rather than complexity.

elec-TRON

The elec-TRON R1 for the F80 M3 uses Nitron’s proportional solenoid valve fitted to each shock individually, with all damping managed directly through BMW’s existing EDC system. Each shock carries its own valve, giving EDC precise, independent damping control at every corner simultaneously. The system processes brake pressure, g-force, acceleration, steering inputs, and vehicle speed all at once, making damping adjustments in real time. The suspension is reacting to what the road and the driver are doing as it happens, not catching up after the fact.

Coilover vs Divorced Rear Suspension

The F80 M3 elec-TRON R1 is available with two rear suspension configurations depending on how the car is being built. The coilover setup combines the spring and damper into a single unit, keeping things compact and straightforward for road and general track use. The divorced configuration separates the spring and damper, allowing each to be positioned and tuned independently; this is the preferred approach for dedicated race builds where maximizing suspension geometry and setup flexibility matters more than packaging simplicity. Nitron offers both to make sure the R1 works with the build rather than against it.

Integration with OEM Electronic Systems

The Nitron elec-TRON R1 goes in as a direct bolt-in replacement on the F80 M3, picking up the existing EDC integration without any modification needed. Factory functionality stays intact; EDC continues to operate exactly as designed, with significantly more capable hardware now doing the actual work.

Unique Technology

Nitron builds every shock around precision components that go through a thorough design and development process long before final assembly. The modular construction gives engineers the room to develop each application properly on its own terms, without cutting corners on part quality or how components work together under load. Everything is machined to tight tolerances and inspected individually by trained technicians; quality control isn’t a final step here, it runs through the entire process. New materials, finishes, and processes are validated extensively before they’re brought into production, with proprietary Nitron technologies woven throughout to produce shocks that hold up against the competition on both road and track. That level of engineering discipline is what the brand has been built on.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t start with a generic damper and work backward from there. Every application is developed from the ground up, with components, spring rates, and damping characteristics determined by the specific platform rather than borrowed from something adjacent. The geometry, weight distribution, and suspension travel of the F80 M3 shape the design from the start, not as corrections added later. That’s what separates a kit engineered for this car from one that was simply made to fit it.

Features

Coilover or divorced rear suspension types
Shares core technology with the R3 kit
No manual damping adjustments are required, fully controlled by the solenoid valve
Internal reservoir type
Full alloy body
Preload adjuster
Nitrogen gas charged
Integrates with BMW EDC systems
Precision bearing spacers supplied as required

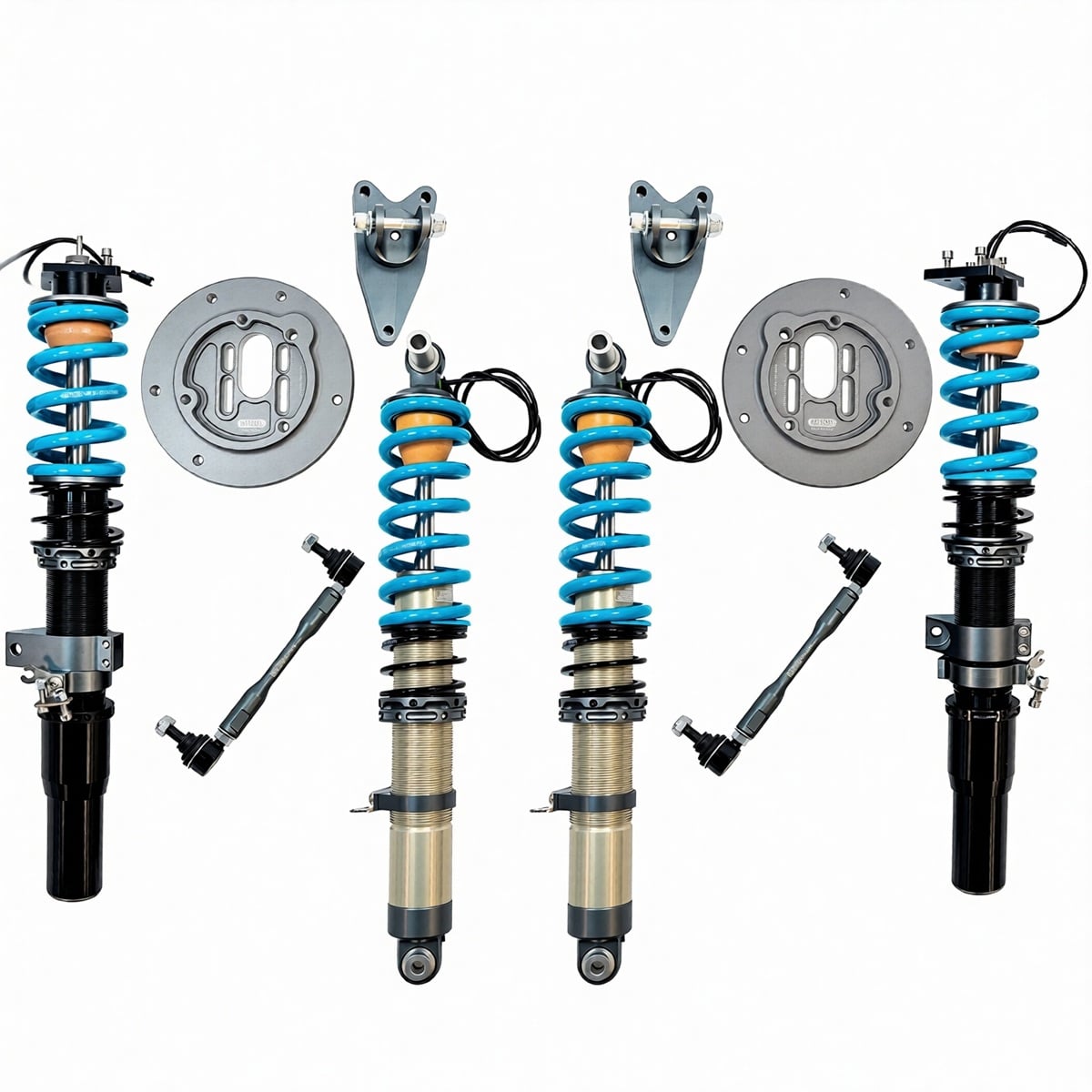

Consists of 4 coilovers, adjustable top mounts, and droplinks
Hand made to order

Specifications

Coilover Type: elec-TRON R1
Rear Suspension Type:
- Coilover
- Divorced
Droplinks Included: Yes
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 685lbs/inch (120N/mm)
  - Rear:
    - Coilover: 400lbs/inch (70N/mm)
    - Divorced: 742lbs/inch (130N/mm)
- TDS – Track Day Spec:
  - Front: 799lbs/inch (140N/mm)
  - Rear:
    - Coilover: 514lbs/inch (90N/mm)
    - Divorced: 914lbs/inch (160N/mm)

Applications

BMW M3: F80 | 2014-2018

Other Suspension Kits for F80 M3

Notes

Works with BMW’s EDC system, no additional products are required for proper use
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

Frequently Asked Questions

At what point does the divorced rear configuration make more sense than the coilover setup on the F80 M3? When the build is moving toward dedicated circuit use and geometry optimization becomes a priority over installation simplicity. The divorced setup allows the spring and damper to be positioned and adjusted independently, which opens up setup options that a coilover configuration physically can’t offer. For road use or occasional track days, the coilover setup covers everything needed without the added complexity.
How does the elec-TRON R1 compare to the elec-TRON RoadSport for the F80 M3? The elec-TRON RoadSport is developed around daily road use, retaining OEM top mounts to preserve ride comfort and noise isolation. The elec-TRON R1 uses adjustable top mounts and spring rates developed for track use, making it the better choice for builds where circuit performance takes priority. Both integrate with EDC and require no additional controller.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
