Can the DCU be used with non-Nitron dampers?

No. The Nitron DCU is designed specifically for use with Nitron elec-TRON coilover kits. It controls Nitron's proprietary proportional solenoid valve and is configured for the specific application location and settings of the R8 platform.

What damping maps are available and how do you switch between them?

The DCU provides access to six pre-installed maps; three passive and three adaptive; via a rotary control switch or visual rotary display. The adaptive maps; Rain, Tour, Sport, and Race; continuously optimize damping in real time within the selected character. The passive maps offer fixed damping behavior for drivers who prefer a static setup. Switching between them is done through the control knob, which can be mounted within reach of the driver.

How fast does the DCU actually process and adjust damping?

The DCU operates at 200Hz, processing data and making damping corrections every five milliseconds. It uses two three-axis accelerometers and a three-axis gyroscope to monitor vehicle attitude, braking, cornering, and acceleration simultaneously. That processing rate means the suspension is reacting to what the car is doing in real time rather than responding after the fact.

Is the DCU weatherproof and durable enough for track use?

Yes. The DCU is fully resin bonded, which protects the internal electronics from moisture, vibration, and the conditions that come with track use. It's supplied with a custom or universal wiring harness and is configured specifically for the application location and settings of the R8.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Nitron elec-TRON DCU for 42 Audi R8

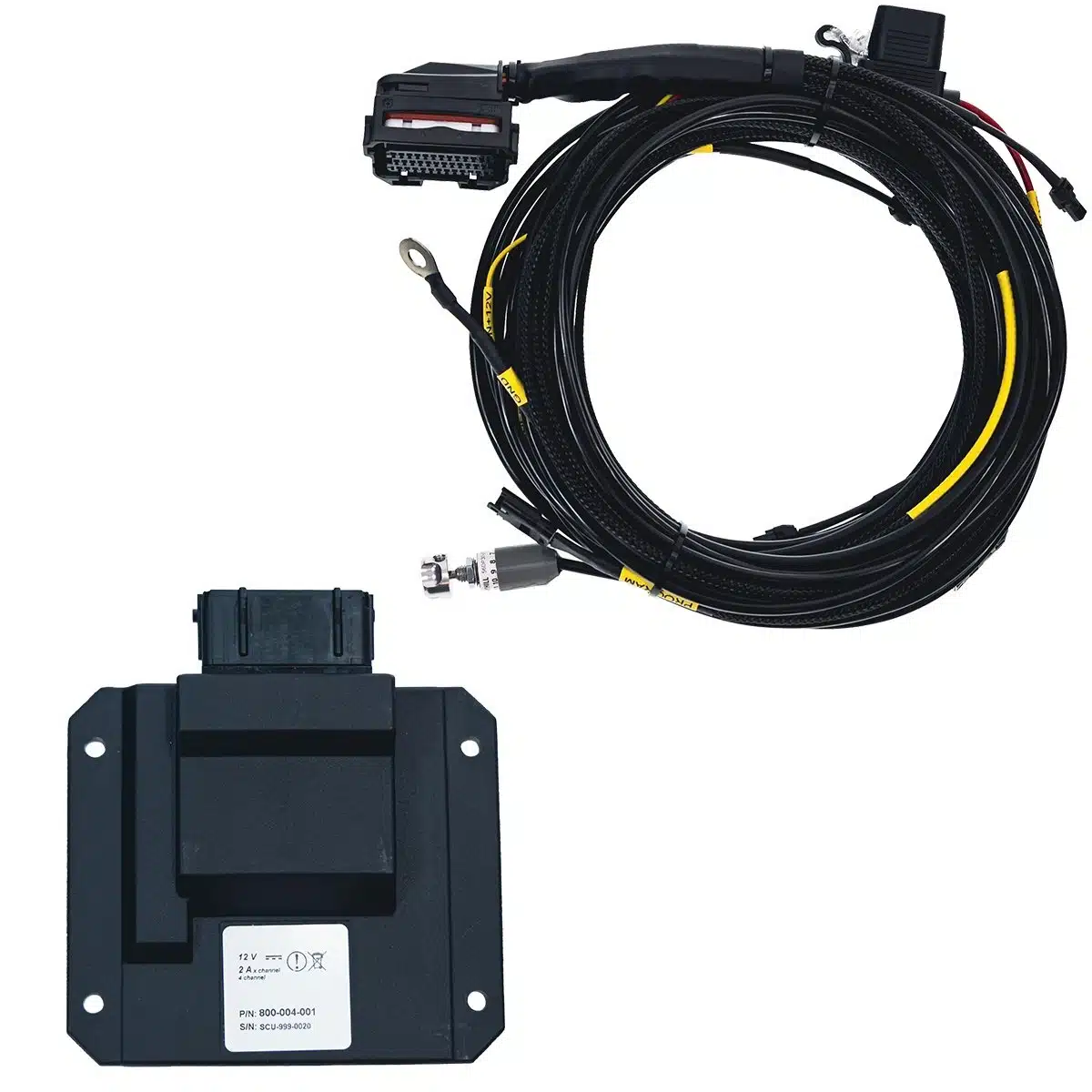

The Nitron DCU is the required control unit for the elec-TRON system on the 42 Audi R8, sold separately from the coilover kits. It transforms the damper setup from a conventional passive system into a precision semi-active platform, with Nitron’s elec-TRON valve making damping adjustments every five milliseconds based on continuous data input from the DCU. Vehicle attitude, braking forces, cornering loads, and acceleration are all assessed in real time to determine the correct valve position and damping level at any given moment. The result is a suspension system that isn’t locked to a fixed damping rate but is constantly working to optimize grip and comfort based on what the car is actually doing. The DCU is fitted with an adjustable control knob giving the driver access to pre-installed damping maps; Rain, Tour, Sport, and Race; each calibrated for a specific driving context. Damping continues to be optimized continuously within whichever map is selected, so the driver determines the overall character and the system handles everything else.

Features

Supplied with a custom or universal wiring harness
Utilizes Arm Cortex-M4 processor
Independent control of 4 electronic dampers
6 position rotary control switch or visual rotary display and control allows user to access a number of pre-installed damping maps (3 passive / 3 adaptive)
Two 3 axis accelerometers
One 3 axis gyroscope
200Hz damping control rate
Configured for application location and settings
Ideal for resto-mod applications
Fully resin bonded

Applications

Audi R8 4.2 V8 quattro: 42 | 2007-2015
Audi R8 5.2 V10 quattro: 42 | 2009-2015

Required for the Following Suspension Kits for the Audi R8 (42)

Notes

Designed for use with Nitron elec-TRON coilover kits for the 2007-2015 Audi R8
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

Frequently Asked Questions

Can the DCU be used with non-Nitron dampers? No. The Nitron DCU is designed specifically for use with Nitron elec-TRON coilover kits. It controls Nitron’s proprietary proportional solenoid valve and is configured for the specific application location and settings of the R8 platform.
What damping maps are available and how do you switch between them? The DCU provides access to six pre-installed maps; three passive and three adaptive; via a rotary control switch or visual rotary display. The adaptive maps; Rain, Tour, Sport, and Race; continuously optimize damping in real time within the selected character. The passive maps offer fixed damping behavior for drivers who prefer a static setup. Switching between them is done through the control knob, which can be mounted within reach of the driver.
How fast does the DCU actually process and adjust damping? The DCU operates at 200Hz, processing data and making damping corrections every five milliseconds. It uses two three-axis accelerometers and a three-axis gyroscope to monitor vehicle attitude, braking, cornering, and acceleration simultaneously. That processing rate means the suspension is reacting to what the car is doing in real time rather than responding after the fact.
Is the DCU weatherproof and durable enough for track use? Yes. The DCU is fully resin bonded, which protects the internal electronics from moisture, vibration, and the conditions that come with track use. It’s supplied with a custom or universal wiring harness and is configured specifically for the application location and settings of the R8.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
