Why do the factory top mounts fall short on the M3 and M3 GTS specifically?

The S65's high-revving naturally aspirated character and the M3's track-focused dynamics mean front geometry accuracy has a more direct effect on how the car behaves than it would on a standard 3 Series. The factory top mounts contain rubber components that deflect under load, so camber and caster settings can shift mid-session even when dialed in correctly beforehand. On a platform this sensitive to front-end setup, that inconsistency shows up in handling behavior where it matters most.

How much of a difference does eliminating rubber from the top mount design actually make?

On a road car driven gently, not much. On a circuit where the suspension is working hard through sustained cornering, braking, and curb strikes, rubber deflection means the geometry the car entered the session with isn't the geometry it's running by the end. Removing rubber entirely and replacing it with positive location systems means the alignment settings stay where they were set, giving a consistent and repeatable baseline to develop the setup from.

Are these top plates compatible with non-Nitron coilover kits?

They are designed for use with Nitron coilovers. Modification may be required to fit them with other manufacturers' shock absorbers, so compatibility should be confirmed before ordering if running a non-Nitron kit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

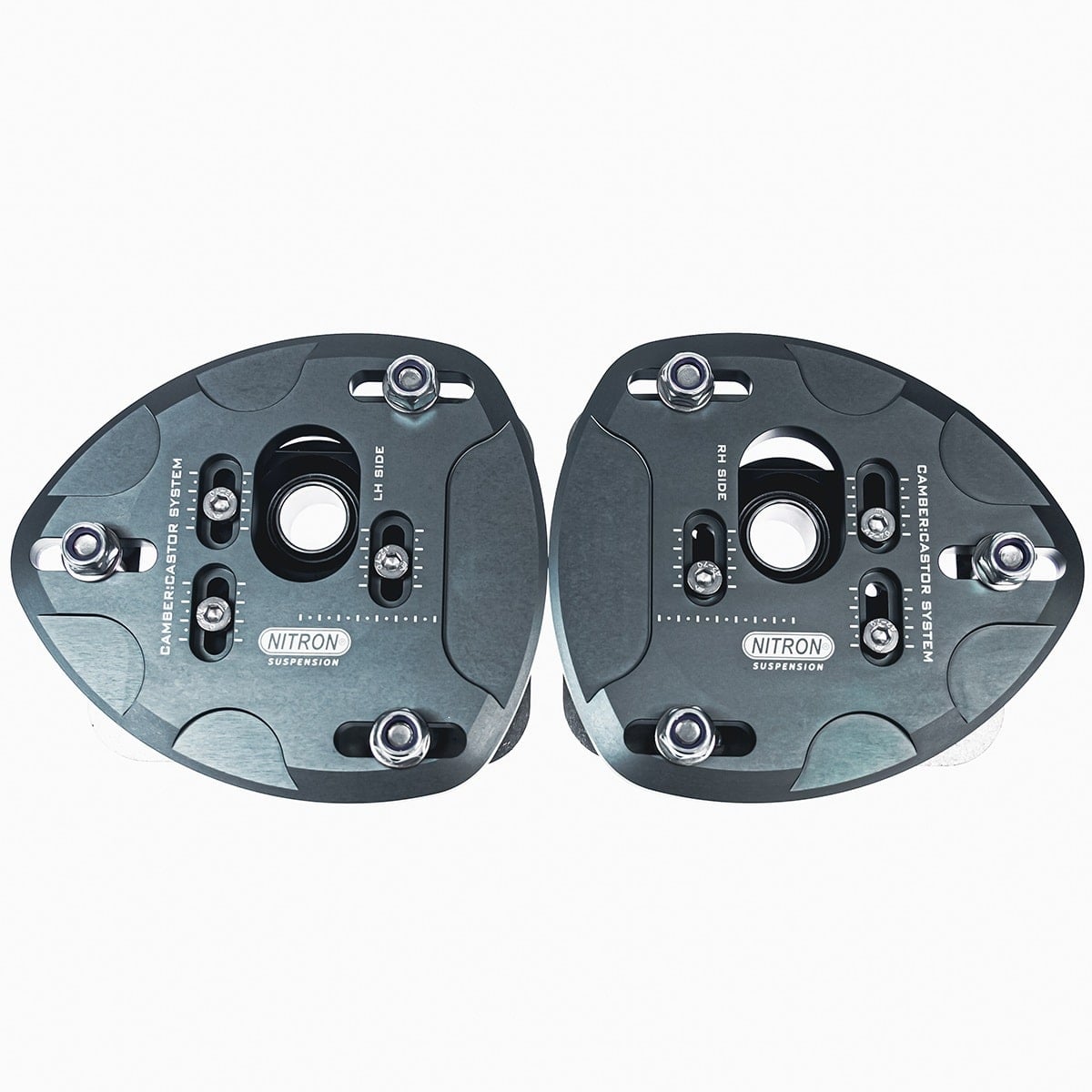

Nitron Adjustable Front Top Plates for E90 / E92 BMW M3 and M3 GTS

The factory top mounts on the E90 and E92 M3 and M3 GTS aren’t designed with serious geometry adjustment in mind. They do the job for road use, but when the driving moves to the circuit and alignment settings need to be dialed in with precision, the limitations show up quickly. The Nitron Adjustable Front Top Plates for the E90 and E92 M3 and M3 GTS are built specifically for that kind of work; machined from high-grade aluminium with Nitron’s titanium grey anodized finish, they provide independent camber and caster adjustment with no rubber components in the design. That matters on track because rubber deflects under load, which means geometry settings that look correct on the alignment rack don’t stay that way when the car is working hard. Positive location and adjustment systems keep settings where they’re set, session after session. This is the kind of component that reflects how Nitron approaches every part of a suspension system; real engineering specific to the platform, not off the shelf hardware tweaked to fit. Supplied as pairs and compatible with smaller diameter motorsport springs only.

Bespoke Engineering

Nitron doesn’t adapt a generic top plate to fit the E90 and E92 M3 and M3 GTS; they engineer one around it. Every application goes through a dedicated development process where adjustment range, location systems, and material choices are shaped by the specific platform, not carried over from something similar enough to work. The geometry requirements and suspension characteristics of the M3 and M3 GTS are part of the design from day one, not accommodated after the fact. That’s the difference between a top plate that fits a car and one that was purpose-built for it.

Features

Independent camber and caster adjustment
No rubber components
Positive location and adjustment systems
High-grade aluminium construction
Titanium grey anodized finish
Supplied as pairs

Applications

BMW M3: E90, E92 | 2007-2013
BMW M3 GTS: E90, E92 | 2010-2013

Notes

Not compatible on E93 Convertible models, Coupe and Sedan only
Supplied as pairs
Suitable only for use with smaller diameter motorsport springs
Designed only to be used with Nitron coilovers; modification may be required for them to be used with other manufacturers shock absorbers
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

Frequently Asked Questions

Why do the factory top mounts fall short on the M3 and M3 GTS specifically? The S65’s high-revving naturally aspirated character and the M3’s track-focused dynamics mean front geometry accuracy has a more direct effect on how the car behaves than it would on a standard 3 Series. The factory top mounts contain rubber components that deflect under load, so camber and caster settings can shift mid-session even when dialed in correctly beforehand. On a platform this sensitive to front-end setup, that inconsistency shows up in handling behavior where it matters most.
How much of a difference does eliminating rubber from the top mount design actually make? On a road car driven gently, not much. On a circuit where the suspension is working hard through sustained cornering, braking, and curb strikes, rubber deflection means the geometry the car entered the session with isn’t the geometry it’s running by the end. Removing rubber entirely and replacing it with positive location systems means the alignment settings stay where they were set, giving a consistent and repeatable baseline to develop the setup from.
Are these top plates compatible with non-Nitron coilover kits? They are designed for use with Nitron coilovers. Modification may be required to fit them with other manufacturers’ shock absorbers, so compatibility should be confirmed before ordering if running a non-Nitron kit.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
