Does the Nitron 512 TR elec-TRON R1 coilover kit include the DCU?

Yes. The Nitron DCU comes included with this kit and is required to run the Standalone configuration, since the 512 TR was never built with a factory electronic damping system.

Is there any manual damping adjustment on Nitron's 512 TR elec-TRON R1 coilover kit?

The solenoid valve and DCU handle damping automatically, so no manual adjustment is required, but the compression and rebound knobs are still there if you want to set a manual baseline yourself.

What kind of reservoir does this kit use?

The R1 uses an internal reservoir built into the damper body, unlike Nitron's R3, which uses external hose or piggyback reservoirs.

Does this Nitron kit affect the 512 TR's factory suspension geometry?

No. The kit replaces the dampers and their control logic, it doesn't alter the geometry the car was built with.

How does the Nitron 512 TR elec-TRON R1 compare to the NTR-R1 version of this kit?

The NTR-R1 is a passive coilover with manual 2-way adjustment only. This elec-TRON R1 adds Nitron's solenoid valve and DCU on top of that same manual adjustment, giving you automatic real-time response in addition to the manual knobs, not instead of them.

Can custom spring rates be ordered with this Nitron kit?

Yes. Every kit is custom built to order, and custom spring rates beyond the standard setup are available by contacting us directly for a consultation.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

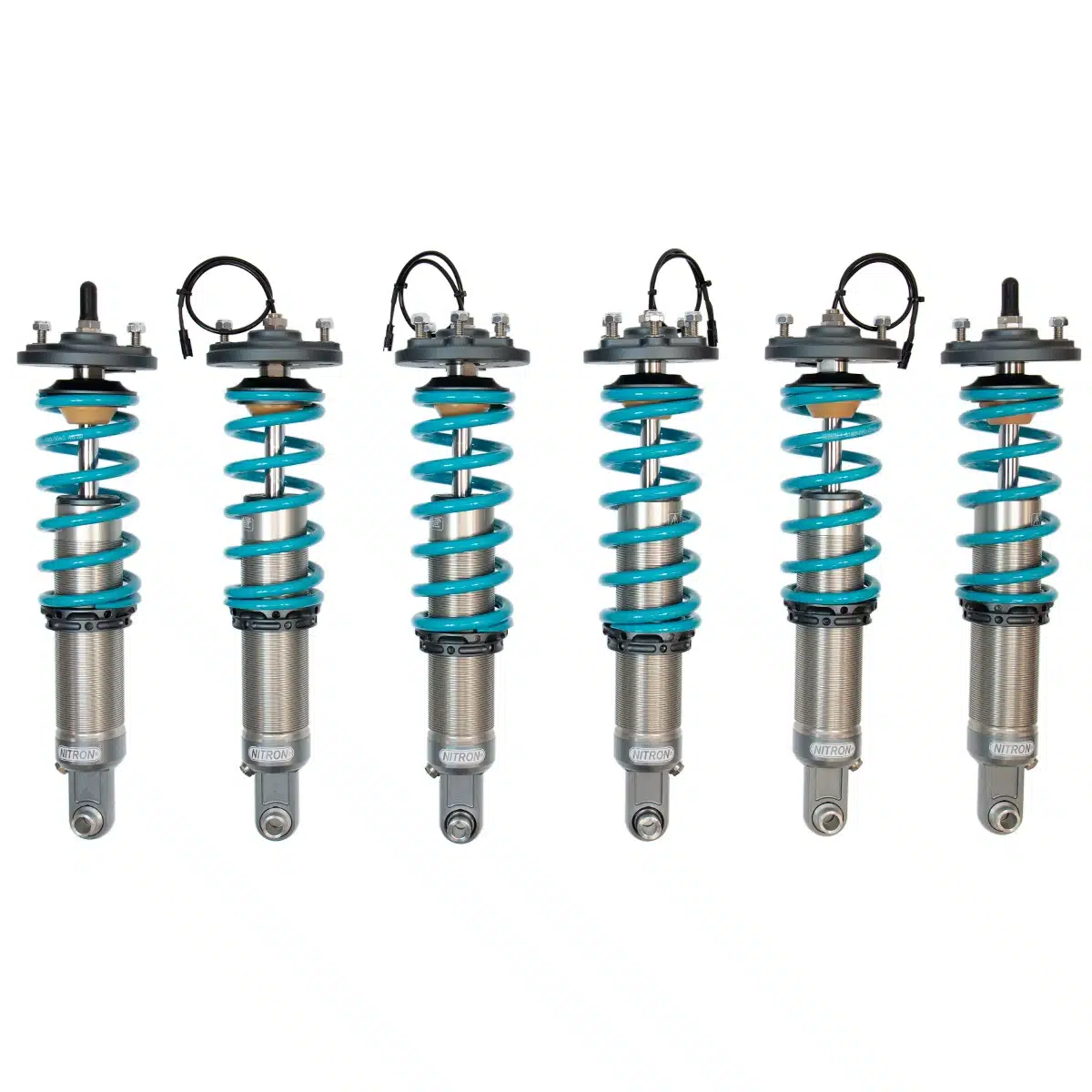

Nitron elec-TRON R1 Coilover Kit for F110 Ferrari 512 TR

Nitron’s 512 TR elec-TRON R1 coilover kit brings electronic damping control to the F110 chassis that Ferrari had already sharpened over the standard Testarossa, with a wider rear track, a lower ride height, and suspension geometry retuned specifically for this updated car. Nitron’s proportional solenoid valve, fitted to each shock, hands damping control over to the included Nitron DCU, which reads what the car is doing at every corner and adjusts compression and rebound in real time rather than sitting on a fixed valve position. Because the 512 TR never came with a factory electronic damping system, this Nitron kit runs in Standalone configuration, with the DCU included as part of the package rather than sold separately. The hardware behind the Nitron elec-TRON R1 traces back to Nitron’s R3 race platform, covering a broad adjustment range without asking the driver to set anything manually to get the most out of it. Every Nitron kit includes adjustable top mounts and race springs, and it’s custom built and fully serviceable.

elec-TRON

Each shock in Nitron’s elec-TRON R1 carries its own proprietary proportional solenoid valve, giving the Nitron DCU independent control over damping at every corner of the 512 TR at the same time. Ferrari never built the 512 TR with a factory electronic damping system to interface with, so this Nitron kit runs Standalone Electronic Damping from the moment it’s installed, replacing the factory dampers and their control logic outright.

elec-TRON DCU (Damper Control Unit)

The Nitron DCU included with this kit reads braking force, cornering load, acceleration, and overall vehicle attitude roughly every 5 milliseconds, repositioning each elec-TRON valve based on what the car is actually doing rather than holding one setting for the whole drive. A control knob on the Nitron DCU gives the driver access to four pre-installed maps, Rain, Tour, Sport, and Race, so the overall character is still something the driver picks, even while the fine adjustment underneath keeps happening automatically.
- Supplied with a custom or universal wiring harness
- Utilizes Arm Cortex-M4 processor
- Independent control of 4 electronic dampers
- 6 position rotary control switch or visual rotary display and control allows user to access a number of pre-installed damping maps (x3 passive and x3 adaptive)
- 2x 3 axis accelerometers
- 1x 3 axis gyroscope
- 200 Hz damping control rate
- Configured for application location and settings
- Ideal for resto-mod applications
- Fully resin bonded

Unique Technology

Every Nitron shock goes through machining, inspection, and validation long before it’s called finished, with each component checked individually by a trained Nitron technician rather than sampled from a batch. The modular design behind Nitron’s elec-TRON platform means this 512 TR application was built around what the chassis actually needs, not adapted from a part number developed for another car. New materials, finishes, and processes only reach production after Nitron has thoroughly validated them, and Nitron’s own proprietary technology runs through the build from the start rather than being layered on top of something generic.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t take a damper built for a modern mid-engine platform and adjust the valving until it works on a 512 TR. Nitron’s elec-TRON R1 application is developed specifically for this chassis’ revised suspension geometry and wider rear track, accounting for the weight of a longitudinally mounted flat-12 sitting over the transaxle rather than assuming it behaves like the earlier Testarossa. That’s the difference between a Nitron kit engineered for this platform and one that was only ever adjusted to fit it.

Features

Shares core technology with the R3 kit
No manual damping adjustments are required, fully controlled by the solenoid valve
Internal reservoir type
Full alloy body
Preload adjuster
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilovers and adjustable top mounts
Hand made to order
Includes DCU

Specifications

Coilover Type: elec-TRON R1
Rear Suspension Type: OEM
Droplinks Included: No

Applications

Ferrari 512 TR: F110 | 1992-1996

Other Suspension Kits for Ferrari 512 TR

Notes

Includes DCU, no additional products required
Custom spring rates are available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

Does the Nitron 512 TR elec-TRON R1 coilover kit include the DCU? Yes. The Nitron DCU comes included with this kit and is required to run the Standalone configuration, since the 512 TR was never built with a factory electronic damping system.
Is there any manual damping adjustment on Nitron’s 512 TR elec-TRON R1 coilover kit? The solenoid valve and DCU handle damping automatically, so no manual adjustment is required, but the compression and rebound knobs are still there if you want to set a manual baseline yourself.
What kind of reservoir does this kit use? The R1 uses an internal reservoir built into the damper body, unlike Nitron’s R3, which uses external hose or piggyback reservoirs.
Does this Nitron kit affect the 512 TR’s factory suspension geometry? No. The kit replaces the dampers and their control logic, it doesn’t alter the geometry the car was built with.
How does the Nitron 512 TR elec-TRON R1 compare to the NTR-R1 version of this kit? The NTR-R1 is a passive coilover with manual 2-way adjustment only. This elec-TRON R1 adds Nitron’s solenoid valve and DCU on top of that same manual adjustment, giving you automatic real-time response in addition to the manual knobs, not instead of them.
Can custom spring rates be ordered with this Nitron kit? Yes. Every kit is custom built to order, and custom spring rates beyond the standard setup are available by contacting us directly for a consultation.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
