MV Forged Spoke-Lite GS-106 Monoblock Wheel

MV Forged Spoke-Lite GS-106 Monoblock Wheel

The Spoke-Lite® series from MV Forged is the crowning achievement of their wheel collection, embodying extensive technical expertise and a steadfast commitment to precision engineering. Known for its Spoke-Lite® register with unique cut-through bolt flange pockets, the series not only highlights the rim’s color but also reduces the core weight of the wheel. This series sets industry standards by blending aesthetic design with practical engineering, perfectly complementing the sleek designs of modern supercars. Enhanced by the introduction of 4 Piece Spoke-Lite® caps, which include standard titanium bolts and options for twill or forged carbon logos, it symbolizes the zenith of custom wheel design. MV Forged continues to lead in innovation with its single-piece forging configuration that emphasizes a unified mono-block structure for lightness, offering high-performance alternatives to standard OEM wheels that enhance both the driving experience and vehicle dynamics.

Spoke-Lite™ Undercutting

• Recent advancements in the Spoke-Lite™ series feature the Spoke-Lite™ Register, noted for its carbon fiber accents and contributing to an estimated 10% reduction in wheel weight. The innovative Scallop Undercutting technique further reduces the wheel’s mass by shaping the spokes into an “I-Beam” profile, which enhances structural integrity while decreasing weight.

Hub Pocketing

• MV Forged incorporates Through-Hub Pockets in its wheel designs to facilitate efficient heat dissipation and minimize stress on the hubs. The brand offers five unique build configurations, each with distinct serial numbers, precise load ratings, and dimensions, catering to diverse personal preferences and vehicle specifications.

4-Piece Caps

• Each set of Spoke-Lite™ wheels comes standard with a 4-Piece cap, providing a wide range of logo color options for extensive customization. This feature allows clients to personalize their vehicles to reflect their individual styles.

Finish Options

• The detailed finishing process at MV Forged reflects their meticulous attention to detail and superior craftsmanship. By sourcing only the finest materials from leading international suppliers, the company offers a variety of finish options, including brushed or polished bases under clear powder coatings that enhance the intricate designs of the wheels. Their ongoing pursuit of finishing innovations underscores the brand’s dedication to producing the most visually captivating and appealing wheel finishes in the automotive industry.

Solid Finishes

• Solid colors vary in shade, smoothness, and texture including gloss, satin, and textured clear coat options (all solid finishes are standard across all MV Forged® wheels)
  • Anodized Red (gloss, satin)
  • Chalk Grey (gloss)
  • Forged Graphite (fine textured, gloss, satin)
  • Forged Silver (gloss, satin)
  • Heritage Gold (gloss, satin)
  • Jet Black (fine textured, gloss, satin)
  • Midnight Blue (gloss, satin)
  • Terra Bronze (fine textured, gloss, satin)
  • Tesora White (gloss, satin)

Transparent Finishes

• All premium transparent finishes are an extra charge per part, they are offered in a satin or gloss finish with a base in either a brushed or high luster polish
  • Brushed Clear (base: brushed, high luster polish / clear: acrylic clear, satin)
  • Carbon Copper (base: brushed, high luster polish / clear: gloss, satin)
  • Carbon Red (base: brushed, high luster polish / clear: gloss, satin)
  • Cognac Copper (base: brushed, high luster polish / clear: gloss, satin)
  • High Luster Polish (base: high luster polish / clear: acrylic clear, satin)
  • Liquid Bronze (base: brushed, high luster polish / clear: gloss, satin)
  • Olympic Gold (base: brushed, high luster polish / clear: gloss, satin)
  • Rosé (base: brushed, high luster polish / clear: gloss, satin)
  • Rose Copper (base: brushed, high luster polish / clear: gloss, satin)
  • Shadow Black (base: brushed, high luster polish / clear: gloss, satin)
  • Shadow Grey (base: brushed, high luster polish / clear: gloss, satin)
  • Shadow Silver (base: brushed, high luster polish / clear: gloss, satin)
  • White Gold (base: brushed, high luster polish / clear: gloss, satin)

Text Color Fill Options

• Add brand logo, text, and groove color fill options to your wheel set. Spoke-Lite wheels come with logo color fill as a standard option, other colors available upon request.

Cap Options

• MV Forged 4 piece caps can be combined with twill or forged carbon fiber logos. You can match the caps to the wheel or expose an accent color (contact us) through the Spoke-Lite top piece. These caps are paired with grade 5 titanium bolts in either silver, black, gold or burnt options.

Features

• Spoke-Lite™ Series
• Monoblock 1-piece configuration
• Lightweight
• Text fill and 4pc caps
• 6061 T6 forged aero space aluminum
• Endless finishing options
• Centerlock option available

Specifications

• Available Diameters: 18″  |  19″  |  20″  |  21″  |  22″  |  23″  |  24″
• Widths: 8″ – 13″

Other Configurations

• Spoke-Lite 2-piece
• Spoke-Lite 3-piece

Notes

• Each MV Forged wheel is crafted from top-notch materials to specific vehicle requirements, unlike standard “off the shelf” products, MV Forged wheels are tailored to your unique specifications, resulting in an anticipated lead time of several weeks following finalization of your options. The Bulletproof Team provides a comprehensive concierge service throughout this process to guarantee the creation of the ideal wheel for your needs and will serve as your concierge throughout the entire process to ensure you get the perfect wheel for your application.
• Priced per wheel
• Custom powder coating options available upon request

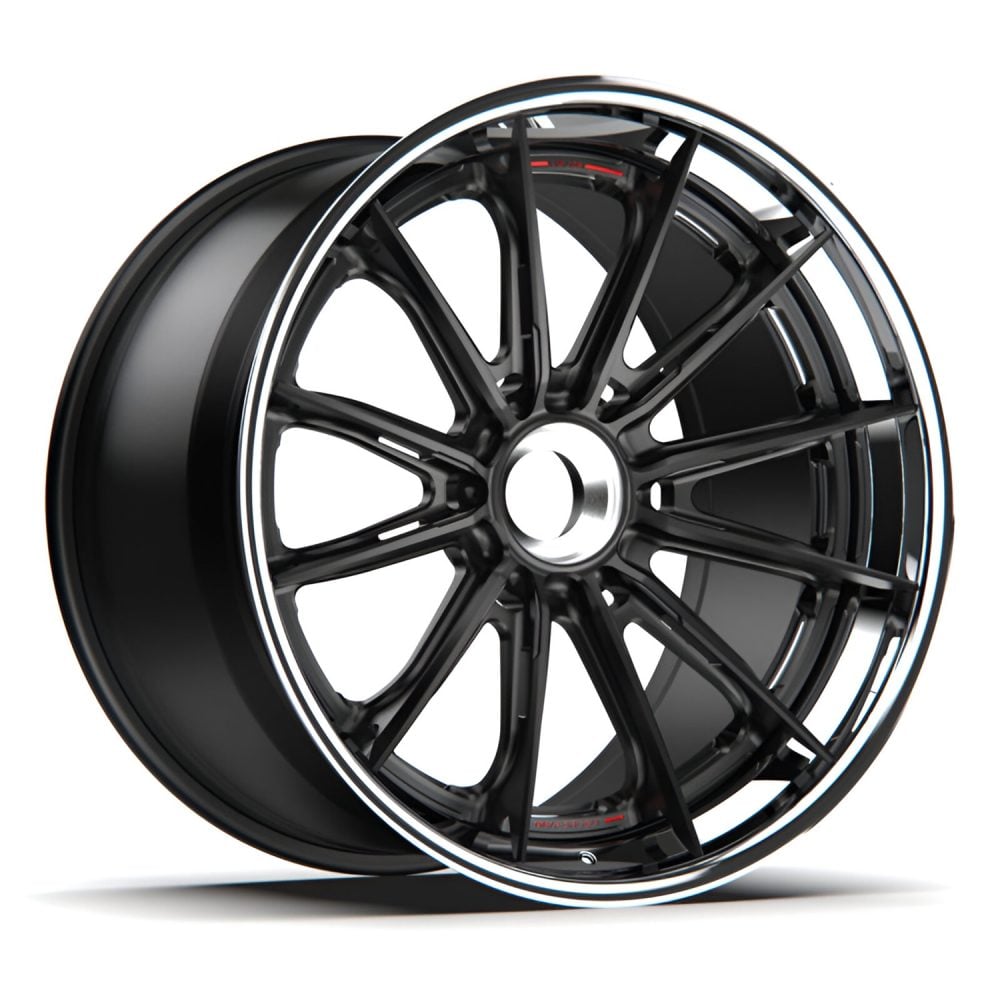

• Images displays 3 piece variant, 1 piece photos coming soon

About MV Forged

The team at MV Forged maintains unwavering dedication to not just fabricating wheels, but also cultivating a lifestyle that encapsulates a fervor for creative design and a commitment to manufacturing top-tier wheels. The defining features of exceptional wheels lie in their performance and durability. This motivates the team to prioritize meticulous designing, accurate engineering, and skilled craftsmanship to achieve an unparalleled class of wheels.

Every pair of wheels produced by MV Forged are painstakingly conceived, engineered, and built within their facility in Southern California. The assembled team, boasting over seven decades of cumulative experience in forging wheels, enables them to exercise complete authority over the quality of their production process. For each order, comprehensive Finite Element Analysis (FEA) is carried out, which guarantees a perfect blend of lightness, durability, and strength.
