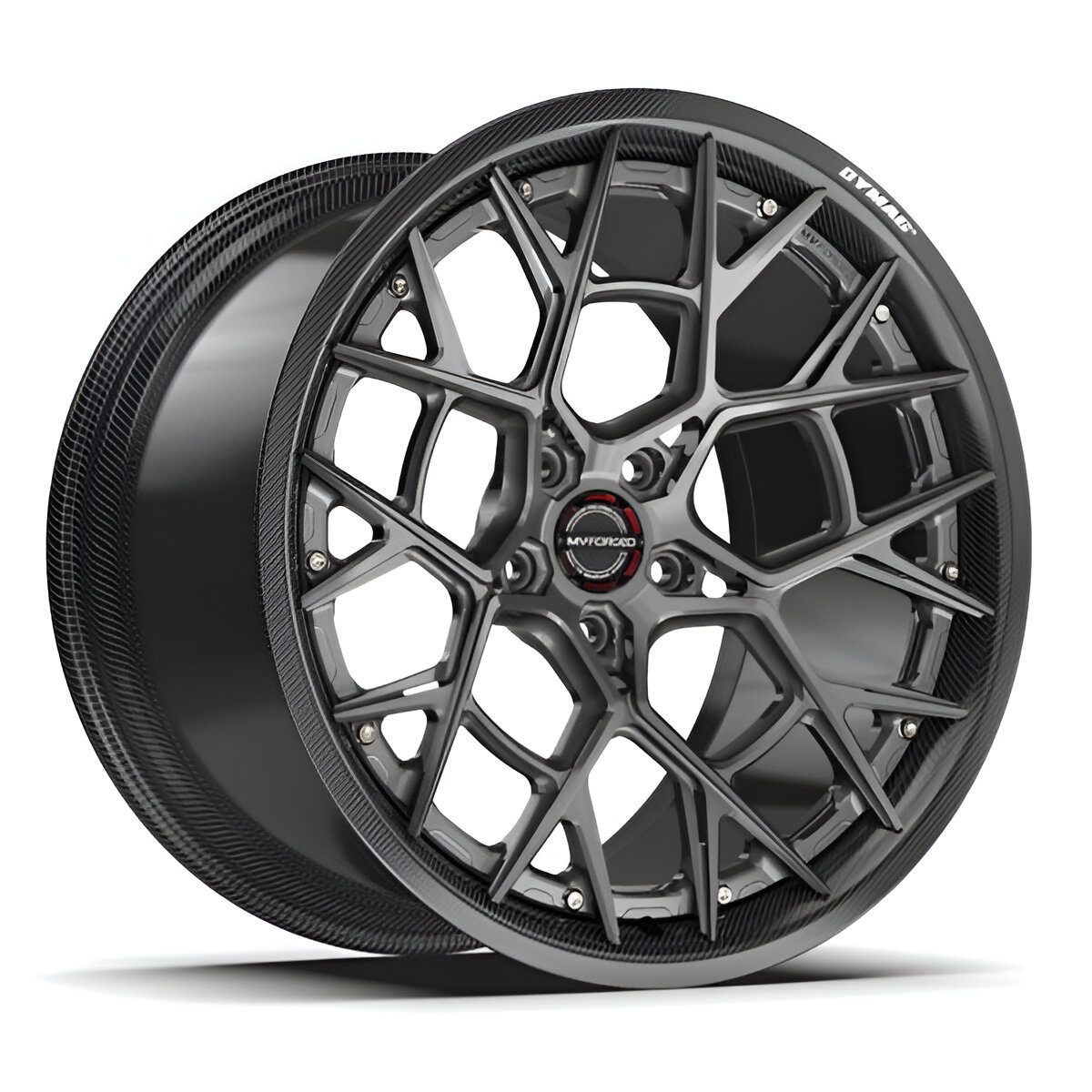

MV Forged DYMAG Collection MR-217 Duoblock Wheel

MV Forged DYMAG Collection MR-217 Duoblock Wheel

Established in the United Kingdom with deep-rooted connections to the world of motorsport, DYMAG® has forged a distinguished history in the intricate realm of wheel design and manufacturing, serving automotive and motorcycle clients. Since its inception in 1975, the company has consistently been at the forefront of the wheelrim racing industry, capitalizing on over 45 years of expertise in wheel design, particularly in high-level motorsport, and boasting over 25 years of experience in carbon fiber wheel technology. Renowned automotive brands such as McLaren and Fisker have played significant roles as collaborators on their remarkable journey.

DYMAG Collection

• The DYMAG Collection sets itself apart with its wheel designs, accomplishing an impressive approximately 10% reduction in weight while prominently featuring carbon fiber in the construction. This collection incorporates the Scallop Undercutting technique, resulting in a substantial reduction in the overall weight and un-sprung mass of each wheel. This method involves shaping the sides of the spokes into an “I-Beam” cross-section, effectively optimizing the strength-to-weight ratio.

Hub Pocketing

• Every design within the collection includes strategically positioned Through-Hub Pockets between the lug holes, enhancing heat dissipation and further decreasing un-sprung mass/weight at the wheel hub. The collection offers five distinct build configurations, each introducing its unique innovative features. Each set is individually marked with a serial number, load rating, and comprehensive specifications.

4-Piece Caps

• As standard, all MV Forged DYMAG Wheels come equipped with a 4-Piece cap, providing the opportunity for the integration of accent colors into the wheels through various colored logos.

Standard Titanium Hardware / Text Fill

• DYMAG wheels come equipped with Grade 5 Titanium Bolts, Serrated Nuts, and Hidden Studs, offering an impressive 50% reduction in weight compared to conventional steel hardware. With a tensile strength of 950 MPa and exceptional corrosion resistance, this hardware setup contributes to an additional reduction in weight by approximately 1.5lbs per wheel.

Finish Options

• The finishing process at MV Forged exemplifies the brand’s unwavering commitment to excellence. By sourcing materials from premier global suppliers, they offer a diverse range of exquisite finishes, including brushed or polished surfaces and robust clear powder coatings that enhance the intricate designs of the wheels. MV Forged’s continuous evolution in finishing techniques underscores their dedication to creating visually striking wheel finishes in the automotive industry.

Solid Finishes

• Solid colors vary in shade, smoothness, and texture including gloss, satin, and textured clear coat options (all solid finishes are standard across all MV Forged® wheels)
  • Anodized Red (gloss, satin)
  • Chalk Grey (gloss)
  • Forged Graphite (fine textured, gloss, satin)
  • Forged Silver (gloss, satin)
  • Heritage Gold (gloss, satin)
  • Jet Black (fine textured, gloss, satin)
  • Midnight Blue (gloss, satin)
  • Terra Bronze (fine textured, gloss, satin)
  • Tesora White (gloss, satin)

Transparent Finishes

• All premium transparent finishes are an extra charge per part, they are offered in a satin or gloss finish with a base in either a brushed or high luster polish
  • Brushed Clear (base: brushed, high luster polish / clear: acrylic clear, satin)
  • Carbon Copper (base: brushed, high luster polish / clear: gloss, satin)
  • Carbon Red (base: brushed, high luster polish / clear: gloss, satin)
  • Cognac Copper (base: brushed, high luster polish / clear: gloss, satin)
  • High Luster Polish (base: high luster polish / clear: acrylic clear, satin)
  • Liquid Bronze (base: brushed, high luster polish / clear: gloss, satin)
  • Olympic Gold (base: brushed, high luster polish / clear: gloss, satin)
  • Rosé (base: brushed, high luster polish / clear: gloss, satin)
  • Rose Copper (base: brushed, high luster polish / clear: gloss, satin)
  • Shadow Black (base: brushed, high luster polish / clear: gloss, satin)
  • Shadow Grey (base: brushed, high luster polish / clear: gloss, satin)
  • Shadow Silver (base: brushed, high luster polish / clear: gloss, satin)
  • White Gold (base: brushed, high luster polish / clear: gloss, satin)

Text Color Fill Options

• Add brand logo, text, and groove color fill options to your wheel set. MV Forged wheels come with logo color fill as a standard option, other colors available upon request.

Cap Options

• The 4 piece caps can be combined with twill or forged carbon fiber logos. You can match the caps to the wheel or expose an accent color. These caps are paired with grade 5 titanium bolts in either a silver, black, gold or burnt options.

Features

• DYMAG Series
• Duoblock 2-piece configuration
• Lightweight carbon composite
• 6061 T6 forged aero space aluminum
• Text fill and 4pc caps
• Endless finishing options
• Hidden grade 5 titanium hardware
• Centerlock options available

Specifications

• Available Diameters:  18″  |  19″  |  20″  |  21″  |  22″  |  23″

Other Configurations

• MR-217 1-piece
• MR-217 2-piece
• MR-217 3-piece

Notes

• Each MV Forged wheel is crafted from top-notch materials to specific vehicle requirements, unlike standard “off the shelf” products, MV Forged wheels are tailored to your unique specifications, resulting in an anticipated lead time of several weeks following finalization of your options. The Bulletproof Team provides a comprehensive concierge service throughout this process to guarantee the creation of the ideal wheel for your needs and will serve as your concierge throughout the entire process to ensure you get the perfect wheel for your application.
• Priced per wheel

The Bulletproof Custom Wheel Experience

• All custom wheel fitments include our expert consultation on exact size, fitment, etc. With over 20 years experience working with the world’s best wheel builders and tens of thousands of happy owners, we will help you realize the ideal wheel specs to execute your vision for your vehicle. Our recommendations are guaranteed to be plug and play on your vehicle.

About MV Forged

The team at MV Forged maintains unwavering dedication to not just fabricating wheels, but also cultivating a lifestyle that encapsulates a fervor for creative design and a commitment to manufacturing top-tier wheels. The defining features of exceptional wheels lie in their performance and durability. This motivates the team to prioritize meticulous designing, accurate engineering, and skilled craftsmanship to achieve an unparalleled class of wheels.

Every pair of wheels produced by MV Forged are painstakingly conceived, engineered, and built within their facility in Southern California. The assembled team, boasting over seven decades of cumulative experience in forging wheels, enables them to exercise complete authority over the quality of their production process. For each order, comprehensive Finite Element Analysis (FEA) is carried out, which guarantees a perfect blend of lightness, durability, and strength.
