Which Nissan 240SX and 200SX models do the Moton 3-Way Motorsport Coilovers for S14 fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for S14 for the Nissan 240SX (S14, 1995 to 1998) and Nissan 200SX / Silvia (S14 / S15, 1995 to 2002). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 3-Way Motorsport kit compare with the other MOTON kits for the S14 or S15?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the S14 or S15. The 2-Way Clubsport keeps compression as one adjuster, and the 1-Way adjusts rebound alone. On the S14 or S15 it is the kit for racing and data-led setup work, and it rewards time spent with a setup engineer.

What setup work follows installation on an S14 or S15?

Set ride height on the threaded bodies, let the springs settle, then corner weight the car and have it aligned. Lowering an S14 or S15 changes camber and toe at both ends, and the rear multi-link geometry in particular should be checked before the car goes on track.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, built to order for the S14 or S15. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the S14 or S15 dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an S14 or S15 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

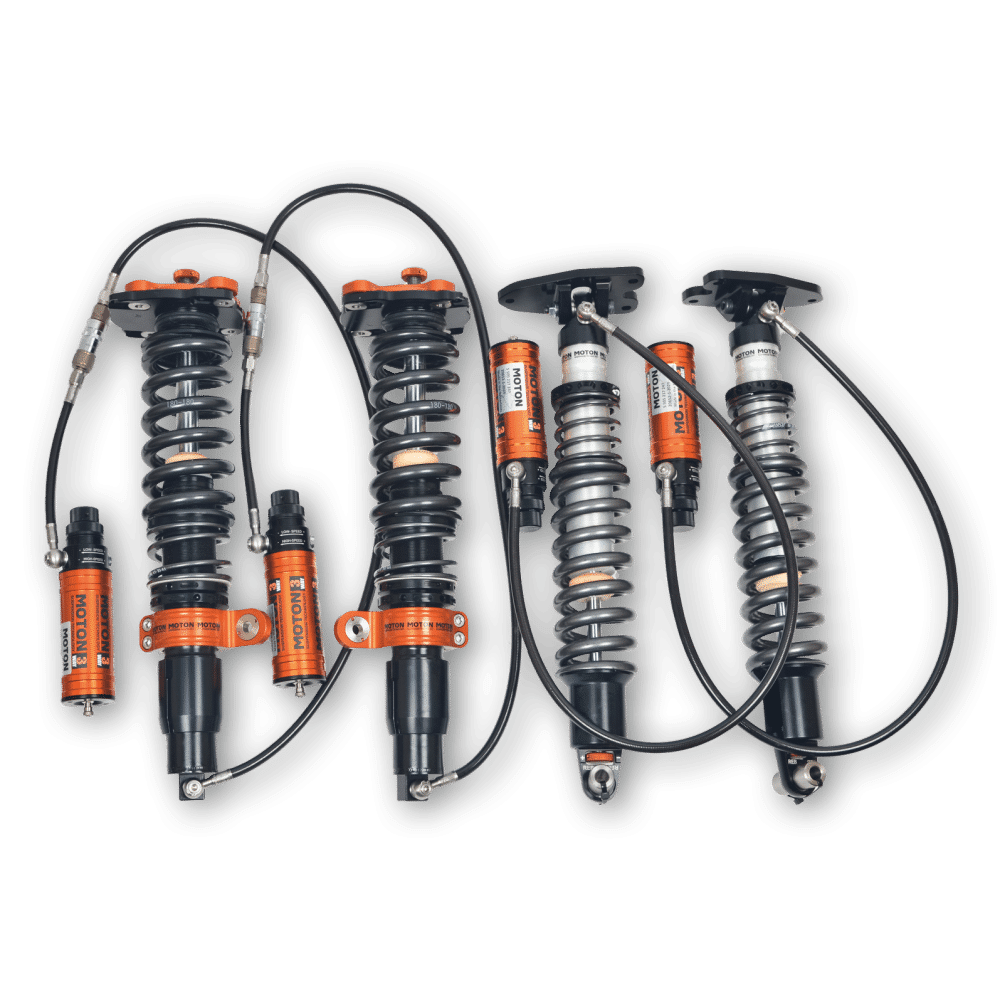

Moton 3-Way Motorsport Coilovers for S14 / S15 Nissan 240SX and 200SX

Moton’s 3-Way Motorsport Coilovers for S14 / S15 Nissan 240SX and 200SX bring the full MOTON race specification to the S14 and S15: rebound, low-speed compression and high-speed compression each on its own adjuster. This 3-way set is MOTON’s race specification for the S14 and S15, built for time attack and circuit racing rather than the street. Low-speed compression governs roll and pitch on the S14 or S15, while high-speed compression governs kerbs and sharp bumps, and each can be set without disturbing the other.

Design and Performance

Two compression circuits separate the response to slow inputs, such as roll and pitch under braking, from fast ones such as kerbs and ripples. On the S14 or S15, body control can be firmed up without making the car skip over bumps. It is overkill on a road car; the Moton 1-Way Coilovers suit that use, and the Moton 2-Way Clubsport Coilovers sit between the two.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)

Applications

Nissan 240SX: S14 | 1995-1998
Nissan 200SX / Silvia: S14 / S15 | 1995-2002

Notes

The Moton 3-Way Motorsport Coilovers for S14 fit the S14 and S15 chassis; the S13 is not covered
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Nissan 240SX and 200SX models do the Moton 3-Way Motorsport Coilovers for S14 fit? MOTON lists the Moton 3-Way Motorsport Coilovers for S14 for the Nissan 240SX (S14, 1995 to 1998) and Nissan 200SX / Silvia (S14 / S15, 1995 to 2002). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 3-Way Motorsport kit compare with the other MOTON kits for the S14 or S15? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the S14 or S15. The 2-Way Clubsport keeps compression as one adjuster, and the 1-Way adjusts rebound alone. On the S14 or S15 it is the kit for racing and data-led setup work, and it rewards time spent with a setup engineer.
What setup work follows installation on an S14 or S15? Set ride height on the threaded bodies, let the springs settle, then corner weight the car and have it aligned. Lowering an S14 or S15 changes camber and toe at both ends, and the rear multi-link geometry in particular should be checked before the car goes on track.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, built to order for the S14 or S15. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the S14 or S15 dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an S14 or S15 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
