Which Mazda MX-5 Miata and RX-8 models do the Moton 3-Way Motorsport Coilovers for NC fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for NC for the Mazda MX-5 Miata (NC, 2005 to 2015) and Mazda RX-8 (FE, 2003 to 2012). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 3-Way Motorsport kit compare with the other MOTON kits for the NC MX-5 or RX-8?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the NC MX-5 or RX-8. The 2-Way Clubsport keeps compression as one adjuster and is quicker to set up. On the NC MX-5 or RX-8 it is the kit for racing and data-led setup work, and it rewards time spent with a setup engineer.

Is the 3-way kit suited to an NC MX-5 race car?

Yes. MOTON lists the 3-way set as its competition specification, and separate low-speed and high-speed compression let an NC MX-5 be tuned closely for one circuit and tire. Check the class rules first, since some spec series restrict damper adjustability or require a control damper.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, built to order for the NC MX-5 or RX-8. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the NC MX-5 or RX-8 dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an NC MX-5 or RX-8 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

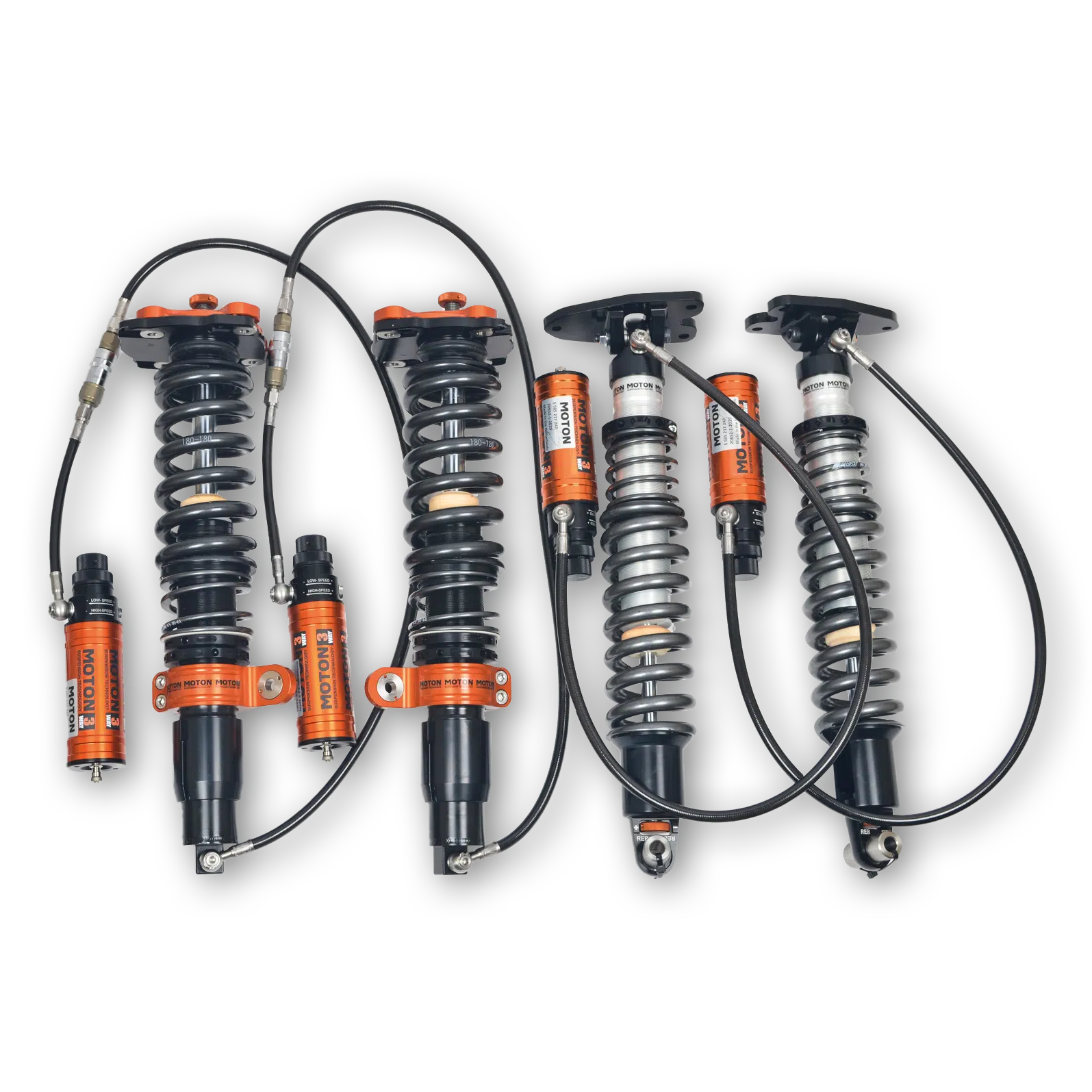

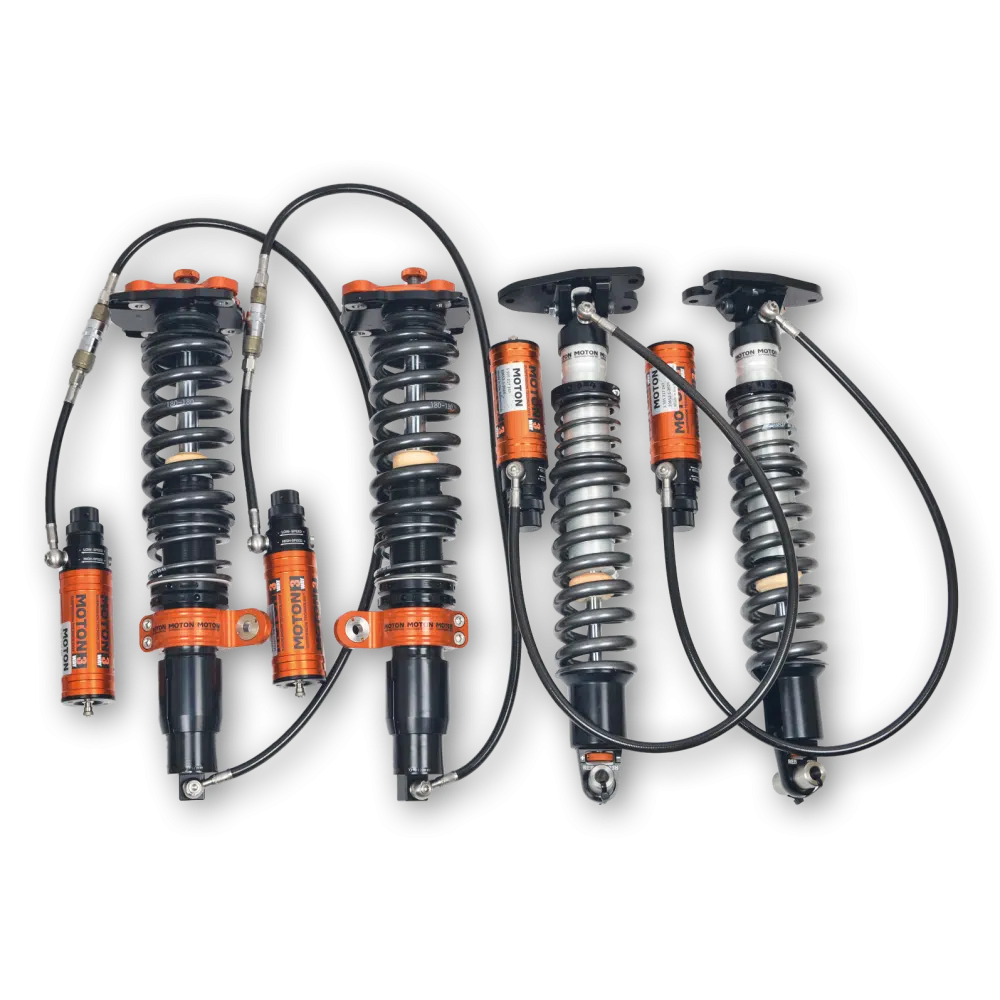

Moton 3-Way Motorsport Coilovers for NC Mazda MX-5 Miata and RX-8

Moton’s 3-Way Motorsport Coilovers for NC Mazda MX-5 Miata and RX-8 bring the full MOTON race specification to the NC MX-5 and RX-8: rebound, low-speed compression and high-speed compression each on its own adjuster. MOTON lists this 3-way set for the NC MX-5 Miata and the rotary-engined RX-8, both widely used in club racing. Low-speed compression governs roll and pitch on the NC MX-5 or RX-8, while high-speed compression governs kerbs and sharp bumps, and each can be set without disturbing the other. On an NC MX-5 or RX-8 that competes, it gives a setup engineer every adjustment MOTON offers.

Design and Performance

Two compression circuits separate the response to slow inputs, such as roll and pitch under braking, from fast ones such as kerbs and ripples. On the NC MX-5 or RX-8, body control can be firmed up without making the car skip over bumps. It is overkill on a road car, and the Moton 2-Way Clubsport Coilovers suit regular track days with less to set up.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Elevated top guide with helper piston
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs

Applications

Mazda MX-5 Miata: NC | 2005-2015
Mazda RX-8: FE | 2003-2012

Notes

The Moton 3-Way Motorsport Coilovers for NC fit the NC MX-5 Miata and the RX-8
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Mazda MX-5 Miata and RX-8 models do the Moton 3-Way Motorsport Coilovers for NC fit? MOTON lists the Moton 3-Way Motorsport Coilovers for NC for the Mazda MX-5 Miata (NC, 2005 to 2015) and Mazda RX-8 (FE, 2003 to 2012). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 3-Way Motorsport kit compare with the other MOTON kits for the NC MX-5 or RX-8? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the NC MX-5 or RX-8. The 2-Way Clubsport keeps compression as one adjuster and is quicker to set up. On the NC MX-5 or RX-8 it is the kit for racing and data-led setup work, and it rewards time spent with a setup engineer.
Is the 3-way kit suited to an NC MX-5 race car? Yes. MOTON lists the 3-way set as its competition specification, and separate low-speed and high-speed compression let an NC MX-5 be tuned closely for one circuit and tire. Check the class rules first, since some spec series restrict damper adjustability or require a control damper.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, built to order for the NC MX-5 or RX-8. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the NC MX-5 or RX-8 dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an NC MX-5 or RX-8 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
