Which Toyota GR Corolla models do the Moton 3-Way Motorsport Coilovers for GR Corolla fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for GR Corolla for the Toyota GR Corolla (GZEA14, 2022 onward). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

What does the 3-Way Motorsport kit adjust on the GR Corolla?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the GR Corolla. It suits a car prepared for racing rather than one driven mostly on the road. On the GR Corolla it is the kit for racing and data-led setup work.

Is the 3-way kit suited to a GR Corolla time-attack build?

Yes. The GR Corolla is a short, all-wheel-drive car, and separate low-speed and high-speed compression let body control under braking be firmed without losing traction over kerbs. MOTON lists this set as its competition specification for the car, so it suits time attack and circuit racing best.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the GR Corolla. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the GR Corolla dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a GR Corolla that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

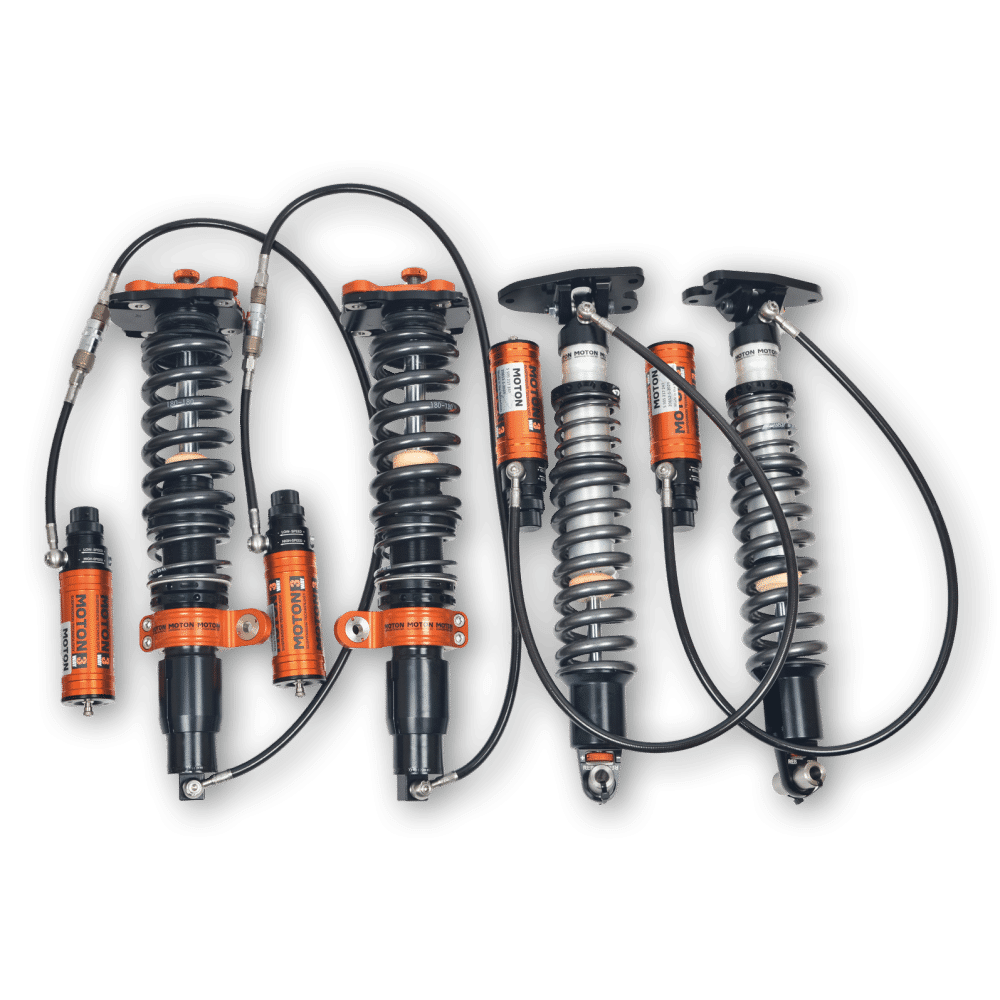

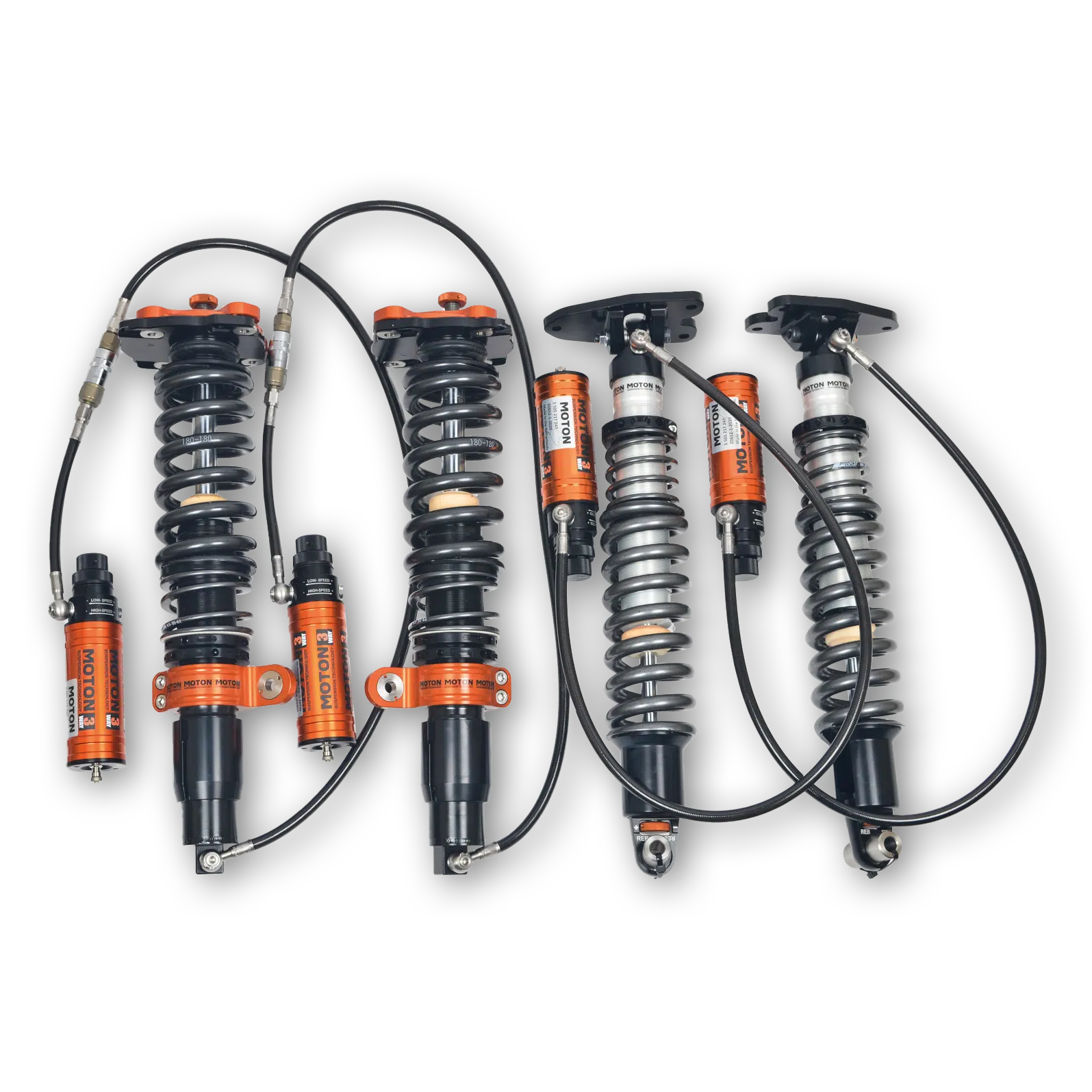

Moton 3-Way Motorsport Coilovers for GR Corolla Toyota (GZEA14)

Moton’s 3-Way Motorsport Coilovers for GR Corolla Toyota (GZEA14) give the GR Corolla three damping adjustments per corner, rebound and two compression circuits, with the compression pair on external reservoirs. The GR Corolla uses a 1.6-litre turbocharged three-cylinder and GR-Four all-wheel drive, and MOTON lists this 3-way set for it with adjustable droplinks included. With slow and fast compression on separate adjusters, the GR Corolla can be set up for one circuit and one tire, ideally with data or a setup engineer. It is built for a GR Corolla that races or runs a serious track program.

Design and Performance

Two compression circuits separate the response to slow inputs, such as roll and pitch under braking, from fast ones such as kerbs and ripples. On the GR Corolla, body control can be firmed up without making the car skip over bumps. It is overkill on a road car, and MOTON builds it for racing and data-led setup work.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Adjustable aluminum front droplinks, DLA-10-258-276, M10, 258 mm to 276 mm
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)
Adjustable front droplinks (x2)

Applications

Toyota GR Corolla: GZEA14 | 2022-present

Notes

The Moton 3-Way Motorsport Coilovers for GR Corolla fit the GZEA14 GR Corolla
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Toyota GR Corolla models do the Moton 3-Way Motorsport Coilovers for GR Corolla fit? MOTON lists the Moton 3-Way Motorsport Coilovers for GR Corolla for the Toyota GR Corolla (GZEA14, 2022 onward). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
What does the 3-Way Motorsport kit adjust on the GR Corolla? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the GR Corolla. It suits a car prepared for racing rather than one driven mostly on the road. On the GR Corolla it is the kit for racing and data-led setup work.
Is the 3-way kit suited to a GR Corolla time-attack build? Yes. The GR Corolla is a short, all-wheel-drive car, and separate low-speed and high-speed compression let body control under braking be firmed without losing traction over kerbs. MOTON lists this set as its competition specification for the car, so it suits time attack and circuit racing best.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the GR Corolla. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the GR Corolla dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a GR Corolla that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
