Which Subaru Impreza models do the Moton 3-Way Motorsport Coilovers for GD STI fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for GD STI for the Subaru Impreza WRX STI (5x100; GD, 2000 to 2007) and Subaru Impreza WRX (5x100; GE / GH / GR / GV, 2008 to 2013). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

What does the 3-Way Motorsport kit adjust on the 5x100 Impreza?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the 5x100 Impreza. It suits a car prepared for racing rather than one driven mostly on the road. On the 5x100 Impreza it is the kit for racing and data-led setup work.

Which Imprezas does the 5x100 3-way kit cover?

MOTON lists this set for the 5x100 GD WRX STI and the GE, GH, GR and GV Impreza WRX. Cars on the 5x114.3 hub pattern, including the 2005-on GD STI and the 2008-on WRX STI, are not covered, so check the wheel bolt pattern before ordering.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, built to order for the 5x100 Impreza. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the 5x100 Impreza dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a 5x100 Impreza that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Moton 3-Way Motorsport Coilovers for GD STI and GE / GH / GR / GV Subaru Impreza WRX, 5×100

Moton’s 3-Way Motorsport Coilovers for GD STI and GE / GH / GR / GV Subaru Impreza WRX, 5×100 give the 5×100 GD STI and GE to GV WRX three damping adjustments per corner, rebound and two compression circuits, with the compression pair on external reservoirs. MOTON lists this 3-way set for 5×100 Imprezas across two generations: the GD STI and the GE, GH, GR and GV WRX built from 2008 to 2013. With slow and fast compression on separate adjusters, the 5×100 Impreza can be set up for one circuit and one tire, ideally with data or a setup engineer.

Design and Performance

Two compression circuits separate the response to slow inputs, such as roll and pitch under braking, from fast ones such as kerbs and ripples. On the 5×100 Impreza, body control can be firmed up without making the car skip over bumps. It is overkill on a road car, and MOTON builds it for racing and data-led setup work.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Fully rebuildable, 24-month AST x MOTON warranty

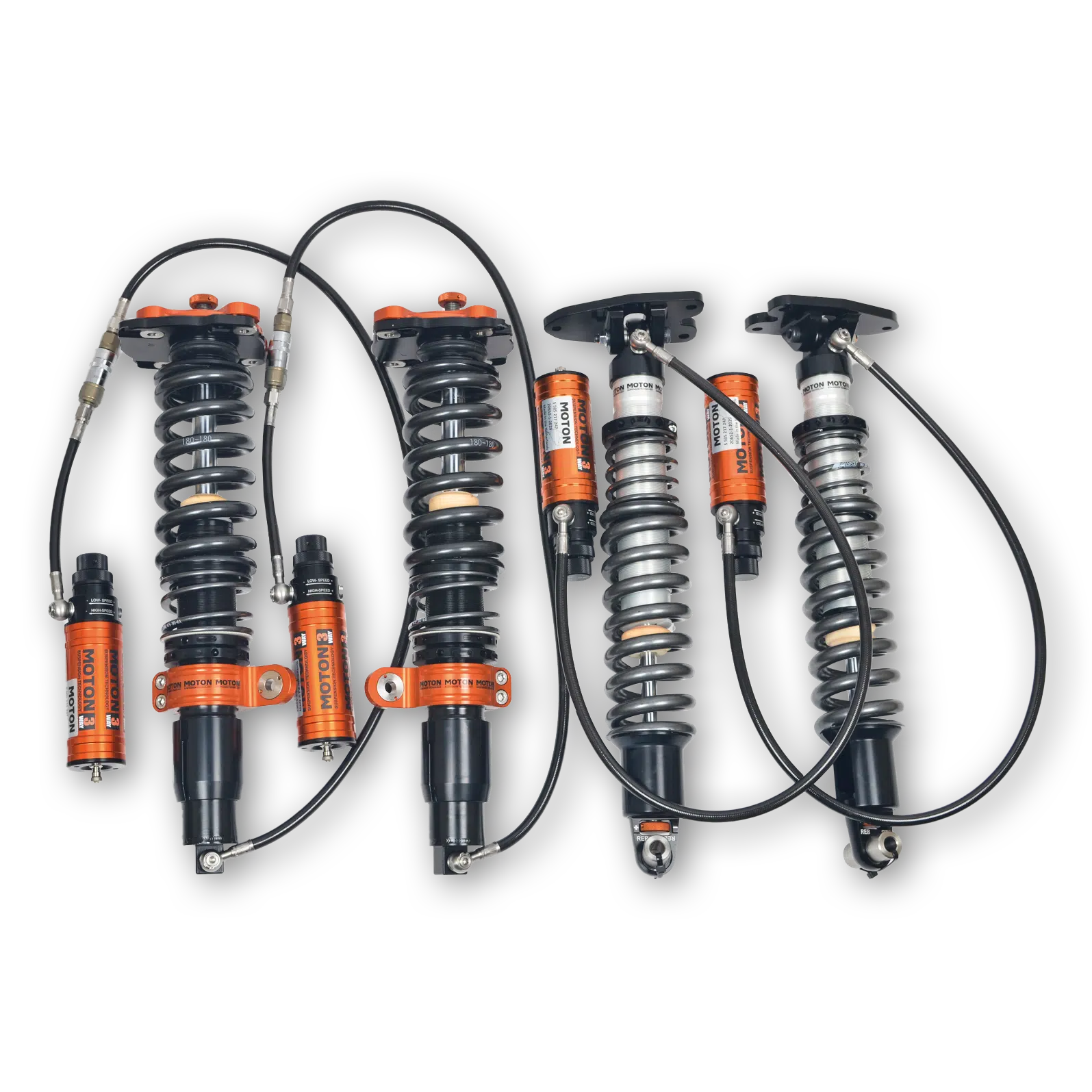

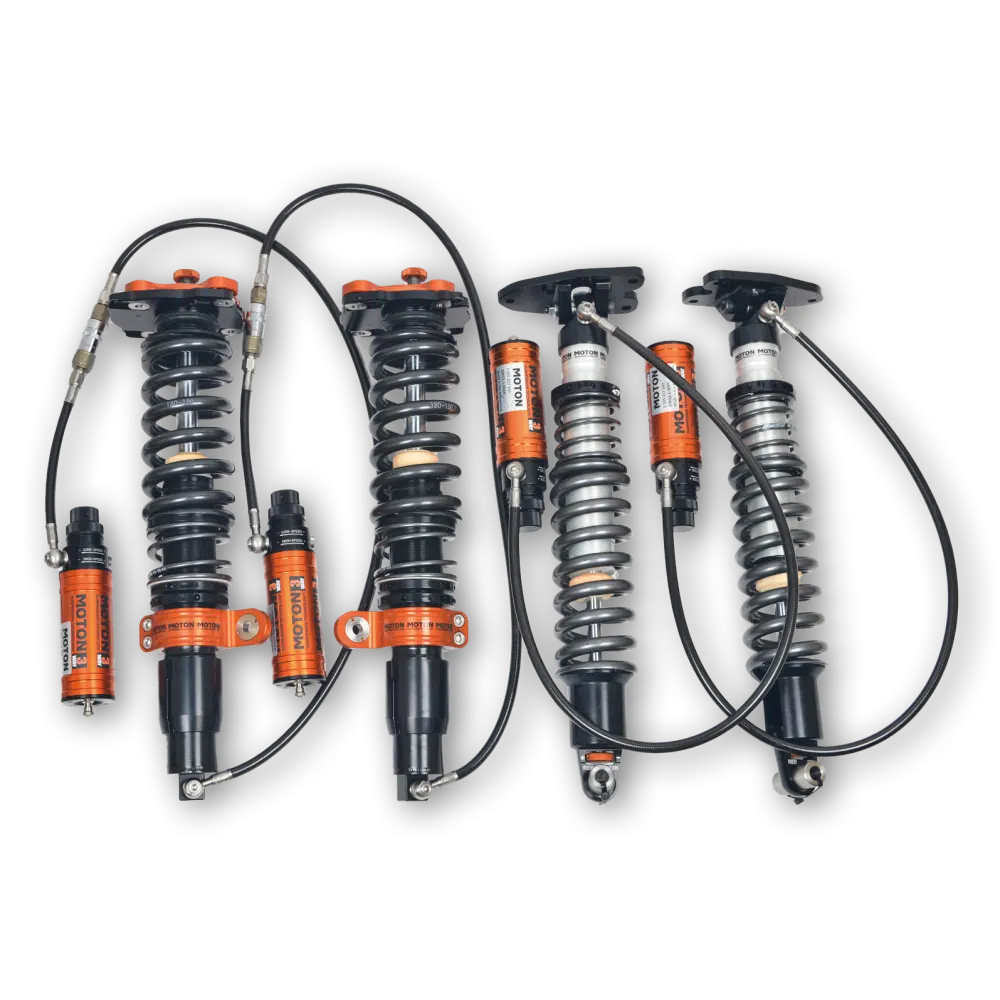

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)

Applications

Subaru Impreza WRX STI (5×100): GD | 2000-2007
Subaru Impreza WRX (5×100): GE / GH / GR / GV | 2008-2013

Notes

The Moton 3-Way Motorsport Coilovers for GD STI fit 5×100 cars only; check the wheel bolt pattern before ordering
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Subaru Impreza models do the Moton 3-Way Motorsport Coilovers for GD STI fit? MOTON lists the Moton 3-Way Motorsport Coilovers for GD STI for the Subaru Impreza WRX STI (5×100; GD, 2000 to 2007) and Subaru Impreza WRX (5×100; GE / GH / GR / GV, 2008 to 2013). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
What does the 3-Way Motorsport kit adjust on the 5×100 Impreza? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the 5×100 Impreza. It suits a car prepared for racing rather than one driven mostly on the road. On the 5×100 Impreza it is the kit for racing and data-led setup work.
Which Imprezas does the 5×100 3-way kit cover? MOTON lists this set for the 5×100 GD WRX STI and the GE, GH, GR and GV Impreza WRX. Cars on the 5×114.3 hub pattern, including the 2005-on GD STI and the 2008-on WRX STI, are not covered, so check the wheel bolt pattern before ordering.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, built to order for the 5×100 Impreza. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the 5×100 Impreza dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a 5×100 Impreza that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
