Which BMW M2 models do the Moton 3-Way Motorsport Coilovers for F87 fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for F87 for the BMW M2 (F87, 2016 to 2018). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 3-Way Motorsport kit compare with the other MOTON kits for the F87 M2?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the F87 M2. The 2-Way Clubsport keeps compression as one adjuster and is quicker to set up. On the F87 M2 it is the kit for racing and data-led setup work, and it rewards time spent with a setup engineer.

How do I tell an original M2 from an M2 Competition?

The original M2 was sold from 2016 to 2018 with the N55 engine, and the M2 Competition followed from 2019 with the S55 engine and a revised front end. The model name is on the registration and the build data, and we can confirm it from the VIN before ordering.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the F87 M2. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the F87 M2 dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an F87 M2 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

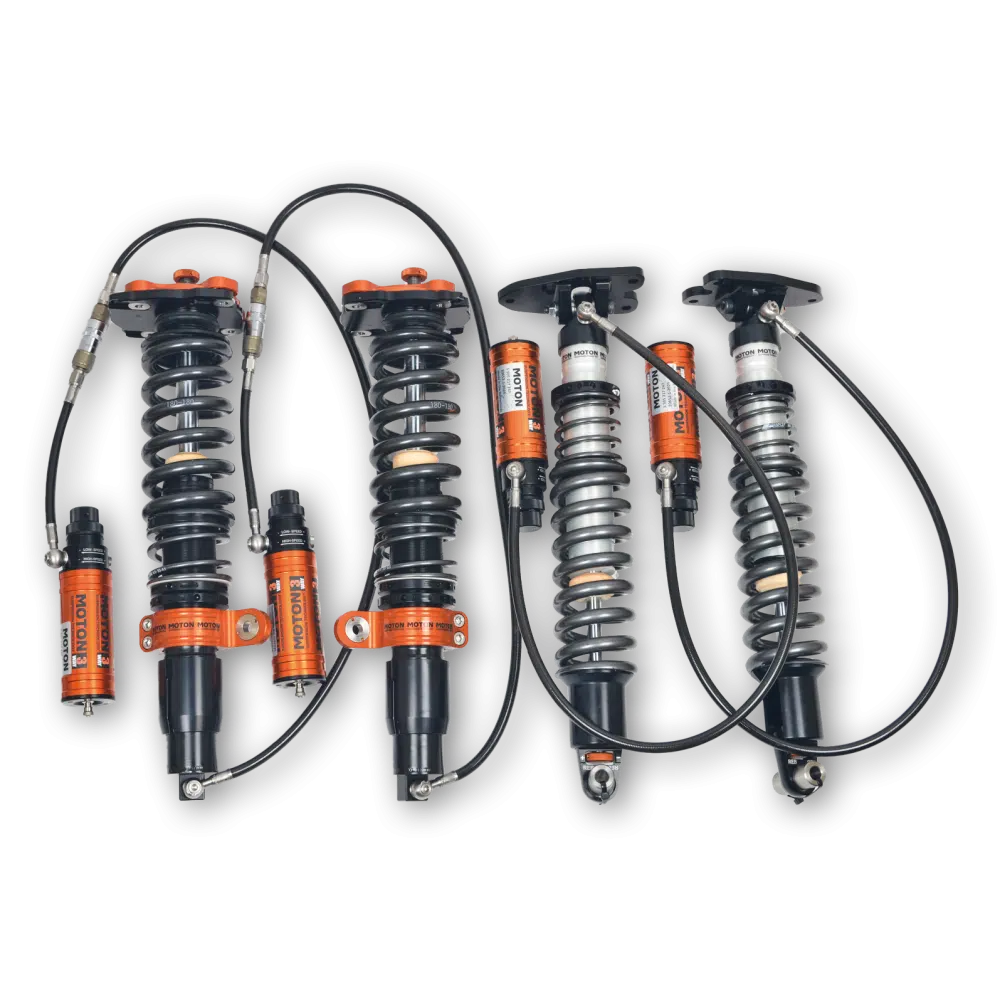

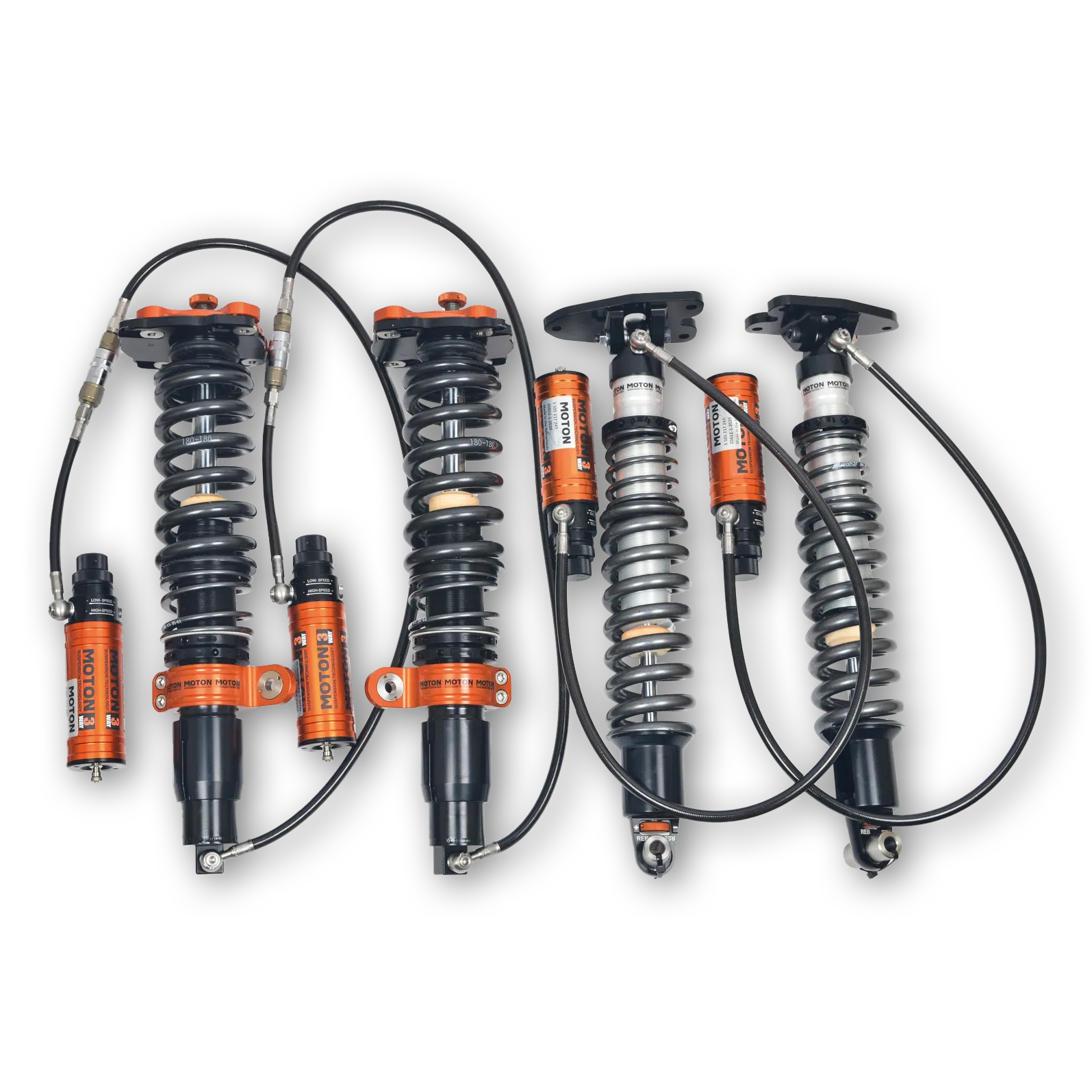

Moton 3-Way Motorsport Coilovers for F87 BMW M2 (Non-Competition)

Moton’s 3-Way Motorsport Coilovers for F87 BMW M2 (Non-Competition) are the most adjustable damper MOTON builds for the original F87 M2, with rebound plus separate low-speed and high-speed compression. MOTON lists this 3-way set for the original M2, built from 2016 to 2018 in the US, with adjustable front droplinks in the box. Splitting compression into two circuits lets body control on the F87 M2 be firmed without making the car skip across ripples and kerbs.

Design and Performance

Two compression circuits separate the response to slow inputs, such as roll and pitch under braking, from fast ones such as kerbs and ripples. On the F87 M2, body control can be firmed up without making the car skip over bumps. It is overkill on a road car, and the Moton 2-Way Clubsport Coilovers suit regular track days with less to set up.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Adjustable aluminum front droplinks, DLA-10-233-251, M10, 233 mm to 251 mm
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)
Adjustable front droplinks (x2)

Applications

BMW M2: F87 | 2016-2018

Notes

The Moton 3-Way Motorsport Coilovers for F87 fit the original M2 only; the M2 Competition and CS take the Moton 3-Way Motorsport Coilovers for F87 BMW M2 Competition and M2 CS
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which BMW M2 models do the Moton 3-Way Motorsport Coilovers for F87 fit? MOTON lists the Moton 3-Way Motorsport Coilovers for F87 for the BMW M2 (F87, 2016 to 2018). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 3-Way Motorsport kit compare with the other MOTON kits for the F87 M2? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the F87 M2. The 2-Way Clubsport keeps compression as one adjuster and is quicker to set up. On the F87 M2 it is the kit for racing and data-led setup work, and it rewards time spent with a setup engineer.
How do I tell an original M2 from an M2 Competition? The original M2 was sold from 2016 to 2018 with the N55 engine, and the M2 Competition followed from 2019 with the S55 engine and a revised front end. The model name is on the registration and the build data, and we can confirm it from the VIN before ordering.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the F87 M2. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the F87 M2 dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an F87 M2 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
