Which Mitsubishi Lancer Evolution IX models do the Moton 3-Way Motorsport Coilovers for EVO 9 fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for EVO 9 for the Mitsubishi Lancer Evolution IX (CT9A, 2005 to 2007). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 3-Way Motorsport kit compare with the other MOTON kits for the EVO 9?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the EVO 9. The 2-Way Clubsport keeps compression as one adjuster, and the 1-Way adjusts rebound alone. On the EVO 9 it is the kit for racing and data-led setup work, and it rewards time spent with a setup engineer.

Is the 3-way kit suited to an EVO 9 time-attack car?

Yes. Separate low-speed and high-speed compression let an EVO 9 be tuned for body control under braking and turn-in while staying compliant over kerbs. For road use with occasional track days, the 1-Way EVO 9 set is simpler, and the 2-Way Clubsport sits between the two.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, built to order for the EVO 9. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the EVO 9 dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an EVO 9 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

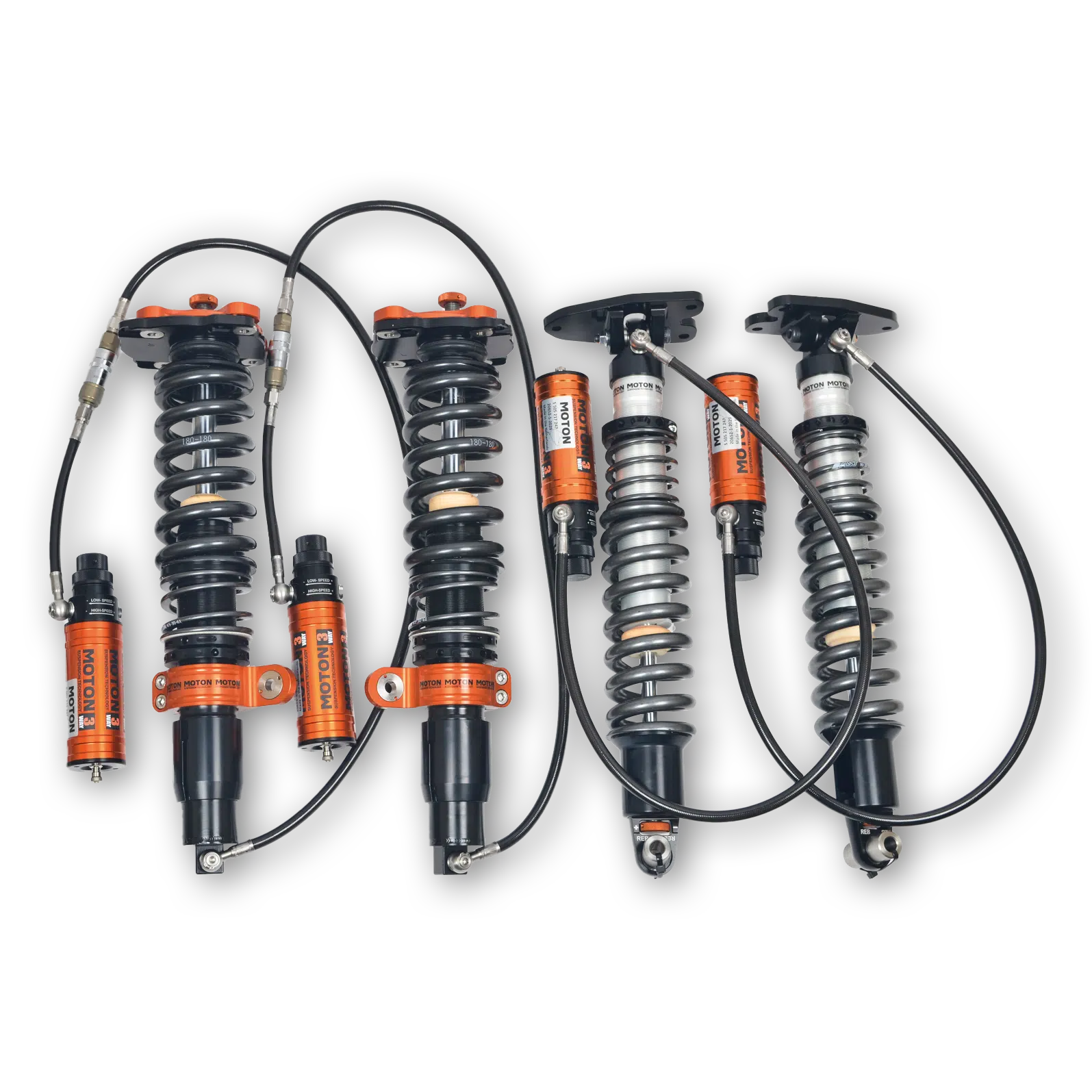

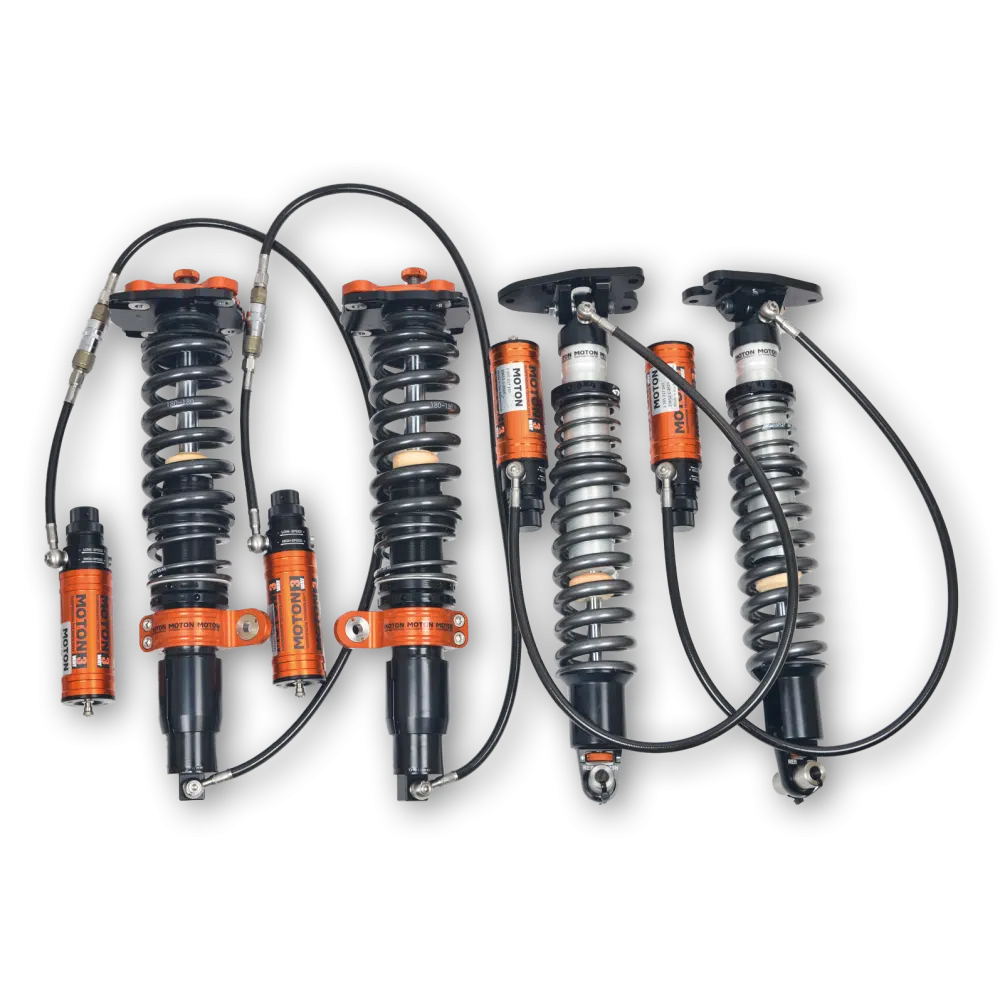

Moton 3-Way Motorsport Coilovers for EVO 9 Mitsubishi Lancer Evolution (CT9A)

Moton’s 3-Way Motorsport Coilovers for EVO 9 Mitsubishi Lancer Evolution (CT9A) give the EVO 9 three damping adjustments per corner, rebound and two compression circuits, with the compression pair on external reservoirs. The EVO 9 RS was the lightest and most stripped version of the car, and this 3-way set is MOTON’s race specification for every EVO 9. With slow and fast compression on separate adjusters, the EVO 9 can be set up for one circuit and one tire, ideally with data or a setup engineer. It is built for an EVO 9 that races or runs a serious track program.

Design and Performance

Two compression circuits separate the response to slow inputs, such as roll and pitch under braking, from fast ones such as kerbs and ripples. On the EVO 9, body control can be firmed up without making the car skip over bumps. It is overkill on a road car; the Moton 1-Way Coilovers suit that use, and the Moton 2-Way Clubsport Coilovers sit between the two.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)

Applications

Mitsubishi Lancer Evolution IX: CT9A | 2005-2007

Notes

The Moton 3-Way Motorsport Coilovers for EVO 9 fit the EVO 9 only; the EVO 7 and EVO 8 take the Moton 3-Way Motorsport Coilovers for EVO 8 / EVO 7 Mitsubishi Lancer Evolution
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Mitsubishi Lancer Evolution IX models do the Moton 3-Way Motorsport Coilovers for EVO 9 fit? MOTON lists the Moton 3-Way Motorsport Coilovers for EVO 9 for the Mitsubishi Lancer Evolution IX (CT9A, 2005 to 2007). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 3-Way Motorsport kit compare with the other MOTON kits for the EVO 9? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the EVO 9. The 2-Way Clubsport keeps compression as one adjuster, and the 1-Way adjusts rebound alone. On the EVO 9 it is the kit for racing and data-led setup work, and it rewards time spent with a setup engineer.
Is the 3-way kit suited to an EVO 9 time-attack car? Yes. Separate low-speed and high-speed compression let an EVO 9 be tuned for body control under braking and turn-in while staying compliant over kerbs. For road use with occasional track days, the 1-Way EVO 9 set is simpler, and the 2-Way Clubsport sits between the two.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, built to order for the EVO 9. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the EVO 9 dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an EVO 9 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
