Which Chevrolet Corvette models do the Moton 3-Way Motorsport Coilovers for Corvette C5 fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for Corvette C5 for the Chevrolet Corvette (C5, 1997 to 2004), Chevrolet Corvette (C6, 2005 to 2013) and Chevrolet Corvette Z06 (C6, 2006 to 2013). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 3-Way Motorsport kit compare with the other MOTON kits for the C5 or C6 Corvette?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the C5 or C6 Corvette. The 2-Way Clubsport keeps compression as one adjuster and is quicker to set up. On the C5 or C6 Corvette it is the kit for racing and data-led setup work.

Does the kit fit the C6 Z06 and ZR1?

MOTON lists the C5 and C6 Corvette and the C6 Z06 on this part number. The C6 ZR1 is not named in the list and has magnetic ride dampers as standard, so ask us before ordering for a ZR1. Many other C6 cars had magnetic ride control as an option.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, built to order for the C5 or C6 Corvette. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the C5 or C6 Corvette dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a C5 or C6 Corvette that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

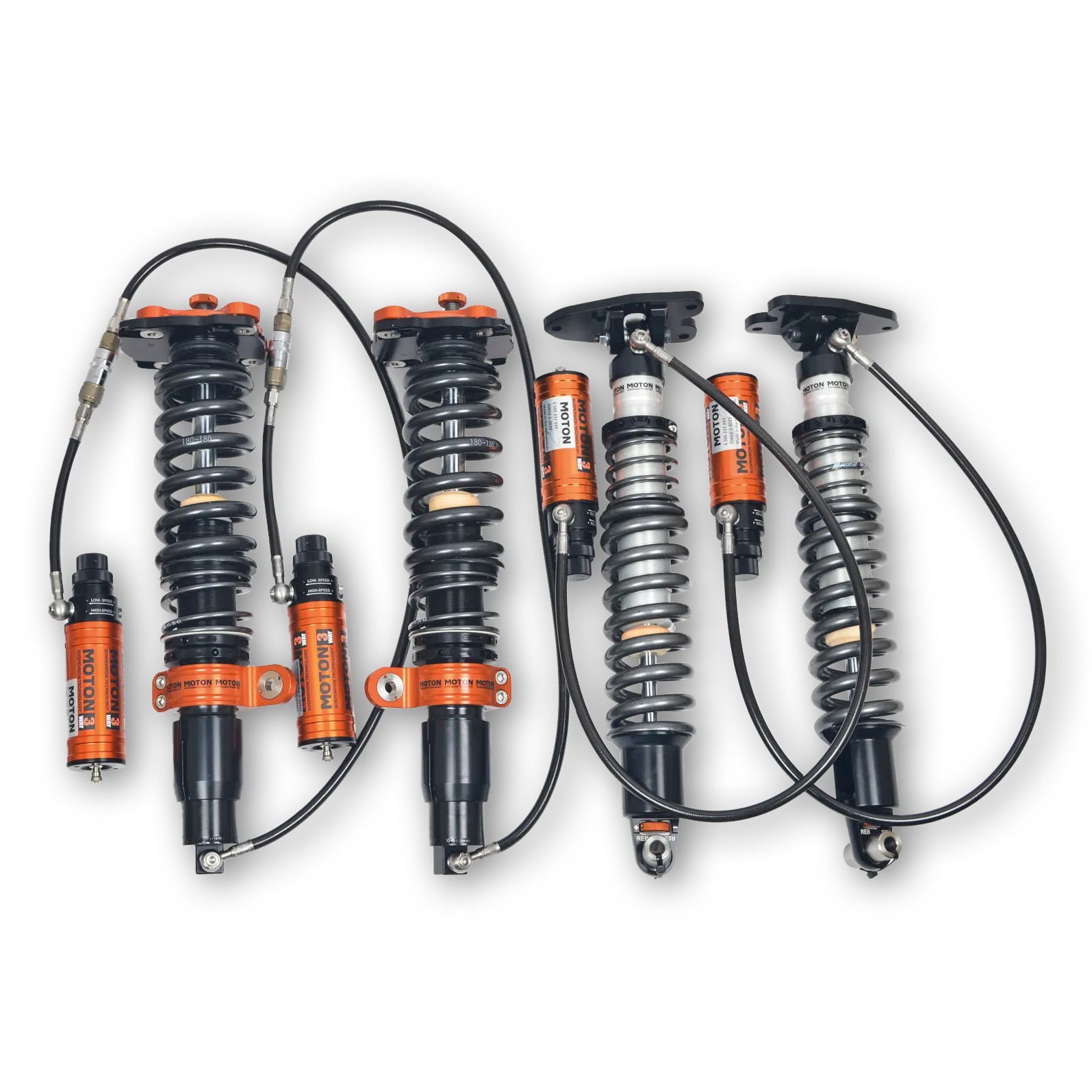

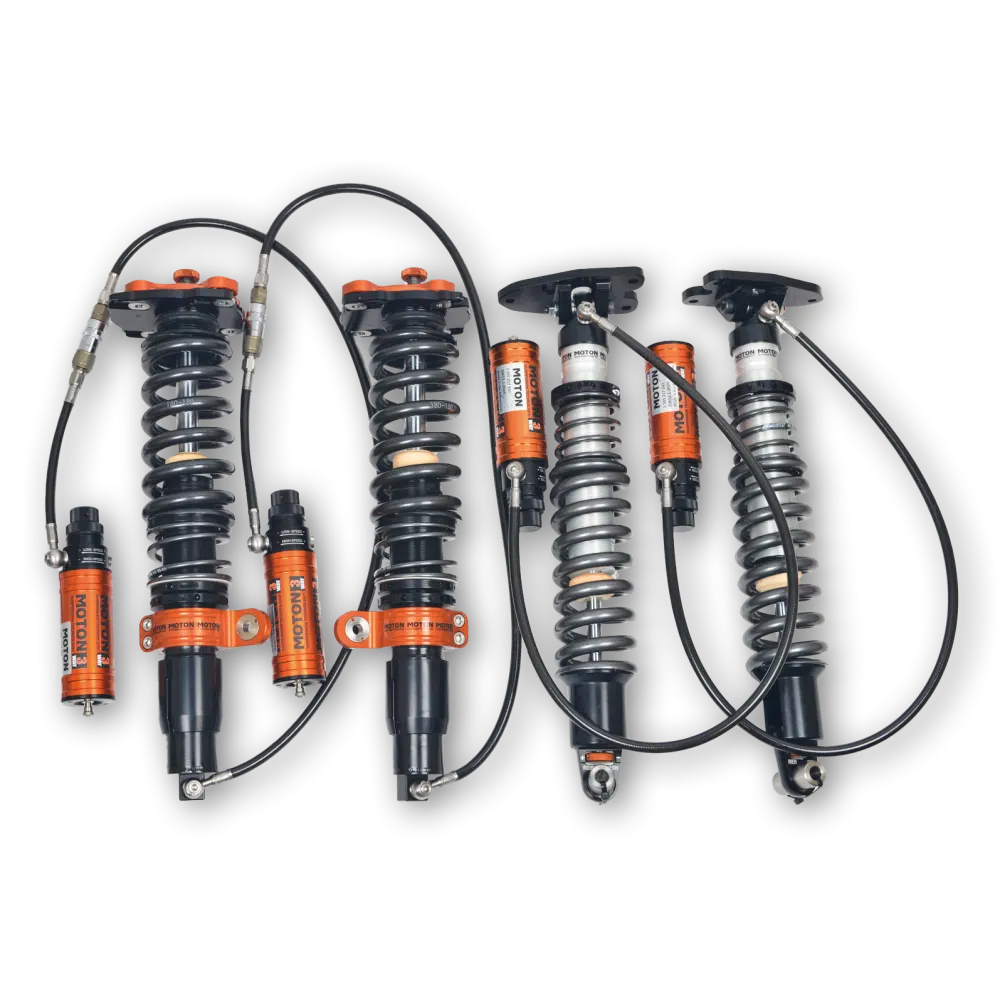

Moton 3-Way Motorsport Coilovers for Corvette C5 / C6 and C6 Z06 Chevrolet

Moton’s 3-Way Motorsport Coilovers for Corvette C5 / C6 and C6 Z06 Chevrolet bring the full MOTON race specification to the C5 and C6 Corvette: rebound, low-speed compression and high-speed compression each on its own adjuster. MOTON lists this 3-way set for the C5 and C6 Corvette and the aluminum-framed C6 Z06, replacing the transverse leaf springs with coilovers. Low-speed compression governs roll and pitch on the C5 or C6 Corvette, while high-speed compression governs kerbs and sharp bumps, and each can be set without disturbing the other.

Design and Performance

Two compression circuits separate the response to slow inputs, such as roll and pitch under braking, from fast ones such as kerbs and ripples. On the C5 or C6 Corvette, body control can be firmed up without making the car skip over bumps. It is overkill on a road car, and the Moton 2-Way Clubsport Coilovers suit regular track days with less to set up.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Elevated top guide with helper piston
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs

Applications

Chevrolet Corvette: C5 | 1997-2004
Chevrolet Corvette: C6 | 2005-2013
Chevrolet Corvette Z06: C6 | 2006-2013

Notes

The Moton 3-Way Motorsport Coilovers for Corvette C5 fit the C5 and C6 Corvette and the C6 Z06
C6 Corvettes with Magnetic Ride Control need the factory damper control handled; ask us before ordering
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Chevrolet Corvette models do the Moton 3-Way Motorsport Coilovers for Corvette C5 fit? MOTON lists the Moton 3-Way Motorsport Coilovers for Corvette C5 for the Chevrolet Corvette (C5, 1997 to 2004), Chevrolet Corvette (C6, 2005 to 2013) and Chevrolet Corvette Z06 (C6, 2006 to 2013). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 3-Way Motorsport kit compare with the other MOTON kits for the C5 or C6 Corvette? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the C5 or C6 Corvette. The 2-Way Clubsport keeps compression as one adjuster and is quicker to set up. On the C5 or C6 Corvette it is the kit for racing and data-led setup work.
Does the kit fit the C6 Z06 and ZR1? MOTON lists the C5 and C6 Corvette and the C6 Z06 on this part number. The C6 ZR1 is not named in the list and has magnetic ride dampers as standard, so ask us before ordering for a ZR1. Many other C6 cars had magnetic ride control as an option.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, built to order for the C5 or C6 Corvette. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the C5 or C6 Corvette dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a C5 or C6 Corvette that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
