Which Mazda MX-5 Miata models do the Moton 2-Way Clubsport Coilovers for ND fit?

MOTON lists the Moton 2-Way Clubsport Coilovers for ND for the Mazda MX-5 Miata / MX-5 RF (ND, 2015 onward) and Fiat 124 Spider / Abarth 124 (348, 2016 to 2019). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 2-Way Clubsport kit compare with the other MOTON kits for the ND MX-5?

The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the ND MX-5. Against the 1-Way it adds that compression adjuster and the extra oil volume of the reservoir. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for an ND MX-5 that tracks regularly.

Does the kit fit the MX-5 RF?

Yes. MOTON lists the ND MX-5 on this part number, which covers both the soft-top roadster and the retractable hardtop RF. The RF is slightly heavier, so mention the body style when ordering and we will pass it on to MOTON with the order.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, built to order for the ND MX-5. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

What do the remote reservoirs do on the ND MX-5 kit?

Each damper in the ND MX-5 kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

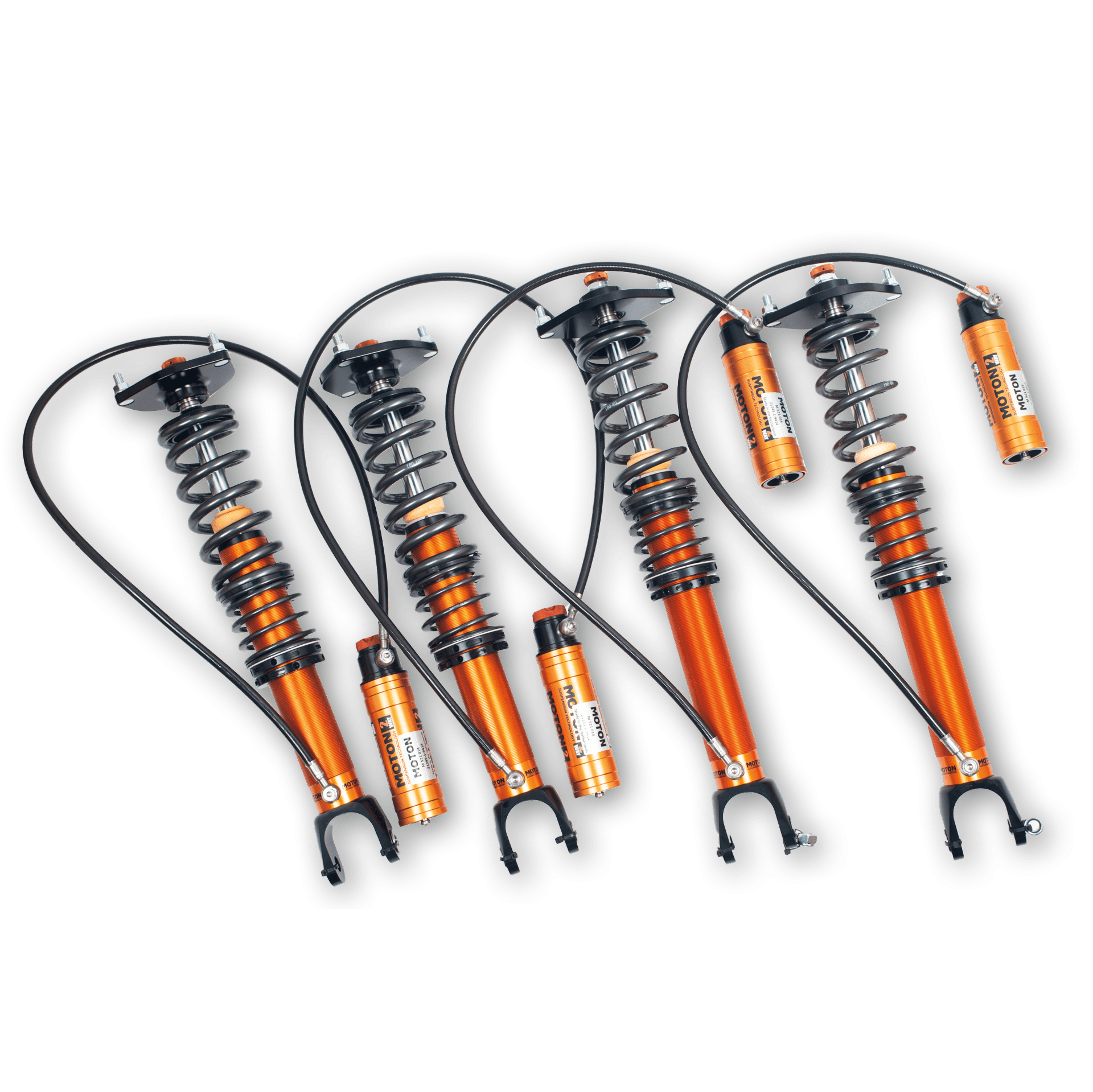

Moton 2-Way Clubsport Coilovers for ND Mazda MX-5 Miata and Fiat 124 Spider

Moton’s 2-Way Clubsport Coilovers for ND Mazda MX-5 Miata and Fiat 124 Spider bring two-way damping to the ND MX-5 and 124 Spider: rebound on the damper body and compression on a reservoir connected by hose. MOTON lists this 2-way set for the ND MX-5 roadster and RF and for the Fiat 124 Spider and Abarth 124 built on the same chassis. The reservoir’s extra oil and gas volume keeps damping consistent as the ND MX-5 works its dampers through a long session. For an ND MX-5 that runs regular track days, it adds the adjustment that pays off with time on circuit.

Design and Performance

Separating compression from rebound lets a driver change how the ND MX-5 takes a kerb or loads its outside tire without changing how it recovers. A road car with two track days a year will not use it, and the Moton 1-Way Coilovers cover that brief for less; separate high-speed and low-speed compression is the job of the Moton 3-Way Motorsport Coilovers.

Features

Non-inverted monotube dampers, adjustable for rebound and compression
Compression adjuster on an external remote reservoir
Threaded ride height at all four corners
True coilover layout front and rear
Elevated top guide with helper piston
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs

Applications

Mazda MX-5 Miata / MX-5 RF: ND | 2015-present
Fiat 124 Spider / Abarth 124: 348 | 2016-2019

Notes

The Moton 2-Way Clubsport Coilovers for ND fit the ND MX-5 Miata and RF and the Fiat 124 Spider
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Mazda MX-5 Miata models do the Moton 2-Way Clubsport Coilovers for ND fit? MOTON lists the Moton 2-Way Clubsport Coilovers for ND for the Mazda MX-5 Miata / MX-5 RF (ND, 2015 onward) and Fiat 124 Spider / Abarth 124 (348, 2016 to 2019). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 2-Way Clubsport kit compare with the other MOTON kits for the ND MX-5? The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the ND MX-5. Against the 1-Way it adds that compression adjuster and the extra oil volume of the reservoir. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for an ND MX-5 that tracks regularly.
Does the kit fit the MX-5 RF? Yes. MOTON lists the ND MX-5 on this part number, which covers both the soft-top roadster and the retractable hardtop RF. The RF is slightly heavier, so mention the body style when ordering and we will pass it on to MOTON with the order.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, built to order for the ND MX-5. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
What do the remote reservoirs do on the ND MX-5 kit? Each damper in the ND MX-5 kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
