Which Ferrari 550 and 575M models do the Moton 2-Way Clubsport Coilovers for Ferrari 550 fit?

MOTON lists the Moton 2-Way Clubsport Coilovers for Ferrari 550 for the Ferrari 550 Maranello (550, 1996 to 2001) and Ferrari 575M Maranello (575, 2002 to 2006). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

What does the 2-Way Clubsport kit adjust on the 550 or 575M?

The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the 550 or 575M. MOTON builds it for drivers who track the 550 or 575M often and want to tune it between sessions, with threaded ride height and springs included.

Does one kit fit both the 550 and the 575M?

Yes. MOTON lists the 550 Maranello and the 575M Maranello on this part number, since the 575M kept the chassis of the 550. The 575M could be ordered with the GTC handling package, so tell us how the car is specified when ordering.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, built to order for the 550 or 575M. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

What do the remote reservoirs do on the 550 or 575M kit?

Each damper in the 550 or 575M kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

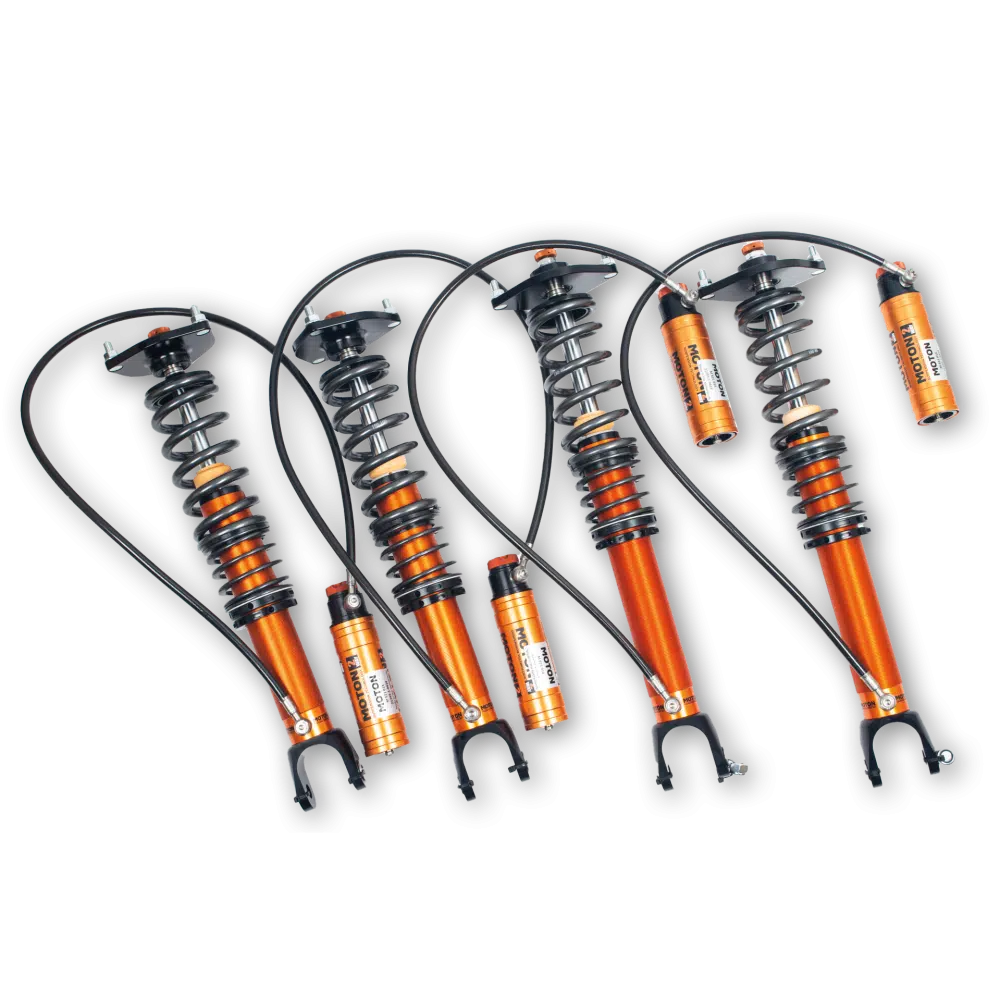

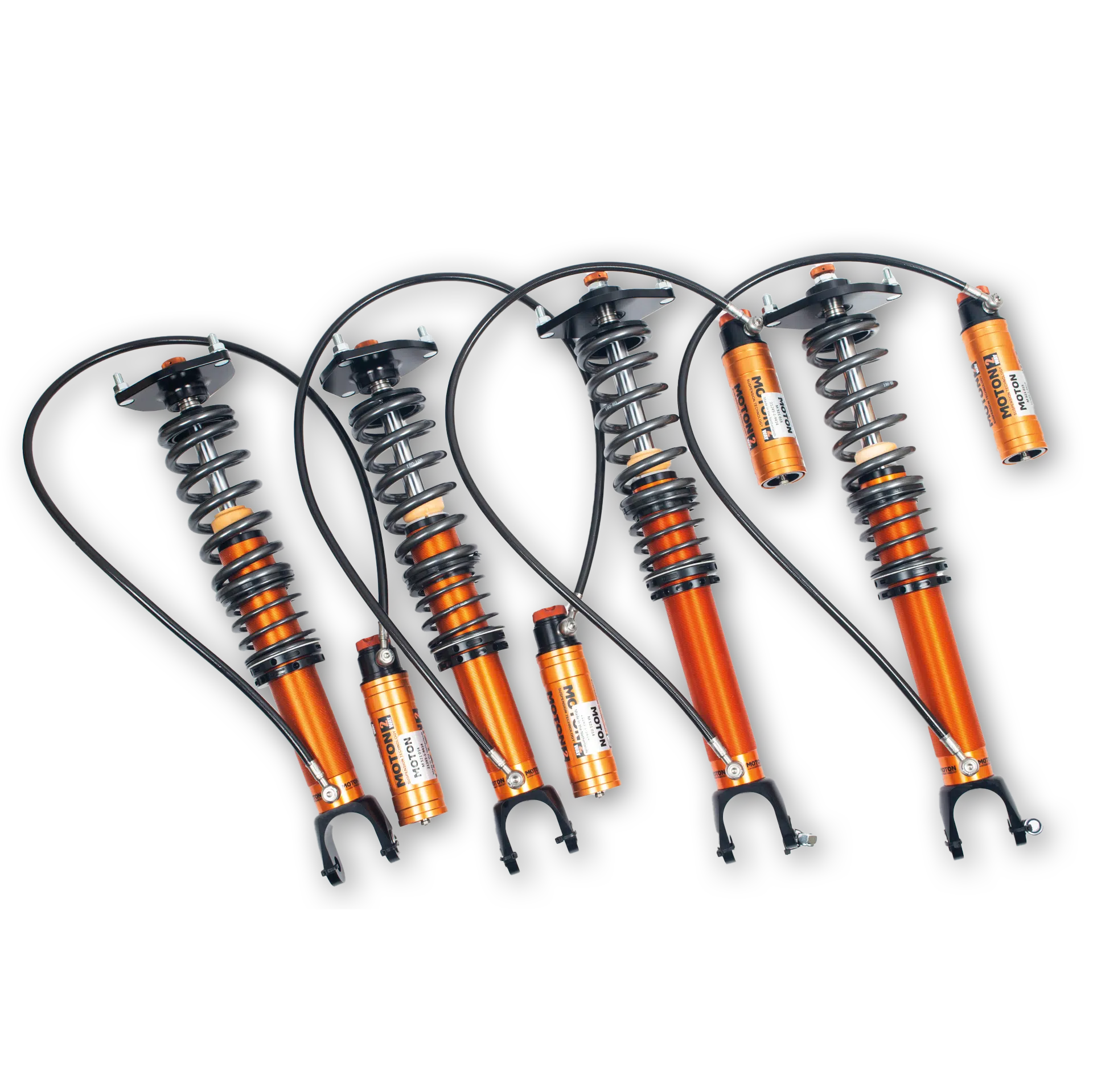

Moton 2-Way Clubsport Coilovers for Ferrari 550 / 575M Maranello

Moton’s 2-Way Clubsport Coilovers for Ferrari 550 / 575M Maranello are the Clubsport damper MOTON builds for the 550 and 575M Maranello, adjustable for rebound and for compression on a remote reservoir, with springs supplied. The 550 Maranello returned Ferrari’s V12 grand tourer to a front-engine layout, and the 575M that followed kept the same chassis; MOTON lists one set for both. Because compression and rebound are separate, the 550 or 575M can be softened over kerbs or firmed for fast corners without changing how it settles. It is aimed at a 550 or 575M that goes on track regularly and is tuned circuit by circuit.

Design and Performance

Separating compression from rebound lets a driver change how the 550 or 575M takes a kerb or loads its outside tire without changing how it recovers. It is the MOTON kit for drivers who track the 550 or 575M often and want both adjusters within reach.

Features

Non-inverted monotube dampers, adjustable for rebound and compression
Compression adjuster on an external remote reservoir
Threaded ride height at all four corners
True coilover layout front and rear
Elevated top guide with helper piston
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs

Applications

Ferrari 550 Maranello: 550 | 1996-2001
Ferrari 575M Maranello: 575 | 2002-2006

Notes

The Moton 2-Way Clubsport Coilovers for Ferrari 550 fit the 550 Maranello and 575M Maranello
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Ferrari 550 and 575M models do the Moton 2-Way Clubsport Coilovers for Ferrari 550 fit? MOTON lists the Moton 2-Way Clubsport Coilovers for Ferrari 550 for the Ferrari 550 Maranello (550, 1996 to 2001) and Ferrari 575M Maranello (575, 2002 to 2006). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
What does the 2-Way Clubsport kit adjust on the 550 or 575M? The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the 550 or 575M. MOTON builds it for drivers who track the 550 or 575M often and want to tune it between sessions, with threaded ride height and springs included.
Does one kit fit both the 550 and the 575M? Yes. MOTON lists the 550 Maranello and the 575M Maranello on this part number, since the 575M kept the chassis of the 550. The 575M could be ordered with the GTC handling package, so tell us how the car is specified when ordering.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, built to order for the 550 or 575M. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
What do the remote reservoirs do on the 550 or 575M kit? Each damper in the 550 or 575M kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
