Which BMW M3 models do the Moton 2-Way Clubsport Coilovers for E30 fit?

MOTON lists the Moton 2-Way Clubsport Coilovers for E30 for the BMW M3 (E30, 1986 to 1991). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 2-Way Clubsport kit compare with the other MOTON kits for the E30 M3?

The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the E30 M3. Against the 1-Way it adds that compression adjuster and the extra oil volume of the reservoir. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for an E30 M3 that tracks regularly.

Does the E30 M3 kit fit other E30 3 Series models?

MOTON lists this part number for the E30 M3 only. The M3 uses different front suspension parts and hubs from the other E30 3 Series models, so a 325i or 318is needs a different set. Ask us for a quote on other E30 models and we will check with MOTON.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, built to order for the E30 M3. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

What do the remote reservoirs do on the E30 M3 kit?

Each damper in the E30 M3 kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Moton 2-Way Clubsport Coilovers for E30 BMW M3

Moton’s 2-Way Clubsport Coilovers for E30 BMW M3 bring two-way damping to the E30 M3: rebound on the damper body and compression on a reservoir connected by hose. MOTON asks for the car’s original hubs before it builds this set, so the kit is made around the hardware fitted to that particular E30 M3. The reservoir’s extra oil and gas volume keeps damping consistent as the E30 M3 works its dampers through a long session. For an E30 M3 that runs regular track days, it adds the adjustment that pays off with time on circuit.

Design and Performance

Separating compression from rebound lets a driver change how the E30 M3 takes a kerb or loads its outside tire without changing how it recovers. A road car with two track days a year will not use it, and the Moton 1-Way Coilovers cover that brief for less; separate high-speed and low-speed compression is the job of the Moton 3-Way Motorsport Coilovers.

Features

Non-inverted monotube dampers, adjustable for rebound and compression
Compression adjuster on an external remote reservoir
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)

Applications

BMW M3: E30 | 1986-1991

Notes

MOTON needs the original hubs of the E30 M3 before it builds the Moton 2-Way Clubsport Coilovers for E30; we confirm the process at order
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order

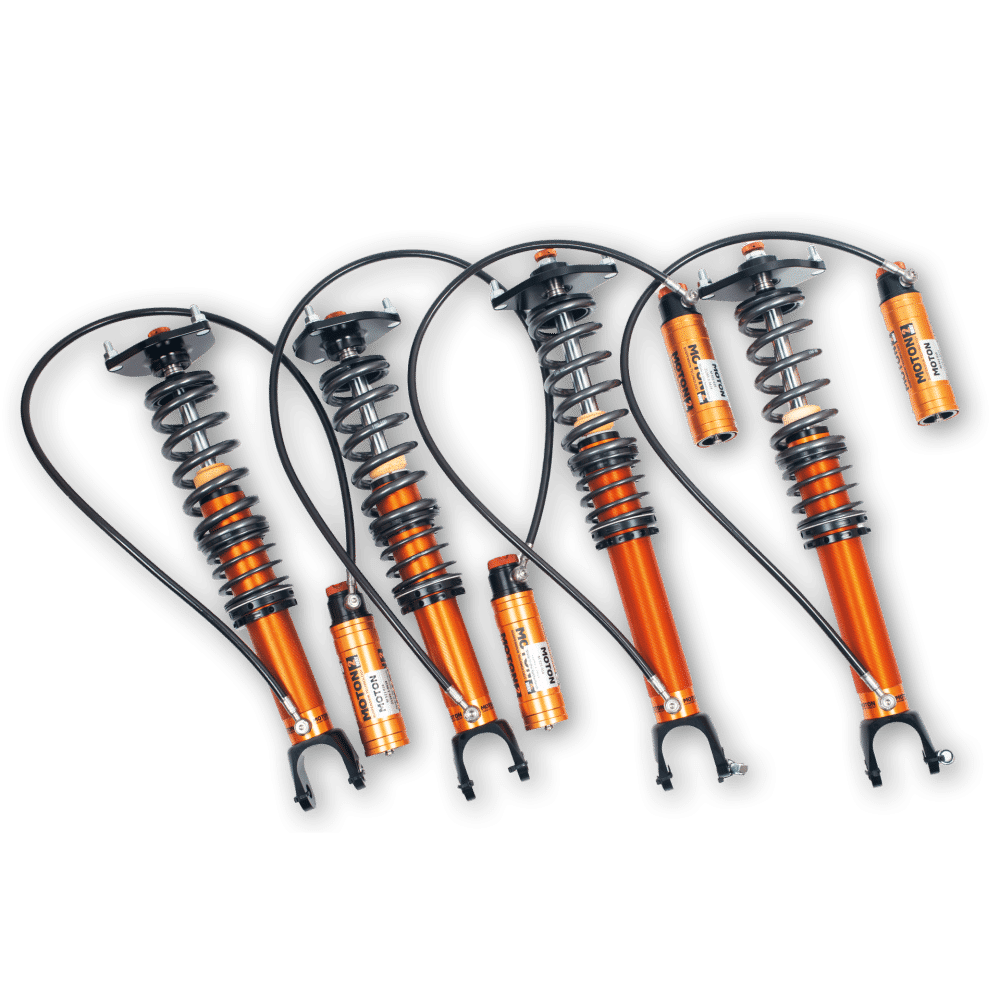

Images show representative MOTON kits

Frequently Asked Questions

Which BMW M3 models do the Moton 2-Way Clubsport Coilovers for E30 fit? MOTON lists the Moton 2-Way Clubsport Coilovers for E30 for the BMW M3 (E30, 1986 to 1991). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 2-Way Clubsport kit compare with the other MOTON kits for the E30 M3? The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the E30 M3. Against the 1-Way it adds that compression adjuster and the extra oil volume of the reservoir. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for an E30 M3 that tracks regularly.
Does the E30 M3 kit fit other E30 3 Series models? MOTON lists this part number for the E30 M3 only. The M3 uses different front suspension parts and hubs from the other E30 3 Series models, so a 325i or 318is needs a different set. Ask us for a quote on other E30 models and we will check with MOTON.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, built to order for the E30 M3. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
What do the remote reservoirs do on the E30 M3 kit? Each damper in the E30 M3 kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
