Which Mitsubishi Lancer Evolution X models do the Moton 1-Way Coilovers for EVO X fit?

MOTON lists the Moton 1-Way Coilovers for EVO X for the Mitsubishi Lancer Evolution X (CZ4A, 2007 to 2015). Each 1-Way set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 1-Way kit compare with the other MOTON kits for the EVO X?

The 1-Way adjusts rebound only and leaves compression to MOTON valving, which makes it the simplest kit to set up on the EVO X. The 2-Way Clubsport adds compression adjustment on a remote reservoir. The 3-Way Motorsport splits compression into separate low-speed and high-speed circuits. Every MOTON kit for the EVO X shares threaded ride height, non-inverted monotube construction and springs in the box.

Does the EVO X kit fit the Lancer Ralliart?

MOTON lists this part number for the EVO X only. The Lancer Ralliart shares the body but uses different suspension parts, so ask us before ordering for a Ralliart and we will check with MOTON. Confirm the model from the VIN on any car that has been converted.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a single rebound adjuster on the damper body, pillowball front camber plates, built to order for the EVO X. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

How difficult is installation on the EVO X?

It is a job for a qualified shop with a lift and a calibrated torque wrench. The kit arrives with no spring preload, so preload is set before the EVO X is lowered and ride height is measured afterwards. Overtightening the spring platform can deform the damper body, and an alignment should follow.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

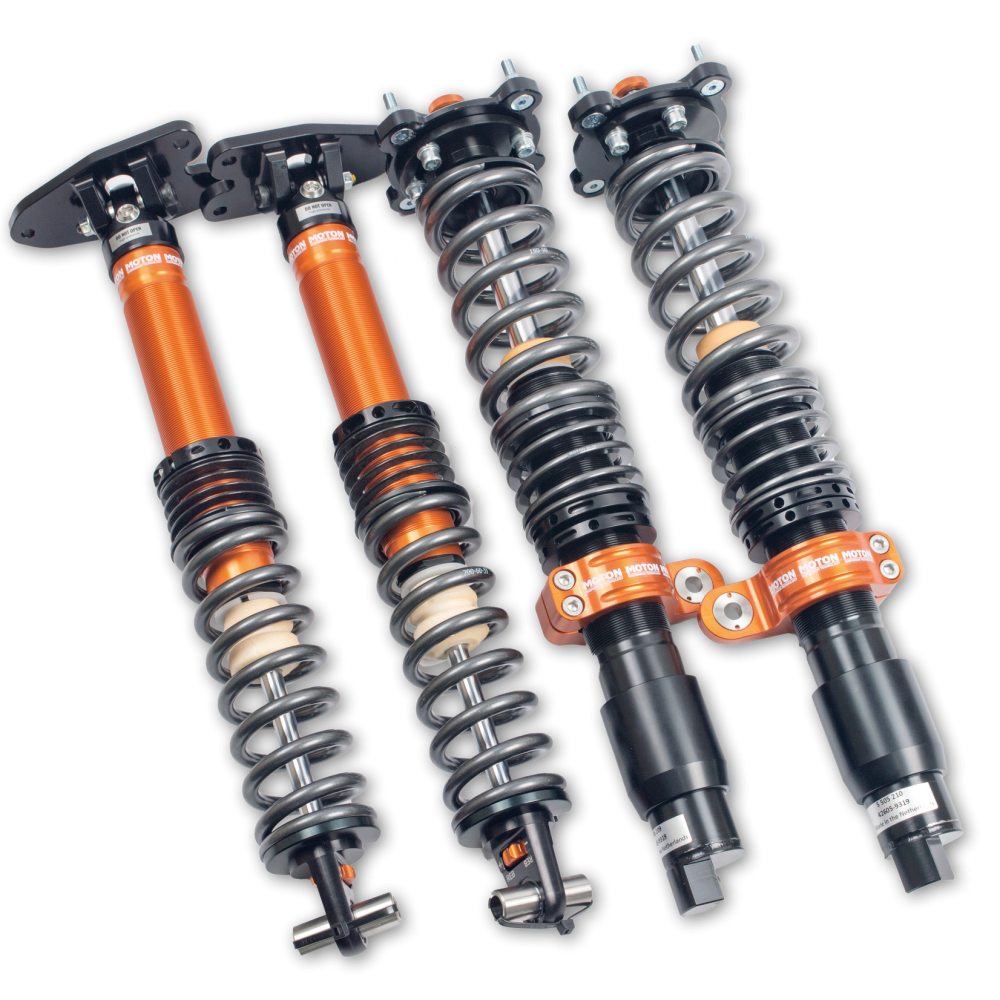

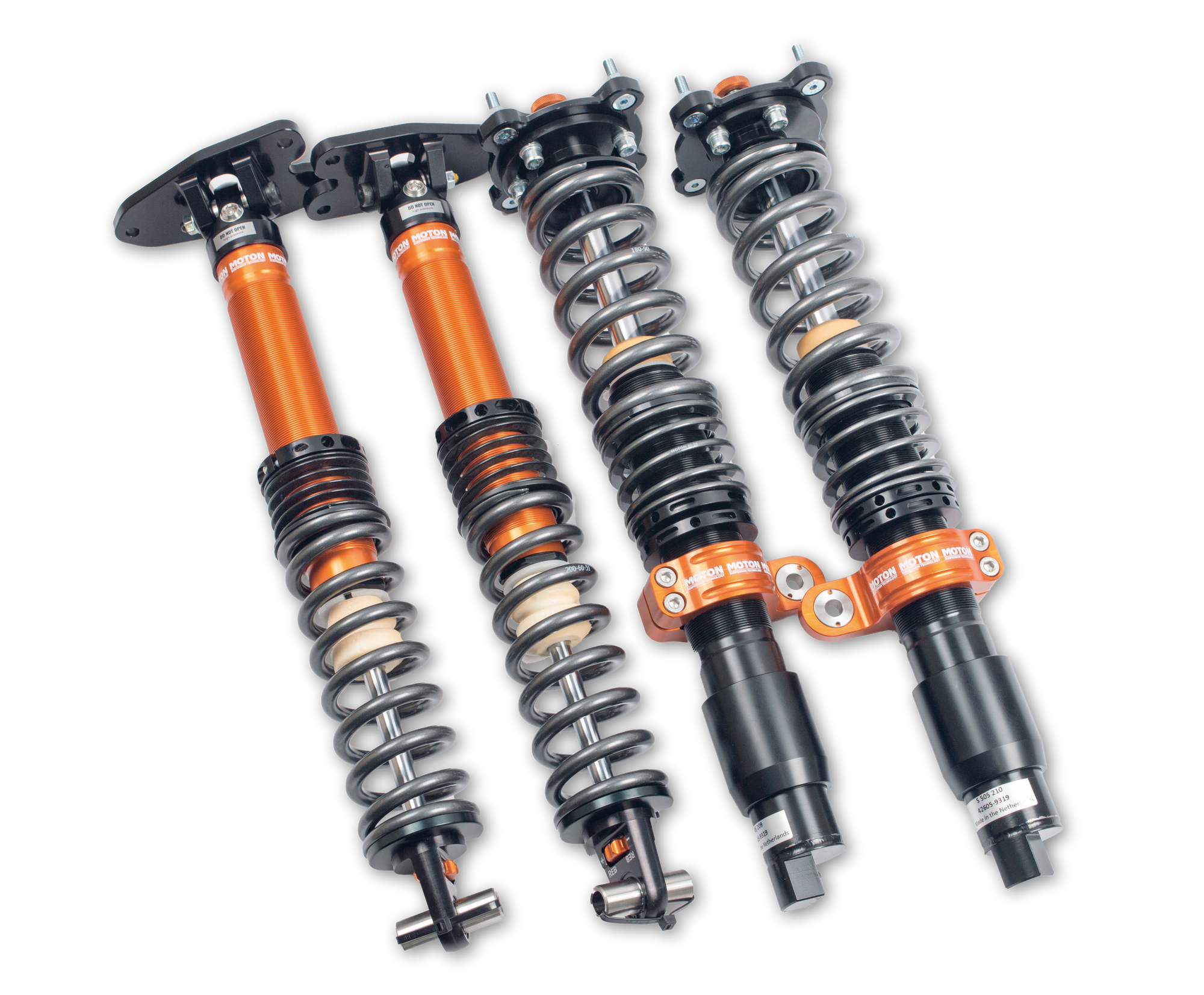

Moton 1-Way Coilovers for EVO X Mitsubishi Lancer Evolution (CZ4A)

Moton’s 1-Way Coilovers for EVO X Mitsubishi Lancer Evolution (CZ4A) are the simplest MOTON damper for the EVO X: a single rebound adjuster per corner, threaded ride height and springs supplied. The EVO X moved to the CZ4A chassis and the aluminum-block 4B11T engine with S-AWC all-wheel drive, and MOTON lists this 1-way set for it. Leaving compression to MOTON’s valving keeps the EVO X kit simple: rebound sets how the car recovers, and the threaded bodies set its stance. It suits an EVO X that is driven on the road and taken to the occasional track day.

Design and Performance

Rebound sets how quickly each damper extends after compressing, which decides how the EVO X settles after crests and kerbs. The 1-Way gives one adjuster per corner for exactly that and leaves compression to MOTON’s valving, the right amount of adjustment for a road car with occasional track days. For compression control on the EVO X, step up to the Moton 2-Way Clubsport Coilovers or the Moton 3-Way Motorsport Coilovers.

Features

Non-inverted monotube dampers, adjustable for rebound
Threaded ride height at all four corners
Pillowball front camber plates
Elevated top guide with helper piston
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers (L/R)
Rear coilovers (L/R)
Front and rear springs
Pillowball front camber plates (L/R)

Applications

Mitsubishi Lancer Evolution X: CZ4A | 2007-2015

Notes

The Moton 1-Way Coilovers for EVO X fit the CZ4A EVO X from 2007 to 2015
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Mitsubishi Lancer Evolution X models do the Moton 1-Way Coilovers for EVO X fit? MOTON lists the Moton 1-Way Coilovers for EVO X for the Mitsubishi Lancer Evolution X (CZ4A, 2007 to 2015). Each 1-Way set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 1-Way kit compare with the other MOTON kits for the EVO X? The 1-Way adjusts rebound only and leaves compression to MOTON valving, which makes it the simplest kit to set up on the EVO X. The 2-Way Clubsport adds compression adjustment on a remote reservoir. The 3-Way Motorsport splits compression into separate low-speed and high-speed circuits. Every MOTON kit for the EVO X shares threaded ride height, non-inverted monotube construction and springs in the box.
Does the EVO X kit fit the Lancer Ralliart? MOTON lists this part number for the EVO X only. The Lancer Ralliart shares the body but uses different suspension parts, so ask us before ordering for a Ralliart and we will check with MOTON. Confirm the model from the VIN on any car that has been converted.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a single rebound adjuster on the damper body, pillowball front camber plates, built to order for the EVO X. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
How difficult is installation on the EVO X? It is a job for a qualified shop with a lift and a calibrated torque wrench. The kit arrives with no spring preload, so preload is set before the EVO X is lowered and ride height is measured afterwards. Overtightening the spring platform can deform the damper body, and an alignment should follow.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
