Which BMW 3 Series and M3 models do the Moton 1-Way Coilovers for E46 fit?

MOTON lists the Moton 1-Way Coilovers for E46 for the BMW 3 Series (rear-drive models; E46, 1997 to 2006) and BMW M3 (E46, 2000 to 2006). Each 1-Way set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 1-Way kit compare with the other MOTON kits for the E46?

The 1-Way adjusts rebound only and leaves compression to MOTON valving, which makes it the simplest kit to set up on the E46. The 3-Way Motorsport splits compression into separate low-speed and high-speed circuits. Every MOTON kit for the E46 shares threaded ride height, non-inverted monotube construction and springs in the box.

Does the kit fit the all-wheel-drive E46 xi models?

No. MOTON lists this set for rear-drive E46 models only, from the 316i to the 330Ci and the M3. The xi models use a different front suspension and are not on the part number. Check the model code on the registration or VIN before ordering.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a single rebound adjuster on the damper body, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the E46. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

How difficult is installation on the E46?

It is a job for a qualified shop with a lift and a calibrated torque wrench. The kit arrives with no spring preload, so preload is set before the E46 is lowered and ride height is measured afterwards. Overtightening the spring platform can deform the damper body, and an alignment should follow.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Moton 1-Way Coilovers for E46 BMW 3 Series and M3

Moton’s 1-Way Coilovers for E46 BMW 3 Series and M3 are the simplest MOTON damper for the E46 3 Series and M3: a single rebound adjuster per corner, threaded ride height and springs supplied. MOTON lists this set for every rear-drive E46, from the 316i and 318ti compact to the 330Ci and the S54-powered M3, with adjustable front droplinks included. Leaving compression to MOTON’s valving keeps the E46 kit simple: rebound sets how the car recovers, and the threaded bodies set its stance. It suits an E46 that is driven on the road and taken to the occasional track day.

Design and Performance

Rebound sets how quickly each damper extends after compressing, which decides how the E46 settles after crests and kerbs. The 1-Way gives one adjuster per corner for exactly that and leaves compression to MOTON’s valving, the right amount of adjustment for a road car with occasional track days. For full compression control, the Moton 3-Way Motorsport Coilovers are the next step for the E46.

Features

Non-inverted monotube dampers, adjustable for rebound
Threaded ride height at all four corners
Pillowball front camber plates
Elevated top guide with helper piston
Adjustable aluminum front droplinks, DLA-10-188-206, M10, 188 mm to 206 mm
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers (L/R)
Rear coilovers (L/R)
Front and rear springs
Pillowball front camber plates (L/R)
Adjustable front droplinks (x2)

Applications

BMW 3 Series (rear-drive models): E46 | 1997-2006
BMW M3: E46 | 2000-2006

Notes

The Moton 1-Way Coilovers for E46 fit rear-drive E46 models including the M3; xi models are not covered
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order

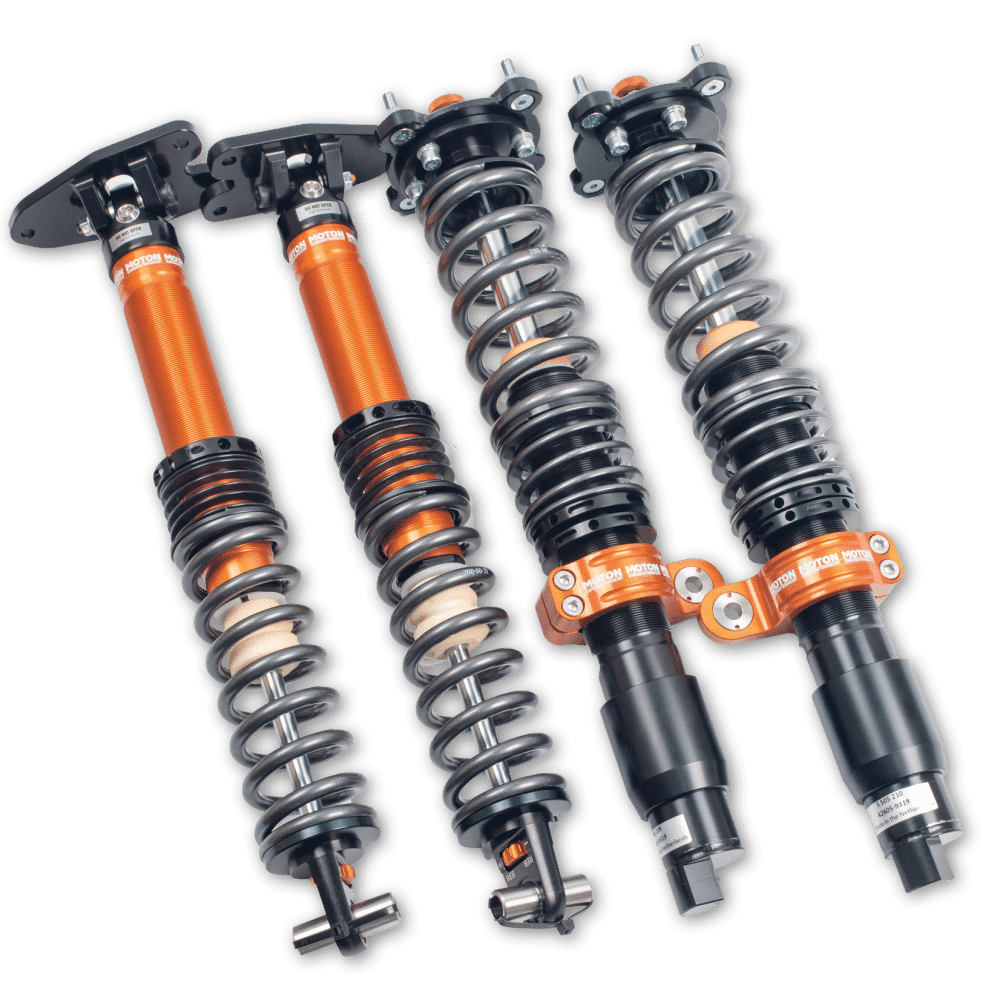

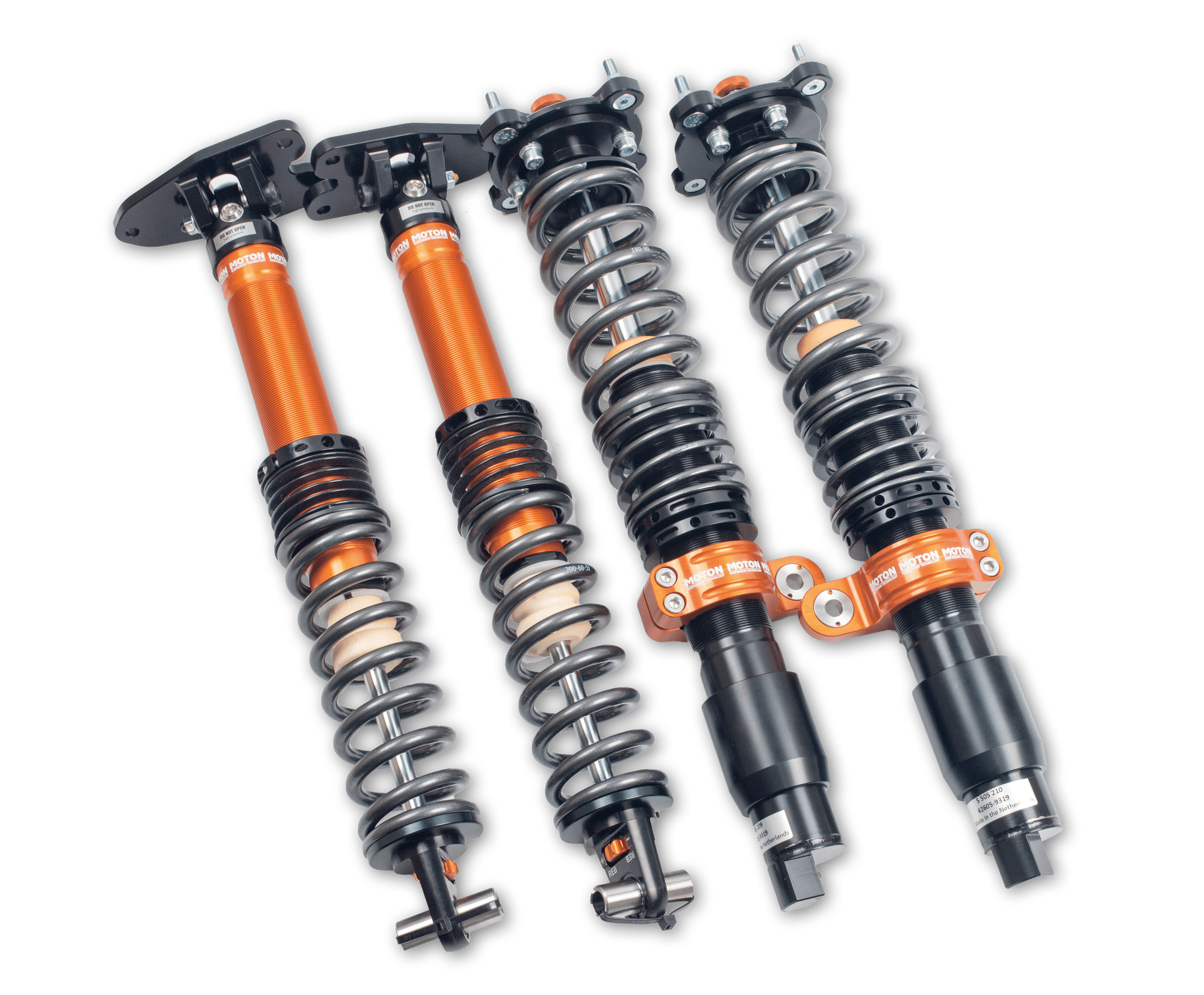

Images show representative MOTON kits

Frequently Asked Questions

Which BMW 3 Series and M3 models do the Moton 1-Way Coilovers for E46 fit? MOTON lists the Moton 1-Way Coilovers for E46 for the BMW 3 Series (rear-drive models; E46, 1997 to 2006) and BMW M3 (E46, 2000 to 2006). Each 1-Way set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 1-Way kit compare with the other MOTON kits for the E46? The 1-Way adjusts rebound only and leaves compression to MOTON valving, which makes it the simplest kit to set up on the E46. The 3-Way Motorsport splits compression into separate low-speed and high-speed circuits. Every MOTON kit for the E46 shares threaded ride height, non-inverted monotube construction and springs in the box.
Does the kit fit the all-wheel-drive E46 xi models? No. MOTON lists this set for rear-drive E46 models only, from the 316i to the 330Ci and the M3. The xi models use a different front suspension and are not on the part number. Check the model code on the registration or VIN before ordering.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a single rebound adjuster on the damper body, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the E46. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
How difficult is installation on the E46? It is a job for a qualified shop with a lift and a calibrated torque wrench. The kit arrives with no spring preload, so preload is set before the E46 is lowered and ride height is measured afterwards. Overtightening the spring platform can deform the damper body, and an alignment should follow.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
