Why do I need adjustable BMW F80 M3 sway bar end links after lowering?

The factory end links are a fixed length calibrated for stock ride height. Once the car is lowered, those fixed-length links pull the anti-roll bar out of its designed geometry, placing the bar under constant preload even at rest. The MMX BMW F80 M3 sway bar end links restore correct geometry by allowing the link length to be adjusted to match the new ride height, returning the anti-roll bar to its intended, stress-free operating range.

What does zero-preload adjustment mean and why does it matter?

Zero-preload means the anti-roll bar sits in a neutral, unstressed position when the car is at rest on level ground, with no static tension pulling on the bar through the end link. If the end link is too short or too long for the ride height, the bar is preloaded even before the car hits a bump, which causes uneven roll stiffness side to side and accelerated wear on the bar bushings and mounts.

Do these BMW F80 M3 sway bar end links fit the F87 M2 and F82/F83 M4 too?

Yes. The MMX front adjustable sway bar end links share the same fitment across the full F8x range — F87 M2, F80 M3, and F82/F83 M4 — since all three share the same front suspension geometry and anti-roll bar mounting points.

Why use ball joints instead of the OE rubber bushings?

OE rubber bushings flex under load, introducing deflection that delays and softens the transfer of roll force through the anti-roll bar. The Teflon-lined motorsport-spec ball joints in the MMX end links transfer force directly with no deflection, giving sharper, more immediate steering response and clearer feedback through corners.

How do I set the correct length after installing?

The opposing left/right threads allow the link length to be adjusted by rotating the center body without disconnecting either end. Set the length so the anti-roll bar sits level and unstressed at the vehicle's lowered ride height — this is the zero-preload position. Consulting an alignment specialist for precise setting is recommended, particularly when paired with coilovers where ride height may be fine-tuned further.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

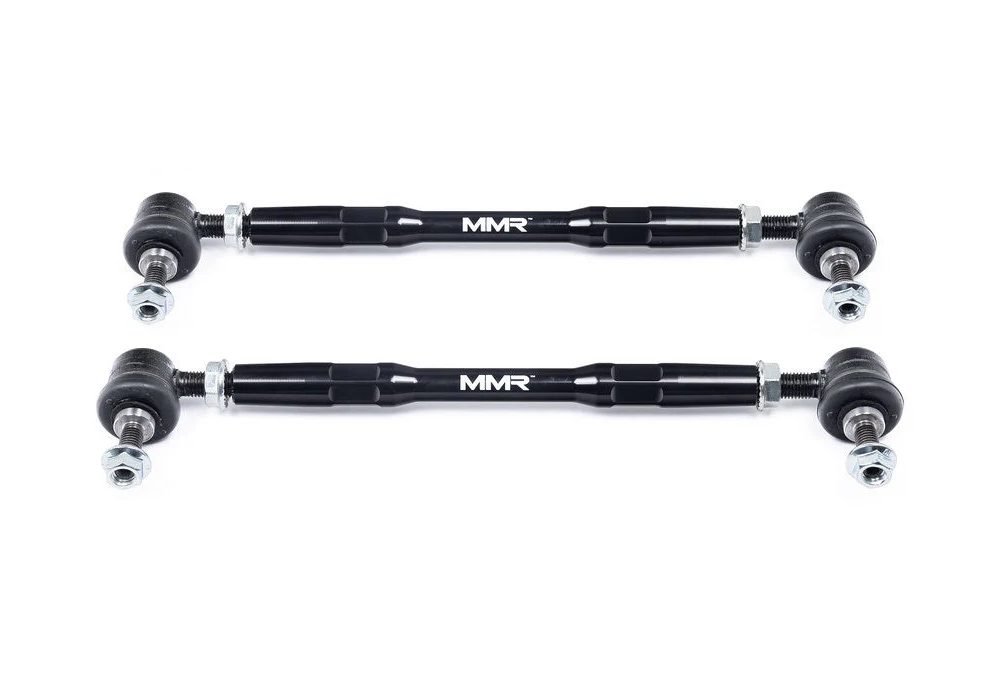

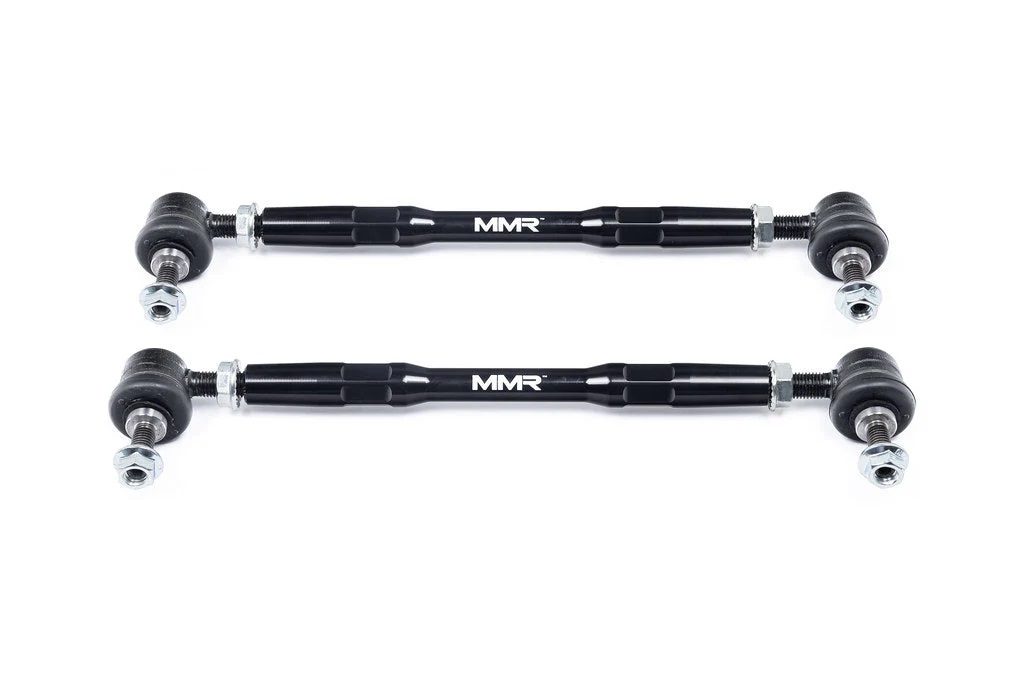

MMX Front Adjustable Sway Bar End Links for F8x BMW M2, M3, and M4

BMW F80 M3 sway bar end links from MMX Performance are engineered to restore correct anti-roll bar geometry after lowering on F87 M2, F80 M3, and F82/F83 M4 models. The factory end-links are fixed-length and optimized for stock ride height; once a vehicle is lowered with springs or coilovers, those fixed-length OE links pull the anti-roll bar out of its intended operating range, placing additional stress on the bar mounts and altering handling behavior in ways the factory tune never accounted for. The MMX BMW F80 M3 sway bar end links solve this with approximately 30mm of adjustability across a 290mm to 330mm range and opposing left and right thread ends, allowing quick and precise zero-preload adjustment so the anti-roll bar returns to functioning exactly as designed regardless of ride height. Each end link uses high-strength, Teflon-lined motorsport-spec ball joints in place of the OE rubber bushings, eliminating bushing deflection for sharper steering response and more direct cornering feedback. CNC-machined from lightweight 6061-T2 aluminum and finished in gloss Dark Anthracite anodizing, with rubber dust boots included to shield the ball joints from road debris and salt for long-term reliability.

Features

Approximately 30mm of adjustability across a 290mm to 330mm range
Opposing left/right thread ends for quick, precise zero-preload adjustment
High-strength, Teflon-lined motorsport-spec ball joints eliminate OE bushing deflection
Sharper steering response and more direct cornering feedback
CNC-machined from lightweight 6061-T2 aluminum
Gloss Dark Anthracite anodized finish
Rubber dust boots included to protect ball joints from debris and salt
Restores correct anti-roll bar geometry after lowering

Applications

BMW M2: F87 | 2016-2018
BMW M3: F80 | 2014-2018
BMW M4: F82, F83 | 2014-2020

Notes

Sold as a pair
Adjustment should be set to match ride height; consult an alignment specialist for precise zero-preload setting

Frequently Asked Questions

Why do I need adjustable BMW F80 M3 sway bar end links after lowering? The factory end links are a fixed length calibrated for stock ride height. Once the car is lowered, those fixed-length links pull the anti-roll bar out of its designed geometry, placing the bar under constant preload even at rest. The MMX BMW F80 M3 sway bar end links restore correct geometry by allowing the link length to be adjusted to match the new ride height, returning the anti-roll bar to its intended, stress-free operating range.
What does zero-preload adjustment mean and why does it matter? Zero-preload means the anti-roll bar sits in a neutral, unstressed position when the car is at rest on level ground, with no static tension pulling on the bar through the end link. If the end link is too short or too long for the ride height, the bar is preloaded even before the car hits a bump, which causes uneven roll stiffness side to side and accelerated wear on the bar bushings and mounts.
Do these BMW F80 M3 sway bar end links fit the F87 M2 and F82/F83 M4 too? Yes. The MMX front adjustable sway bar end links share the same fitment across the full F8x range F87 M2, F80 M3, and F82/F83 M4 since all three share the same front suspension geometry and anti-roll bar mounting points.
Why use ball joints instead of the OE rubber bushings? OE rubber bushings flex under load, introducing deflection that delays and softens the transfer of roll force through the anti-roll bar. The Teflon-lined motorsport-spec ball joints in the MMX end links transfer force directly with no deflection, giving sharper, more immediate steering response and clearer feedback through corners.
How do I set the correct length after installing? The opposing left/right threads allow the link length to be adjusted by rotating the center body without disconnecting either end. Set the length so the anti-roll bar sits level and unstressed at the vehicle’s lowered ride height this is the zero-preload position. Consulting an alignment specialist for precise setting is recommended, particularly when paired with coilovers where ride height may be fine-tuned further.

About MMX Performance

MMX Performance is a UK-based specialist in performance parts for BMW and MINI vehicles, crafting high-quality upgrades that blend precision engineering, rigorous testing, and motorsport heritage. Driven by enthusiast culture, MMX designs its products in the UK and puts them through track validation to ensure durability, fitment accuracy, and on-road performance. Their catalog spans drivetrain components, spacers, hardware, and chassis enhancements, all tailored to elevate both the driving experience and visual appeal of BMW and MINI models.
