What does the BMW F30 differential insert actually do?

The BMW F30 differential insert set fills the void spaces built into the factory differential rubber mounts with precision-machined billet aluminum. The OE voids are there to reduce NVH, but they also allow the differential to shift vertically under load — during acceleration, gear changes, and deceleration. Filling those voids locks the differential in its correct position, keeping rear suspension geometry aligned and delivering sharper response and traction throughout.

Does the BMW F30 differential insert increase noise, vibration, or harshness?

Customer feedback consistently reports little to no increase in NVH. The MMX inserts fill the voids in the existing rubber mounts rather than replacing those mounts with solid bushings — the rubber is still present and still absorbs vibration. The NVH difference between the factory setup and the insert fitment is far smaller than a full solid mount conversion, which is why this upgrade is popular on daily-driven cars as well as track builds.

Does installing the BMW F30 differential insert require removing the differential?

No. The inserts fit into the existing differential mounts with the differential in place. No differential removal is required and the installation is reversible. Most owners complete it in under an hour using standard hand tools.

Does this work with aftermarket suspension and sway bars?

Yes, and it actively enhances their effectiveness. Aftermarket sway bars and suspension components are calibrated assuming a stable differential reference point. Factory differential movement reduces the benefit of those upgrades. The BMW F30 differential insert eliminates that movement, allowing aftermarket suspension to work as intended.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

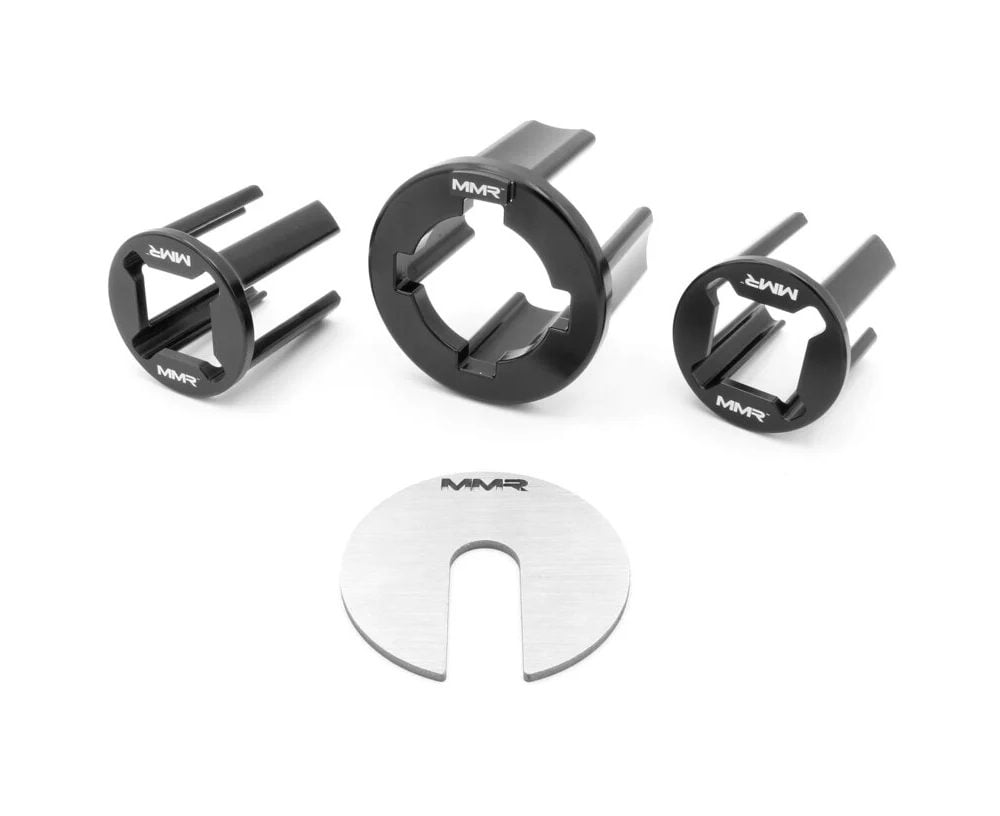

MMX Billet Differential Insert Set for Fxx BMW 1 Series, 2 Series, 3 Series, and 4 Series

BMW F30 differential insert set from MMX Performance is a precision-machined 6061-T6 billet aluminum insert kit for F2x and F3x chassis BMW models the F20/F21 1 Series, F22/F23 2 Series, F30/F31 3 Series, and F32/F33/F36 4 Series — engineered to eliminate the unwanted differential movement that the factory rubber mounts allow under load. The OE differential mounts use rubber bushings with deliberate void spaces to absorb NVH, but those same voids allow the differential to shift vertically under acceleration, gear changes, and deceleration, pulling rear suspension geometry off its correct alignment and degrading both traction and response. The MMX BMW F30 differential insert set fills those voids with billet aluminum, locking the differential in its correct position without removing it from the car or replacing the factory bushings. The result is sharper suspension response, improved geometry under cornering, better traction on exit, and a more precise feel at the limit with customer feedback consistently reporting little to no increase in NVH, making this equally suitable for daily-driven and track-prepared cars. The installation is reversible and takes under an hour. Compatible with petrol, diesel, manual, and automatic variants across the full F2x and F3x range; also enhances the effectiveness of aftermarket sway bars and suspension systems by giving them a stable differential reference point to work against.

Features

Fills OE differential bushing voids to eliminate differential movement under load
Reduces differential shift under acceleration, gear changes, and deceleration
Maintains correct rear suspension geometry under cornering loads
6061-T6 billet aluminum construction with black anodized finish
Stainless steel setter retaining hardware
No removal of differential or factory bushings required
Reversible installation in under an hour
Minimal NVH increase reported by customers
Enhances effectiveness of aftermarket sway bars and suspension components
Compatible with petrol, diesel, manual, and automatic variants

Applications

BMW 1 Series: F20 | 2012-2019
BMW 2 Series: F22, F23 | 2014-2021
BMW 3 Series: F30, F31 | 2012-2019
BMW 4 Series: F32, F33, F36 | 2013-2020

Frequently Asked Questions

What does the BMW F30 differential insert actually do? The BMW F30 differential insert set fills the void spaces built into the factory differential rubber mounts with precision-machined billet aluminum. The OE voids are there to reduce NVH, but they also allow the differential to shift vertically under load during acceleration, gear changes, and deceleration. Filling those voids locks the differential in its correct position, keeping rear suspension geometry aligned and delivering sharper response and traction throughout.
Does the BMW F30 differential insert increase noise, vibration, or harshness? Customer feedback consistently reports little to no increase in NVH. The MMX inserts fill the voids in the existing rubber mounts rather than replacing those mounts with solid bushings the rubber is still present and still absorbs vibration. The NVH difference between the factory setup and the insert fitment is far smaller than a full solid mount conversion, which is why this upgrade is popular on daily-driven cars as well as track builds.
Does installing the BMW F30 differential insert require removing the differential? No. The inserts fit into the existing differential mounts with the differential in place. No differential removal is required and the installation is reversible. Most owners complete it in under an hour using standard hand tools.
Which F-chassis BMW models does this fit? The MMX BMW F30 differential insert fits the full F2x and F3x chassis range F20 1 Series, F22/F23 2 Series, F30/F31 3 Series, and F32/F33/F36 4 Series across petrol and diesel engines and both manual and automatic transmissions.
Does this work with aftermarket suspension and sway bars? Yes, and it actively enhances their effectiveness. Aftermarket sway bars and suspension components are calibrated assuming a stable differential reference point. Factory differential movement reduces the benefit of those upgrades. The BMW F30 differential insert eliminates that movement, allowing aftermarket suspension to work as intended.

About MMX Performance

MMX Performance is a UK-based specialist in performance parts for BMW and MINI vehicles, crafting high-quality upgrades that blend precision engineering, rigorous testing, and motorsport heritage. Driven by enthusiast culture, MMX designs its products in the UK and puts them through track validation to ensure durability, fitment accuracy, and on-road performance. Their catalog spans drivetrain components, spacers, hardware, and chassis enhancements, all tailored to elevate both the driving experience and visual appeal of BMW and MINI models.
