KW V5 Coilover Kit for LP700-4 / LP740-4 Lamborghini Aventador & Aventador S [30911010]

KW V5 Coilover Kit for LP700-4 / LP740-4 Lamborghini Aventador & Aventador S [30911010]

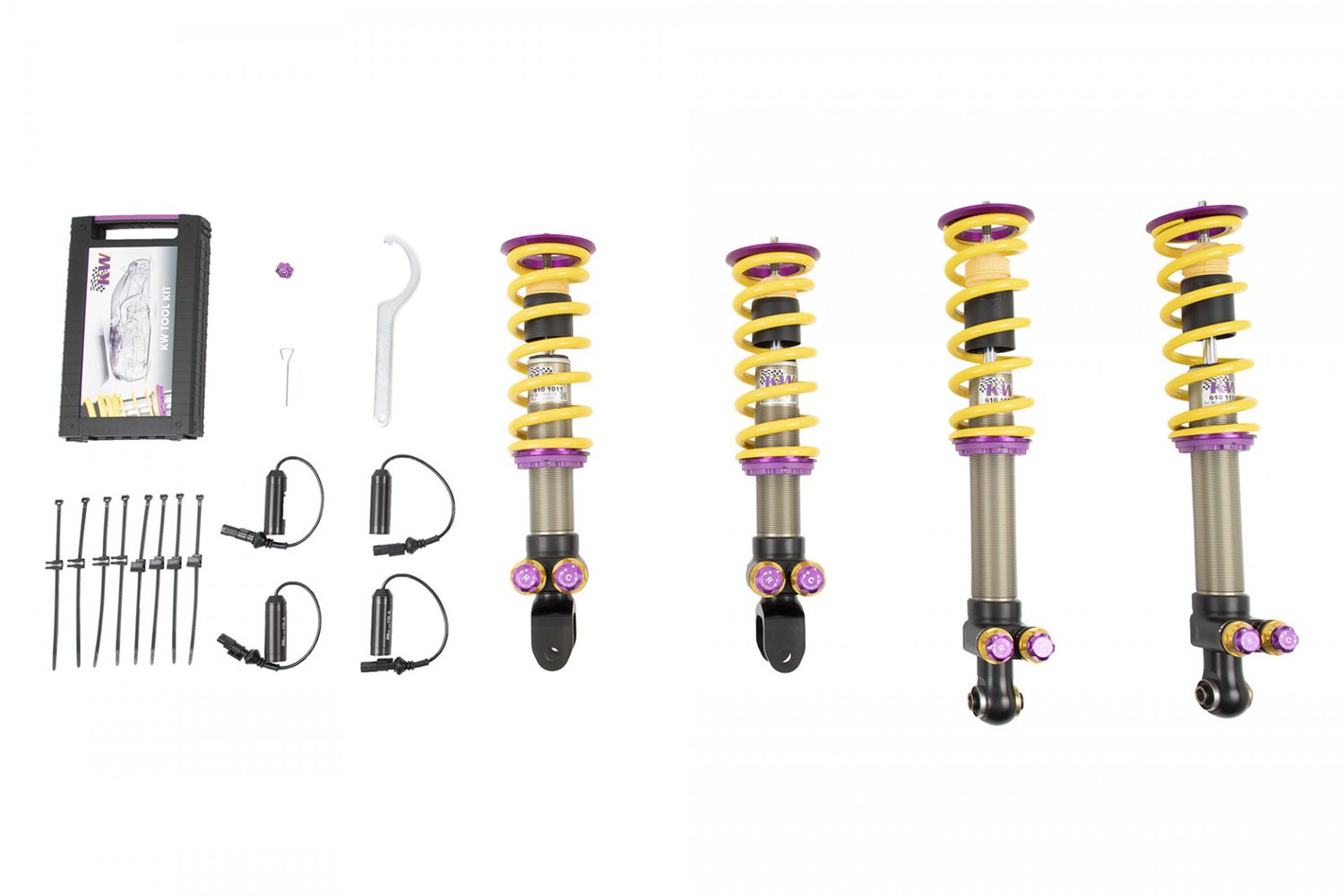

The KW V5 Coilover Kit Bundle is specifically designed for the Lamborghini Aventador and Aventador S, delivering exceptional performance and precision handling. This high-performance kit features a 4-way adjustable damping system, allowing independent adjustments for low and high-speed rebound and compression, enabling drivers to fine-tune the suspension for both track and road use. Engineered with advanced motorsport technology, the kit includes uniball bearings, racing springs, and inverted MacPherson struts, ensuring maximum body control during aggressive driving. With continuous ride height adjustment, this coilover kit enhances both the driving experience and vehicle dynamics, making it the perfect upgrade for performance-focused Lamborghini owners.

Variant 5 Coilovers

• By launching the new KW V5 coilover suspension, KW focuses on its successful motorsport suspension technology with KW Solid Piston Technology and a modular design with damper valves connected in series. The KW V5 ensures precise and fast damping without delay, making it ideal for sports cars and super sports cars. The shock absorbers and valves react directly, even with small spring travel, minimal steering movements, and minor road undulations. Every driving maneuver and input, such as those generated during braking, acceleration, steering, load changes, and undulations, are damped with much more precision. The KW Solid Piston dampers provide significantly more platform support to the chassis than conventional dampers, allowing for lower spring rates depending on the vehicle’s body.
  • Setup: Factory Pre-Configured Damping Setup with Separate 4-Way Damper Setting
    • By launching the new KW V5 coilover suspension, KW emphasizes its advanced motorsport suspension technology, incorporating KW Solid Piston Technology and a modular design with damper valves connected in series. The KW V5, equipped with adjustable KW SPCLH-A (KW solid piston compression low and high speed adjustable) compression damping and KW SPRLH-A (KW solid piston rebound low and high speed adjustable) rebound damping, offers several key benefits: more sensitive damping, cavitation-free functionality, precise high-frequency damping, a low-pressure gas range of 6 to 10 bar, and low hysteresis.
    • The low and high speed valve units in the KW V5 coilover suspension are built in series with various valve spring types and main valves, offering the freedom to individually adjust compression and rebound damping. With 13 exact clicks (14 characteristic curves) each in the low and high speed ranges, the system allows precise customization. KW Solid Piston Technology enables a broad force range when designing characteristic curves, facilitating a harmonious damping experience.
  • Continuous Lowering:
    • The KW V5 coilover suspension allows for maximum or individualized lowering within the tested adjustment range. Thanks to the dirt-resistant trapezoidal thread and polyamide threaded ring, continuous lowering can be adjusted quickly and easily, even after years of use.
  • The Benchmark for Coilovers:
    • KW’s “inox-line” coilovers offer a harmonious pre-configured setup for sporty drivers. Each vehicle receives a specific damper setup and spring rate, designed to enhance driving pleasure with an optimal balance of sportiness and practicality. KW engineers develop vehicle-specific damper tuning and spring rates, with extensive testing on the Nürburgring Nordschleife and in KW’s 7-post chassis dynamics test center.
    • KW coilover kits are tailored specifically for each vehicle type, using only high-quality components and proprietary damper technology. With the KW coilover suspension Variant 4 “inox-line”, the roll and pitch movements of the vehicle body are minimized during compression, offering unadulterated directness and sportier handling.
  • Their Experience Means Your Driving Pleasure:
    • For over 20 years, KW automotive has been the market leader in creating individual suspension solutions for the road and motorsports. Car enthusiasts, automobile manufacturers, and reputable tuners worldwide trust KW coilovers, “Made in Germany”. Every KW coilover kit undergoes rigorous stress testing before production and is exclusively developed and manufactured in KW’s headquarters in Fichtenberg, Germany. These kits are engineered to exceed OEM quality standards and provide innovative, high-quality solutions. With an application list covering over 4,600 options, KW guarantees exceptional selection backed by a Limited Lifetime Warranty.

V5 Specific Features

• Ride Height Adjustable: Configure the Ride Height to Your Needs
  • KW coilover suspensions, height-adjustable springs, and KW DLC Air Suspensions allow for suspension lowering within technical limitations. For example, Street Comfort products offer mild lowering from 10 to 50mm, while Street Performance products provide the maximum suspension lowering range of 45 to 85mm, depending on the vehicle.
• Rebound (low & high): Adjustable Rebound Valve with KW TVR-A (twin-valve rebound adjustable) Technology
  • The rebound stage damping is precisely tuned to the respective vehicle at KW’s in-house drive dynamics test facility, delivered in the middle of the range out of the box. Customization is available with 16 precise clicks, offering the choice between more comfort or better body control. KW’s patented TVR-A technology allows oil to flow through an adjustable, conical low-speed valve during slow piston speeds and opens the main rebound stage valve for higher piston speeds, improving ride comfort without affecting high-speed performance.
• Compression (low & high): Adjustable Compression Valve with KW TVCLH-A (twin-valve compression low high – adjustable) Technology
  • The compression valve with KW’s TVCLH-A technology provides high-end motorsports performance, offering two separate valves and a two-way adjustable compression valve for independent adjustment in the low and high speed range. Adjustments are made via two adjustment dials with 16 settings for high speed and 7 settings for low speed. The TVCLH-A technology also includes a blow-off feature with a large cross-section, offering improved support for the vehicle body during wheel-induced high damper speeds, such as when driving over curbs.
• Composite Spring Seat: Reinventing the Way Things Are Done
  • The KW coilover spring seat, made from a wear-resistant, friction-optimized polyamide composite material with a stainless steel insert, ensures long-term functionality of ride height adjustability. This design prevents oxidation and maximizes strength, working in conjunction with the Inox-Line stainless steel coilover struts.
• Trapezoidal Thread: The Perfect Height-Adjustable Coilover
  • KW uses a friction-optimized trapezoidal thread, which is more resistant to dirt and requires less force to adjust compared to common coilovers. This design, with a large cross-section, also offers higher load-bearing capacity.
• Reservoir: KW Twin-Tube Technology Knows No Limits
  • The KW reservoirs increase oil and cooling capacity for high-force systems, providing more working space inside the damper and ensuring consistent performance.
• 7-Post Drive Dynamics Test Stand: Testing to the Nth Degree
  • KW’s 7-post drive dynamics test facility, used by automobile manufacturers and race teams, helps fine-tune coilover suspensions. This facility enables precise suspension tuning, along with real-world evaluations on public roads and race tracks.
• Technical Component Report: Certified Guidelines
  • A technical component report is included with each KW coilover kit, outlining the guidelines for suspension lowering and ensuring compliance with road legal requirements in many countries. The report also provides precise vehicle classification, fitting requirements, and tips for safe installation.
• TTSP Technology:
  • KW’s Solid Piston Technology and modular damper valves allow for precise, fast damping, enabling independent adjustment of rebound and compression forces. This system is optimized for sports cars and super sports cars.
• SPRLH-A Rebound Stage:
  • The SPRLH-A stage enables fine-tuning of the rebound force, allowing drivers to adjust the suspension’s response to cornering, braking, or acceleration. This customization helps optimize vehicle handling, comfort, and stability based on driving needs.
• SPCLH-A Compression Stage:
  • The SPCLH-A compression stage allows fine-tuning of resistance during compression, enhancing vehicle handling and ride comfort. This adjustment improves stability and performance, especially in high-speed driving or aggressive cornering, offering a tailored suspension setup.

Features

• Ultra high performance technology (KW solid piston technology) bred from GT3 motorsports
• KW 4-way independently adjustable damper technology
• Modular damper valve design
• Ensures consistent and precise damping even during high-frequency movements
• Low-pressure gas range (6 to 10 bar)
• 13 clicks of adjustment for compression & rebound
• Dirt-resistant trapezoidal thread
• Polyamide threaded ring
• Customizable Lowering Range
• Inox-line stainless steel construction
• Engineered for both street and track use, including testing at the Nürburgring and in-house dynamics facilities
• Spring & damper setup for optimal sportiness and practicality
• Comprehensive testing & development

Specifications

• Front Lowering: 0.6″ – 1.4″
• Rear Lowering: 0.2″ – 1.0″

Applications

• Lamborghini Aventador: LP700-4 (2011-2016)
• Lamborghini Aventador Roadster: LP700-4 (2013-2016)
• Lamborghini Aventador S: LP740-4 (2016-2021)
• Lamborghini Aventador S Roadster: LP740-4 (2017-2021)

Installation

• Installation instructions for coilover kit
• Installation instructions for cancellation kit

Notes

• Actual product may vary from images
• Fits coupe and roadster models
• Front and rear height adjustable by threaded shock bodies
• Valving is adjusted by adjustment knobs, rebound is only adjustable if the top of the piston rod is accessible (will depend on the design of the vehicle)
• Electronic damping control has to be deactivated (deactivation kit is included in the delivery)

About KW

Offering an immense independent aftermarket suspension portfolio, state-of-the-art manufacturing technology, development, and test center, KW automotive has been operating successfully in all markets for over 25 years. In recent years, the owner-managed company has developed over 16 different damping technologies to comply with its claim “The perfect suspension for every demand”. The versatile product range of the KW suspensions brand is divided into the categories “Street Comfort”, “Street Performance” and “Track Performance” for the respective application. Sporty drivers rely on the height-adjustable spring sets and KW coilovers with their wide range of damping options, as well as the Nürburgring Nordschleife-tested KW Clubsport coilovers with road approval and parts certification. Worldwide, KW has seven international subsidiaries in the most important markets like Belgium, China, Japan, Switzerland, Taiwan, and the USA. Of the 450 employees worldwide, around 330 work at the headquarters in Fichtenberg, where each suspension kit is handcrafted.
