What is the KW Coilover Kit for 4S Audi made from?

KW builds the kit around a high-quality stainless steel damper housing with a composite spring seat and a trapezoidal thread body for continuous height adjustment. It is manufactured at KW’s headquarters in Fichtenberg, Germany, and every application is validated on the company’s own 7-post shaker rig before it enters production.

Which Audi models does this kit fit?

This part number covers the Audi R8 built between 2017 and 2023, across 9 listed engine and body variants shown under Applications. Confirm the exact model, drivetrain and suspension options against that list before ordering, because KW builds separate part numbers for closely related versions of the same car.

How far does the Coilover Kit for 4S Audi lower the car?

Front ride height adjusts between 0.2 and 1.0 inches below factory and the rear between 0.6 and 1.4 inches. Height is set continuously on the trapezoidal thread, so the car can be corner balanced and the setting revised later without changing springs.

Is this kit suitable for daily driving?

Yes. KW valves this kit for road use first and validates it on the 7-post rig against real road inputs, so body control improves without the harshness a track damper brings. Ride height can also be set conservatively to preserve ground clearance for everyday driving.

Does the Coilover Kit for 4S Audi need any modification to fit?

No. The kit is built as a direct replacement for the factory suspension on the listed applications and installs with normal workshop tools. Read the Notes for this part number first, since some applications require the factory electronic damping to be deactivated or wheel spacers to be run.

Where is this kit made?

KW designs and manufactures the kit at its headquarters in Fichtenberg, Germany, where the company has built suspension since 1995. Every damper is engineered in house and validated on KW’s own 7-post shaker rig and kinematics benches rather than sourced from a contract supplier.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

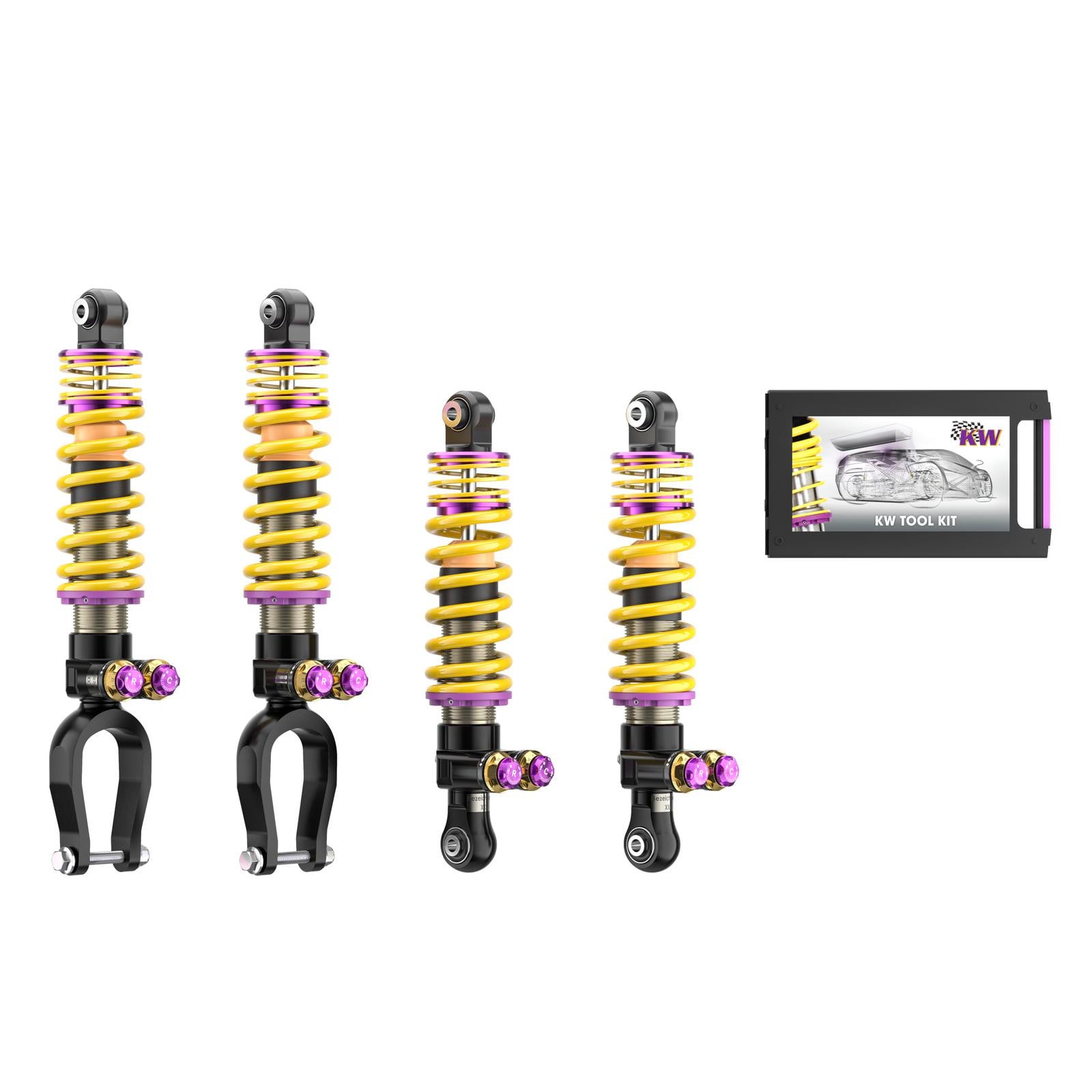

KW V5 Coilover Kit for 4S Audi R8 without Magnetic Ride

KW’s Coilover Kit for 4S Audi R8 brings KW’s motorsport Solid Piston damper technology to the road. It is a four-way Solid Piston coilover system derived from KW motorsport damper technology, developed and manufactured by KW in Fichtenberg, Germany and validated on the company’s own 7-post shaker rig before production. The front ride height moves between 0.2 and 1.0 inches below standard and the rear between 0.6 and 1.4 inches, set continuously on the strut body rather than picked from a list of fixed drops, so the car can be corner balanced properly. Pitch and roll under braking, cornering and load change are reduced, body control improves, and the 4S Audi R8 responds the way its specification always suggested it could.

Design and Performance

The Coilover Kit for 4S Audi is a four-way Solid Piston coilover system derived from KW motorsport damper technology. Damping is valved by KW for this specific application rather than adapted from a generic part, and ride height is set on the strut body so corner weights can be dialled in properly. KW validates every application on its own 7-post shaker rig and supplies the kit ready to install on the listed vehicles.

Features

The Coilover Kit for 4S Audi offers kW Solid Piston damper technology with valves connected in series
KW SPCLH-A adjustable low and high speed compression damping
KW SPRLH-A adjustable low and high speed rebound damping
Twin tube solid piston construction
Composite spring seat and trapezoidal thread
Validated on KW’s 7-post shaker rig
Developed and manufactured in Fichtenberg, Germany

Specifications

Front ride height adjustment: 0.2 to 1.0 in below factory
Rear ride height adjustment: 0.6 to 1.4 in below factory
Damper housing: stainless steel
Height adjustment: continuous, on the trapezoidal thread
Damping adjustment: compression and rebound, each adjustable at low and high piston speed
Shipping weight: 48.5 lb
Carton dimensions: 30 x 18 x 6 in

Applications

Audi R8 Performance RWD Spyder: 4S | 2022-2023 | 5.2L V10
Audi R8 Performance RWD: 4S | 2022-2023 | 5.2L V10
Audi R8 Performance Spyder: 4S | 2020-2023 | 5.2L V10
Audi R8 Performance: 4S | 2020-2023 | 5.2L V10
Audi R8 Plus Spyder: 4S | 2018 | 5.2L V10
Audi R8 Plus: 4S | 2017-2018 | 5.2L V10
Audi R8 RWS: 4S | 2018 | 5.2L V10
Audi R8 Spyder: 4S | 2017-2021 | 5.2L V10
Audi R8: 4S | 2017-2021 | 5.2L V10

Notes

Rebound adjustment is made at the top of the piston rod and depends on that point remaining accessible once the kit is installed
Height adjustable on both the front and rear axles
Uses aluminium suspension struts on this application
KW builds other suspension kits for the 4S Audi R8: KW V4 Coilover Kit for 4S Audi R8 without Magnetic Ride (3A7100AM)
KW also sells this kit bundled with its Hydraulic Lift System, which is the better buy if extra ground clearance is also needed: KW V4 Coilover Kit with HLS 2 for 4S Audi R8 (3A7102AM)
Removing the factory electronic dampers requires a cancellation module. The KW ESC Module for Audi R8 and Lamborghini Huracan (68510489) prevents fault messages once they are out.

Frequently Asked Questions

What is the KW Coilover Kit for 4S Audi made from? KW builds the kit around a high-quality stainless steel damper housing with a composite spring seat and a trapezoidal thread body for continuous height adjustment. It is manufactured at KW’s headquarters in Fichtenberg, Germany, and every application is validated on the company’s own 7-post shaker rig before it enters production.
Which Audi models does this kit fit? This part number covers the Audi R8 built between 2017 and 2023, across 9 listed engine and body variants shown under Applications. Confirm the exact model, drivetrain and suspension options against that list before ordering, because KW builds separate part numbers for closely related versions of the same car.
How far does the Coilover Kit for 4S Audi lower the car? Front ride height adjusts between 0.2 and 1.0 inches below factory and the rear between 0.6 and 1.4 inches. Height is set continuously on the trapezoidal thread, so the car can be corner balanced and the setting revised later without changing springs.
Is this kit suitable for daily driving? Yes. KW valves this kit for road use first and validates it on the 7-post rig against real road inputs, so body control improves without the harshness a track damper brings. Ride height can also be set conservatively to preserve ground clearance for everyday driving.
Does the Coilover Kit for 4S Audi need any modification to fit? No. The kit is built as a direct replacement for the factory suspension on the listed applications and installs with normal workshop tools. Read the Notes for this part number first, since some applications require the factory electronic damping to be deactivated or wheel spacers to be run.
Where is this kit made? KW designs and manufactures the kit at its headquarters in Fichtenberg, Germany, where the company has built suspension since 1995. Every damper is engineered in house and validated on KW’s own 7-post shaker rig and kinematics benches rather than sourced from a contract supplier.

About KW

KW automotive has developed and built suspension in Fichtenberg, Germany since 1995, and supplies coilover systems to vehicle manufacturers, professional tuners and race teams worldwide. Every KW damper is engineered in house, validated on the company’s own 7-post shaker rig and kinematics test benches, and manufactured at the Fichtenberg headquarters rather than sourced from a contract supplier. The application list runs to more than 4,600 fitments, from road cars to GT racing machinery.
