What is the KW Coilover Kit Bundle for Lamborghini made from?

KW builds the kit around a high-quality stainless steel damper housing with a composite spring seat and a trapezoidal thread body for continuous height adjustment. It is manufactured at KW’s headquarters in Fichtenberg, Germany, and every application is validated on the company’s own 7-post shaker rig before it enters production.

Which Lamborghini models does this kit fit?

This part number covers the Lamborghini Aventador LP770-4 SVJ built between 2019 and 2021, across 1 listed engine and body variant shown under Applications. Confirm the exact model, drivetrain and suspension options against that list before ordering, because KW builds separate part numbers for closely related versions of the same car.

How far does the Coilover Kit Bundle for Lamborghini lower the car?

Front ride height adjusts between 0.6 and 1.4 inches below factory and the rear between 0.2 and 1.0 inches. Height is set continuously on the trapezoidal thread, so the car can be corner balanced and the setting revised later without changing springs.

Is this kit suitable for daily driving?

Yes. KW valves this kit for road use first and validates it on the 7-post rig against real road inputs, so body control improves without the harshness a track damper brings. Ride height can also be set conservatively to preserve ground clearance for everyday driving.

Does the Coilover Kit Bundle for Lamborghini need any modification to fit?

No. The kit is built as a direct replacement for the factory suspension on the listed applications and installs with normal workshop tools. Read the Notes for this part number first, since some applications require the factory electronic damping to be deactivated or wheel spacers to be run.

Where is this kit made?

KW designs and manufactures the kit at its headquarters in Fichtenberg, Germany, where the company has built suspension since 1995. Every damper is engineered in house and validated on KW’s own 7-post shaker rig and kinematics benches rather than sourced from a contract supplier.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

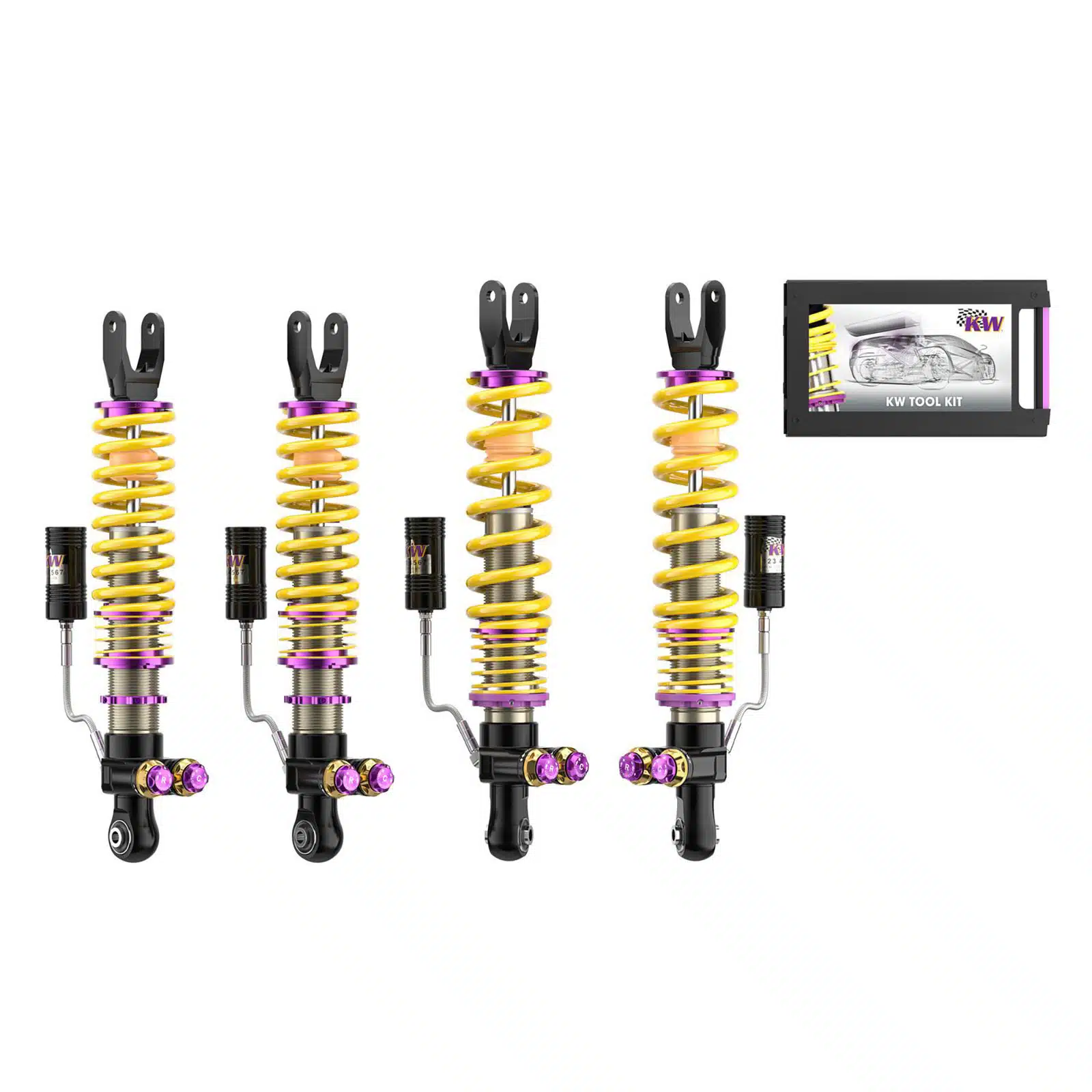

KW V5 Coilover Kit Bundle for Lamborghini Aventador LP770-4 SVJ

KW’s Coilover Kit Bundle for Lamborghini Aventador LP770-4 SVJ brings a chassis worthy of the Lamborghini Aventador LP770-4 SVJ to owners who have already bought the engine. KW develops and builds every kit at its headquarters in Fichtenberg, Germany, and this one is a four-way Solid Piston coilover system derived from KW motorsport damper technology. The front ride height moves between 0.6 and 1.4 inches below standard and the rear between 0.2 and 1.0, set continuously on the strut rather than chosen from a list of fixed drops, so the car can be corner balanced to a target instead of accepted as it falls. Every application is validated on KW’s own 7-post shaker rig before it reaches production. For an owner unwilling to leave the last of a Lamborghini Aventador LP770-4 SVJ’s ability on the table, this is where it is found.

Design and Performance

The Coilover Kit Bundle for Lamborghini is a four-way Solid Piston coilover system derived from KW motorsport damper technology. Damping is valved by KW for this specific application rather than adapted from a generic part, and ride height is set on the strut body so corner weights can be dialled in properly. KW validates every application on its own 7-post shaker rig and supplies the kit ready to install on the listed vehicles.

Features

The Coilover Kit Bundle for Lamborghini offers kW Solid Piston damper technology with valves connected in series
KW SPCLH-A adjustable low and high speed compression damping
KW SPRLH-A adjustable low and high speed rebound damping
Twin tube solid piston construction
Composite spring seat and trapezoidal thread
Validated on KW’s 7-post shaker rig
Developed and manufactured in Fichtenberg, Germany

Specifications

Front ride height adjustment: 0.6 to 1.4 in below factory
Rear ride height adjustment: 0.2 to 1.0 in below factory
Damper housing: stainless steel
Height adjustment: continuous, on the trapezoidal thread
Damping adjustment: compression and rebound, each adjustable at low and high piston speed
Shipping weight: 53.9 lb
Carton dimensions: 30 x 18 x 6 in

Applications

Lamborghini Aventador LP770-4 SVJ: 2019-2021 | 6.5L V12

Notes

The factory electronic damping must be deactivated. The deactivation kit needed to do so is included in the delivery, so no separate module is required.
Uses aluminium suspension struts on this application

Frequently Asked Questions

What is the KW Coilover Kit Bundle for Lamborghini made from? KW builds the kit around a high-quality stainless steel damper housing with a composite spring seat and a trapezoidal thread body for continuous height adjustment. It is manufactured at KW’s headquarters in Fichtenberg, Germany, and every application is validated on the company’s own 7-post shaker rig before it enters production.
Which Lamborghini models does this kit fit? This part number covers the Lamborghini Aventador LP770-4 SVJ built between 2019 and 2021, across 1 listed engine and body variant shown under Applications. Confirm the exact model, drivetrain and suspension options against that list before ordering, because KW builds separate part numbers for closely related versions of the same car.
How far does the Coilover Kit Bundle for Lamborghini lower the car? Front ride height adjusts between 0.6 and 1.4 inches below factory and the rear between 0.2 and 1.0 inches. Height is set continuously on the trapezoidal thread, so the car can be corner balanced and the setting revised later without changing springs.
Is this kit suitable for daily driving? Yes. KW valves this kit for road use first and validates it on the 7-post rig against real road inputs, so body control improves without the harshness a track damper brings. Ride height can also be set conservatively to preserve ground clearance for everyday driving.
Does the Coilover Kit Bundle for Lamborghini need any modification to fit? No. The kit is built as a direct replacement for the factory suspension on the listed applications and installs with normal workshop tools. Read the Notes for this part number first, since some applications require the factory electronic damping to be deactivated or wheel spacers to be run.
Where is this kit made? KW designs and manufactures the kit at its headquarters in Fichtenberg, Germany, where the company has built suspension since 1995. Every damper is engineered in house and validated on KW’s own 7-post shaker rig and kinematics benches rather than sourced from a contract supplier.

About KW

KW automotive has developed and built suspension in Fichtenberg, Germany since 1995, and supplies coilover systems to vehicle manufacturers, professional tuners and race teams worldwide. Every KW damper is engineered in house, validated on the company’s own 7-post shaker rig and kinematics test benches, and manufactured at the Fichtenberg headquarters rather than sourced from a contract supplier. The application list runs to more than 4,600 fitments, from road cars to GT racing machinery.
