What is the KW Coilover Kit for Ford Mustang made from?

KW builds the kit around a high-quality stainless steel damper housing with a composite spring seat and a trapezoidal thread body for continuous height adjustment. It is manufactured at KW’s headquarters in Fichtenberg, Germany, and every application is validated on the company’s own 7-post shaker rig before it enters production.

Which Ford models does this kit fit?

This part number covers the Ford Mustang built between 2018 and 2026, across 10 listed engine and body variants shown under Applications. Confirm the exact model, drivetrain and suspension options against that list before ordering, because KW builds separate part numbers for closely related versions of the same car.

How far does the Coilover Kit for Ford Mustang lower the car?

Front ride height adjusts between 1.0 and 1.8 inches below factory and the rear between 1.0 and 1.8 inches. Height is set continuously on the trapezoidal thread, so the car can be corner balanced and the setting revised later without changing springs.

Is this kit suitable for daily driving?

It can be, but it is not the first choice. The Clubsport is valved for cars on DOT-R and ultra high-performance tires and used at track days, time attack and club racing. Owners who drive mostly on the road are usually better served by the standard V3.

Does the Coilover Kit for Ford Mustang need any modification to fit?

No. The kit is built as a direct replacement for the factory suspension on the listed applications and installs with normal workshop tools. Read the Notes for this part number first, since some applications require the factory electronic damping to be deactivated or wheel spacers to be run.

Where is this kit made?

KW designs and manufactures the kit at its headquarters in Fichtenberg, Germany, where the company has built suspension since 1995. Every damper is engineered in house and validated on KW’s own 7-post shaker rig and kinematics benches rather than sourced from a contract supplier.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

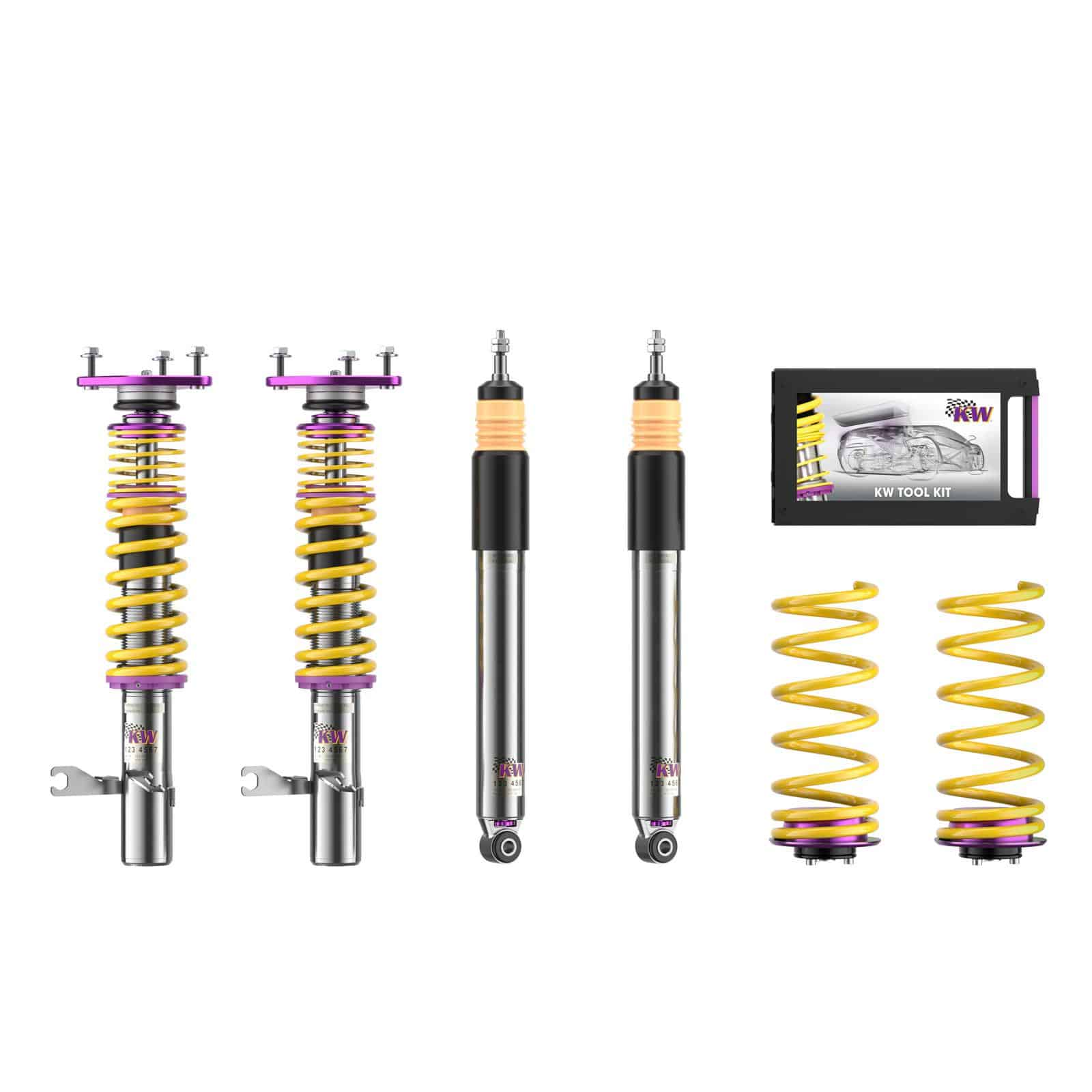

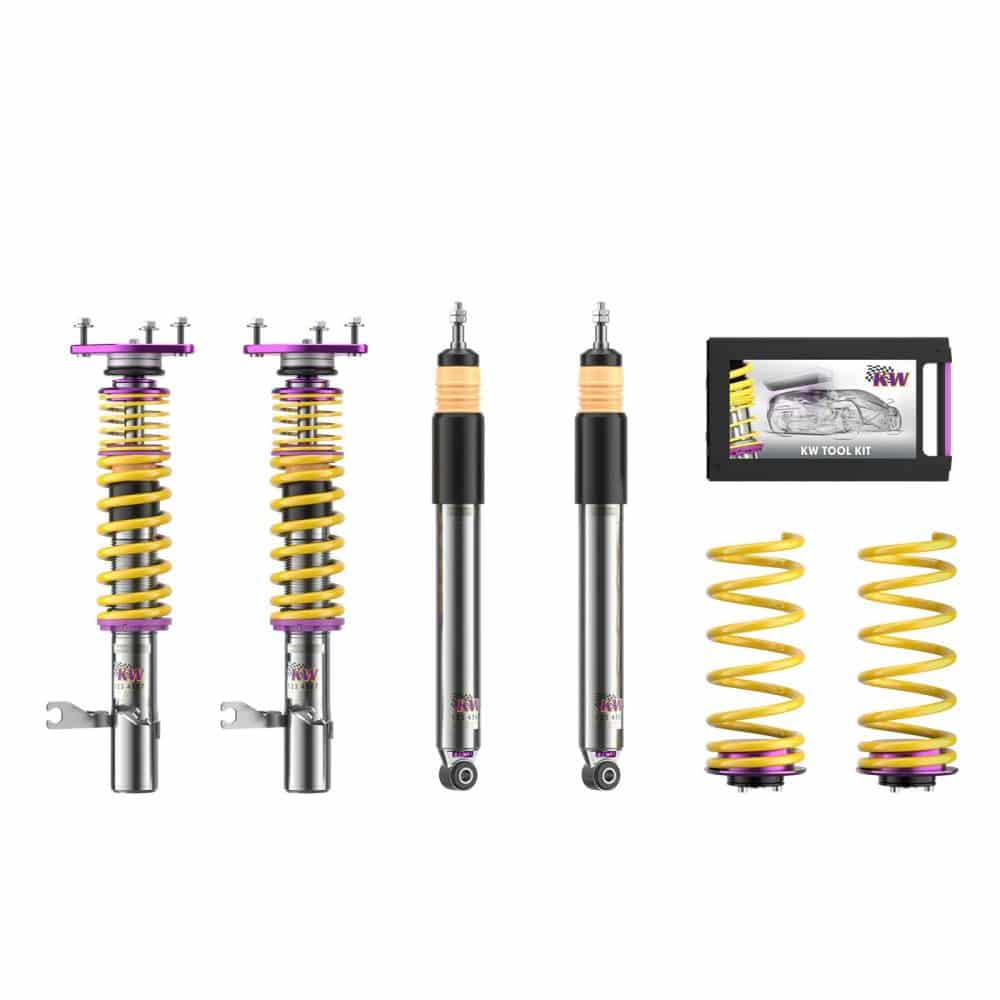

KW V3 Clubsport Coilover Kit for Ford Mustang without Electronic Dampers

KW’s Coilover Kit for Ford Mustang is what a car wants once its owner stops pretending it only sees the road. It is a track-focused coilover kit developed on the Nordschleife for cars on ultra high-performance tyres, developed and manufactured by KW in Fichtenberg, Germany and validated on the company’s own 7-post shaker rig before production. The front ride height moves between 1.0 and 1.8 inches below standard and the rear between 1.0 and 1.8 inches, set continuously on the strut body rather than picked from a list of fixed drops, so the car can be corner balanced properly. Pitch and roll under braking, cornering and load change are reduced, body control improves, and the Ford Mustang responds the way its specification always suggested it could.

Design and Performance

The Coilover Kit for Ford Mustang is a track-focused coilover kit developed on the Nordschleife for cars on ultra high-performance tyres. Damping is valved by KW for this specific application rather than adapted from a generic part, and ride height is set on the strut body so corner weights can be dialled in properly. KW validates every application on its own 7-post shaker rig and supplies the kit ready to install on the listed vehicles.

Features

The Coilover Kit for Ford Mustang offers separately adjustable compression and rebound damping
Developed on the Nordschleife for DOT-R and ultra high-performance tyres
Continuous ride height adjustment for corner weighting
High-quality stainless steel damper housing
Validated on KW’s 7-post shaker rig
Supplied with a technical component report
Developed and manufactured in Fichtenberg, Germany

Specifications

Front ride height adjustment: 1.0 to 1.8 in below factory
Rear ride height adjustment: 1.0 to 1.8 in below factory
Damper housing: stainless steel
Height adjustment: continuous, on the trapezoidal thread
Damping adjustment: compression and rebound, separately adjustable
Shipping weight: 58 lb
Carton dimensions: 30 x 18 x 6 in

Applications

Ford Mustang Bullitt: 2019-2020 | 5.0L V8
Ford Mustang Dark Horse Premium: 2024-2025 | 5.0L V8
Ford Mustang Dark Horse: 2024-2025 | 5.0L V8
Ford Mustang EcoBoost Premium: 2018-2026 | 2.3L inline-four
Ford Mustang EcoBoost: 2018-2026 | 2.3L inline-four
Ford Mustang GT Premium: 2018-2026 | 5.0L V8
Ford Mustang GT: 2018-2026 | 5.0L V8
Ford Mustang Mach 1: 2021-2023 | 5.0L V8
Ford Mustang Mach I: 2021 | 5.0L V8
Ford Mustang Shelby GT350: 2018-2020 | 5.2L V8

Notes

Front axle Clubsport top mounts are included
KW builds other suspension kits for the Ford Mustang: KW V3 Coilover Kit for Ford Mustang without Electronic Dampers (35230079)

Frequently Asked Questions

What is the KW Coilover Kit for Ford Mustang made from? KW builds the kit around a high-quality stainless steel damper housing with a composite spring seat and a trapezoidal thread body for continuous height adjustment. It is manufactured at KW’s headquarters in Fichtenberg, Germany, and every application is validated on the company’s own 7-post shaker rig before it enters production.
Which Ford models does this kit fit? This part number covers the Ford Mustang built between 2018 and 2026, across 10 listed engine and body variants shown under Applications. Confirm the exact model, drivetrain and suspension options against that list before ordering, because KW builds separate part numbers for closely related versions of the same car.
How far does the Coilover Kit for Ford Mustang lower the car? Front ride height adjusts between 1.0 and 1.8 inches below factory and the rear between 1.0 and 1.8 inches. Height is set continuously on the trapezoidal thread, so the car can be corner balanced and the setting revised later without changing springs.
Is this kit suitable for daily driving? It can be, but it is not the first choice. The Clubsport is valved for cars on DOT-R and ultra high-performance tires and used at track days, time attack and club racing. Owners who drive mostly on the road are usually better served by the standard V3.
Does the Coilover Kit for Ford Mustang need any modification to fit? No. The kit is built as a direct replacement for the factory suspension on the listed applications and installs with normal workshop tools. Read the Notes for this part number first, since some applications require the factory electronic damping to be deactivated or wheel spacers to be run.
Where is this kit made? KW designs and manufactures the kit at its headquarters in Fichtenberg, Germany, where the company has built suspension since 1995. Every damper is engineered in house and validated on KW’s own 7-post shaker rig and kinematics benches rather than sourced from a contract supplier.

About KW

KW automotive has developed and built suspension in Fichtenberg, Germany since 1995, and supplies coilover systems to vehicle manufacturers, professional tuners and race teams worldwide. Every KW damper is engineered in house, validated on the company’s own 7-post shaker rig and kinematics test benches, and manufactured at the Fichtenberg headquarters rather than sourced from a contract supplier. The application list runs to more than 4,600 fitments, from road cars to GT racing machinery.
