What is the KW Clubsport Coilover Kit for Audi made from?

KW builds the kit around a high-quality stainless steel damper housing with a composite spring seat and a trapezoidal thread body for continuous height adjustment. It is manufactured at KW’s headquarters in Fichtenberg, Germany, and every application is validated on the company’s own 7-post shaker rig before it enters production.

Which Audi models does this kit fit?

This part number covers the Audi TT and Volkswagen Golf built between 2005 and 2016, across 27 listed engine and body variants shown under Applications. Confirm the exact model, drivetrain and suspension options against that list before ordering, because KW builds separate part numbers for closely related versions of the same car.

How far does the Clubsport Coilover Kit for Audi lower the car?

Front ride height adjusts between 0.8 and 2.0 inches below factory and the rear between 0.8 and 2.0 inches. Height is set continuously on the trapezoidal thread, so the car can be corner balanced and the setting revised later without changing springs.

Is this kit suitable for daily driving?

It can be, but it is not the first choice. The Clubsport is valved for cars on DOT-R and ultra high-performance tires and used at track days, time attack and club racing. Owners who drive mostly on the road are usually better served by the standard V3.

Does the Clubsport Coilover Kit for Audi need any modification to fit?

No. The kit is built as a direct replacement for the factory suspension on the listed applications and installs with normal workshop tools. Read the Notes for this part number first, since some applications require the factory electronic damping to be deactivated or wheel spacers to be run.

Where is this kit made?

KW designs and manufactures the kit at its headquarters in Fichtenberg, Germany, where the company has built suspension since 1995. Every damper is engineered in house and validated on KW’s own 7-post shaker rig and kinematics benches rather than sourced from a contract supplier.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

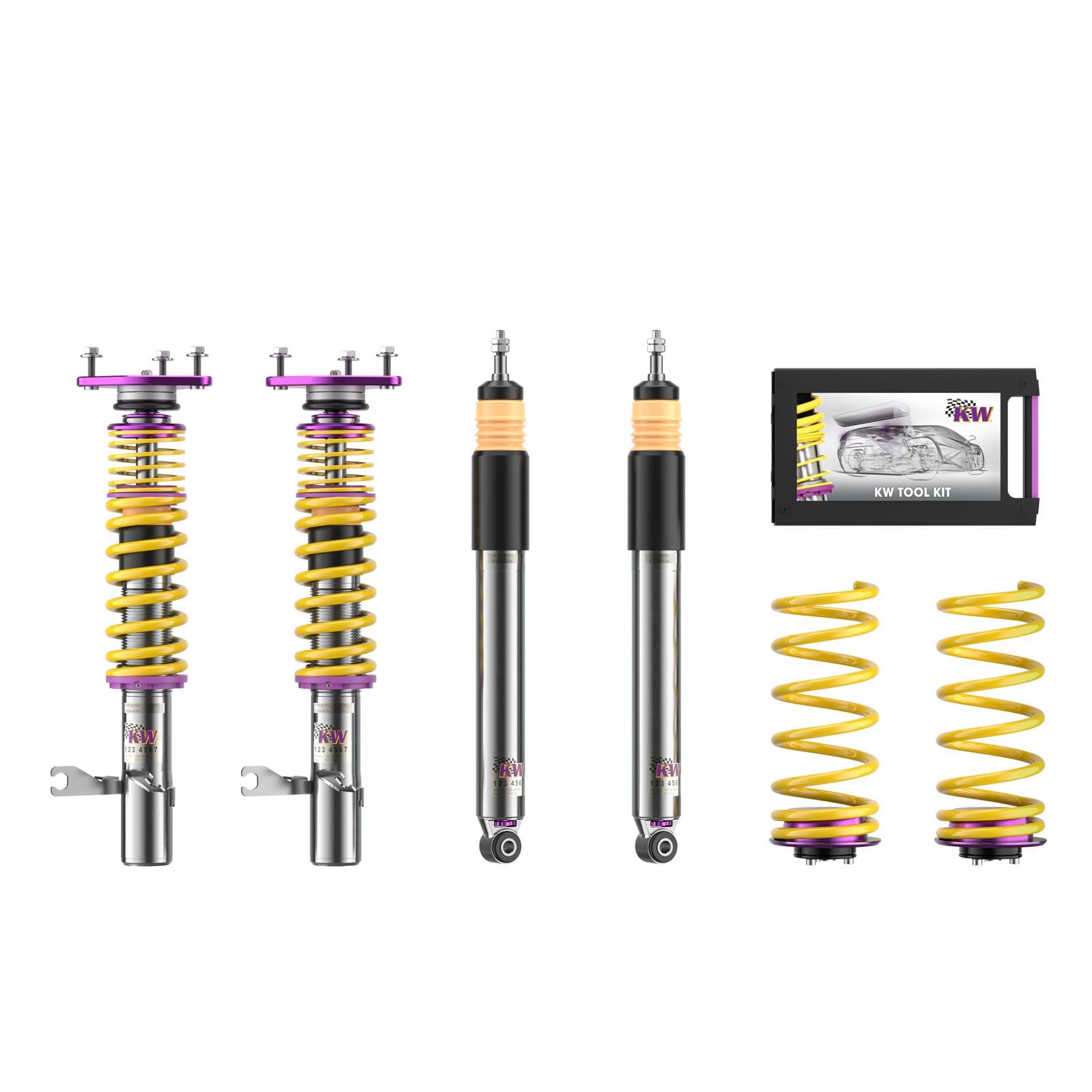

KW V3 Clubsport Coilover Kit for Audi TT and Volkswagen Golf

KW’s Clubsport Coilover Kit for Audi TT and Volkswagen Golf is what a car wants once its owner stops pretending it only sees the road. It is a track-focused coilover kit developed on the Nordschleife for cars on ultra high-performance tyres, developed and manufactured by KW in Fichtenberg, Germany and validated on the company’s own 7-post shaker rig before production. The front ride height moves between 0.8 and 2.0 inches below standard and the rear between 0.8 and 2.0 inches, set continuously on the strut body rather than picked from a list of fixed drops, so the car can be corner balanced properly. Pitch and roll under braking, cornering and load change are reduced, body control improves, and the Audi TT and Volkswagen Golf responds the way its specification always suggested it could.

Design and Performance

The Clubsport Coilover Kit for Audi is a track-focused coilover kit developed on the Nordschleife for cars on ultra high-performance tyres. Damping is valved by KW for this specific application rather than adapted from a generic part, and ride height is set on the strut body so corner weights can be dialled in properly. KW validates every application on its own 7-post shaker rig and supplies the kit ready to install on the listed vehicles.

Features

The Clubsport Coilover Kit for Audi offers separately adjustable compression and rebound damping
Developed on the Nordschleife for DOT-R and ultra high-performance tyres
Continuous ride height adjustment for corner weighting
High-quality stainless steel damper housing
Validated on KW’s 7-post shaker rig
Supplied with a technical component report
Developed and manufactured in Fichtenberg, Germany

Specifications

Front ride height adjustment: 0.8 to 2.0 in below factory
Rear ride height adjustment: 0.8 to 2.0 in below factory
Damper housing: stainless steel
Height adjustment: continuous, on the trapezoidal thread
Damping adjustment: compression and rebound, separately adjustable
Shipping weight: 50.1 lb
Carton dimensions: 29.1 x 17.8 x 6.1 in

Applications

Audi TT Quattro Premium Plus: 2012-2013 | 2.0L inline-four
Audi TT Quattro Prestige: 2012-2013 | 2.0L inline-four
Audi TT Quattro RS: 2012-2013 | 2.5L inline-five
Audi TT Quattro S: 2009-2016 | 2.0L inline-four
Audi TT Quattro: 2008-2009 | 3.2L V6
Audi TT Quattro: 2009-2016 | 2.0L inline-four
Audi TT RS Quattro: 2012-2013 | 2.5L inline-five
Audi TT: 2008-2009 | 2.0L inline-four
Audi TTS Quattro: 2009-2015 | 2.0L inline-four
Volkswagen GTI Driver’s Edition: 2014 | 2.0L inline-four
Volkswagen GTI Fahrenheit: 2007 | 2.0L inline-four
Volkswagen GTI Wolfsburg Edition: 2014 | 2.0L inline-four
Volkswagen GTI: 2006-2013 | 2.0L inline-four
Volkswagen Golf GL: 2006 | 2.0L inline-four
Volkswagen Golf GLS TDI: 2006 | 1.9L inline-four
Volkswagen Golf GLS: 2006 | 2.0L inline-four
Volkswagen Golf GTI 1.8T: 2006 | 1.8L inline-four
Volkswagen Golf R: 2012-2013 | 2.0L inline-four
Volkswagen Golf TDI: 2010-2014 | 2.0L inline-four
Volkswagen Golf: 2010-2014 | 2.5L inline-five
Volkswagen Jetta 2.0T: 2006-2007 | 2.0L inline-four
Volkswagen Jetta 2.5: 2005-2007 | 2.5L inline-five
Volkswagen Jetta GL TDI: 2005 | 1.9L inline-four
Volkswagen Jetta GL: 2005 | 1.8L inline-four
Volkswagen Jetta GL: 2005 | 2.0L inline-four
Volkswagen Jetta GLI: 2005 | 1.8L inline-four
Volkswagen Jetta GLI: 2006-2014 | 2.0L inline-four

Notes

Cars fitted with factory electronic damper control need that system disabled before this kit will work correctly.
Rebound adjustment is made at the top of the piston rod and depends on that point remaining accessible once the kit is installed
Wheel offset spacers may be required when the original wheels and tires are retained
Front ride height is set on the threaded shock bodies and the rear on an adjustable spring perch
Front axle Clubsport top mounts are included
KW builds other suspension kits for the Audi TT and Volkswagen Golf: KW V4 Clubsport Coilover Kit for Audi TT and Volkswagen Golf (39780242)
Removing the factory electronic dampers requires a cancellation module. The KW ESC Module for 8P Audi A3 and TT (68510124) prevents fault messages once they are out.

Frequently Asked Questions

What is the KW Clubsport Coilover Kit for Audi made from? KW builds the kit around a high-quality stainless steel damper housing with a composite spring seat and a trapezoidal thread body for continuous height adjustment. It is manufactured at KW’s headquarters in Fichtenberg, Germany, and every application is validated on the company’s own 7-post shaker rig before it enters production.
Which Audi models does this kit fit? This part number covers the Audi TT and Volkswagen Golf built between 2005 and 2016, across 27 listed engine and body variants shown under Applications. Confirm the exact model, drivetrain and suspension options against that list before ordering, because KW builds separate part numbers for closely related versions of the same car.
How far does the Clubsport Coilover Kit for Audi lower the car? Front ride height adjusts between 0.8 and 2.0 inches below factory and the rear between 0.8 and 2.0 inches. Height is set continuously on the trapezoidal thread, so the car can be corner balanced and the setting revised later without changing springs.
Is this kit suitable for daily driving? It can be, but it is not the first choice. The Clubsport is valved for cars on DOT-R and ultra high-performance tires and used at track days, time attack and club racing. Owners who drive mostly on the road are usually better served by the standard V3.
Does the Clubsport Coilover Kit for Audi need any modification to fit? No. The kit is built as a direct replacement for the factory suspension on the listed applications and installs with normal workshop tools. Read the Notes for this part number first, since some applications require the factory electronic damping to be deactivated or wheel spacers to be run.
Where is this kit made? KW designs and manufactures the kit at its headquarters in Fichtenberg, Germany, where the company has built suspension since 1995. Every damper is engineered in house and validated on KW’s own 7-post shaker rig and kinematics benches rather than sourced from a contract supplier.

About KW

KW automotive has developed and built suspension in Fichtenberg, Germany since 1995, and supplies coilover systems to vehicle manufacturers, professional tuners and race teams worldwide. Every KW damper is engineered in house, validated on the company’s own 7-post shaker rig and kinematics test benches, and manufactured at the Fichtenberg headquarters rather than sourced from a contract supplier. The application list runs to more than 4,600 fitments, from road cars to GT racing machinery.
