What does the KW HLS 2 Lift System for Ferrari F430 do?

It raises the front axle of the Ferrari F430 Scuderia by 30 to 45 mm at the press of a button, so driveways, ramps and speed humps stop scraping. A hydraulic cylinder sits between the spring perch and the main spring and expands on demand, then returns the car to its set ride height.

Does this kit fit a car on KW coilovers?

No. This part number is the version built for the original factory suspension. If the car is already running KW coilovers, KW builds a different HLS version that mounts to the coilover hardware instead, and the two are not interchangeable.

How much lift does the Lift System for Ferrari F430 give?

The system provides 30 to 45 mm of additional clearance, roughly 1.2 to 1.8 inches, on the front axle only. That is enough to clear the ramps, driveways and speed humps that catch a lowered car, and the vehicle returns to its chosen ride height once the system is released.

Can the car be raised while it is moving?

Yes. Height is changed from a keychain transmitter and works with the car stationary or moving at up to 80 km/h, roughly 50 mph. Above that speed the control unit lowers the car automatically so the aerodynamic balance is not disturbed at speed.

Where does the hydraulic pump mount?

The pump installs in or near the spare wheel location. Because the system is commanded by a keychain transmitter, no extra wiring has to be routed through the cabin to a dashboard switch, which keeps the installation contained and reversible if the car is ever returned to standard.

Is the HLS 2 made by KW in Germany?

Yes. KW develops and manufactures the Hydraulic Lift System at its headquarters in Fichtenberg, Germany, alongside the coilover systems it is designed to work with. KW has built suspension there since 1995 and supplies vehicle manufacturers, professional tuners and race teams worldwide.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

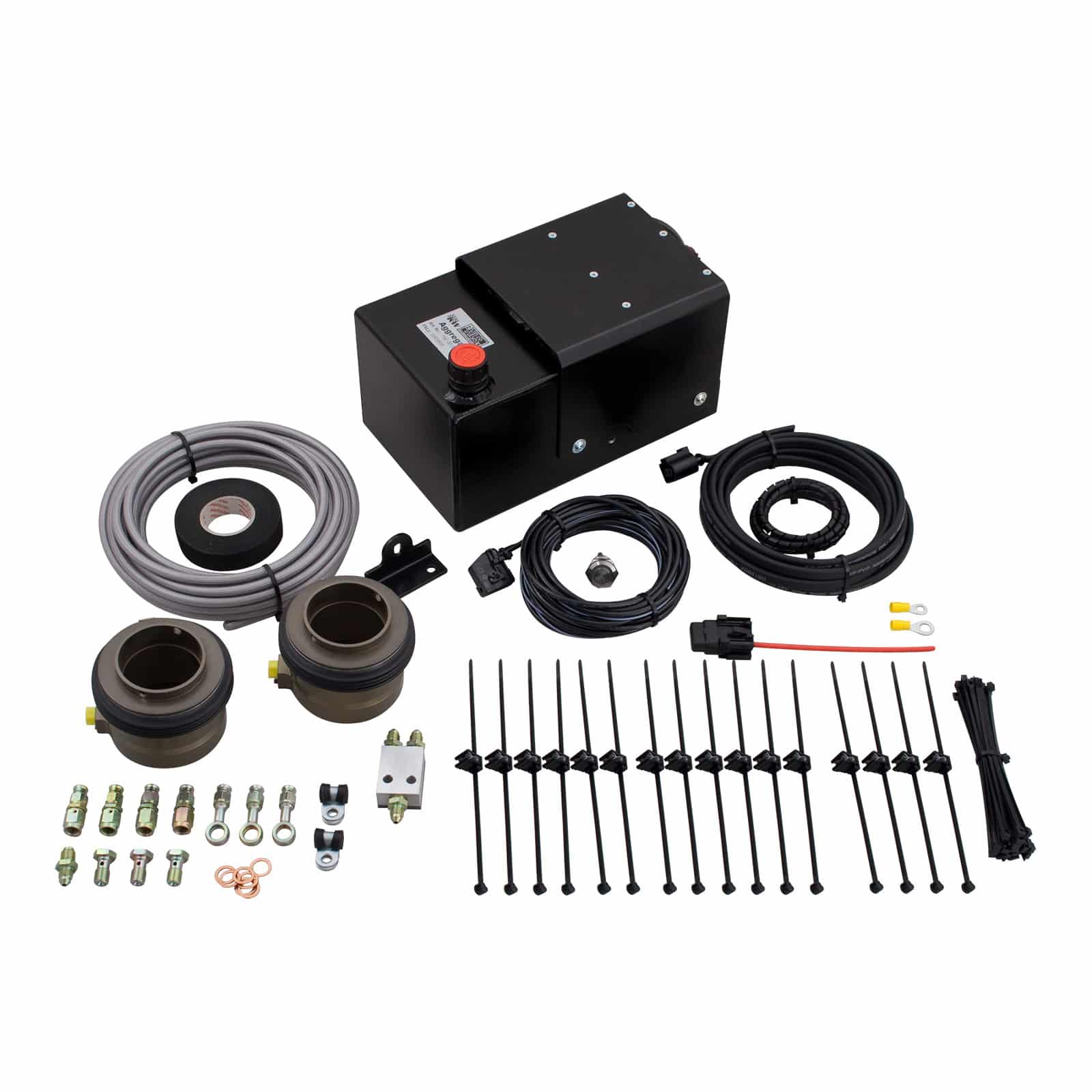

KW HLS 2 Hydraulic Lift System for Ferrari F430 Scuderia with OE Suspension

KW’s Lift System for Ferrari F430 Scuderia is built for the 430 Scuderia, the version in which Ferrari removed weight, sharpened the V8 and gave the car a circuit brief. A lighter, harder F430 magnifies what damping does at both ends. KW develops and builds this system in Fichtenberg, Germany and validates it on its own 7-post rig, which is what allows a Scuderia to be set up for a track day and returned for the road. For an owner of the most focused F430, this is hardware of matching intent.

How It Works

With the Lift System for Ferrari F430 fitted, a hydraulic cylinder unit sits between the spring perch and the main spring at the front axle only. When the system is activated the cylinder expands and lifts the car; when it is released the car settles back to its set height. The pump mounts in or near the spare wheel location and is commanded by a small keychain transmitter, so no additional wiring has to be routed through the cabin. The electronic unit lowers the car automatically once road speed passes 80 km/h, which keeps the aerodynamic balance intact at speed.

Features

The Lift System for Ferrari F430 adds 30 to 45 mm of clearance on demand
Keychain transmitter operation with no cabin wiring required
Operates with the car stationary or moving at up to 80 km/h
Automatic return to set ride height above 80 km/h
Hydraulic pump mounts in or near the spare wheel location
Built for the original factory suspension
Developed and manufactured in Fichtenberg, Germany

Specifications

Lift range of the Lift System for Ferrari F430: 30 to 45 mm (1.2 to 1.8 in)
Axle coverage: front axle only
Maximum operating speed: 80 km/h (approximately 50 mph)
Control: keychain radio transmitter
Base suspension required: original factory suspension
Shipping weight: 47.08 lb
Ride height adjustment: front 0.4 to 1.2 in, rear 0.4 to 1.2 in below factory

Applications

Ferrari F430 Scuderia: F131 | 2008-2009 | 4.3L V8

Notes

KW builds the Hydraulic Lift System across a wide range of applications. The full KW HLS range on Bulletproof Automotive lists the versions built for other chassis.
The HLS 2 raises the front axle only. KW builds the HLS 4 for owners who need the rear axle raised as well.
This version is built for the original factory suspension and does not require KW coilovers
The system carries hydraulic pressure and requires bleeding after assembly, so professional installation is recommended

Frequently Asked Questions

What does the KW HLS 2 Lift System for Ferrari F430 do? It raises the front axle of the Ferrari F430 Scuderia by 30 to 45 mm at the press of a button, so driveways, ramps and speed humps stop scraping. A hydraulic cylinder sits between the spring perch and the main spring and expands on demand, then returns the car to its set ride height.
Does this kit fit a car on KW coilovers? No. This part number is the version built for the original factory suspension. If the car is already running KW coilovers, KW builds a different HLS version that mounts to the coilover hardware instead, and the two are not interchangeable.
How much lift does the Lift System for Ferrari F430 give? The system provides 30 to 45 mm of additional clearance, roughly 1.2 to 1.8 inches, on the front axle only. That is enough to clear the ramps, driveways and speed humps that catch a lowered car, and the vehicle returns to its chosen ride height once the system is released.
Can the car be raised while it is moving? Yes. Height is changed from a keychain transmitter and works with the car stationary or moving at up to 80 km/h, roughly 50 mph. Above that speed the control unit lowers the car automatically so the aerodynamic balance is not disturbed at speed.
Where does the hydraulic pump mount? The pump installs in or near the spare wheel location. Because the system is commanded by a keychain transmitter, no extra wiring has to be routed through the cabin to a dashboard switch, which keeps the installation contained and reversible if the car is ever returned to standard.
Is the HLS 2 made by KW in Germany? Yes. KW develops and manufactures the Hydraulic Lift System at its headquarters in Fichtenberg, Germany, alongside the coilover systems it is designed to work with. KW has built suspension there since 1995 and supplies vehicle manufacturers, professional tuners and race teams worldwide.

About KW

KW automotive has developed and built suspension in Fichtenberg, Germany since 1995, and supplies coilover systems to vehicle manufacturers, professional tuners and race teams worldwide. Every KW damper is engineered in house, validated on the company’s own 7-post shaker rig and kinematics test benches, and manufactured at the Fichtenberg headquarters rather than sourced from a contract supplier. The application list runs to more than 4,600 fitments, from road cars to GT racing machinery.
