What does the KW ESC Module for F10 BMW do?

It replaces the signal the factory adaptive dampers send to the car once those dampers are removed for a KW coilover installation. Without it the car logs faults and puts warnings on the instrument cluster. The module keeps the vehicle electronically satisfied that its original suspension is still connected.

Do the in-cabin drive modes still work?

Yes. The module maintains the function of the drive mode selection inside the cabin after the factory electronic dampers have been removed, so the mode switch continues to operate normally rather than returning an error. Damping itself is then set by hand on the KW coilovers.

Do I need this module with KW coilovers?

Only if the car left the factory with electronically adjustable dampers. Where it did, removing that hardware to fit conventional coilovers requires this module to prevent fault codes and dashboard warnings. A car built without adaptive damping does not need it at all.

Is the ESC Module for F10 BMW a plug-in installation?

The module connects into the existing factory damper wiring in place of the original units. It is normally fitted at the same time as the coilover kit, since both jobs involve the same connectors, and no dealer coding or software work is required for the module itself.

Which vehicles does this module cover?

This part number covers the BMW 5 Series and 6 Series and 7 Series built between 2009 and 2018, across 21 listed variants shown under Applications. KW builds separate modules for other generations, so match the part to the exact chassis before ordering.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

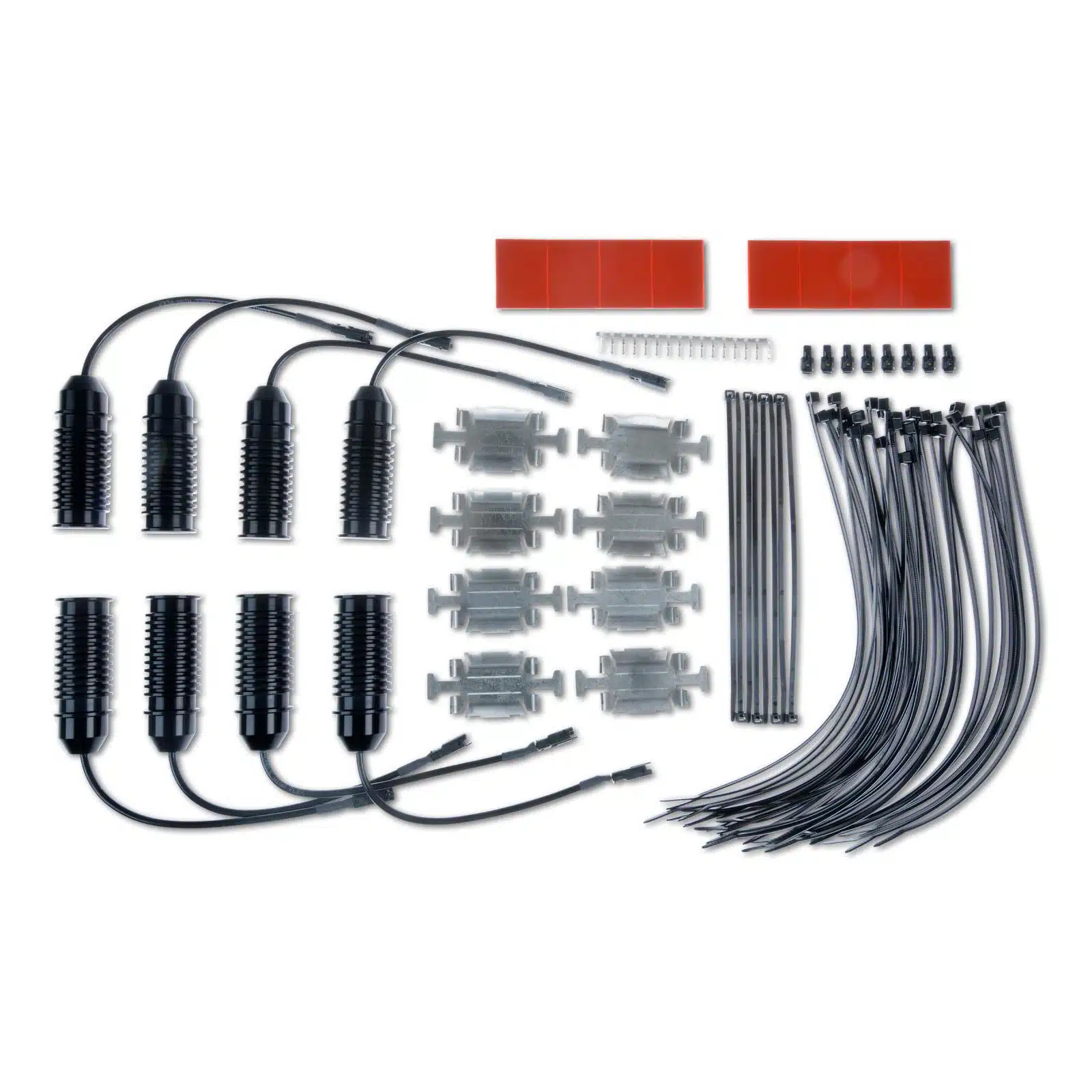

KW ESC Module for F10 BMW 5 Series and 6 Series and 7 Series

KW’s ESC Module for F10 BMW 5 Series and 6 Series and 7 Series is the small component that makes a proper coilover conversion possible on a car built around its own adaptive dampers. Remove those dampers and the car objects immediately, with fault codes and cluster warnings no amount of mechanical work will silence. This module, developed and built by KW in Fichtenberg, Germany, takes the place of the factory damper signal so the car accepts the change, and it keeps the in-cabin drive mode selection working as before. It is not a part anyone buys for its own sake; it is the part that lets the suspension underneath be chosen on merit rather than dictated by the wiring loom.

Why It Is Needed

Vehicles delivered with electronically controlled dampers expect to see them on the bus, and fitting conventional KW coilovers removes that hardware, which the control unit reads as a fault. The ESC Module for F10 BMW supplies what the control unit is looking for, so the dashboard stays clean and the drive mode switch keeps functioning, while damping is set by hand at the coilover itself.

Features

The ESC Module for F10 BMW prevents fault messages caused by removing the factory electronic dampers
Maintains in-cabin drive mode function after the factory dampers are removed
Application-specific to the vehicles listed under Applications
Connects into the existing factory damper wiring
No dealer coding required for the module
Shipping weight 3.5 lb; carton 8.6 x 6.4 x 4.6 in
Developed and manufactured in Fichtenberg, Germany

Applications

BMW 528i xDrive: F10 | 2012-2016 | 2.0L inline-four
BMW 528i: F10 | 2011 | 3.0L inline-six
BMW 528i: F10 | 2012-2016 | 2.0L inline-four
BMW 535d xDrive: F10 | 2014-2016 | 3.0L inline-six
BMW 535d: F10 | 2014-2016 | 3.0L inline-six
BMW 535i GT xDrive: F10 | 2011-2013 | 3.0L inline-six
BMW 535i GT: F10 | 2010-2013 | 3.0L inline-six
BMW 535i xDrive: F10 | 2011-2016 | 3.0L inline-six
BMW 535i: F10 | 2011-2016 | 3.0L inline-six
BMW 550i GT xDrive: F10 | 2010-2013 | 4.4L V8
BMW 550i GT: F10 | 2010-2013 | 4.4L V8
BMW 550i xDrive: F10 | 2011-2016 | 4.4L V8
BMW 550i: F10 | 2011-2016 | 4.4L V8
BMW 640i xDrive: F10 | 2014-2018 | 3.0L inline-six
BMW 640i: F10 | 2013-2018 | 3.0L inline-six
BMW 650i xDrive: F10 | 2013-2018 | 4.4L V8
BMW 650i: F10 | 2013-2018 | 4.4L V8
BMW 740Li: F10 | 2011-2012 | 3.0L inline-six
BMW 740i: F10 | 2011-2015 | 3.0L inline-six
BMW 750i xDrive: F10 | 2010-2015 | 4.4L V8
BMW 750i: F10 | 2009-2015 | 4.4L V8

Notes

KW builds this line across a wide range of chassis. The full KW range on Bulletproof Automotive lists the versions built for other vehicles.
Sold as a single module
The ESC Module for F10 BMW is required only when the factory electronically controlled dampers are being removed; a car retaining its original adaptive dampers does not need it
KW builds cancellation modules for many chassis and they are not interchangeable; this part number is specific to the vehicles listed under Applications

Frequently Asked Questions

What does the KW ESC Module for F10 BMW do? It replaces the signal the factory adaptive dampers send to the car once those dampers are removed for a KW coilover installation. Without it the car logs faults and puts warnings on the instrument cluster. The module keeps the vehicle electronically satisfied that its original suspension is still connected.
Do the in-cabin drive modes still work? Yes. The module maintains the function of the drive mode selection inside the cabin after the factory electronic dampers have been removed, so the mode switch continues to operate normally rather than returning an error. Damping itself is then set by hand on the KW coilovers.
Do I need this module with KW coilovers? Only if the car left the factory with electronically adjustable dampers. Where it did, removing that hardware to fit conventional coilovers requires this module to prevent fault codes and dashboard warnings. A car built without adaptive damping does not need it at all.
Is the ESC Module for F10 BMW a plug-in installation? The module connects into the existing factory damper wiring in place of the original units. It is normally fitted at the same time as the coilover kit, since both jobs involve the same connectors, and no dealer coding or software work is required for the module itself.
Which vehicles does this module cover? This part number covers the BMW 5 Series and 6 Series and 7 Series built between 2009 and 2018, across 21 listed variants shown under Applications. KW builds separate modules for other generations, so match the part to the exact chassis before ordering.
Where is the KW ESC Module for F10 BMW made? KW designs and manufactures the module at its headquarters in Fichtenberg, Germany, alongside the coilover systems it is built to work with. KW has produced suspension there since 1995 and supplies vehicle manufacturers, professional tuners and race teams worldwide. KW manufactures the kit in Fichtenberg, Germany and validates every application on its own 7-post shaker rig before production, so the part is matched to the vehicles listed under Applications.

About KW

KW automotive has developed and built suspension in Fichtenberg, Germany since 1995, and supplies coilover systems to vehicle manufacturers, professional tuners and race teams worldwide. Every KW damper is engineered in house, validated on the company’s own 7-post shaker rig and kinematics test benches, and manufactured at the Fichtenberg headquarters rather than sourced from a contract supplier. The application list runs to more than 4,600 fitments, from road cars to GT racing machinery.
