What does the KW ESC Module for Aston Martin do?

It replaces the signal the factory adaptive dampers send to the car once those dampers are removed for a KW coilover installation. Without it the car logs faults and puts warnings on the instrument cluster. The module keeps the vehicle electronically satisfied that its original suspension is still connected.

Do the in-cabin drive modes still work?

Yes. The module maintains the function of the drive mode selection inside the cabin after the factory electronic dampers have been removed, so the mode switch continues to operate normally rather than returning an error. Damping itself is then set by hand on the KW coilovers.

Do I need this module with KW coilovers?

Only if the car left the factory with electronically adjustable dampers. Where it did, removing that hardware to fit conventional coilovers requires this module to prevent fault codes and dashboard warnings. A car built without adaptive damping does not need it at all.

Is the ESC Module for Aston Martin a plug-in installation?

The module connects into the existing factory damper wiring in place of the original units. It is normally fitted at the same time as the coilover kit, since both jobs involve the same connectors, and no dealer coding or software work is required for the module itself.

Which vehicles does this module cover?

This part number covers the Aston Martin DB9 built between 2012 and 2016, across 3 listed variants shown under Applications. KW builds separate modules for other generations, so match the part to the exact chassis before ordering. KW manufactures the kit in Fichtenberg, Germany and validates every application on its own 7-post shaker rig before production, so the part is matched to the vehicles listed under Applications.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

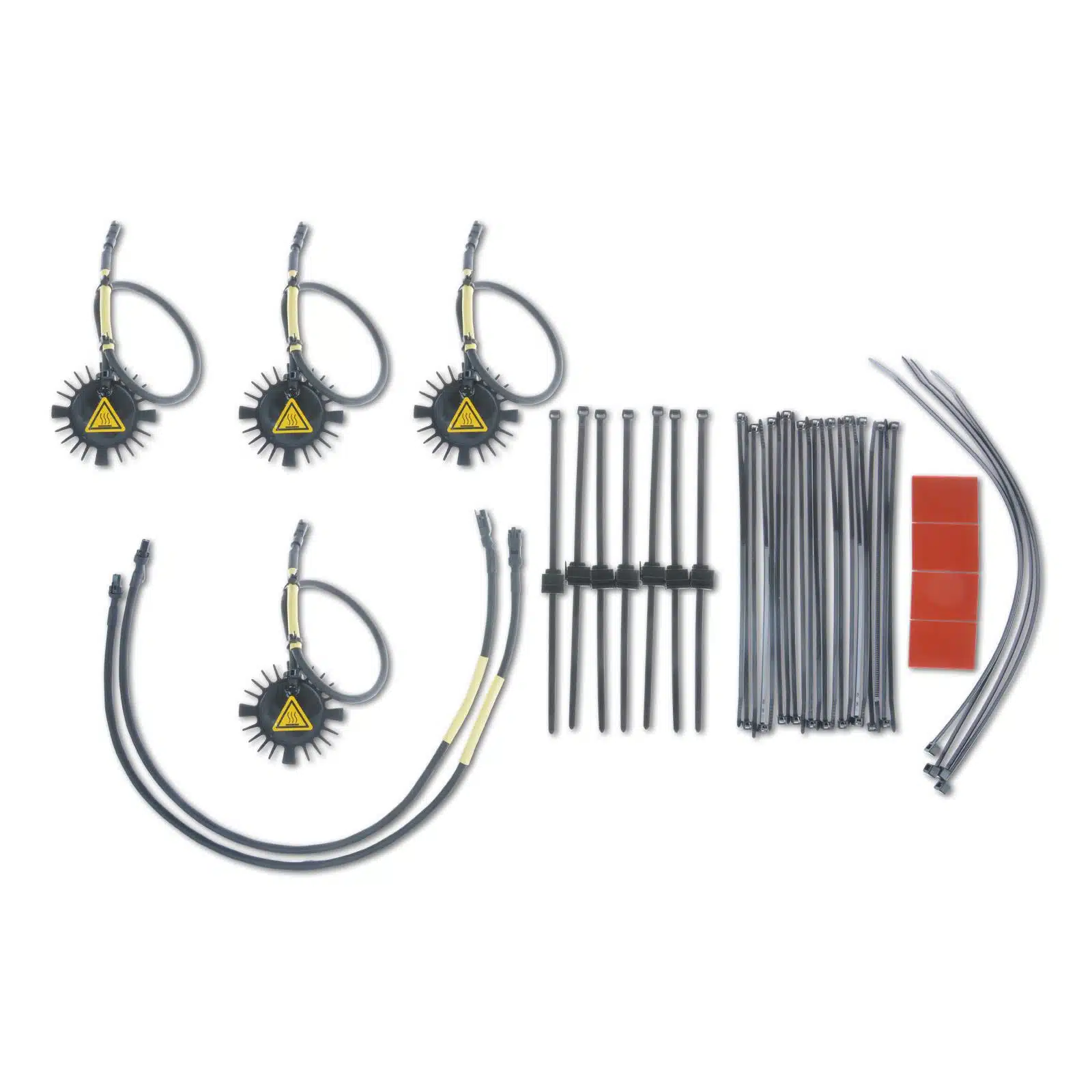

KW ESC Module for Aston Martin DB9

KW’s ESC Module for Aston Martin DB9 is what lets a DB9 be converted to a proper coilover suspension. Aston Martin fitted the car with adaptive damping, and taking it out without this module leaves the V12 logging faults and posting warnings on the cluster. KW designs and builds the module in Fichtenberg, Germany, alongside the suspension it is made to accompany, so the car accepts the conversion and its cabin controls keep working as intended.

Why It Is Needed

Vehicles delivered with electronically controlled dampers expect to see them on the bus, and fitting conventional KW coilovers removes that hardware, which the control unit reads as a fault. The ESC Module for Aston Martin supplies what the control unit is looking for, so the dashboard stays clean and the drive mode switch keeps functioning, while damping is set by hand at the coilover itself.

Features

The ESC Module for Aston Martin prevents fault messages caused by removing the factory electronic dampers
Maintains in-cabin drive mode function after the factory dampers are removed
Application-specific to the vehicles listed under Applications
Connects into the existing factory damper wiring
No dealer coding required for the module
Shipping weight 4.4 lb; carton 4 x 4 x 4 in
Developed and manufactured in Fichtenberg, Germany

Applications

Aston Martin DB9 GT: 2016 | 5.9L V12
Aston Martin DB9 Volante: 2012-2016 | 5.9L V12
Aston Martin DB9: 2012-2016 | 5.9L V12

Notes

KW builds this line across a wide range of chassis. The full KW range on Bulletproof Automotive lists the versions built for other vehicles.
Sold as a single module
The ESC Module for Aston Martin is required only when the factory electronically controlled dampers are being removed; a car retaining its original adaptive dampers does not need it
KW builds cancellation modules for many chassis and they are not interchangeable; this part number is specific to the vehicles listed under Applications

Frequently Asked Questions

What does the KW ESC Module for Aston Martin do? It replaces the signal the factory adaptive dampers send to the car once those dampers are removed for a KW coilover installation. Without it the car logs faults and puts warnings on the instrument cluster. The module keeps the vehicle electronically satisfied that its original suspension is still connected.
Do the in-cabin drive modes still work? Yes. The module maintains the function of the drive mode selection inside the cabin after the factory electronic dampers have been removed, so the mode switch continues to operate normally rather than returning an error. Damping itself is then set by hand on the KW coilovers.
Do I need this module with KW coilovers? Only if the car left the factory with electronically adjustable dampers. Where it did, removing that hardware to fit conventional coilovers requires this module to prevent fault codes and dashboard warnings. A car built without adaptive damping does not need it at all.
Is the ESC Module for Aston Martin a plug-in installation? The module connects into the existing factory damper wiring in place of the original units. It is normally fitted at the same time as the coilover kit, since both jobs involve the same connectors, and no dealer coding or software work is required for the module itself.
Which vehicles does this module cover? This part number covers the Aston Martin DB9 built between 2012 and 2016, across 3 listed variants shown under Applications. KW builds separate modules for other generations, so match the part to the exact chassis before ordering. KW manufactures the kit in Fichtenberg, Germany and validates every application on its own 7-post shaker rig before production, so the part is matched to the vehicles listed under Applications.
Where is the KW ESC Module for Aston Martin made? KW designs and manufactures the module at its headquarters in Fichtenberg, Germany, alongside the coilover systems it is built to work with. KW has produced suspension there since 1995 and supplies vehicle manufacturers, professional tuners and race teams worldwide. KW manufactures the kit in Fichtenberg, Germany and validates every application on its own 7-post shaker rig before production, so the part is matched to the vehicles listed under Applications.

About KW

KW automotive has developed and built suspension in Fichtenberg, Germany since 1995, and supplies coilover systems to vehicle manufacturers, professional tuners and race teams worldwide. Every KW damper is engineered in house, validated on the company’s own 7-post shaker rig and kinematics test benches, and manufactured at the Fichtenberg headquarters rather than sourced from a contract supplier. The application list runs to more than 4,600 fitments, from road cars to GT racing machinery.
