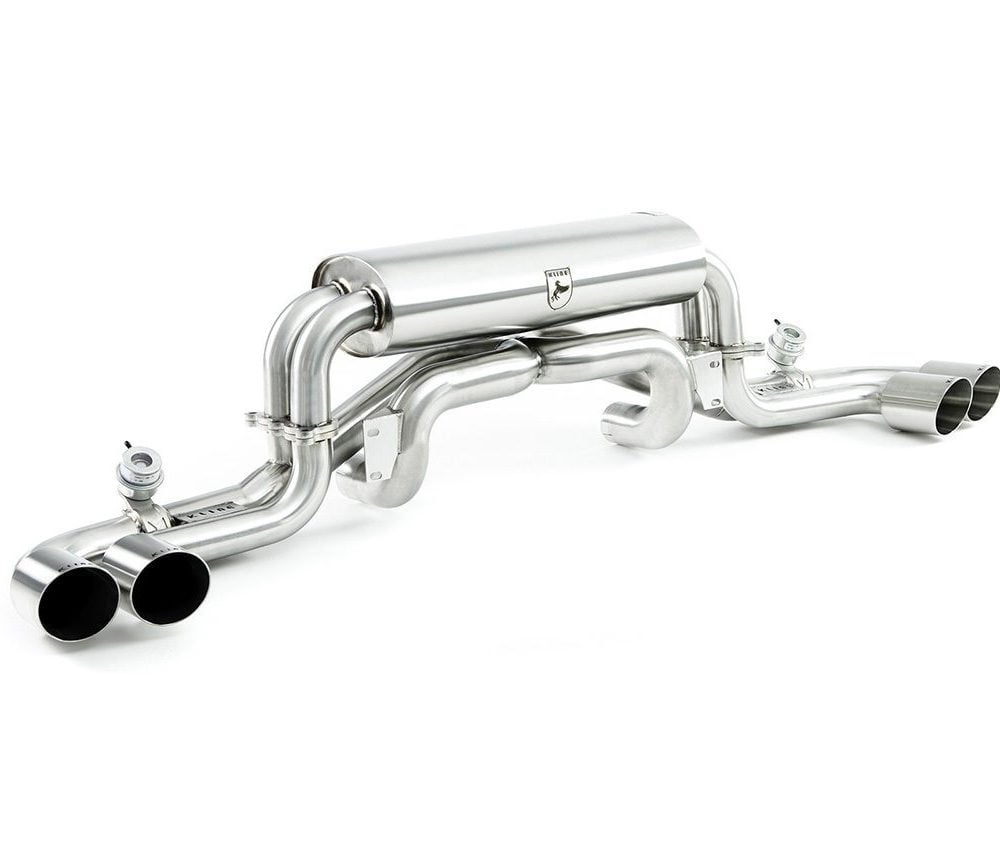

Kline Innovation Valvetronic Exhaust System for Type F131 Ferrari 360

Kline Innovation Valvetronic Exhaust System for Type F131 Ferrari 360

As the successor to the Ferrari 355, the Ferrari 360 embodies the essence of a true driver’s machine. With its flat plane crank V8 engine generating 395 horsepower and an impressive 8500 RPM redline, it delivers exhilarating performance. While the factory exhaust note is satisfactory, there is substantial potential for enhancement, along with the opportunity for compelling weight reduction.

The Sound

• Through the removal of the heavily chambered rear silencer and the substitution with their lightweight Inconel 625 rear section, the weight of the exhaust is significantly reduced to only one-third of the stock system. Incorporating their signature 1D CLR X pipe design raises the pitch of the exhaust, resulting in the iconic high-pitched F1 scream that enthusiasts crave. When the valve is closed, the exhaust gases are intelligently channeled through their harmonically tuned silencer, delivering a smooth driving experience that closely mirrors the stock setup without any drone on the highway. However, upon opening the valve, the silencer is completely bypassed, allowing the raw power of the X pipe to unleash that exhilarating, high-pitched F1 scream.
• In addition, replacing the stock 600cpsi catalysts with their HJS race catalysts or racing pipes further enhances the exhaust sound, producing an aggressive F1-like tone. The available tips come in a choice of double-skinned Inconel or stainless steel, as well as F1-grade pre-preg carbon fiber, providing both durability and style options. Moreover, they offer equal length headers crafted from either Inconel alloy or stainless steel, which not only enhance the overall sound by adding an extra dimension but also deliver moderate performance gains.

Performance

• To achieve optimal performance gains, the recommended additions include a rear valvetronic exhaust, racing pipes, and equal length headers. This combination is expected to yield a power increase of approximately 21 horsepower across the entire rev range.

Stainless Steel

• When it comes to exhaust manufacturing, the prevailing industry standard revolves around the use of 304-grade stainless steel. This particular grade offers a well-rounded combination of moderate strength, thermochemical stability, cost-effectiveness, and ease of production. It enables the construction of exhaust systems that strike a sensible balance between affordability and functionality, ensuring durability over the long term. However, it is worth noting that stainless steel is relatively heavier compared to alternative materials. Although it shares a similar density with regular steel, it has slightly lower tensile strength. This limitation restricts the potential for creating high-performance exhaust components using stainless steel. Moreover, in terms of sound characteristics, the thicker sidewalls required by stainless steel may result in a somewhat subdued and less vibrant exhaust note compared to other materials mentioned.

Inconel

• When it comes to ensuring durability and heat resistance in the aerospace industry, the utilization of Inconel 625 stands as a paramount choice. This extraordinary material finds extensive applications in the manufacturing of critical components, specifically exhaust turbine blades for high-performance jet engines. Notably, Inconel is the preferred selection for Formula One exhaust systems and has been chosen by manufacturers involved in prestigious hypercar projects like the McLaren P1 and Aston Martin 177. These applications benefit immensely from Inconel’s exceptional capacity to withstand extreme temperatures surpassing 1000°C while prioritizing a lightweight design.
• Inconel exhibits extraordinary properties, including remarkably high tensile strength and exceptional thermochemical stability. Its tensile strength is comparable to that of titanium, resulting in an outstanding strength-to-weight ratio. As a result, Inconel allows for the utilization of thin sidewall materials while maintaining structural integrity, facilitating the production of lightweight components that demonstrate remarkable resistance to fatigue over extended periods. However, working with Inconel presents certain challenges due to its difficult machinability and specific welding requirements, necessitating specialized skills and time-consuming techniques. Additionally, the unique properties and specialized manufacturing processes associated with Inconel contribute to its higher cost as a raw material.

Heat Shield

• For those who prioritize heat management, the company offers a thoughtfully designed heat protection solution crafted from embossed stainless steel sheet. Each heat shield is meticulously created and welded by skilled artisans. By integrating these heat shields onto the manifolds, customers can experience reduced heat soak and improved scavenge, resulting in enhanced overall performance and a cooler engine temperature.

Specifications

• X-Pipe Diameter: 63.5mm
• Silencer Transit: 50mm
• Catalyst Pipe Diameter: 70mm / 63.5mm
• Catalyst Overall Cross Section: 122mm
• Manifold:
  • Primaries: 45mm
  • Secondaries: 63.5mm
• Available with either 100 cell, 200 cell or racing pipes for optimum performance
• All cross section chosen for the optimum balance of torque and power
• Rear silencer section:
  • Material:
    • 100 Cell Catalysts Pipes: 304 grade stainless / F1 grade inconel 625 superalloy
    • Racing Pipes: 304 grade stainless / F1 grade inconel 625 superalloy
    • Manifolds: 304 grade stainless / F1 grade inconel 625 superalloy

Applications

• Ferrari 360: Type F131 (2000-2005) – 3.6L V8 Type F131

Notes

• The valve operation is seamlessly integrated with the car’s original equipment manufacturer (OEM) vacuum system and can be conveniently controlled using the new Kline INCONEL BUTTON wireless kit
• While the images prominently feature the manifolds, it is vital to emphasize that they are not part of the standard package

About Kline Innovation

At Kline, exhaust design is approached with utmost seriousness. The company adopts a no-compromise stance when it comes to delivering a product that meets the highest standards and satisfies customers’ expectations. Kline offers a comprehensive original equipment design and manufacturing service. Starting from provided drawings or design briefs, the team utilizes advanced 3D modeling techniques to create final designs. They also provide valuable consultation during the process and are capable of manufacturing tooling and fixtures for production, as well as handling final production runs, particularly catering to low to medium volume needs. Kline’s commitment to excellence ensures that customers receive a top-quality product without any compromises.

Development

• All projects at Kline are executed entirely in-house, utilizing a diverse range of processes. These internal capabilities include laser scanning, CNC laser cutting, CNC mandrel bending, tubing and silencer manufacturing, CNC welding, pressings, CNC milling, mould manufacturing, and autoclave carbon fiber production. Notable automotive clients, such as W Motors with their Fenyr Supersport, Corbellati Missile, and RUF Automobil, have recently collaborated with Kline.
• Kline has expanded its design and manufacturing process by incorporating laser scanning capabilities. This valuable addition enables the team to achieve enhanced precision in both design and quality control, resulting in an exceptional end product for customers. The adoption of laser scanning technology at Kline showcases the company’s unwavering dedication to delivering superior outcomes.
